Hydraulica 6000 – Glass Lifter for Hire or Sale

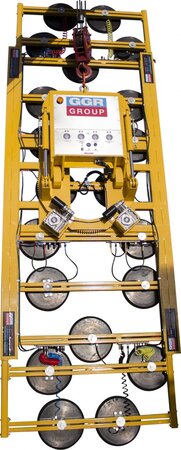

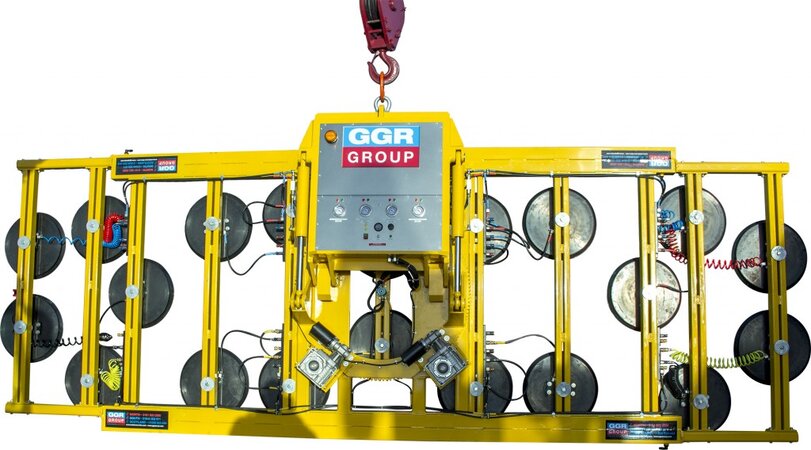

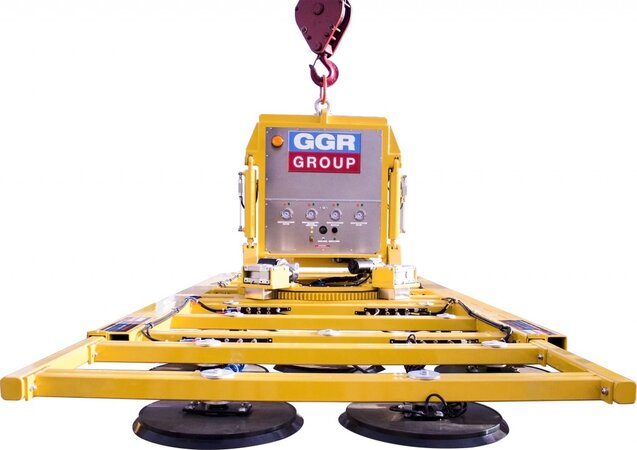

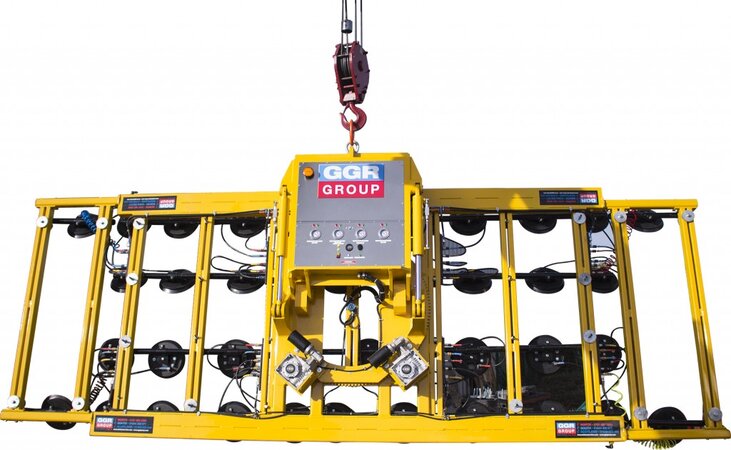

The Hydraulica 6000 is the largest capacity glass vacuum lifter in the UK to date. With a maximum capacity of 6000kg, this vacuum sucker features 360o electric powered rotation and 90o hydraulic tilt to assist in the manoeuvering of large, heavy loads.

  • Capacity: 6000kg
  • Four vacuum circuits with 4 on-board maintenance free vacuum pumps
  • Electric powered 360o rotation
  • 90o hydraulic tilt
  • Audio-visual low vacuum alert
  • Transport stand as standard
  • Cable remote control as standard, optional radio remote

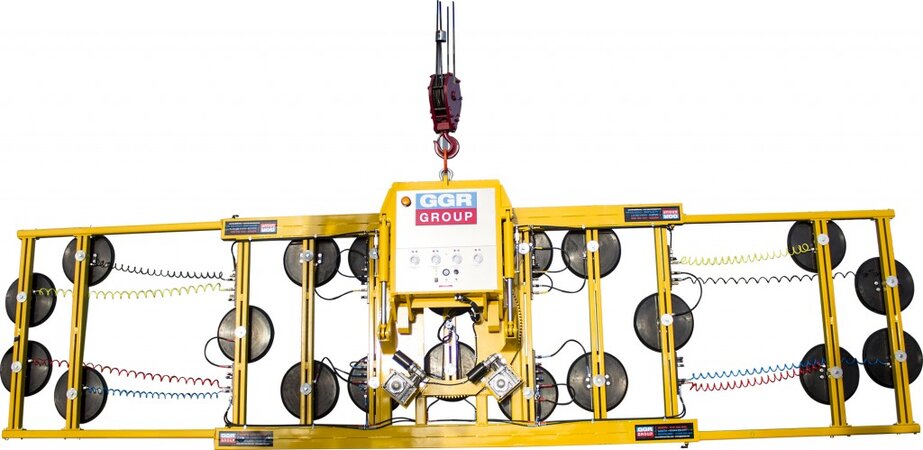

  • Sliding extension arms

Reference Code VGL99

Capacity: 6000kg
Rotation: Powered 360°
Battery:
12v
Reference: VGL99

Features

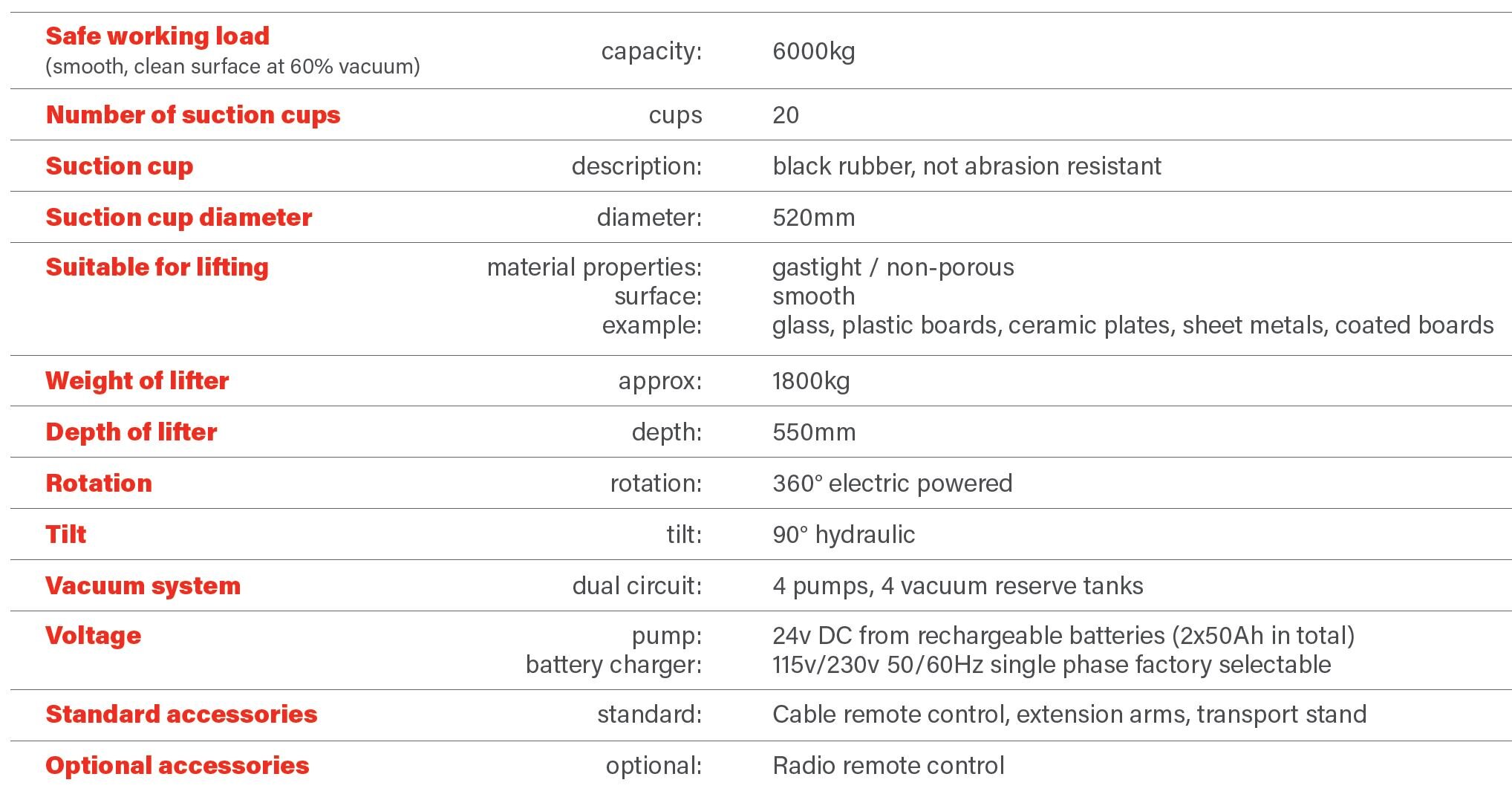

Technical Table

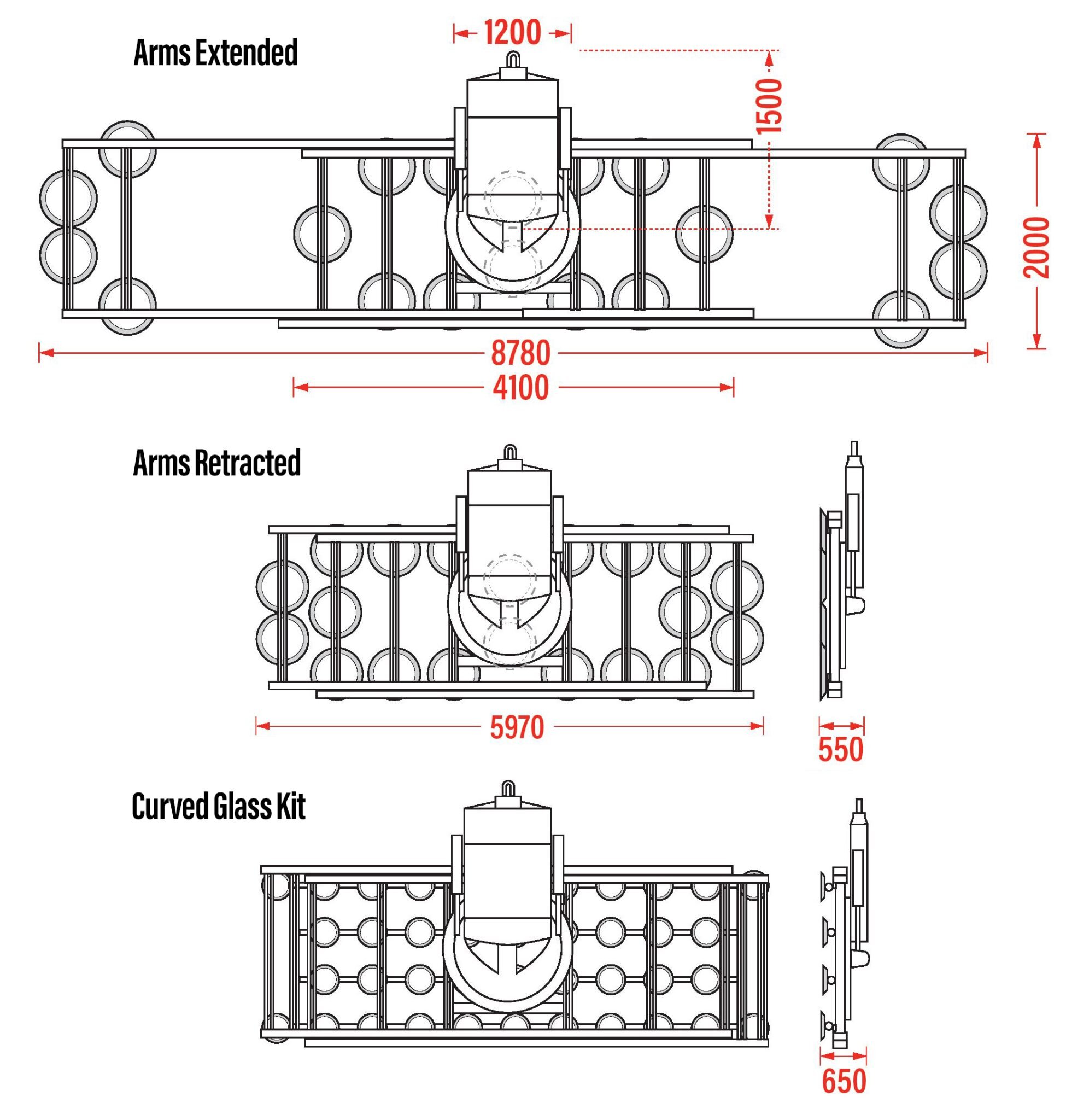

Dimensions

Specification

This quad-circuit window sucker features four independent vacuum circuits and can be configured to lift different sized loads, making it extremely versatile for consideration on a wider range of large capacity projects.

The Hydraulica 6000 is complete with cable remote control, extension arms and a transport stand as standard, with a radio remote control available as an optional accessory. This leading glass vacuum lifter offers quicker, safer, high capacity lifting on site.

If you are looking to hire or purchase the Hydraulica 6000, or require any further information, contact GGR Group today.

Safe Working Load:

6000kg

Suction Cup Rows:

Number of Suction Cups:

20

Suction Cup Description:

black rubber, not abrasion resistant

Suction Cup Diameter:

520mm

Rotation:

360° electric powered

Tilt:

90° hydraulic

Vacuum System:

dual circuit, 4 pumps, 4 vacuum reserve tanks

Voltage Pump:

24v DC from rechargeable batteries (2x50Ah in total)

Voltage Battery Charger:

115v/230v 50/60Hz single phase factory selectable

Voltage Mains Operation:

Notes:

Weight of Lifter:

1800kg

Depth of Lifter:

550mm

Material Properties:

gastight / non-porous

Surface:

smooth

Example:

glass, plastic boards, ceramic plates, sheet metals, coated boards

Stone Pads:

Curved Pads:

Special Pads:

Standard:

cable remote control, extension arms, transport stand

Extras:

radio remote control
