Multi-Glaze
The Multi-Glaze is the ideal choice for safely installing vertical and horizontal textured glass panels of up to 400kg capacity.
- Capacity: 400kg
- Dual circuit vacuum system
- 90° tilt function
- On-board vacuum and battery charge meters
- Low vacuum warning
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
- Not suitable for thin or fragile glass
Ref: VGL120
Capacity: 400kg
Lifts: Textured glass
Reference: VGL120
Features

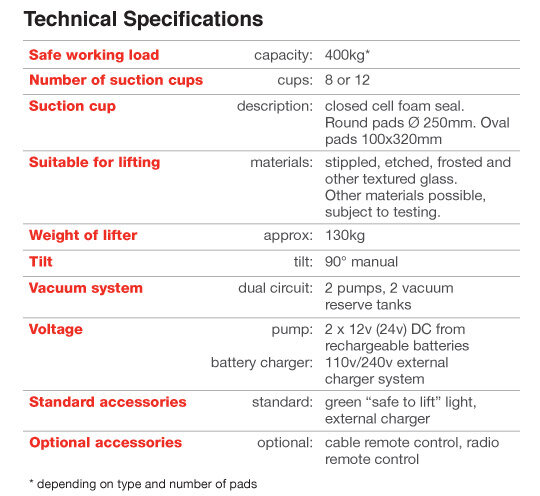

Technical Table
Dimensions
Specification

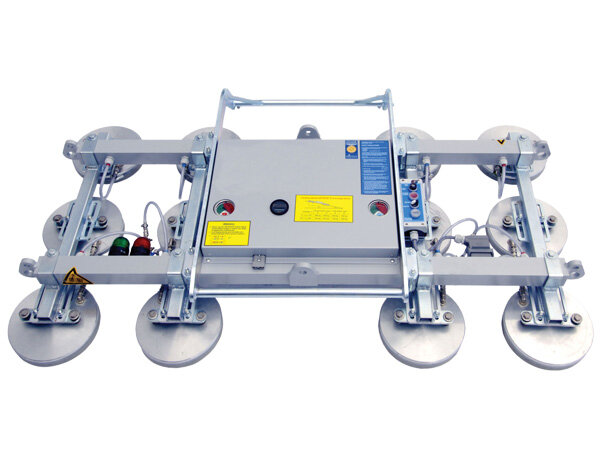

The Multi-Glaze is the ideal choice for safely installing vertical and horizontal textured glass panels of up to 400kg capacity (depending on number of pads used).

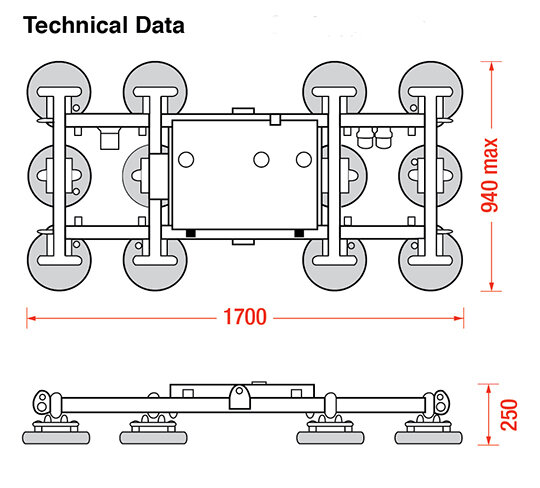

With a width of 940mm and a length of 1700mm, it is powered by two 12v on-board rechargeable batteries with external charger.
This dual circuit lifter also comes with 90° tilt and an audio-visual low vacuum warning. Using this machine to lift textured glass and loads with uneven surfaces is subject to testing by GGR Group.
If you are looking to hire or purchase the Multi-Glaze, or require any further information, contact GGR Group today.
