Cross Lifter Dual Circuit
The Cross Lifter is a multifunctional and adaptable dual circuit vacuum lifter that’s perfect for lifting glass of a multitude of different shapes, widths, and lengths up to a maximum weight of 450kg.
- 450kg safe working load
- 360° manual rotation (lockable)
- 90° hydraulically dampened tilt
- Extension arms for different configurations
- Dual, independent vacuum circuits with two vacuum reserve tanks, vacuum gauges, and two non-return valves
- Audio-visual low vacuum alert
- 2 x 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL13
Capacity: 450kg
Rotation: Manual 360° lockable
Battery: 2 x 12v
Reference: VGL13
Features

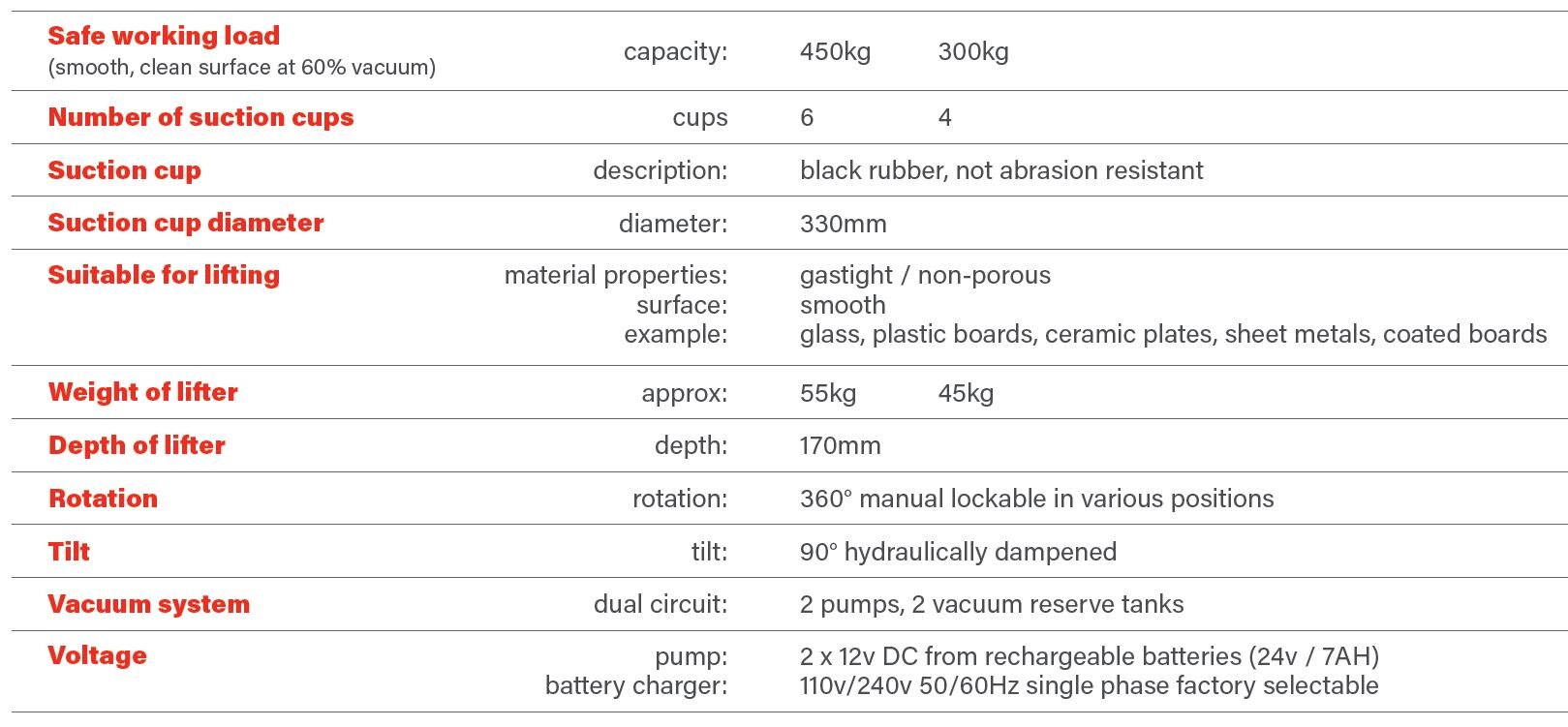

Technical Table
Dimensions
Specification
The ability for the Cross Lifter to be mounted in its X shape, allows operators to have the 450kg capacity with a larger pad spread, ideal for smaller but thicker glass.
Designed for lifting large-sized glass, the Cross Lifter is designed for the installation of flat glass on a variety of construction projects. With 4, 6, and cross pad configurations, the Cross Lifter can lift capacities of 300kg to 450kg easily and safely.
If you are looking to hire or purchase the Cross Lifter, or require any further information, contact GGR Group today.
