Glass Vacuum Lifters
DSH2 Curved Glass Vacuum Lifter
This specialist lifter is perfect for handling heavy and curved glass weighing up to 1200kg.
- 1200kg safe working load
- Two independent vacuum circuits, each with a vacuum reserve tank and non-return valve
- Vacuum gauge for each circuit
- Low vacuum alert
- Powered 360° lockable rotation
- Hydraulic 90° tilting from vertical to horizontal
- Two dual-headed on-board maintenance-free vacuum pumps
- Powered by 12v battery with integral charger or 110v/240v mains
- Battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL27
Capacity: 1200kg
Rotation: Powered 360°
Tilt: 90° hydraulic
Reference: VGL27
Features

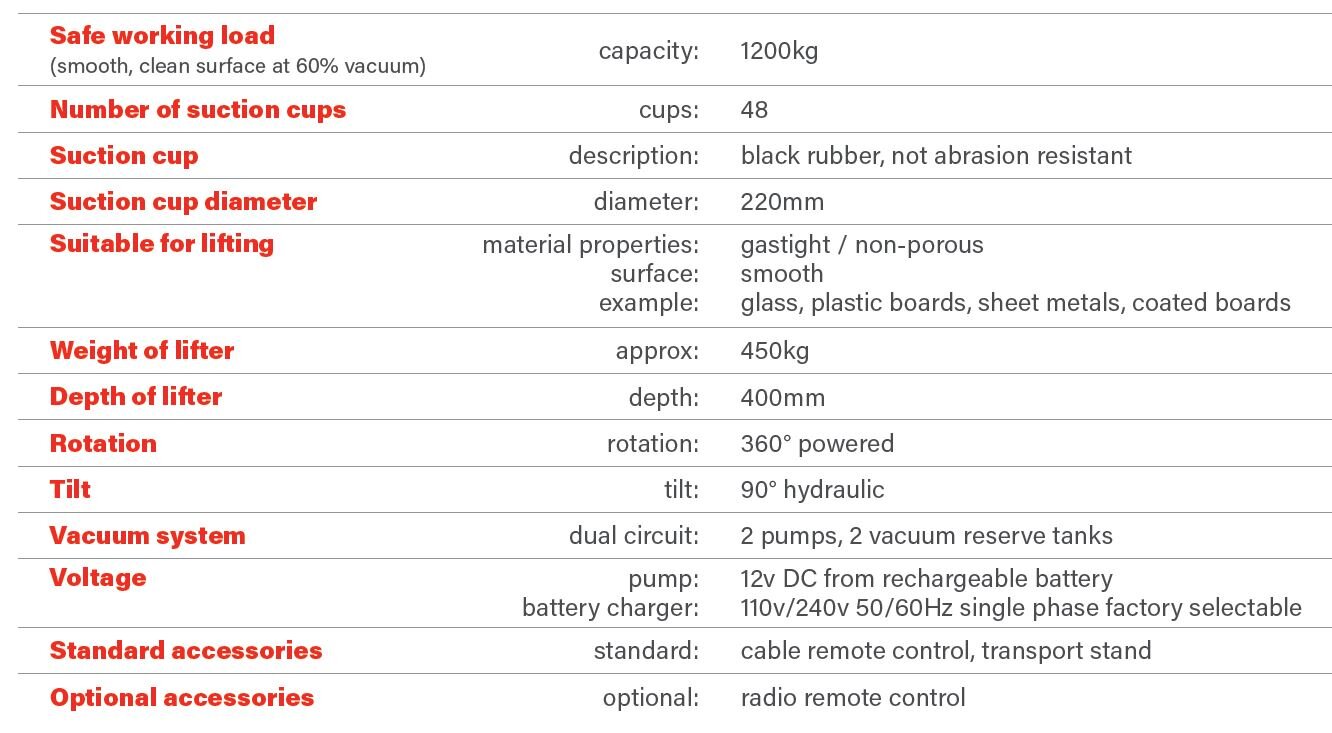

Technical Table

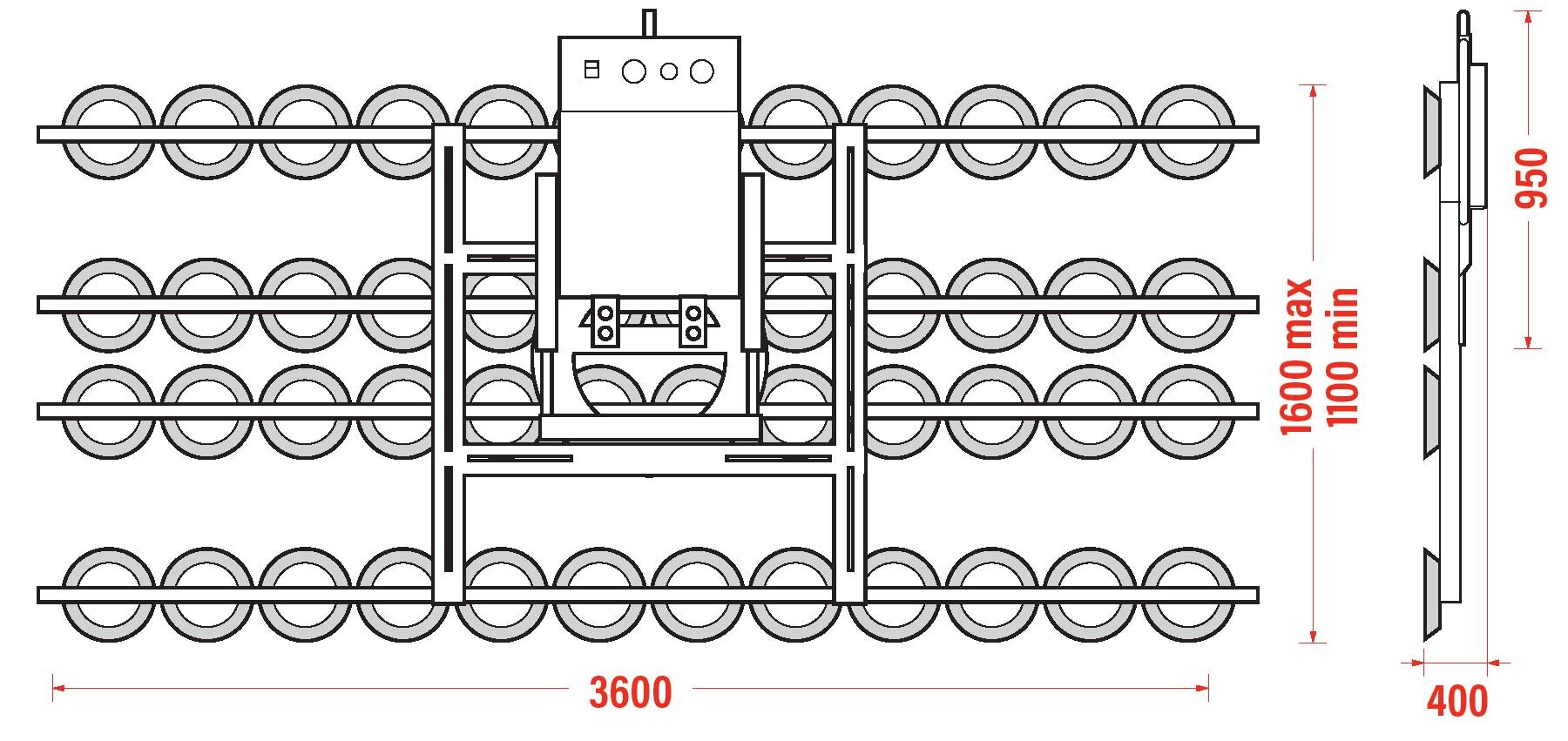

Dimensions
Specification
With an impressive 48 flexible pads mounted onto arms that can swivel back and forth, the DSH2 vacuum lifter can mould itself to convex loads with a minimum radius of approx 2000mm.
Heavy loads can be handled with ease thanks to hydraulic tilting from vertical to a horizontal position and powered 360° rotation.
If you are looking to hire or purchase the DSH2-Curved, or require any further information, contact GGR Group today.
