DSKZL2 Dual Circuit
The DSKZL2 Glass Vacuum Lifter features a lifting capacity of 300kg or 450kg when the extension arms and pads are used.
- 300kg (4 pads) 450kg (6 pads) safe working load
- 360° manual rotation (lockable every 45°)
- 90° manual tilt (lockable in the vertical position)
- Dual, independent vacuum circuits with two vacuum reserve tanks, vacuum gauges, and two non-return valves
- Audio-visual low vacuum alert
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- The maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL42
Capacity: 450kg
Rotation: Manual 360° lockable
Battery: 12v
Reference: VGL42
Features

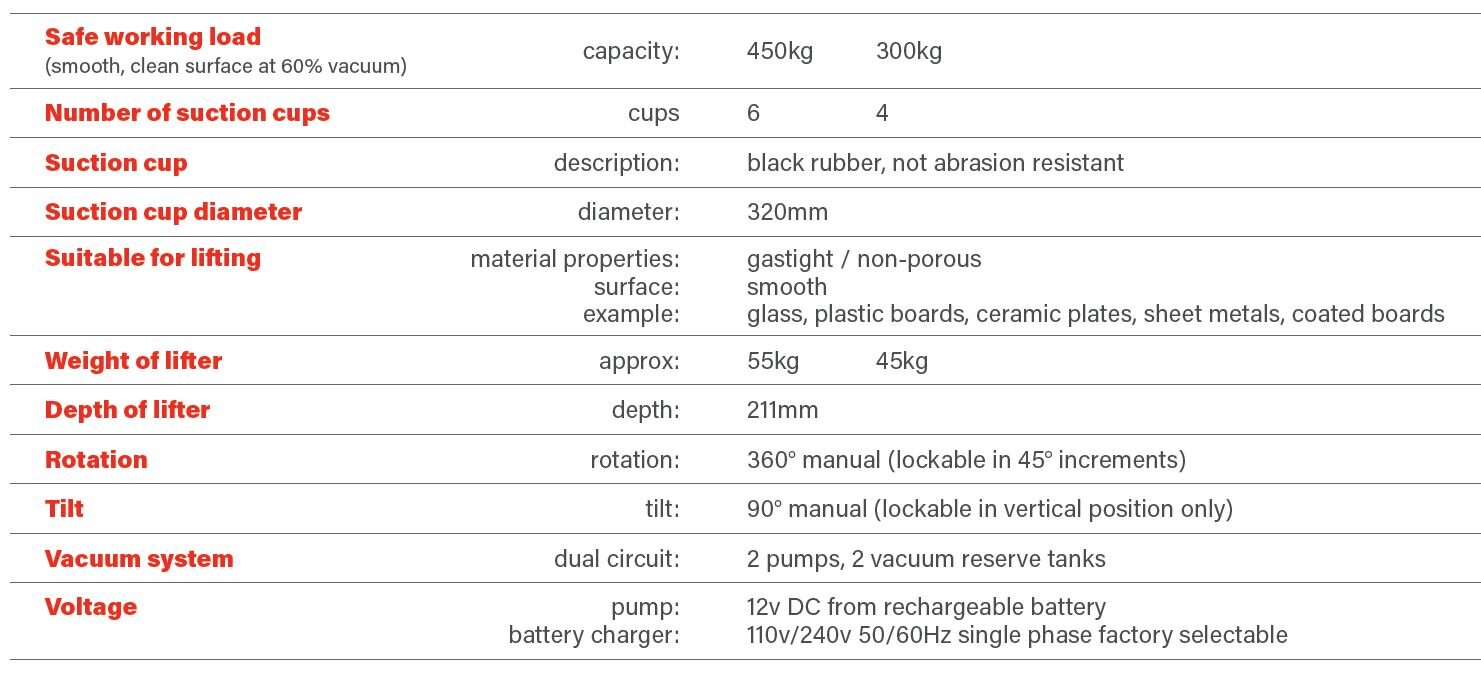

Technical Table

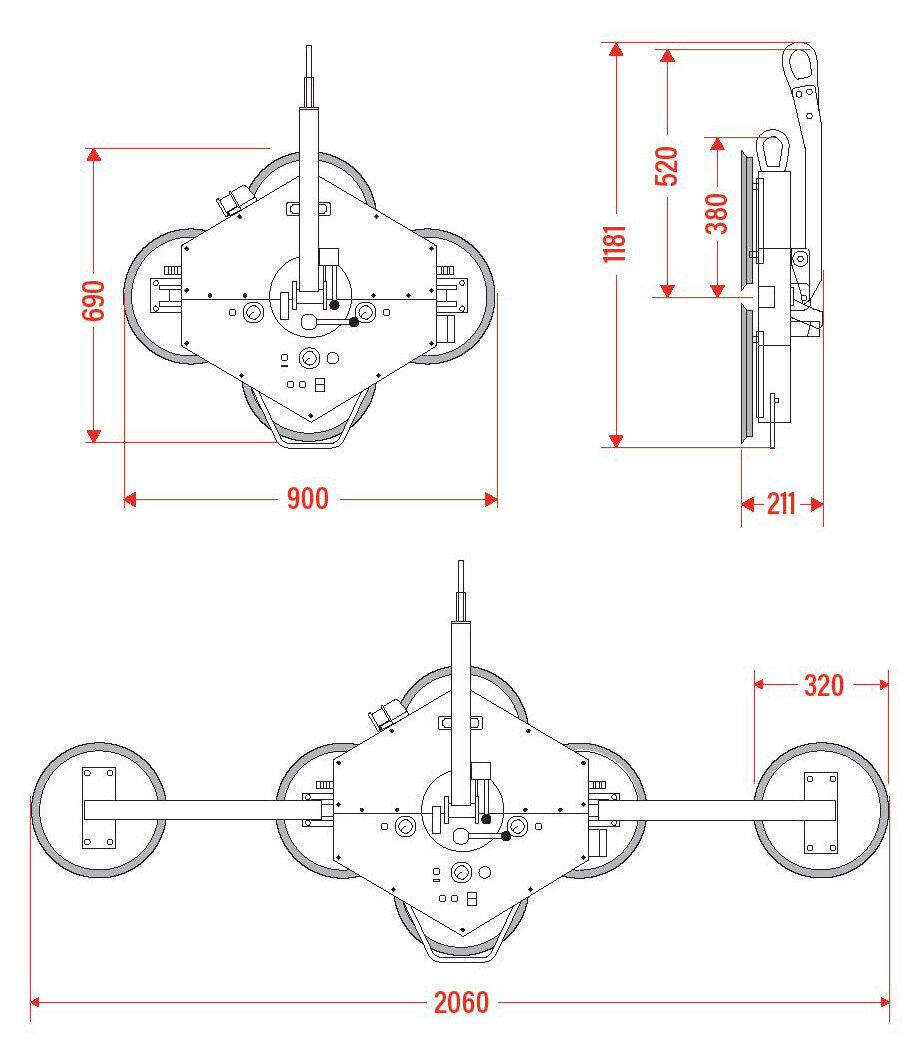

Dimensions
Specification
It has been designed to help lift and install glass and features a short-eye hook as standard, making it ideal for glazing underneath overhangs and soffits. This lifter also benefits from a rotate and tilt functionality when the lifting arm is used for glazing operations.
The DSKZL2 Glass Vacuum Lifter is just 211mm in depth, making it perfect for use in areas where working space is limited and can even help with installing glazing behind scaffolding. Loaded with extra safety features including two independent vacuum circuits, each designed to handle a load on its own, the DSKZL2 Glass Vacuum Lifter comes with a cable remote control as standard.
This versatile vacuum lifter also comes with a wheeled transport trolley, making moving and manoeuvring across site easily. A radio remote control is also available as an optional extra.
If you are looking to hire or purchase the DSKZL2 Glass Vacuum Lifter, or require any further information, contact GGR Group today.
Documents & Media
