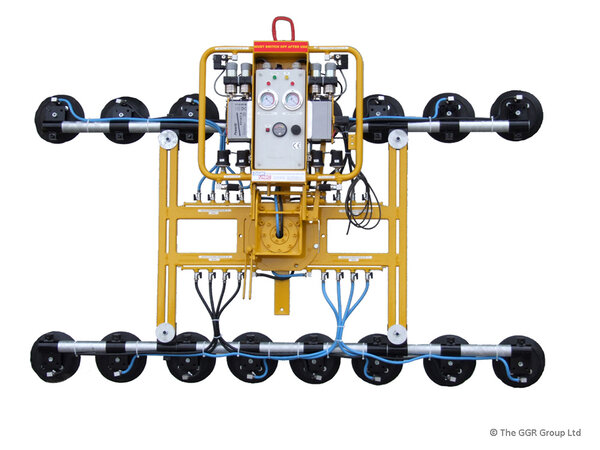

DSL2 Curved – Vacuum Lift Equipment
The DSL2 dual circuit lifter is a first-rate machine for you vacuum lift, capable of lifting all forms of curved glass and plastics weighing up to 400kg.
- 400kg safe working load
- Pad arms rotate for handling concave and convex materials
- Two independent vacuum circuits, each with vacuum reserve tank and non-return valve
- Vacuum gauge for each circuit
- Low vacuum alert
- Manual 270° lockable rotation
- Manual lockable tilting from vertical to horizontal
- Two or four on-board maintenance free vacuum pumps
- Powered by two 12v batteries with integral charger or 110v/240v mains
- Battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL23
Capacity: 400kg
Rotation: Manual 270°
Battery: 12v
Reference: VGL23
Features

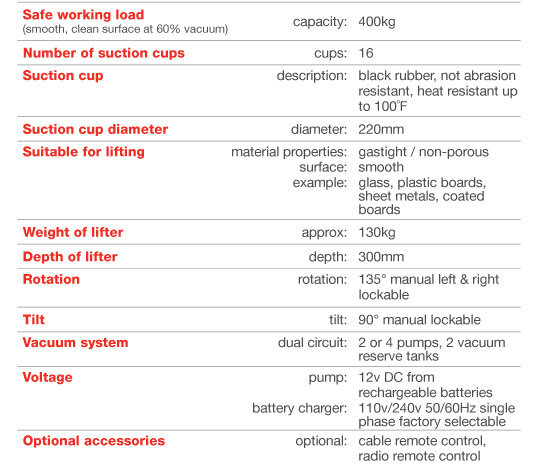

Technical Table

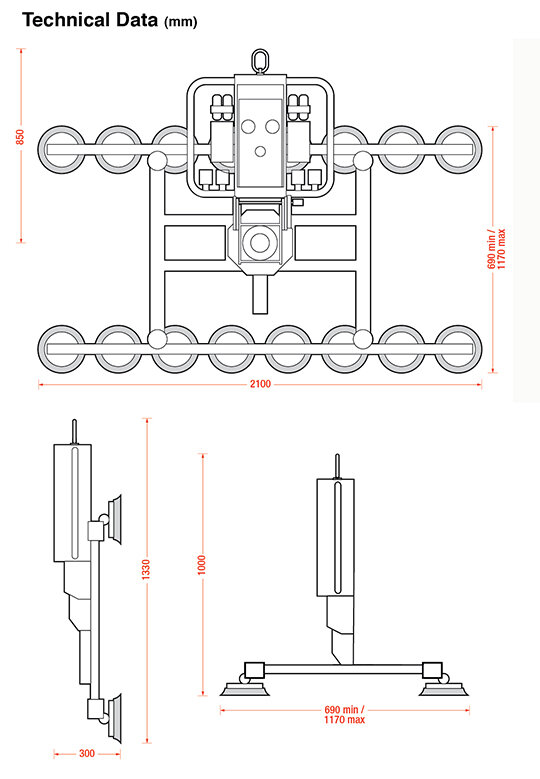

Dimensions
Specification

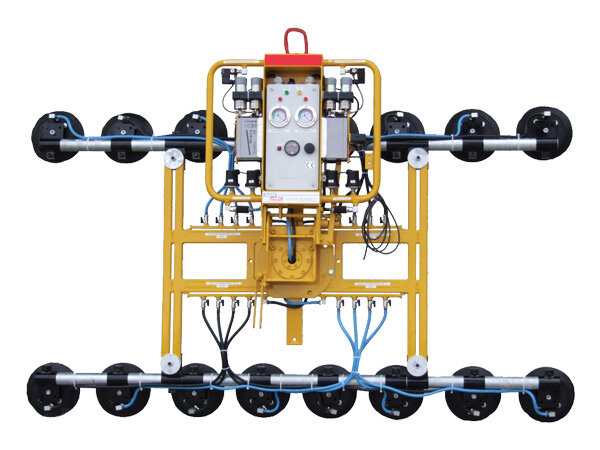

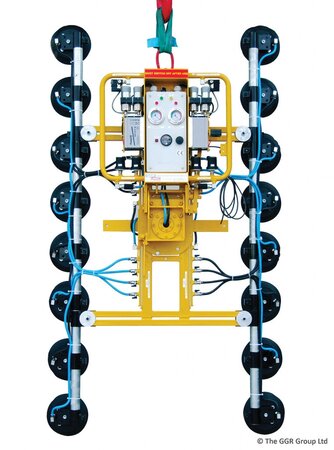

Encompassing flexible arms that can swivel back and forth, the DSL2 vacuum lifter can ‘mould’ itself to convex and concave sheets for your vacuum lift.
Loaded with extra safety features including two independent vacuum circuits, each designed to handle a load on its own, as well as audio-visual low vacuum alarm the DSL2 is a popular device for the safer handling of curved toughened and laminated architectural glass.

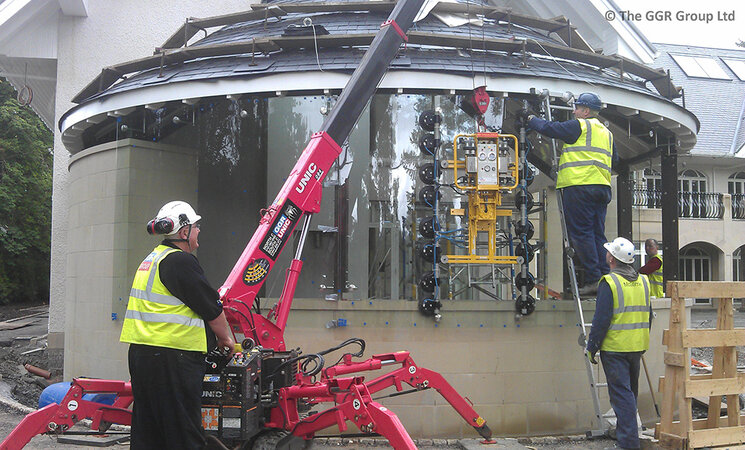

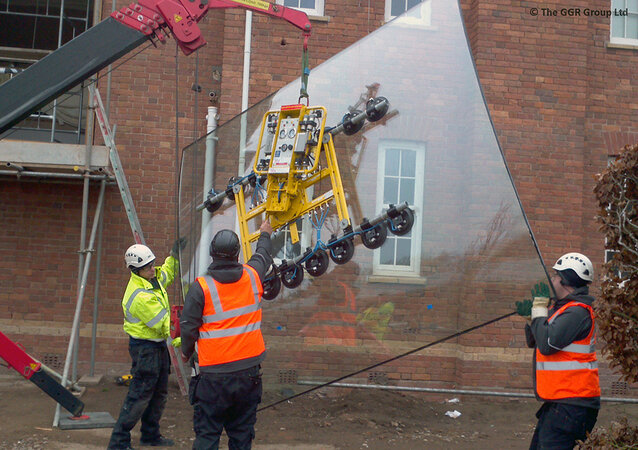

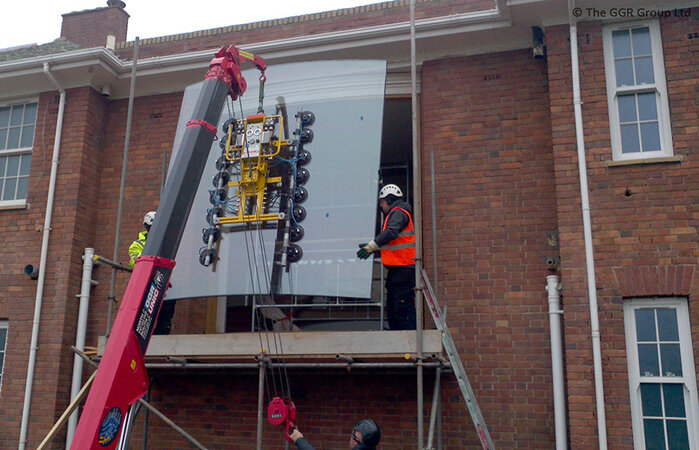

This specialist glazing installation equipment comes with manual 270° lockable rotation, as well as manual tilting from flat to upright position for seamless handling of heavy loads throughout your vacuum lift.
If you are looking to hire or purchase the DSL2 Curved, or require any further information, contact GGR Group today.
