Glass Vacuum Lifters
DSMH-2 Curved
The DSMH-2 curved glass lifter is the perfect solution for installing wide, curved pieces of glass.
- 1650kg safe working load
- Two independent vacuum circuits, each with vacuum reserve tank and non-return valve
- Vacuum gauge for each circuit
- Low vacuum alert
- 360° powered rotation
- Hydraulic tilting from vertical to horizontal
- Two or four on-board maintenance free vacuum pumps
- Powered by 12v battery with integral charger or 110v/240v mains
- Battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL31
Capacity: 1650kg
Rotation: Powered 360°
Tilt: Powered 90°
Reference: VGL31
Features

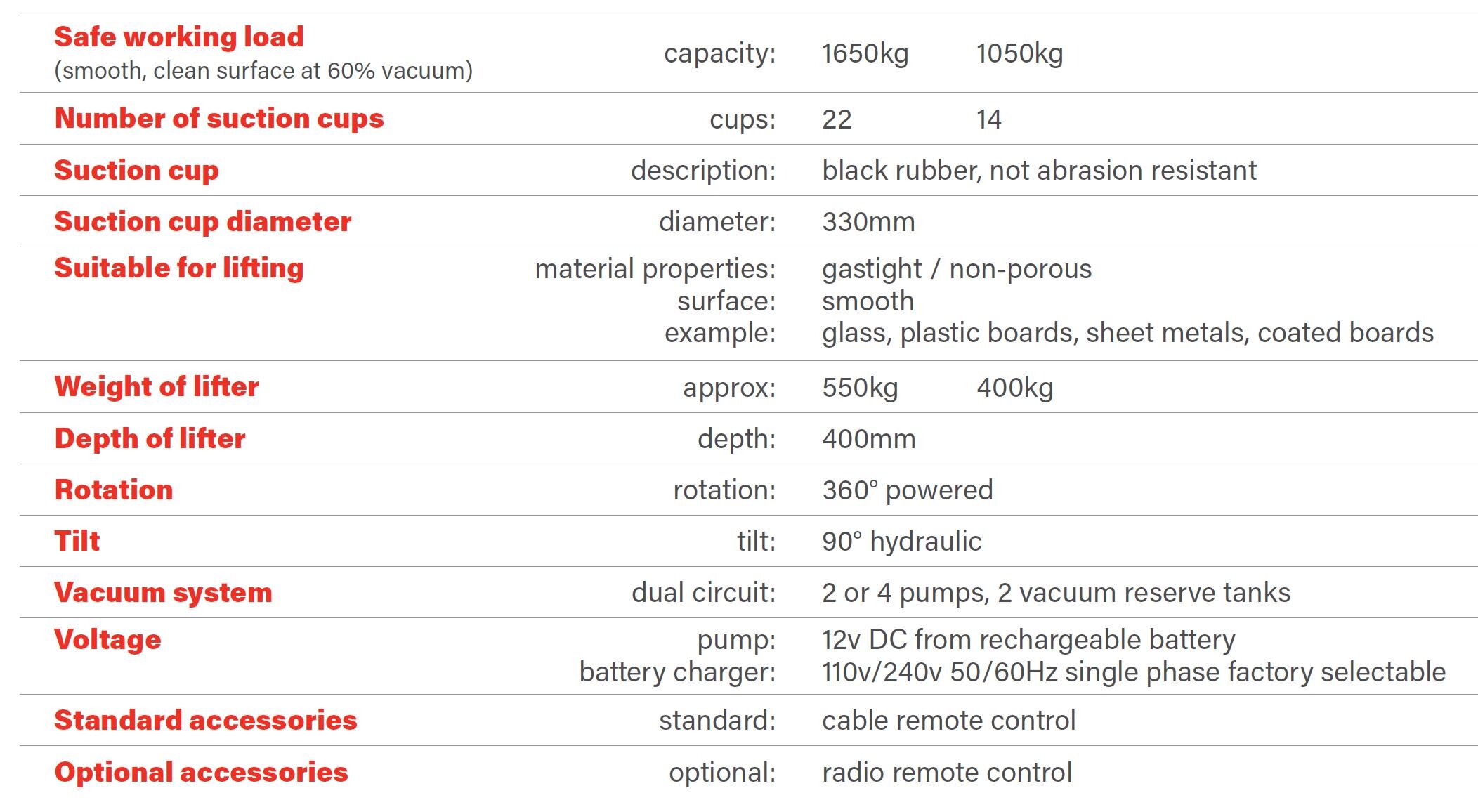

Technical Table

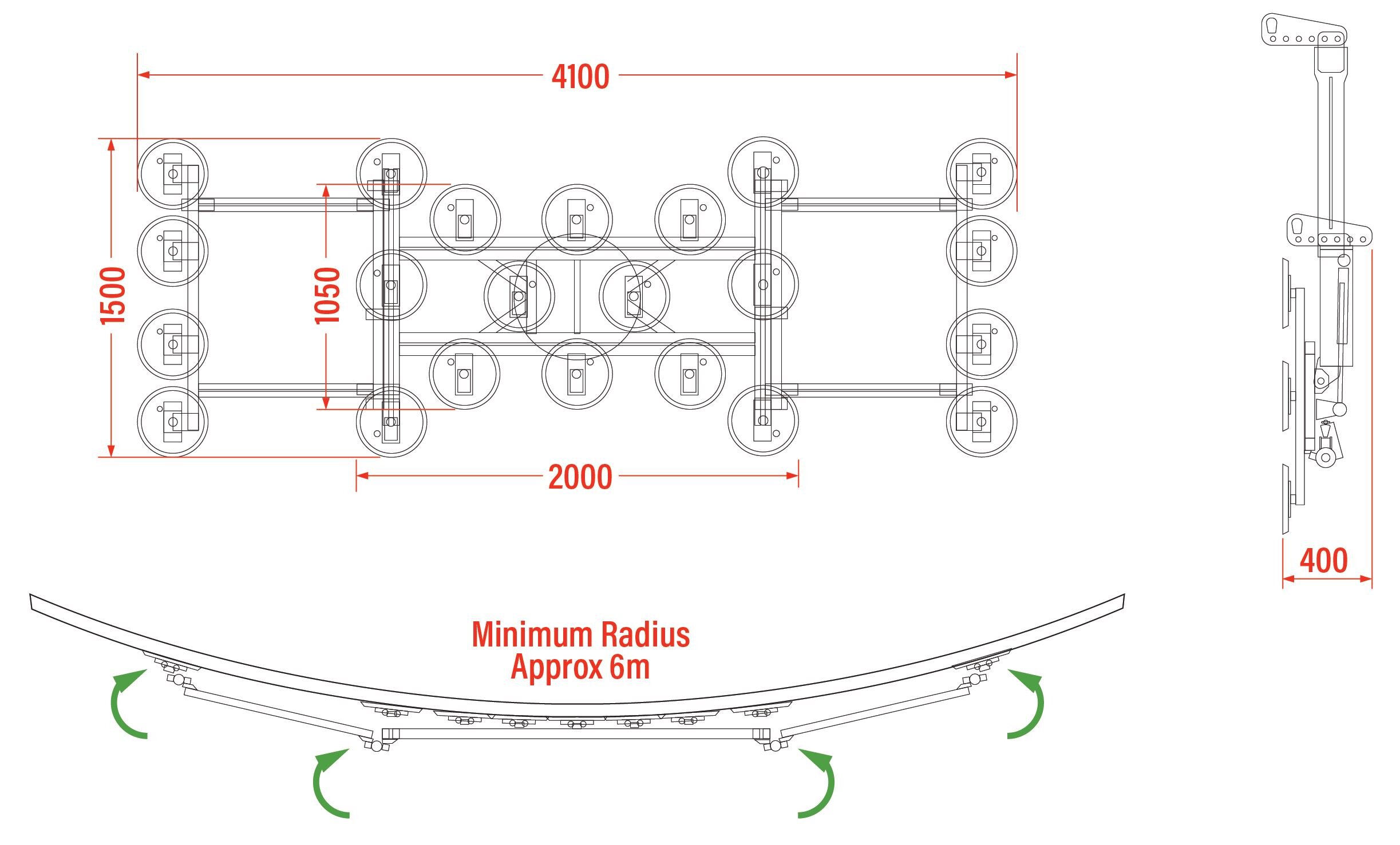

Dimensions
Specification
This specialist lifter offers a lifting capacity of up to 1650kg when used with 22 suction cups and up to 1050kg when used with 14 suctions cups. The DSMH-2 benefits from powered 90° tilt & powered 360° rotation for smooth unloading and positioning of glazing. This machine is for use on glass with a radius of approx 6m or greater, making it an ideal machine for installing unusual pieces of architectural curved glass.
If you are looking to hire or purchase the DSMH-2 Curved, or require any further information, contact GGR Group today.
Documents & Media
Media
Documents
