Glass Vacuum Lifters

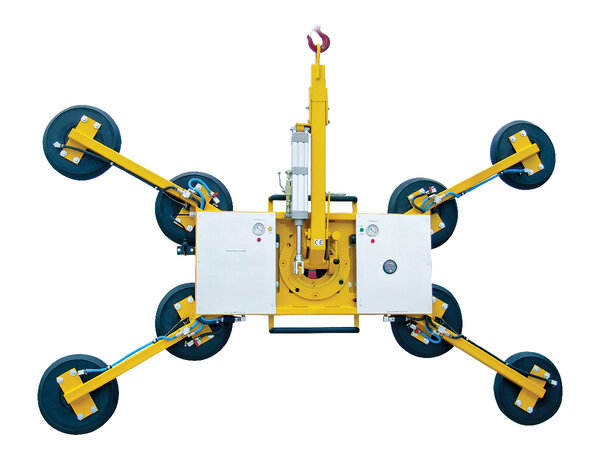

DSZ2 Slimline Lifter

Perfect for lifting between scaffold and building envelope, the slender DSZ2 vacuum lifter is only 180mm deep yet offers up to 750kg of lifting power. As one of our slimmest vacuum lifters, the DSZ2 has proven to be a popular choice when lifting units in a restricted space.

  • Manual 360° continuous rotation, lockable at 0, 90, 180 & 270 degrees
  • Hydraulically dampened tilting from vertical to horizontal
  • Supplied with its own wheeled stand for easy storage and transport (sale only)
  • Dual, independent vacuum circuits, each with vacuum reserve tank and non-return valve
  • Vacuum gauge for each circuit
  • Two or four on-board maintenance-free vacuum pumps
  • Reverse air flow (blow-off) vacuum pump
  • Two vacuum reserve tanks and two non-return valves
  • 12v battery with integral charger or 110v/240v mains and battery energy gauge
  • Audio-visual low vacuum alert
  • Not suitable for use in the rain – read more in our safety guide
  • Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
  • Extension arms included as standard on all hires
  • Optional low marking pads
  • All vacuum lifters undergo thorough examination before being hired out
  • Vacuum lifter hire services available across the UK
  • DSZ2 trolley also available (Ref: AGT43)
  • Optional DSZ2 Radio Remote control available (Sale-only item), (Ref: KGGR500)
  • Ref: VGL37

Capacity: 750kg
Rotation: Manual 360°
Battery: 12v
Reference: VGL37

Features

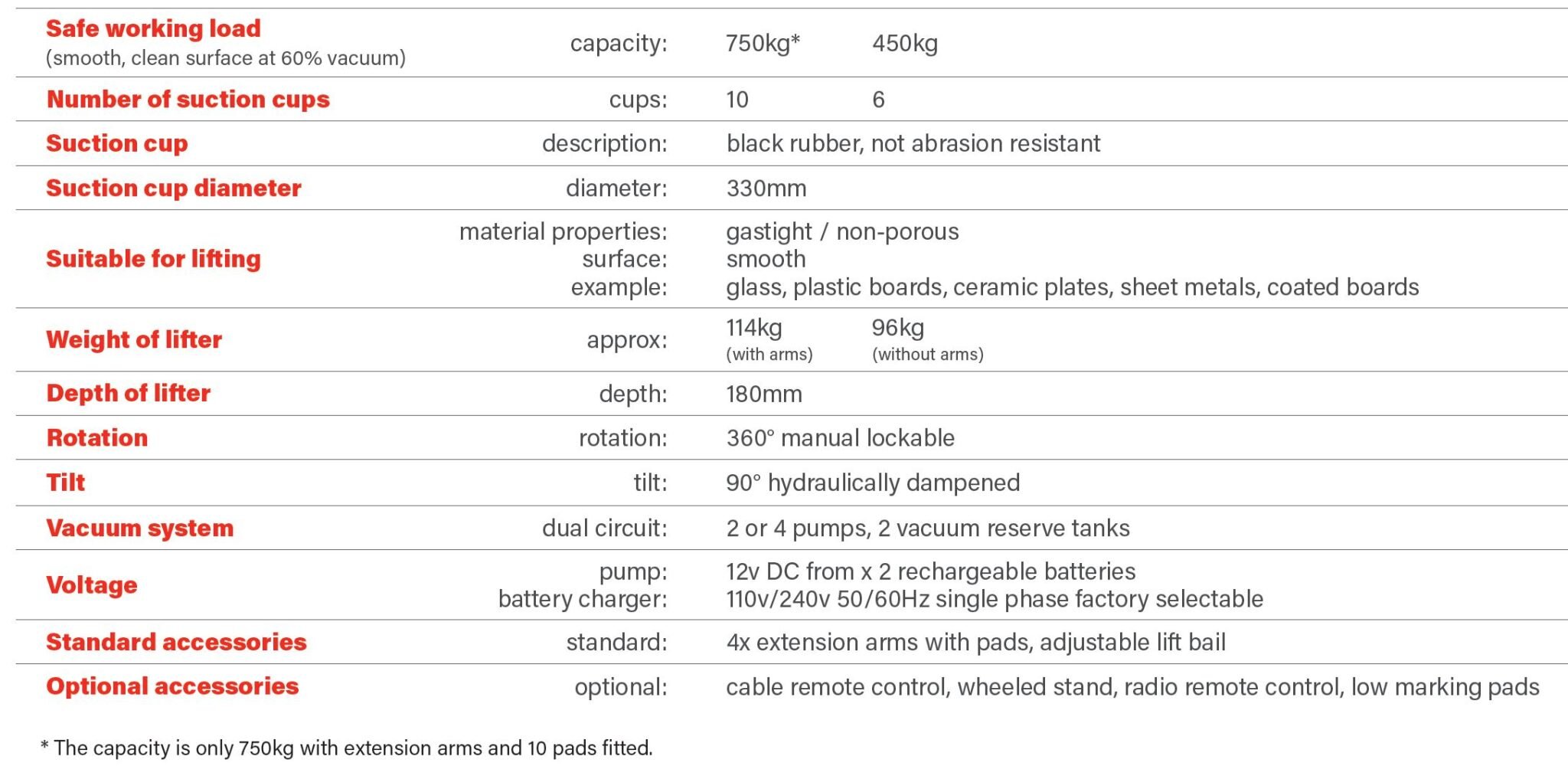

Technical Table

Dimensions

Specification

This dual circuit vacuum lifter comes with 360° continuous rotation and 90° hydraulically dampened tilt for safer, more effective handling of loads. Four extension arms and pads are available to raise the safe working load from 450kg to 750kg. The lifter can also be supplied with an optional wheeled stand for easy storage and transport.

A one-day accredited training course is available for any of our vacuum lifters.

If you are looking to hire or purchase the DSZ2 Slimline Lifter, or require any further information, contact GGR Group today.

Safe Working Load:

750kg* (10 cups), 450kg (6 cups)

Suction Cup Rows:

Number of Suction Cups:

10 (750kg), 6 (450kg)

Suction Cup Description:

black rubber, not abrasion resistant

Suction Cup Diameter:

330mm

Rotation:

360° manual lockable

Tilt:

90° hydraulically dampened

Vacuum System:

dual circuit, 2 or 4 pumps, 2 vacuum reserve tanks

Voltage Pump:

12v DC from x 2 rechargeable batteries

Voltage Battery Charger:

110v/240v 50/60Hz single phase factory selectable

Voltage Mains Operation:

Notes:

* The capacity is only 750kg with extension arms and 10 pads fitted.

Weight of Lifter:

114kg (with arms 750kg), 96kg (without arms 450kg)

Depth of Lifter:

180mm

Material Properties:

gastight / non-porous

Surface:

smooth

Example:

glass, plastic boards, ceramic plates, sheet metals, coated boards

Stone Pads:

Curved Pads:

Special Pads:

Standard:

4x extension arms with pads, adjustable lift bail

Extras:

cable remote control, wheeled stand, radio remote control, low marking pads
