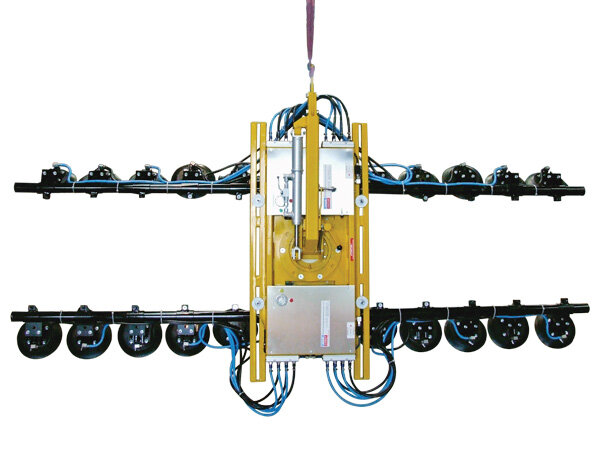

DSZ2-12V Curved Glass Lifter
New to GGR Group. The DSZ2-12V vacuum lifter retains all the benefits of our standard curved glass lifters yet boasts 90° hydraulically dampened tilt and manual 360° rotation for effortless movement of glass.
- 400kg (16 pads) 600kg (24 pads) safe working load
- Manual 360° lockable rotation
- Hydraulically dampened 90° tilt
- Two independent vacuum circuits, each with vacuum reserve tank and non-return valve
- Vacuum gauge for each circuit
- Low vacuum alert
- Two on-board maintenance free vacuum pumps
- Powered by two 12v batteries with integral charger or 110v/240v mains
- Battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL24 (400kg), VGL38 (600kg)
Capacity: 400kg & 600kg
Rotation: Manual 360°
Tilt: 90° hydraulic
Reference: VGL24 & VGL38
Features

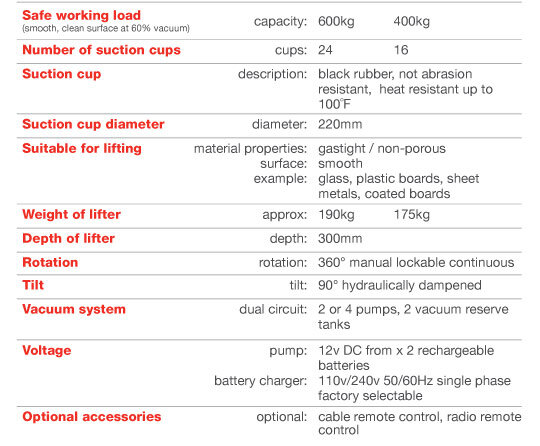

Technical Table

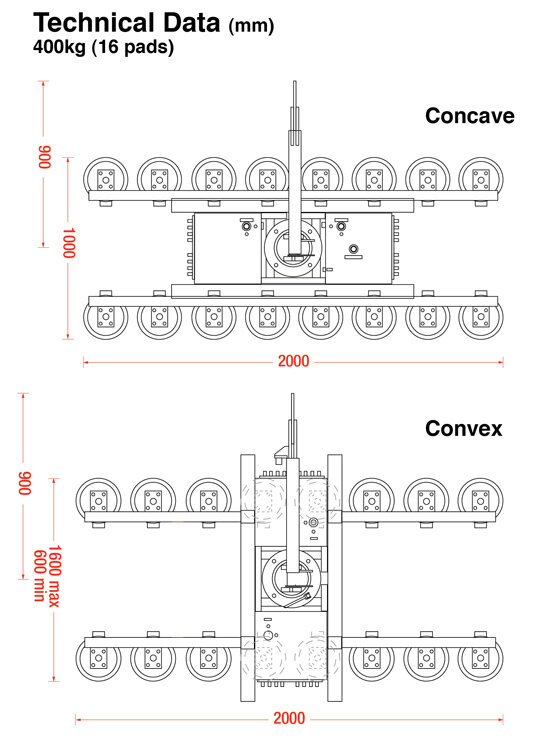

Dimensions - 16 Pads

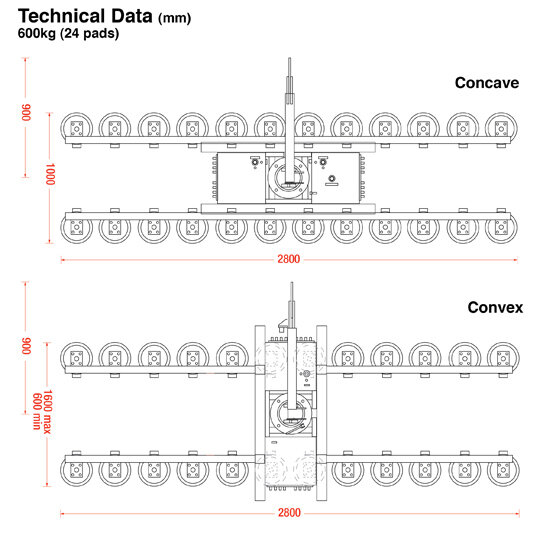

Dimensions - 24 Pads
Specification
The DSZ2-12V encompasses 16 or 24 pads mounted onto flexible swivel arms that mould themselves to a load. This specialist lifter can be configured two ways to suit convex or concave glass loads weighing up to 400kg or 600kg.
Safety features include two independent vacuum circuits, each capable of handling the load independently, as well as audio-visual low vacuum alarm.
If you are looking to hire or purchase the DSZ2-12V Curved Glass Lifter, or require any further information, contact GGR Group today.
Documents & Media
