Glass Vacuum Lifters

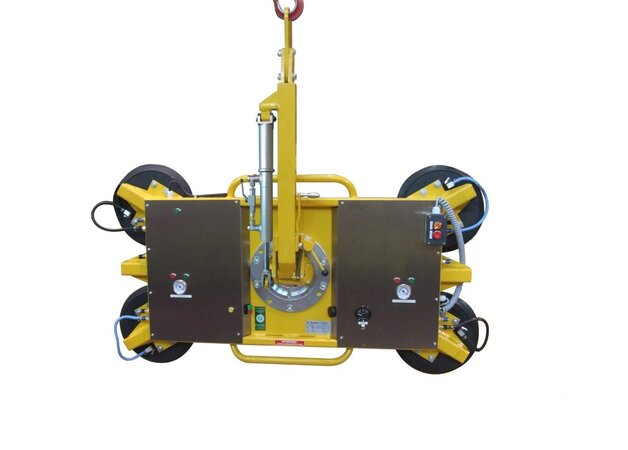

DSZ2-L Slimline Lifter
One of our slimmest lifters at 180mm, the DSZ2-L fits in the gap between the building scaffold and envelope. The DSZ2-L is fully featured with manual 360° continuous rotation and 90° hydraulically dampened tilt.
- Manual 360° continuous rotation, lockable at 0, 90, 180 & 270 degrees
- Hydraulically dampened tilting from vertical to horizontal
- Supplied with its own wheeled stand for easy storage and transport (sale only)
- Dual, independent vacuum circuits, each with a vacuum reserve tank and non-return valve
- Vacuum gauge for each circuit
- Two or four on-board maintenance-free vacuum pumps
- Reverse airflow (blow-off) vacuum pump
- Two vacuum reserve tanks and two non-return valves
- 12v battery with integral charger or 110v/240v mains and battery energy gauge
- Audio-visual low vacuum alert
- Not suitable for use in the rain – read more in our safety guide
- The maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots, or 8 m/s
- Extension arms included as standard on all hires
- Optional low marking pads
- All vacuum lifters undergo a thorough examination before being hired out
- Vacuum lifter hire services available across the UK
- DSZ2 trolley also available (Ref: AGT43)
- Optional DSZ2 Radio Remote control available (Sale-only item), (Ref: KGGR500)
- Ref: VGL39
Capacity: 450kg to 900kg
Rotation: Manual 360°
Battery: 12v
Reference: VGL39
Features

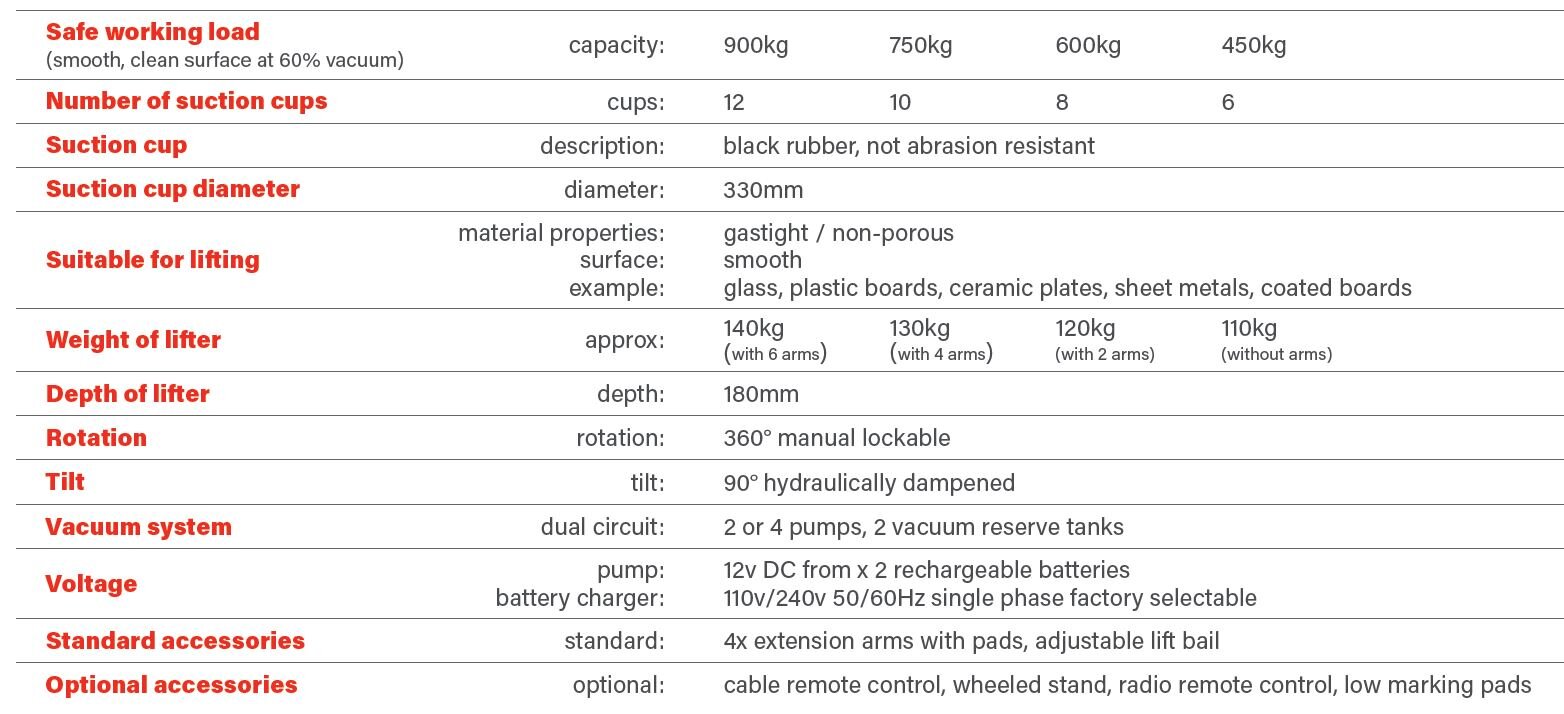

Technical Table

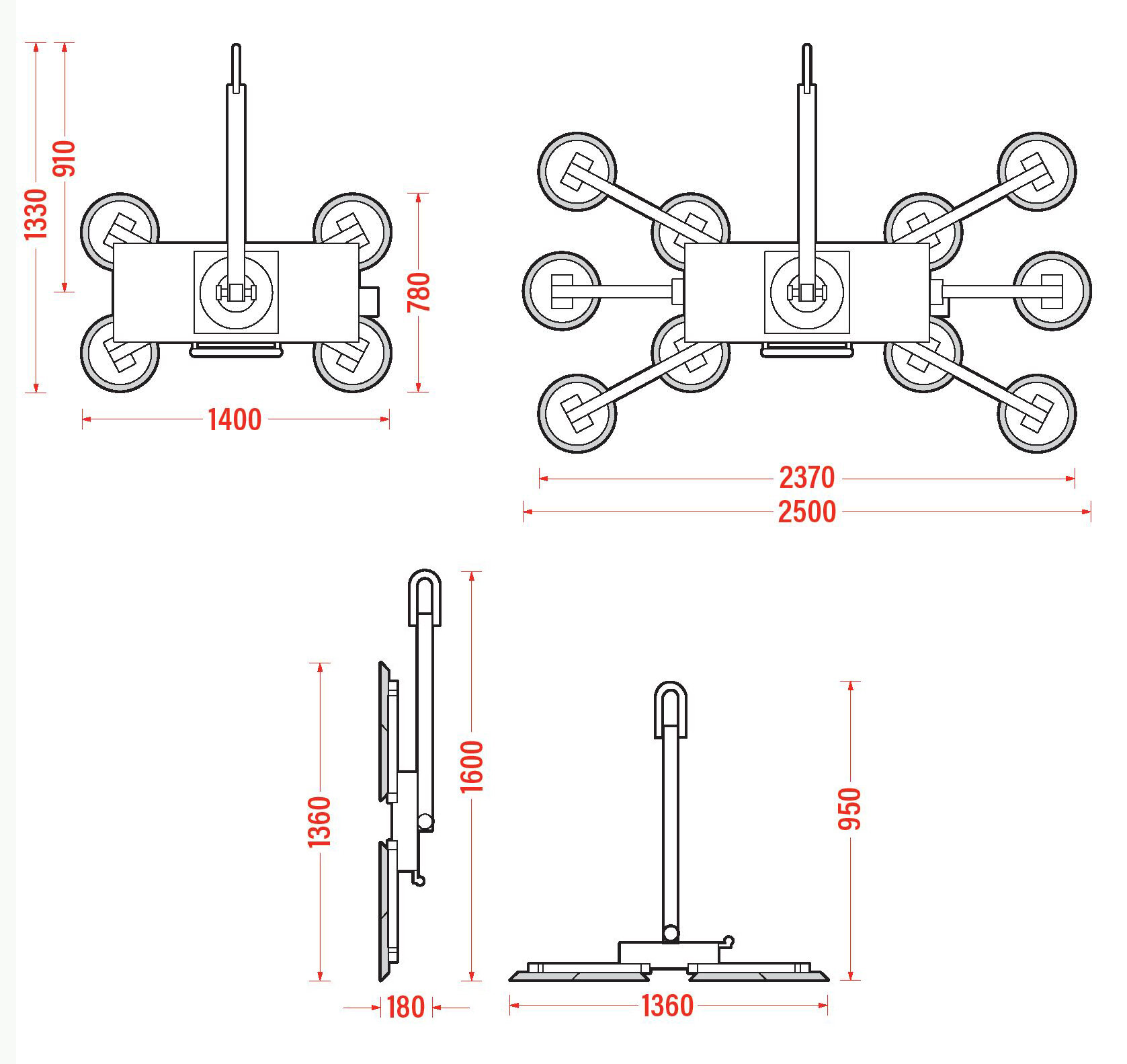

Dimensions
Specification

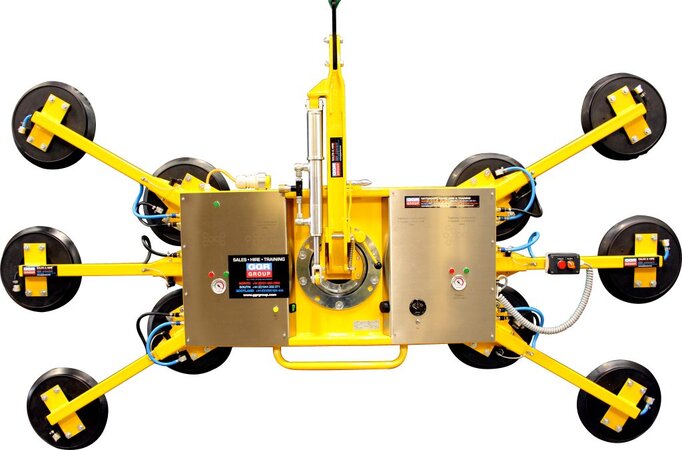

The dual-circuit DSZ2-L includes six extension arms and pads as standard to raise the maximum capacity from 450kg to 900kg. The lifter can also be supplied with an optional wheeled stand for easy storage and transport.
If you are looking to hire or purchase the DSZ2-L Slimline Lifter, or require any further information, contact GGR Group today.
