Fin Lifter 1800
With an impressive overall length, these innovative glass lifting machines are perfect for handling long format glazing fins, which have quickly become a growing architectural trend. Our flexible Fin Lifters also have fully adjustable frames to suit shorter pieces of glass, offering customers the choice of 3 different configurations.
- 600-1800kg capacity
- 360° manual rotation (VGL91) / 360° powered rotation (VGL92)
- 90° hydraulic powered tilt
- Four circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit (VGL91)
- Dual circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit (VGL92)
- Pendant cable remote control as standard
- Total Weight of lifter 700kg (+30kg storage trolley)
- Depth of lifter: 420mm (VGL91), 330mm (VGL92)
- Powered by: 12v DC from rechargeable batteries
- Battery charger: 110v / 240v
- Standard accessories: cable remote control, extension arms
- Optional accessories: radio remote control
- Vacuum Sucker not suitable for use in the rain – read more in our safety guide
- Ref: VGL91 / VGL92
Capacity: 1800kg
Rotation: 360°
Tilt: 90° powered hydraulic
Reference: VGL91 & VGL92
Features

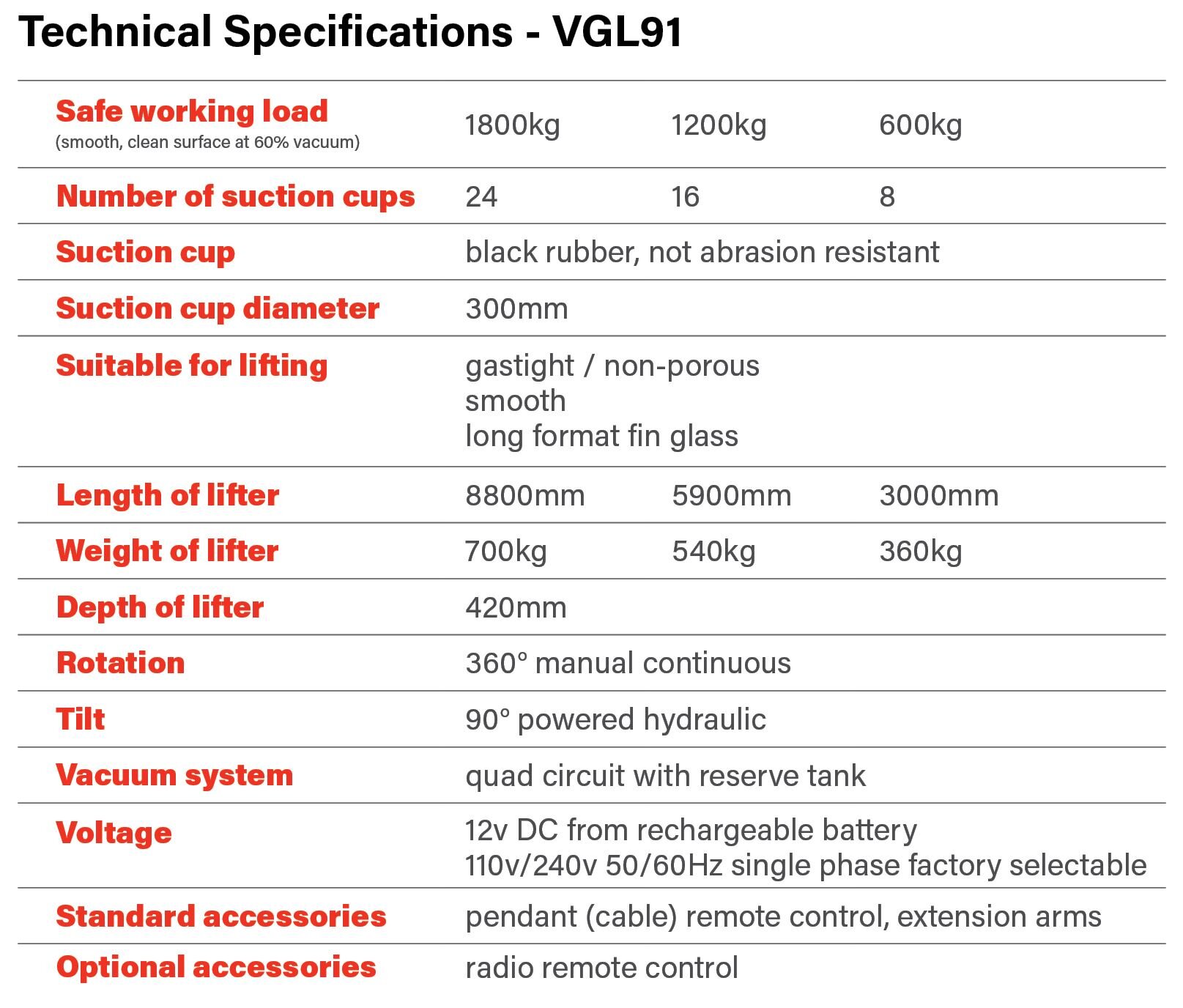

Technical Table
Dimensions
Specification
Glass mullion systems and glazing fin systems can be safely and quickly installed thanks to these Fin Lifter’s powered hydraulic 90° tilt and manual (VGL91) or powered 360° rotation (VGL92). Extra safety features include 4 independent vacuum circuits (VGL91) or a dual circuit system (VGL92) so glass is held securely in place during the unlikely event that one circuit fails.
A pendant cable remote control is provided as standard. Powered by an on-board 110v/240v rechargeable battery, the Fin Lifter 1800kg has no tricky cords to deal with during operation. In stock now and available to hire or purchase from GGR Group’s nationwide depots.
If you are looking to hire or purchase the Fin Lifter 1800, or require any further information, contact GGR Group today.
