GGR800+ – Glazing Sucker
Building on the success of the GGR600+, the GGR800+ boasts a lifting capacity of 800kg, whilst being similar in size and weight as its predecessor.
- 300-800kg safe working load
- Dual vacuum circuit, with vacuum reserve tank, non-return valve and gauge for each circuit
- 8, 6 or 4 x 400mm diameter suction cups
- Manual 360° lockable rotation (continuous)
- 90° manual tilting from vertical to horizontal (with lifting arm)
- Lifted by two eyelets at the top of the ring
- Powered by 12V on-board battery (rechargeable)
- Audio-visual low vacuum warning system
- Four extension arms
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL106 (8 pad lifter), VGL106GR (glazing ring)
Capacity: 300-800kg
Rotation: Manual 360° lockable
Battery: 12v
Reference: VGL106 & VGL106GR
Features

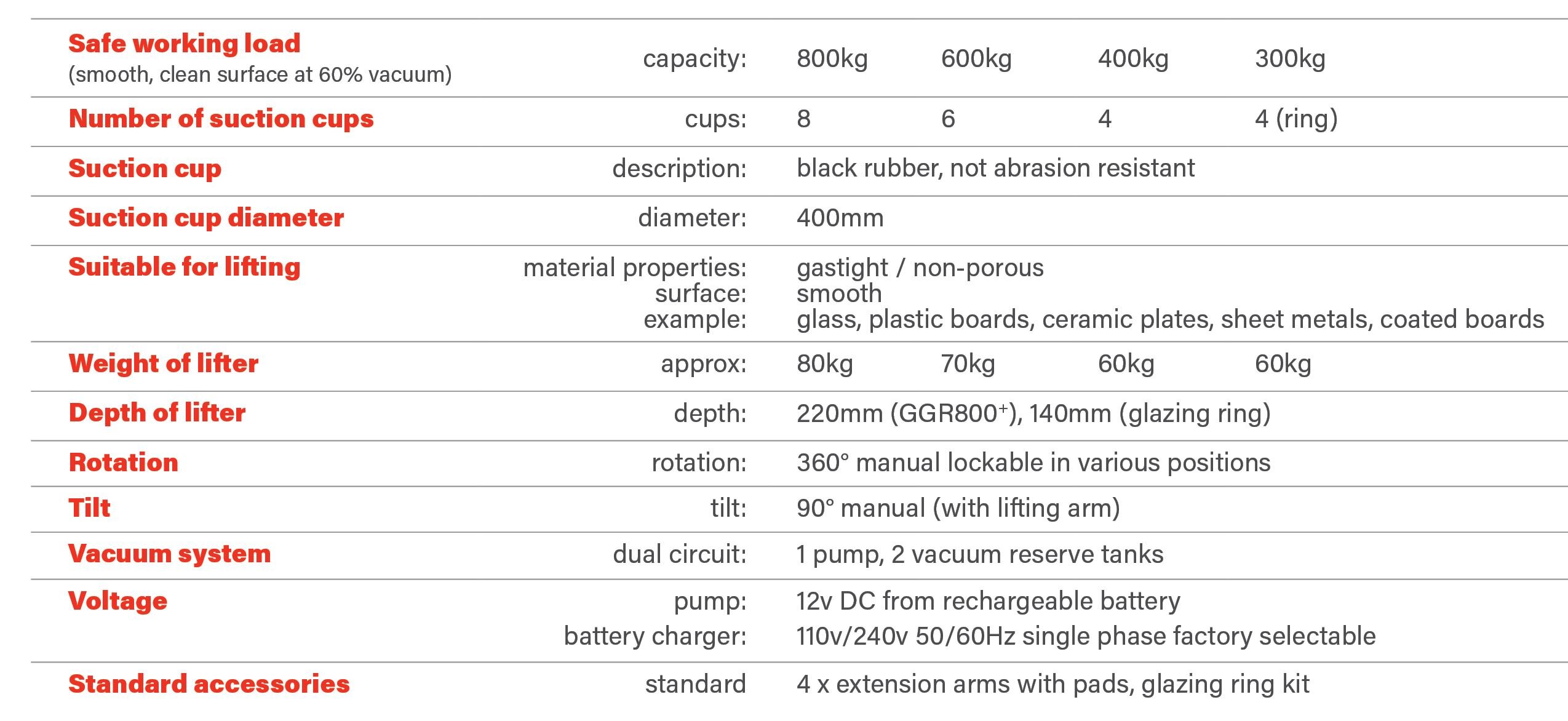

Technical Table

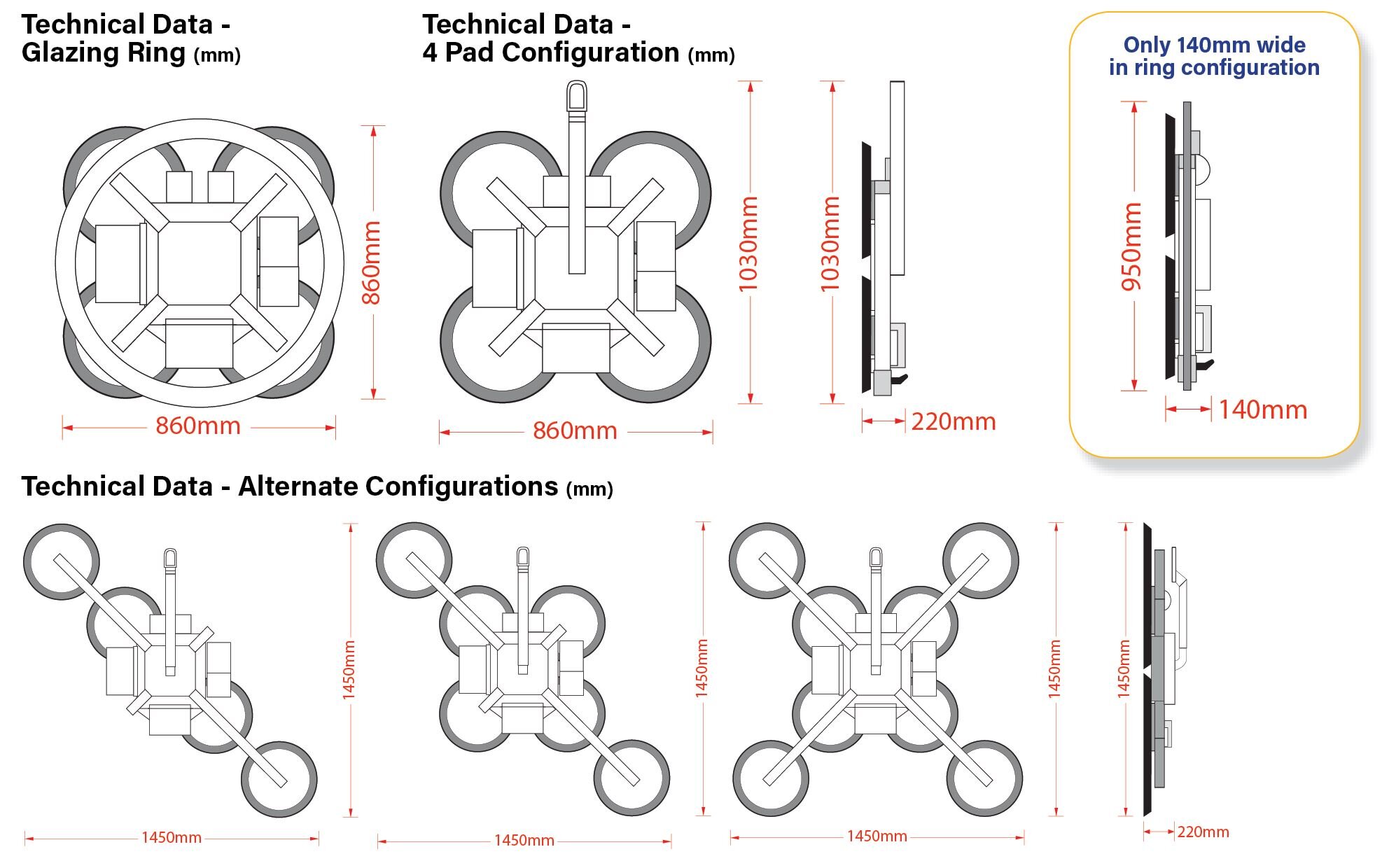

Dimensions
Specification
The GGR800+ features a 300-800kg safe working load and 360° lockable rotation. The glazing installation ring allows glass panels to be rotated into position, yet can easily clear the narrow space between a façade and scaffolding. The GGR800+ has a low structural depth of only 140mm, making it slender enough to fit between a building envelope and scaffolding for when access to a façade is restricted. We also have a range of glazing robots available for installing units from inside a building, click here.
If you are looking to hire or purchase the GGR800+, or require any further information, contact GGR Group today.
Documents & Media
