Glass Jack – Glass Vacuum Lifter

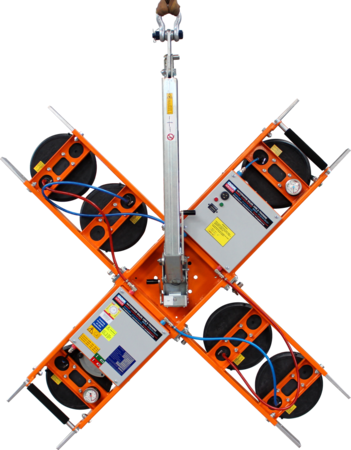

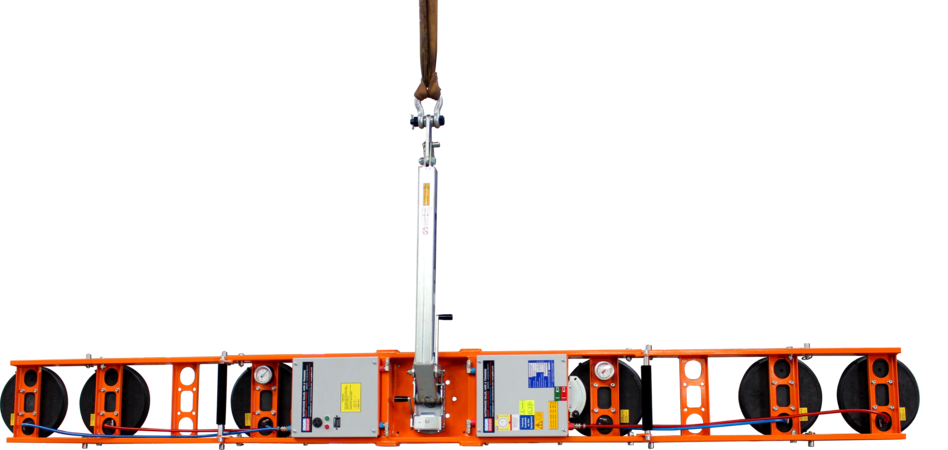

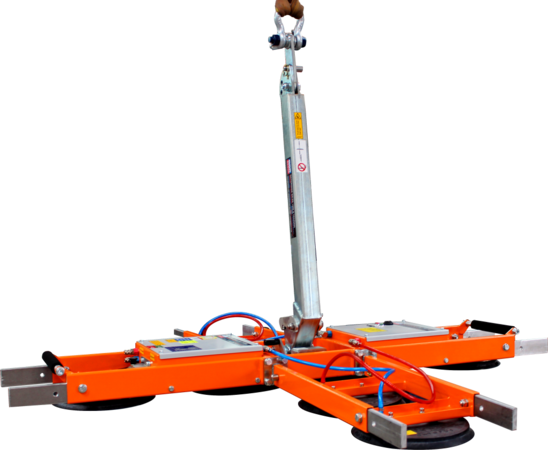

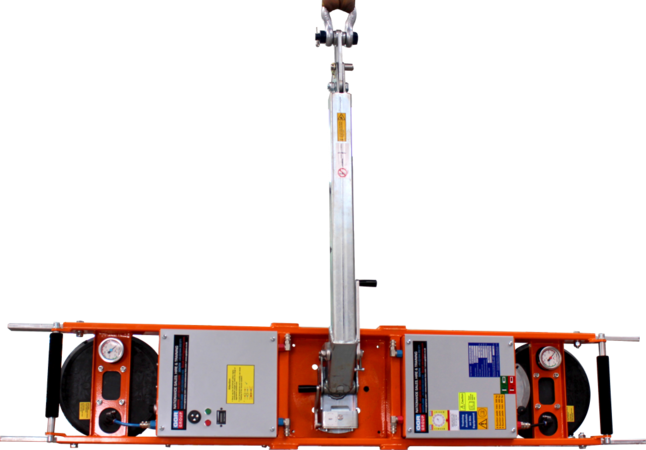

The GL600 is a versatile vacuum lifter with a capacity of up to 600kg. With multiple configurations, the GL600 is ideal for lifting long and narrow fin glass at various lengths, but also suitable to lift wider loads using the cross configuration. This dual circuit vacuum lifter features 360° manual rotation and 90° manual tilt.
- Capacity: up to 600kg
- Dual vacuum circuit, with vacuum reserve tank, non-return valve and gauge for each circuit
- 90° manual tilt
- 360° manual rotation
- Integral maintenance-free vacuum pump
- Audio-visual low vacuum warning
- Extension arms
Ref: VGL107
Capacity: 300-600kg
Rotation: Manual 360° lockable
Tilt: Manual 90°
Reference: VGL107
Features
Technical Table

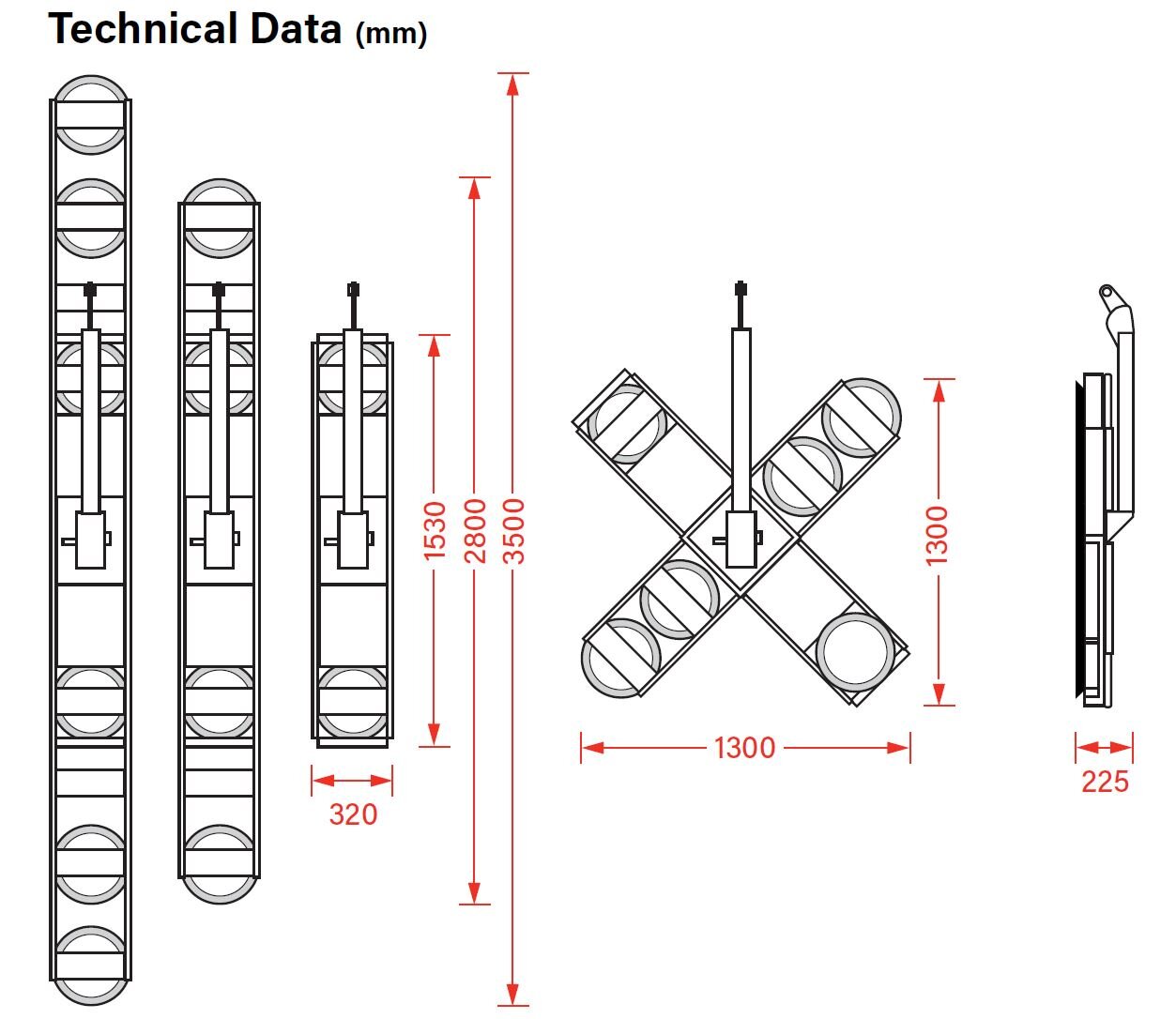

Dimensions
Specification
Ideal for lifting large-sized glass, façade elements, cladding and roofing, the GL600 is designed for the installation of non-porous construction materials on construction projects. With 4, 6 and 8 pad configurations, the GL600 can lift capacities of 300kg, 450kg or 600kg respectively. We also have a range of pick & carry cranes available for installing glazing units, click here.
If you are looking to hire or purchase the Glass Jack 600, or require any further information, contact GGR Group today.
