GGR600+ – Glazing Sucker

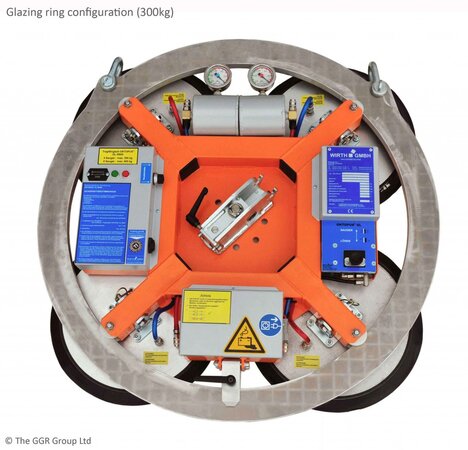

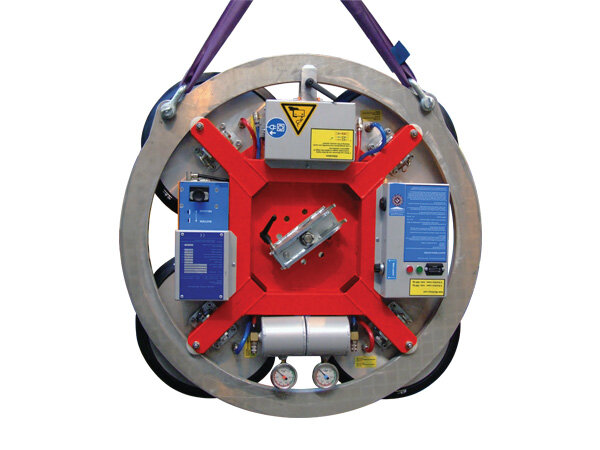

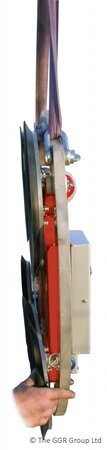

New to GGR Group, this unique patented glazing sucker installation ring has a low structural depth of only 140mm, making it slender enough to fit between a building envelope and scaffolding for when access to a façade is restricted
- 300-600kg safe working load
- Dual vacuum circuit, with vacuum reserve tank, non-return valve and gauge for each circuit

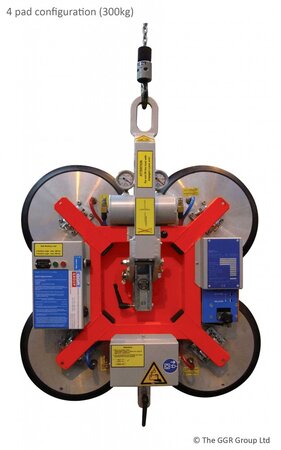

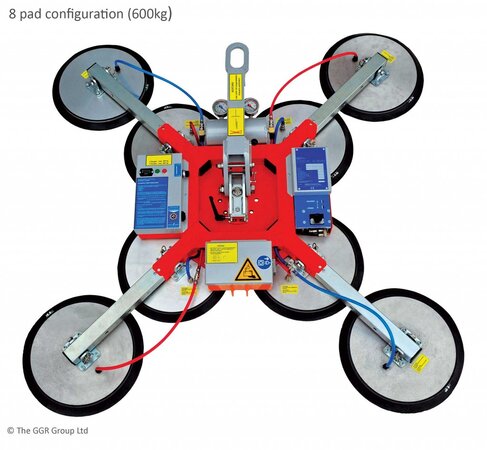

- 8, 6 or 4 x 400mm diameter suction cups
- Manual 360° lockable rotation (continuous)
- 90° manual tilting from vertical to horizontal (with lifting arm)
- Lifted by two eyelets at the top of the ring
- Powered by 24V on-board battery (rechargeable)
- Audio-visual low vacuum warning system
- Four extension arms
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL101 (8 pad lifter), VGL102 (glazing ring)
Capacity: 300-600kg
Rotation: Manual 360° lockable
Battery: 24v
Reference: VGL101 & VGL102
Features

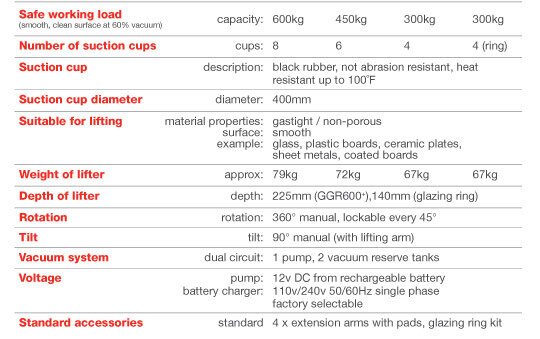

Technical Table

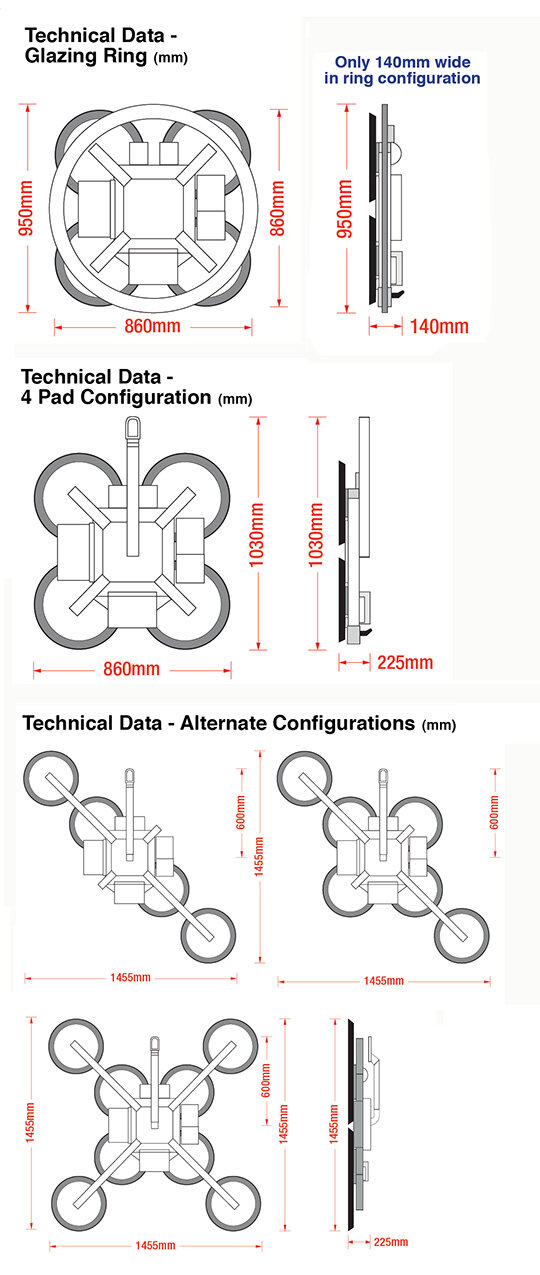

Dimensions
Specification
The GGR600+ features all the benefits of other vacuum lifters, including a 300-600kg safe working load and 360° lockable rotation. The glazing sucker installation ring can easily clear the narrow space between a façade and scaffolding, yet still allow glass panels to be rotated into position.
If you are interested in this vacuum lifter, you may also like our DSZ2 slim-line vacuum lifter which comes with a higher working load of 750kg.
We also have a range of glazing robots available for installing units from inside a building, click here.
If you are looking to hire or purchase the GGR600+, or require any further information, contact GGR Group today.
