Glass Vacuum Lifters

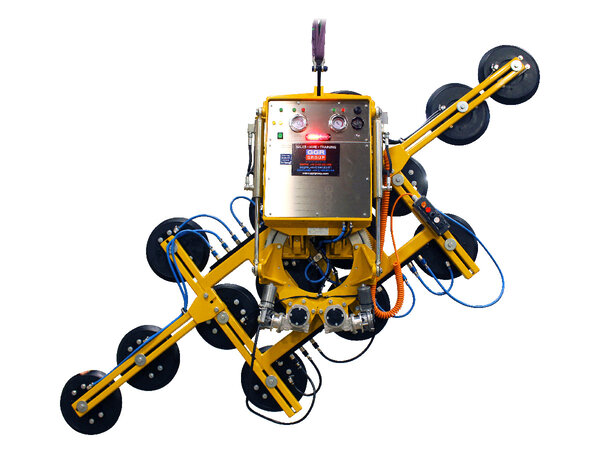

Hydraulica 1000 Power Tilt & Rotate
The Hydraulica 1000 Power Tilt & Rotate is a high-quality vacuum lifting device with a 1000kg capacity that has proven to be useful in the glass installation business.
- Powered 360° rotation
- Safe working load 750-1000kg
- 90° hydraulic tilting from vertical to horizontal
- Weight 246kg (with 14 pads), 226kg (with 12 pads), 218kg (with 10 pads), 198kg (with 8 pads)
- 2 or 4 onboard maintenance-free vacuum pumps
- Vacuum Pads – 330mm diameter
- Two, independent vacuum circuits, each with a vacuum reserve tank and non-return valve
- Two extension arms with variable position pads supplied as standard
- Vacuum gauge for each circuit
- 12v battery with integral charger 110v/240v
- Audio-visual low vacuum alert
- Cable remote control as standard
- Individual pads can be isolated to accommodate irregular shapes
- Optional low-marking pads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Capacity: 1000kg
Rotation: Powered 360°
Feature: Tilt & rotate
Reference: VGL73
Features
Technical Table
Dimensions
Specification
For optimum control of heavy-duty loads, this strong suction lifter boasts 360° continuous powered rotation and 90° hydraulic tilt.
We have other Hydraulica vacuum lifters available with capacities up to 4000kg.
- Hydraulica 1000-A / Hydraulica 1000-B
- Hydraulica 1200-A / Hydraulica 1200-B
- Hydraulica 2000-A / Hydraulica 2000-B
- Hydraulica 2500
- Hydraulica 2600 Quad Circuit Compact
- Hydraulica 4000 Quad Circuit
- Hydraulica 900-C Curved Glass Lifter
If you are looking to purchase the Hydraulica 1000 Power Tilt & Rotate, or require any further information, contact GGR Group today.
