Glass Vacuum Lifters

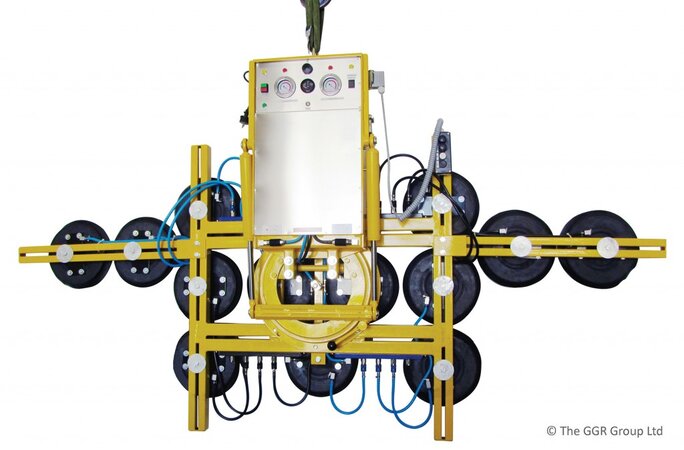

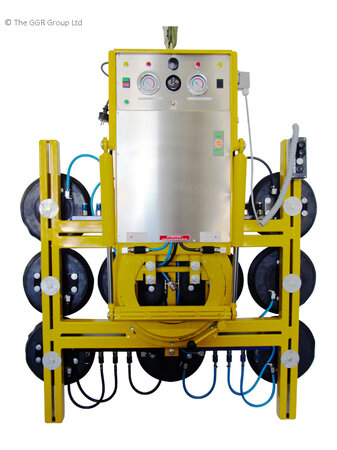

Hydraulica 1000-B
The Hydraulica 1000-B is the newer version of our popular Hydraulica 1000-A model.
- Capacity: 1000kg
- Dual circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
- Powered hydraulic 90° tilt from vertical to horizontal
- Manual 270° lockable rotation
- Two or four on-board maintenance-free vacuum pumps
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Extension arms with variable position pads supplied as standard
- Audio-visual low vacuum warning
- Cable remote control as standard
- Individual pads can be isolated to accommodate irregular shapes (reduces safe working load)
- Optional wheeled stand
- Optional low-marking pads
- Two hydraulic rams
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL63
Capacity: 1000kg
Rotation: Manual 270°
Battery: 12v
Reference: VGL63
Features

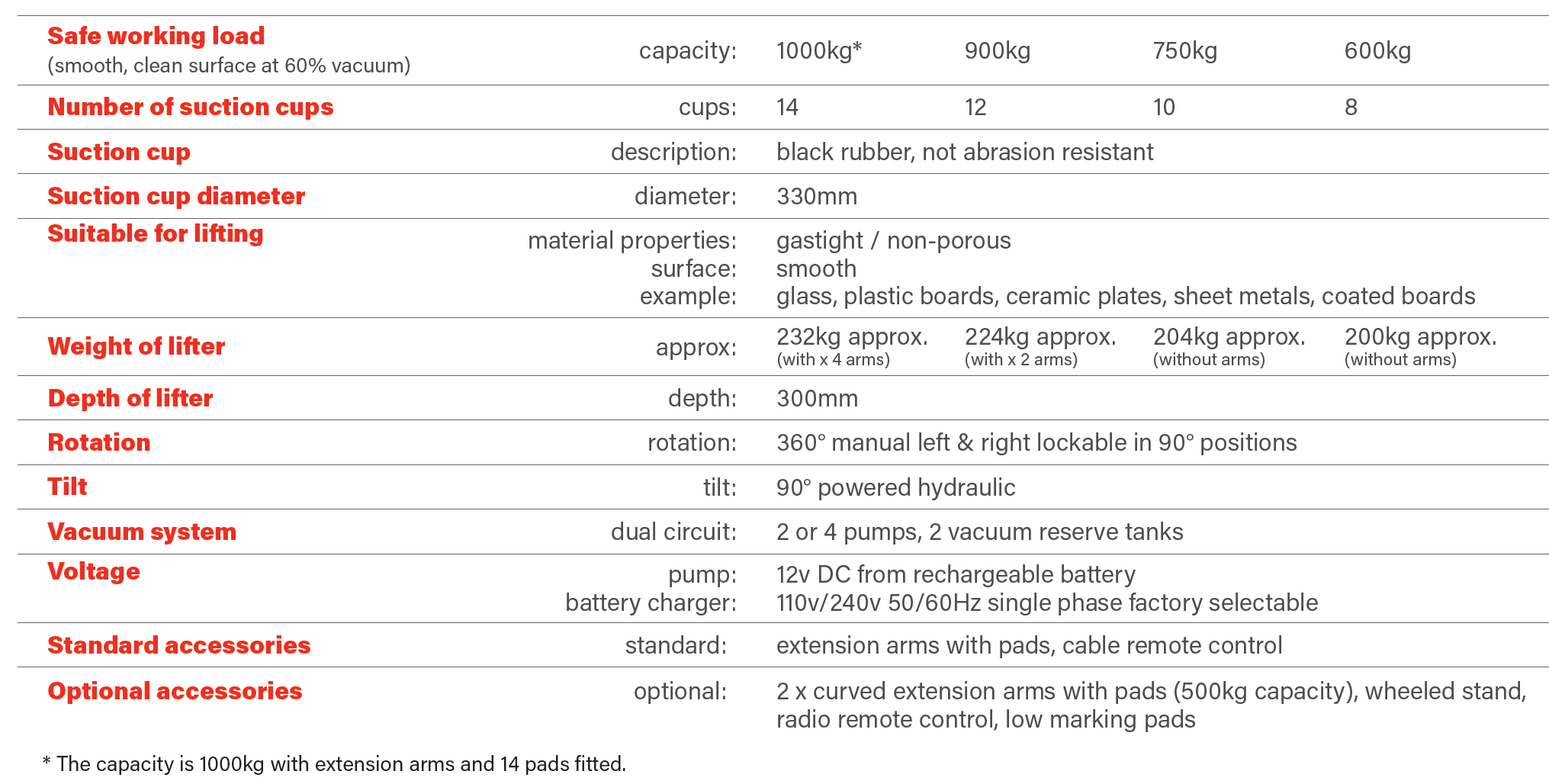

Technical Table

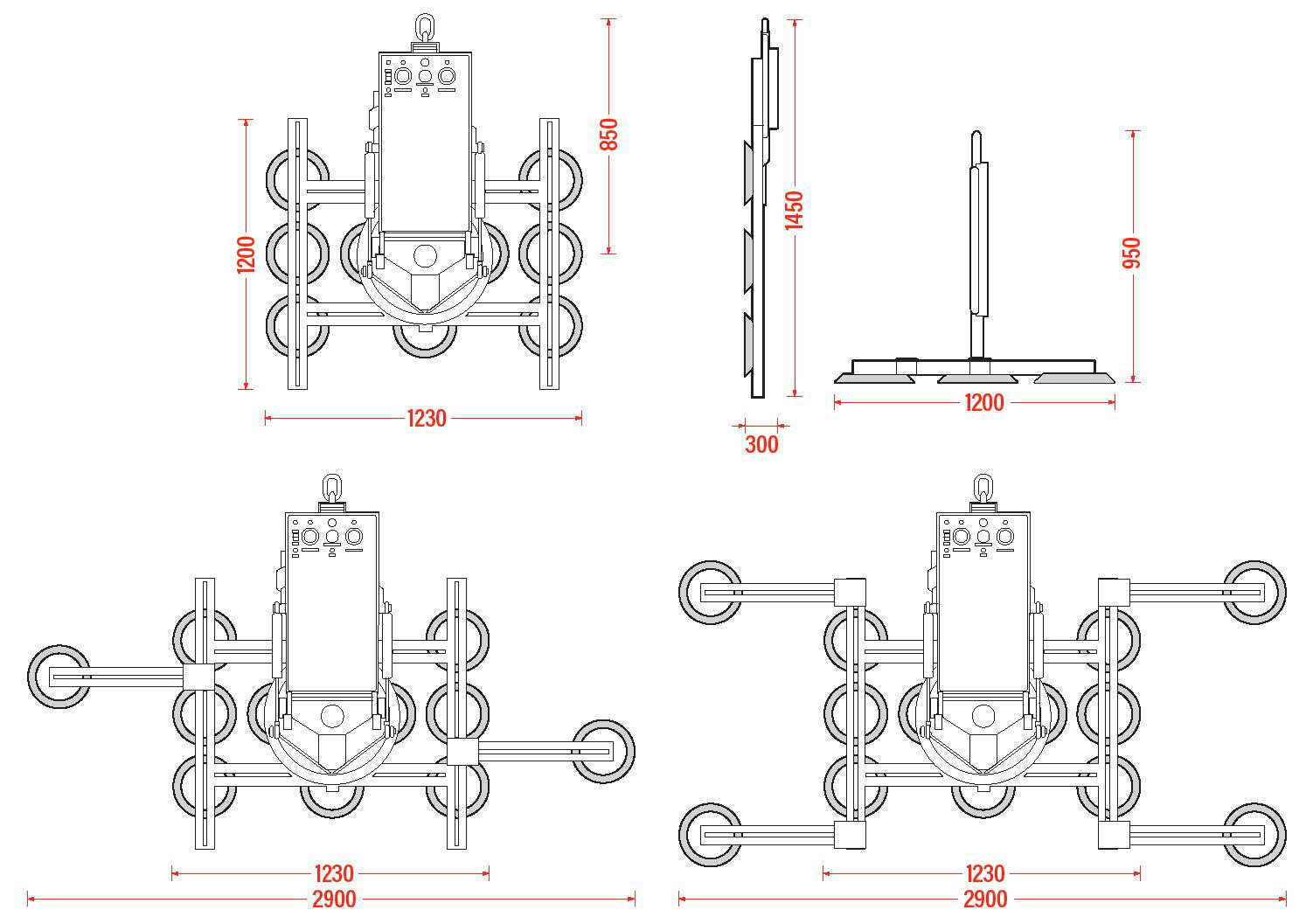

Dimensions
Specification
The new model is also a versatile ten pad lifter that comes with extension arms as standard, increasing capacity from 750kg to 1000kg offering additional stabilisation of larger loads.
This newer version also comes with two hydraulic rams for seamless power tilting and a user-friendly enclosed control panel. The Hydraulica 1000-B features 270° lockable rotation and powered 90° tilt functions.
If you are looking to hire or purchase the Hydraulica 1000-B, or require any further information, contact GGR Group today.
