Hydraulica 1200-B
The updated Hydraulica 1200-B model offers more controlled load rotation and tilt functions for handling glass sheets weighing up to 1200kg.
- Capacity: 1200kg
- Dual circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit

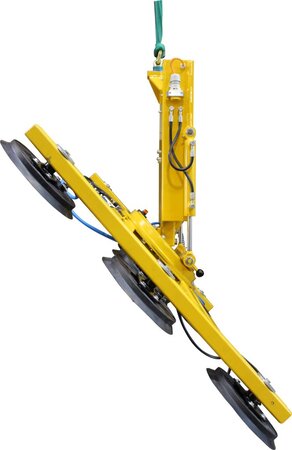

- Powered hydraulic 90° tilt from vertical to horizontal
- Manual 270° lockable rotation
- Two or four on-board maintenance-free vacuum pumps
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Audio-visual low vacuum warning

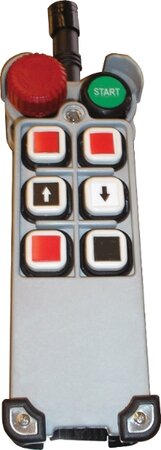

- Cable remote control as standard

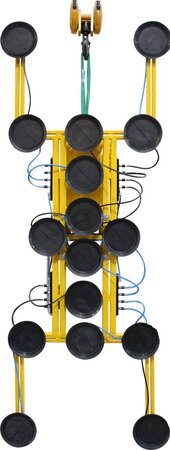

- Individual pads can be isolated to accommodate irregular shapes (reduces safe working load)

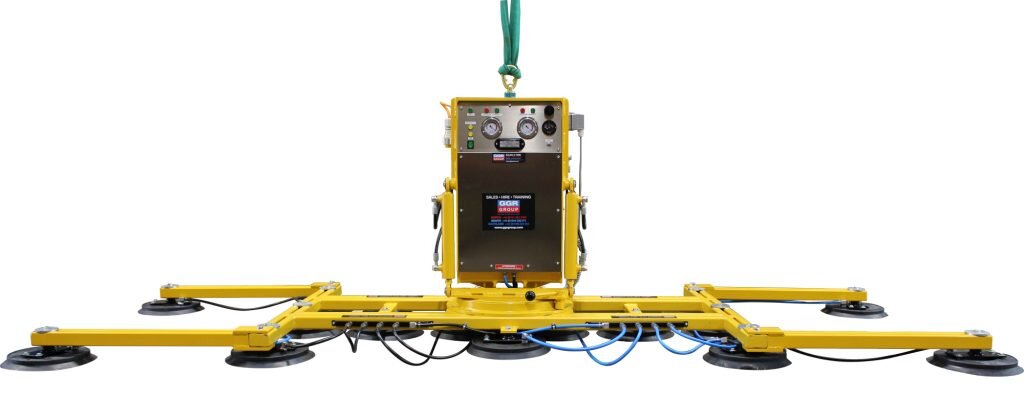

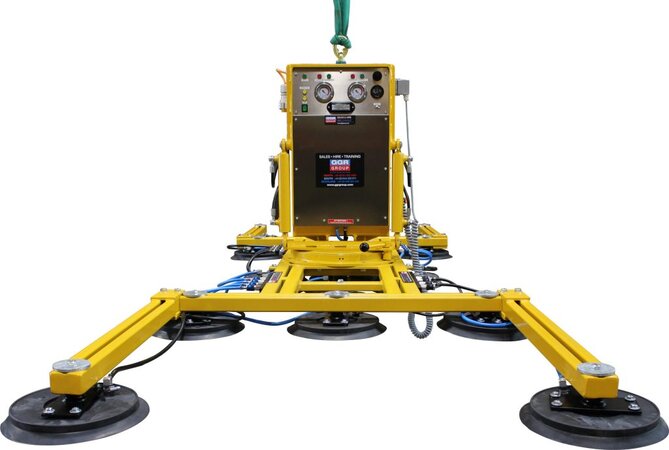

- Extension arms for large loads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL52
Capacity: 1200kg
Rotation: Manual 270°
Feature: Hydraulic 90° tilt
Reference: VGL52
Features

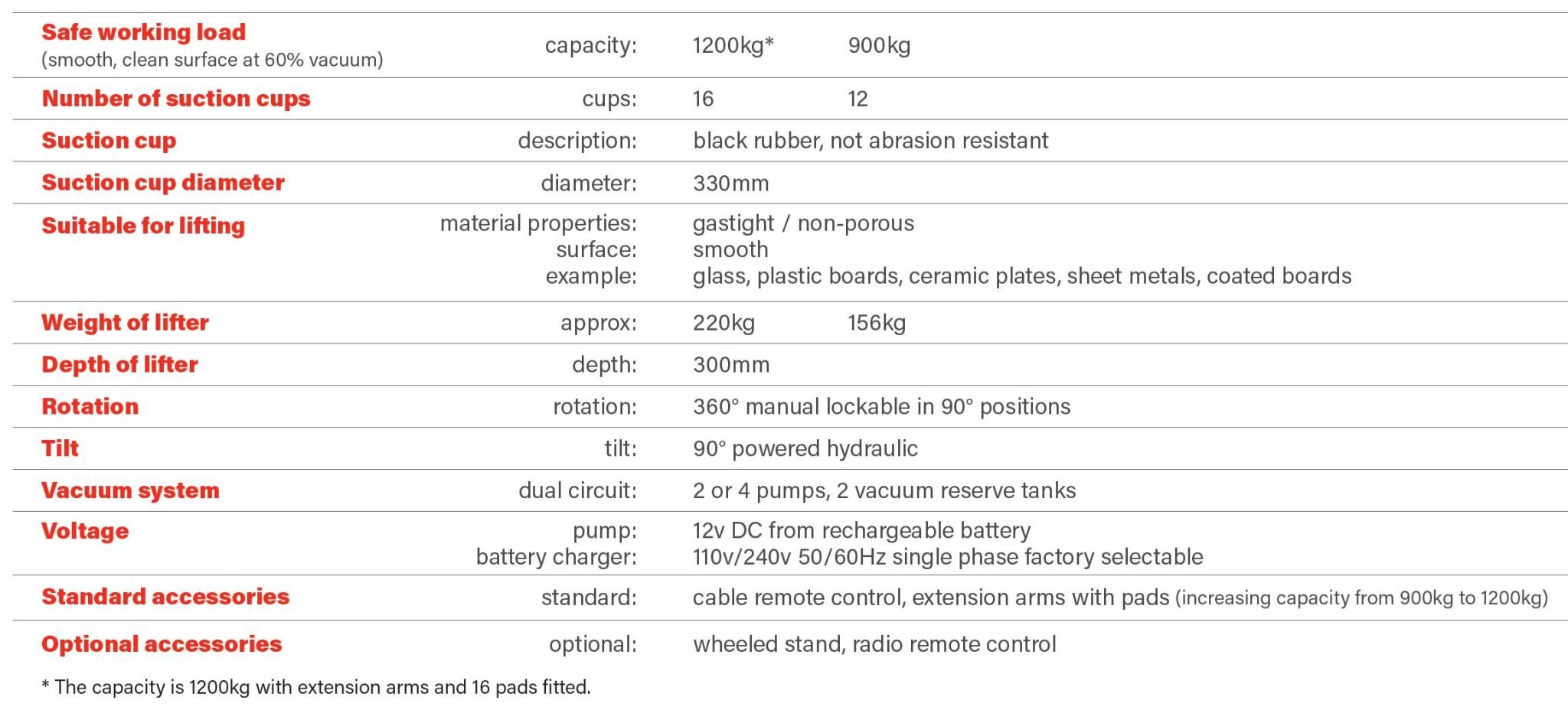

Technical Table

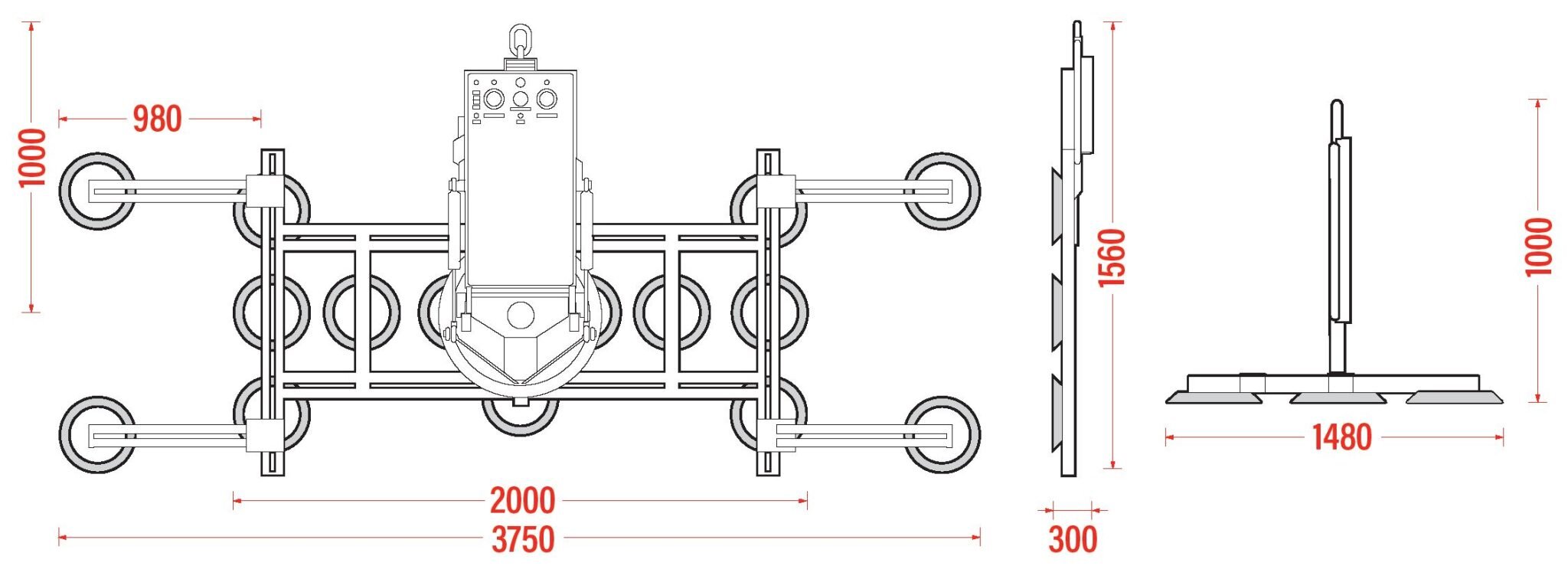

Dimensions
Specification
The updated Hydraulica 1200-B model offers more controlled load rotation and tilt functions for handling glass sheets weighing up to 1200kg.

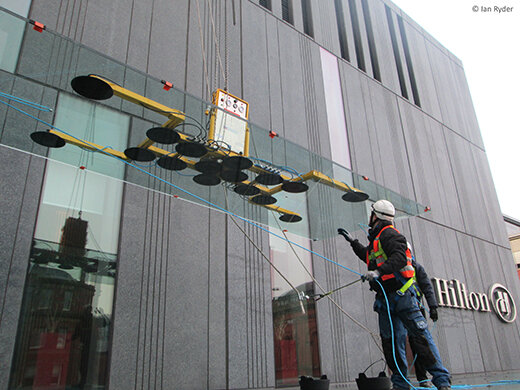

Retaining all the features of the original Hydraulica 1200-A glass vacuum lifter, the dual circuit Hydraulica 1200-B allows for manual 270° rotation of loads. The lifter’s twin hydraulic cylinders mean that the B model’s powered 90° tilt mechanism can be carried out with smoother movement.

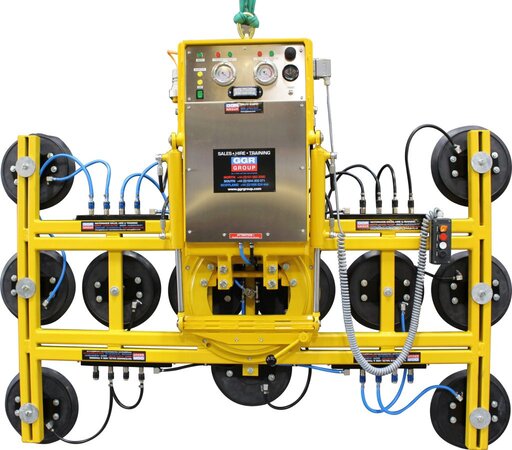

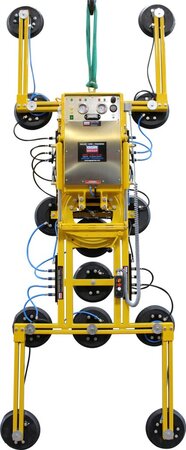

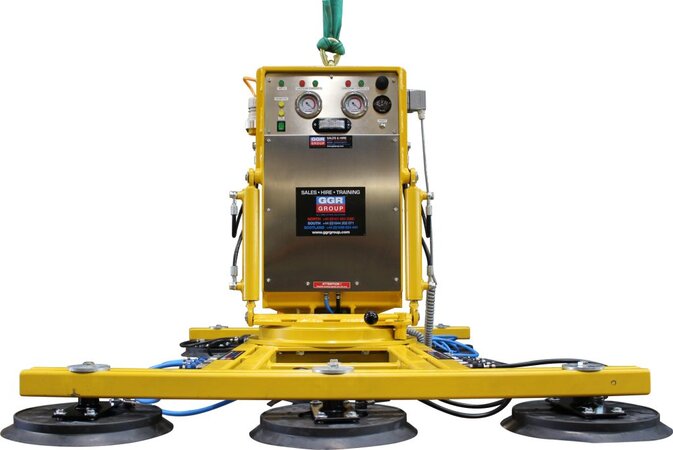

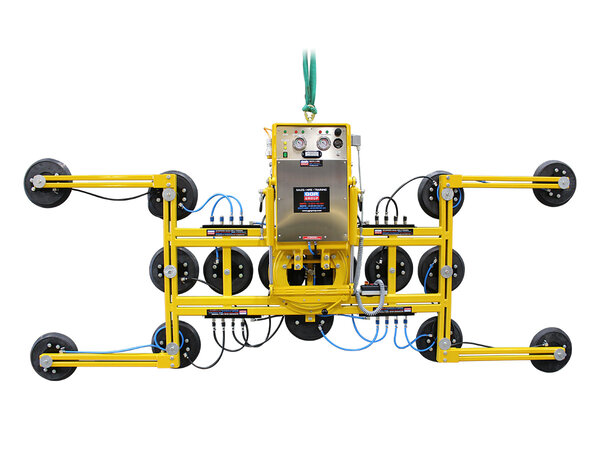

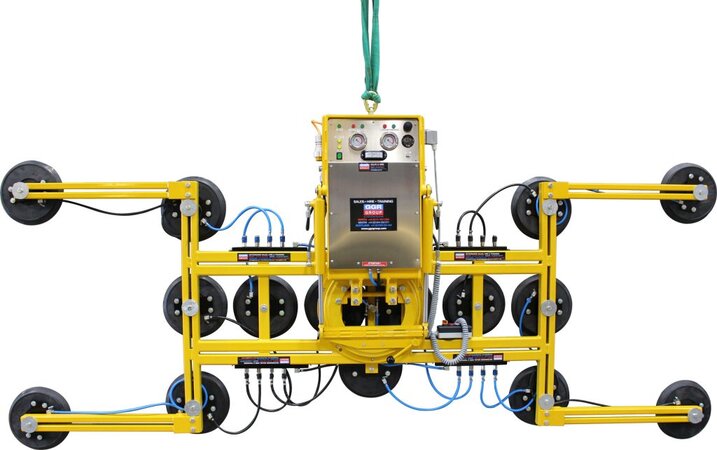

The Hydraulica 1200-B also features four removable extension arms rather than two to accommodate irregular shaped materials. The machine’s controls are on the front of the lifter where the vacuum gauges are clearly visible.
If you are looking to hire or purchase the Hydraulica 1200-B, or require any further information, contact GGR Group today.
