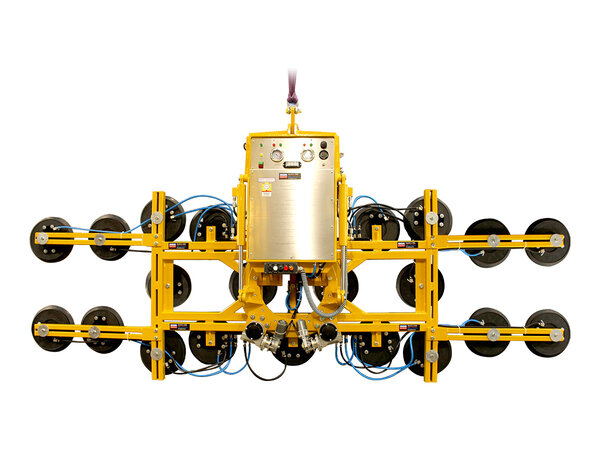

Hydraulica 1650
The Hydraulica 1650 is one of the industry’s newest vacuum lifters, with a massive 1650kg capacity for lifting heavy-duty glass, metal, plastics, and more.
- Capacity: 1650kg (22 pads), 1050kg (14 pads)
- Dual circuit vacuum system with a reserve tank, non-return valve, and vacuum gauge for each circuit
- Powered hydraulic 90° tilt from vertical to horizontal
- Powered 360° rotation
- Four to 6 onboard maintenance-free vacuum pumps
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Audio-visual low vacuum warning
- Cable remote control as standard
- Individual pads can be isolated to accommodate irregular shapes (reduces safe working load)
- Extension arms for large loads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL68
Capacity: 1650kg
Rotation: Powered 360°
Feature: Hydraulic 90° tilt
Reference: VGL68
Features
Technical Table

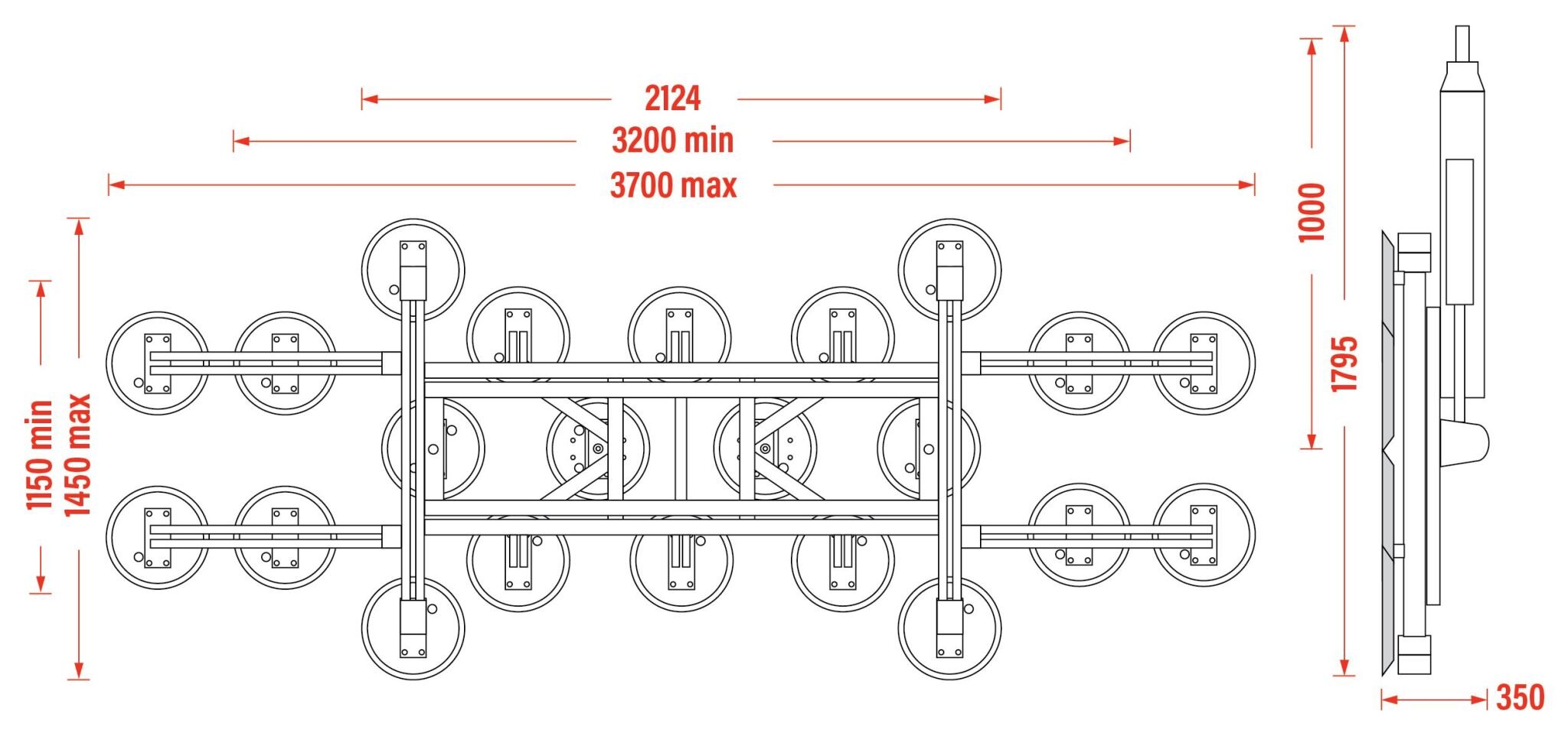

Dimensions
Specification
The Hydraulica 1650 allows users optimum control while lifting heavy objects with 360° electrically powered rotation and motorised hydraulic tilt from vertical to horizontal.
The Hydraulica 1650 contains four to six independent vacuum pumps and a low vacuum alert system for improved safety when lifting big format glass and non-porous plate materials. The vacuum suction and release, as well as tilt and rotation, are all controlled by a cable remote control.
If you are looking to hire or purchase the Hydraulica 1650, or require any further information, contact GGR Group today.
