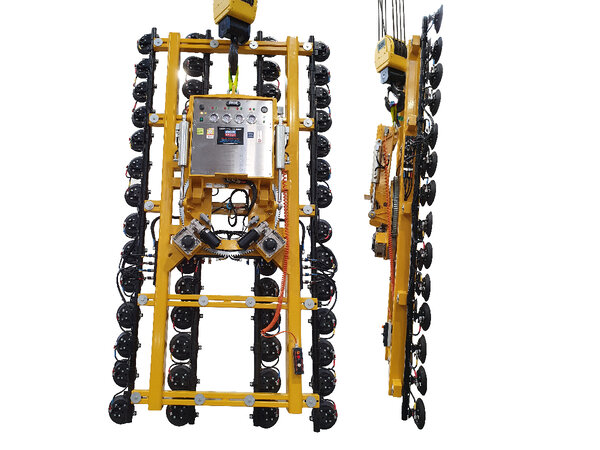

Hydraulica 2100 Curved
A true heavyweight of curved vacuum lifters. The Hydraulica 2100 Curved has been specifically designed to lift large curved glass on construction sites and on high rise buildings.
- 2100kg safe working load
- Quad-circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
- Low vacuum alert
- 360° powered rotation
- Hydraulic tilting from vertical to horizontal
- Powered by 24v rechargeable battery with integral charger or 110v/240v mains and battery energy gauge
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL67CF
Capacity: 2100kg
Rotation: Powered 360°
Tilt: Hydraulic 90°
Reference: VGL67CF
Features

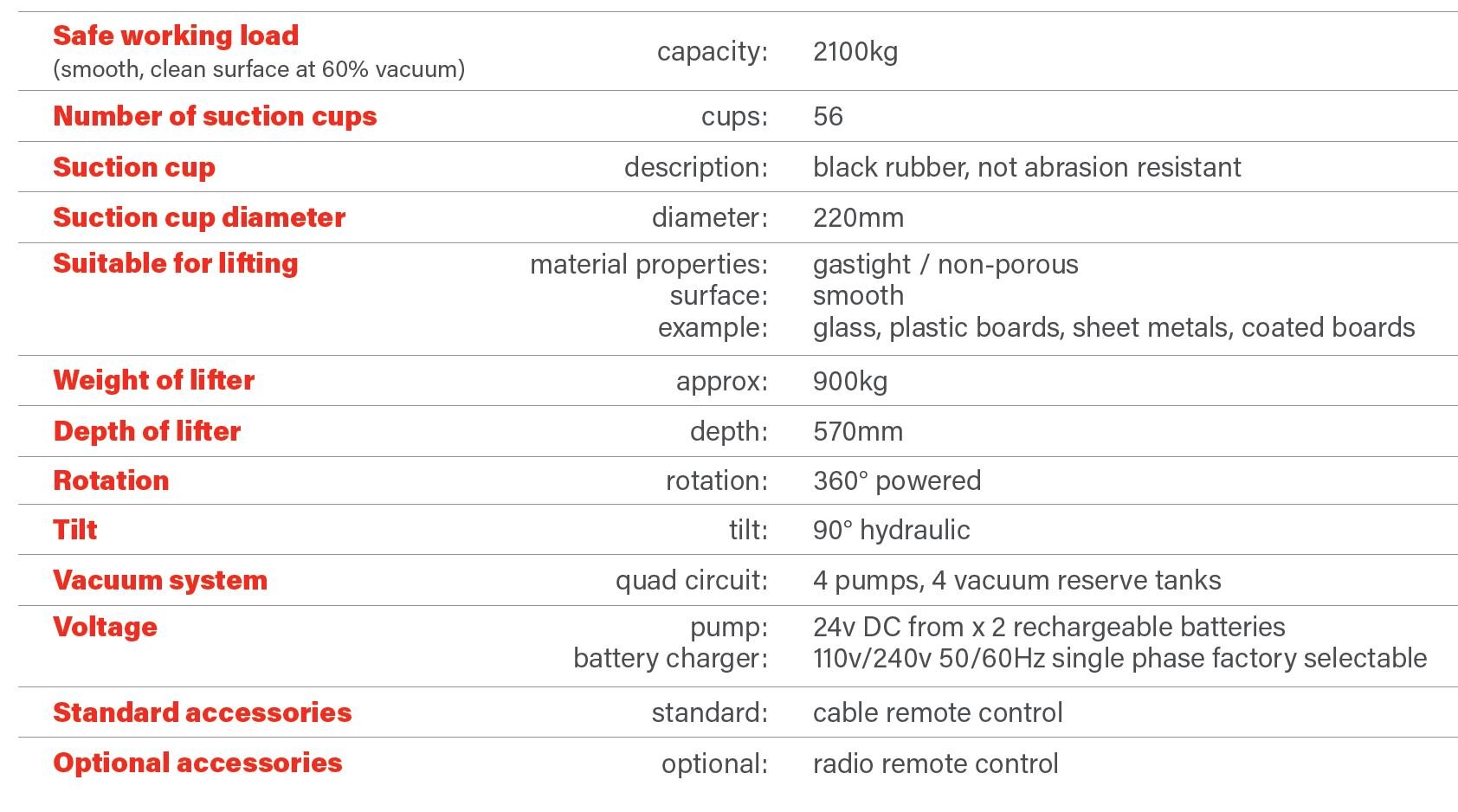

Technical Table

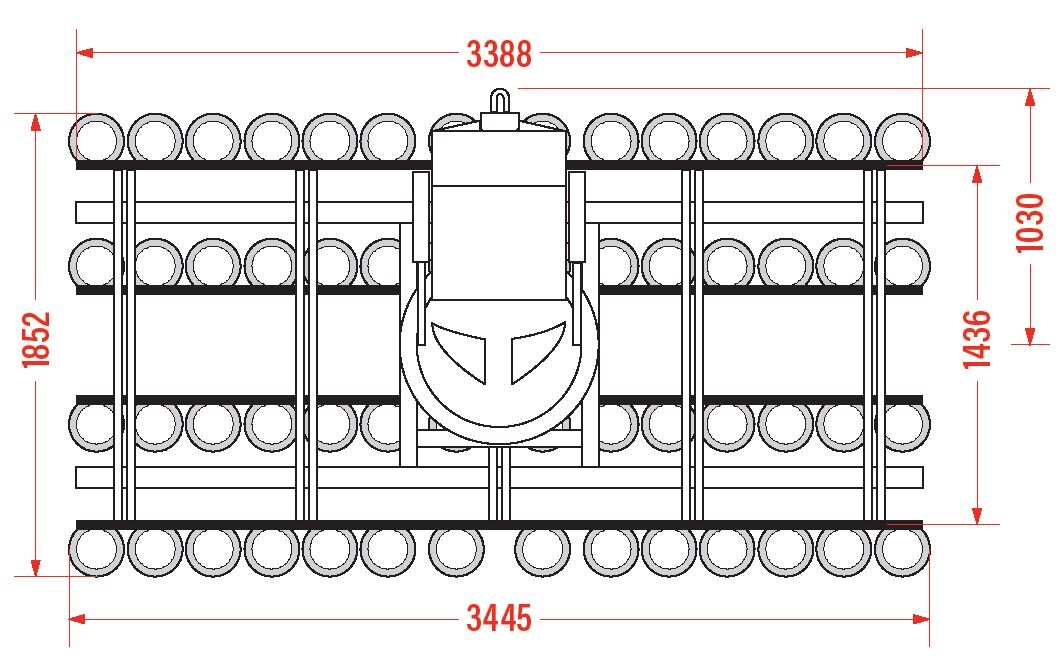

Dimensions
Radius Dimensions
Specification
Materials are lifted via vacuum pads, mounted onto flexible swivel arms that can mould themselves to the unique shape of each load. The Hydraulica 2100 Curved comes with Quad-Circuit technology, with four independent vacuum circuits for safer & more efficient lifting performance on site.
This Hydraulica 2100 Curved lifter features 360° powered rotation & 90° hydraulic tilt for easy control of heavy loads.
If you are looking to hire or purchase the Hydraulica 2100 Curved, or require any further information, contact GGR Group today.
