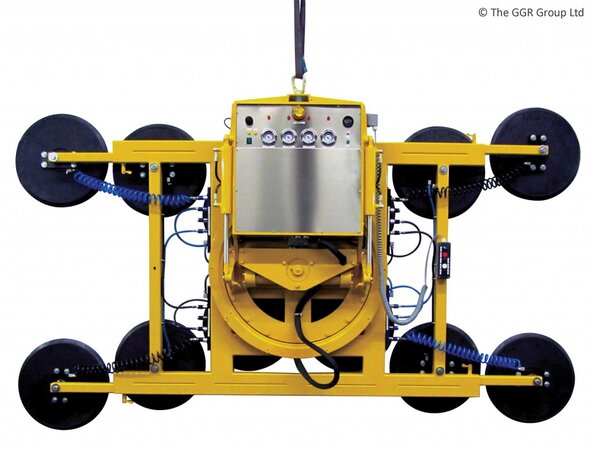

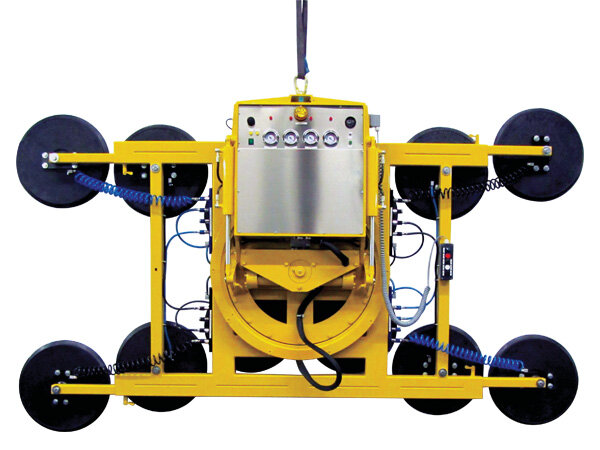

Hydraulica 2600 Quad-Circuit Compact
The Hydraulica 2600 Quad-Circuit Compact boasts four independent vacuum circuits for quicker, safer and more efficient lifting performance on site.
- Capacity: 2600kg
- Four vacuum circuits with four on-board maintenance free pumps
- Powered 210° lockable rotation
- 90° Hydraulic tilting
- Audio-visual low vacuum alert
- 12v battery or 240V / 110v mains
- Wheeled stand for transport and storage available

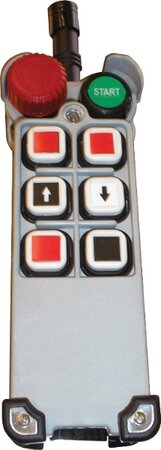

- Cable remote control as standard, optional radio remote
- Individual pads can be isolated for irregular units
- Sliding extension arms
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
- FOR HIRE ONLY
Ref: VGL62
Capacity: 2600kg
Rotation: Powered 210°
Battery: 12v
Reference: VGL62
Features

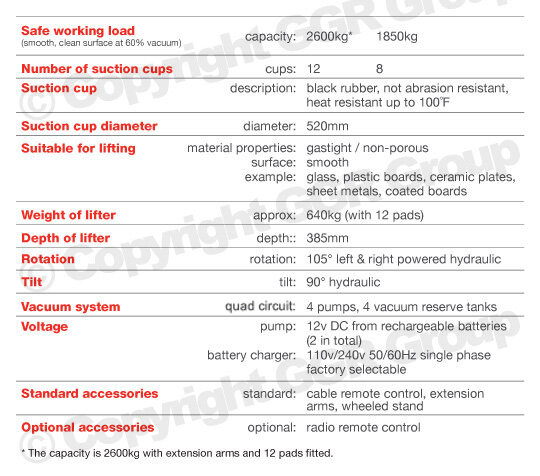

Technical Table

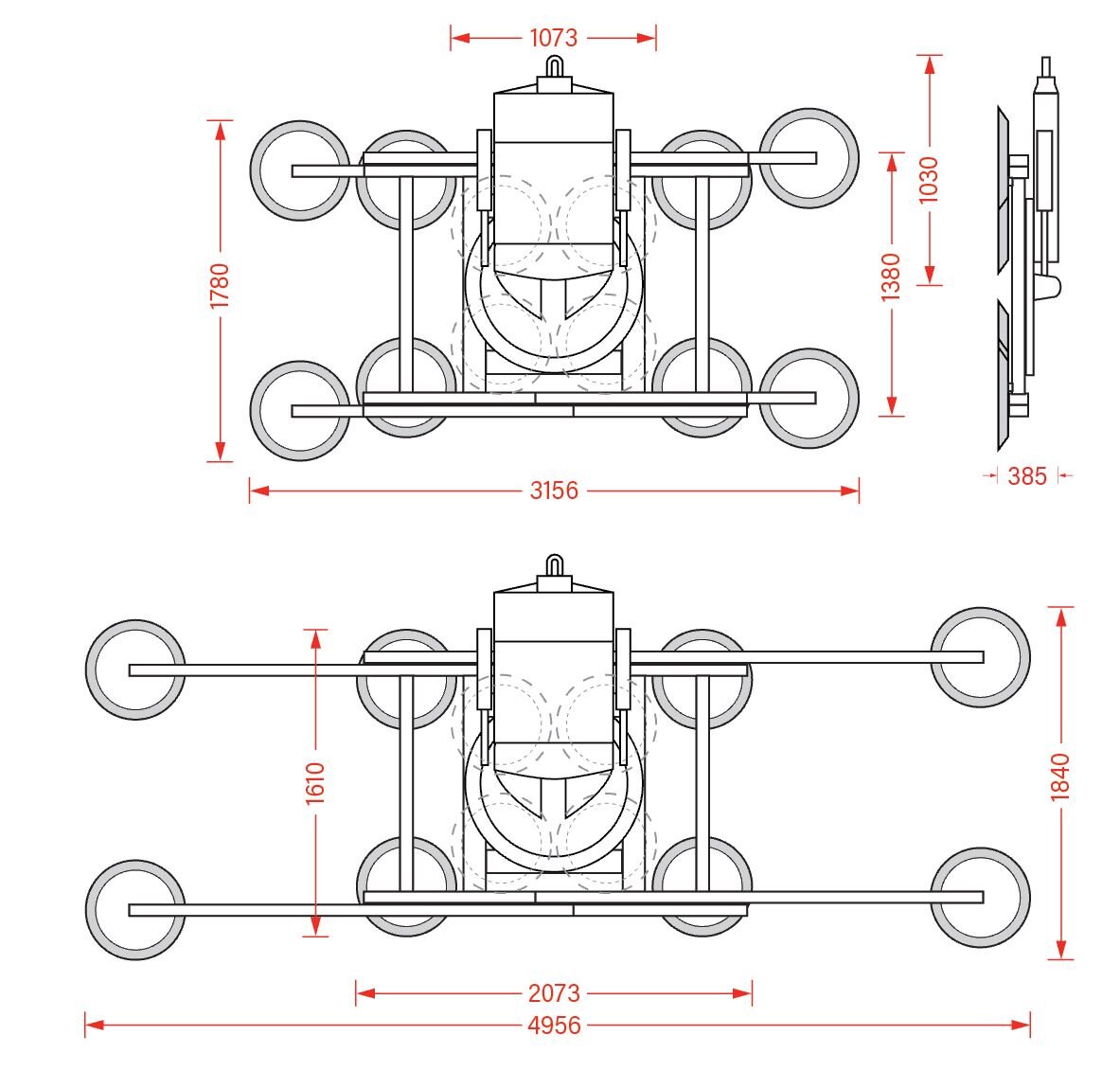

Dimensions
Specification
Bringing the latest in modern vacuum lifting technology to the market, the Hydraulica 2600 Quad-Circuit Compact boasts four independent vacuum circuits for quicker, safer and more efficient lifting performance on site.

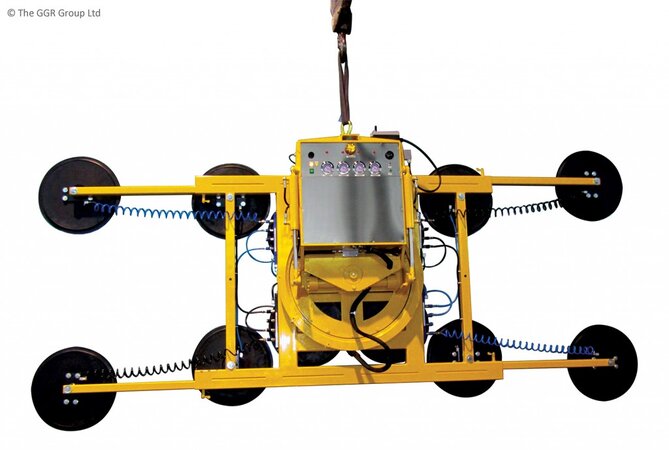

Retaining all the benefits of our standard Hydraulica 2500 lifter, with an increased 2600kg lifting capacity, the innovative Hydraulica Quad-Circuit also has a more compact frame for fitting glass under tricky soffits and overhangs, as well as twelve larger 520mm vacuum pads to achieve quicker vacuum suction. The lifter’s two moveable extension arms are easier to slide in and out to adjust to different glass sizes.

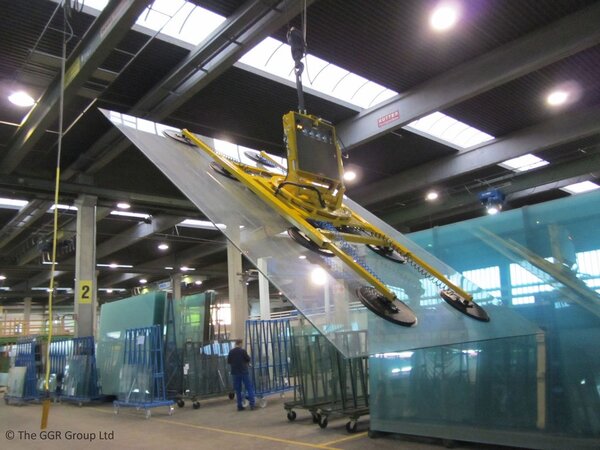

Large format and dense loads can be easily moved into position thanks to this lifter’s dual ram cylinders which provide powered hydraulic 90° tilting alongside 210° lockable rotation.
If you are looking to hire the Hydraulica 2600 Quad-Circuit Compact, or require any further information, contact GGR Group today.
