Glass Vacuum Lifters

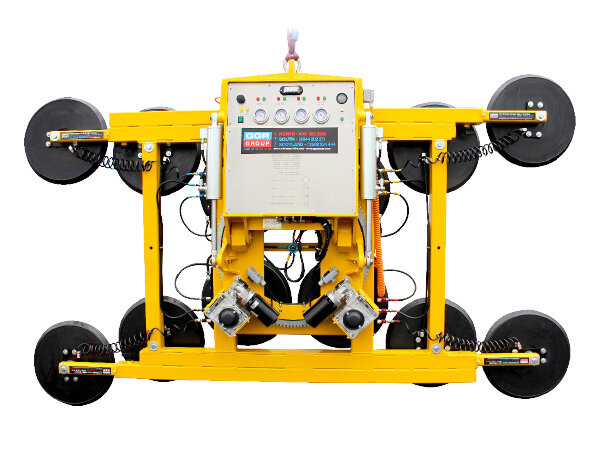

Hydraulica 3500 Quad-Circuit Compact
Bringing the latest in modern vacuum lifting technology to the market, the Hydraulica 3500 Quad-Circuit boasts four independent vacuum circuits for quicker, safer and more efficient lifting performance on site.
- Capacity: 3500kg
- Four vacuum circuits with four on-board maintenance free pumps
- Powered 360° rotation
- 90° hydraulic tilting
- Audio-visual low vacuum alert
- 24v battery
- Wheeled stand for transport and storage available
- Cable remote control as standard, optional radio remote
- Individual pads can be isolated for irregular units
- Sliding extension arms
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL67
Capacity: 3500kg
Rotation: Powered 360°
Tilt: 90° hydraulic
Reference: VGL67
Features

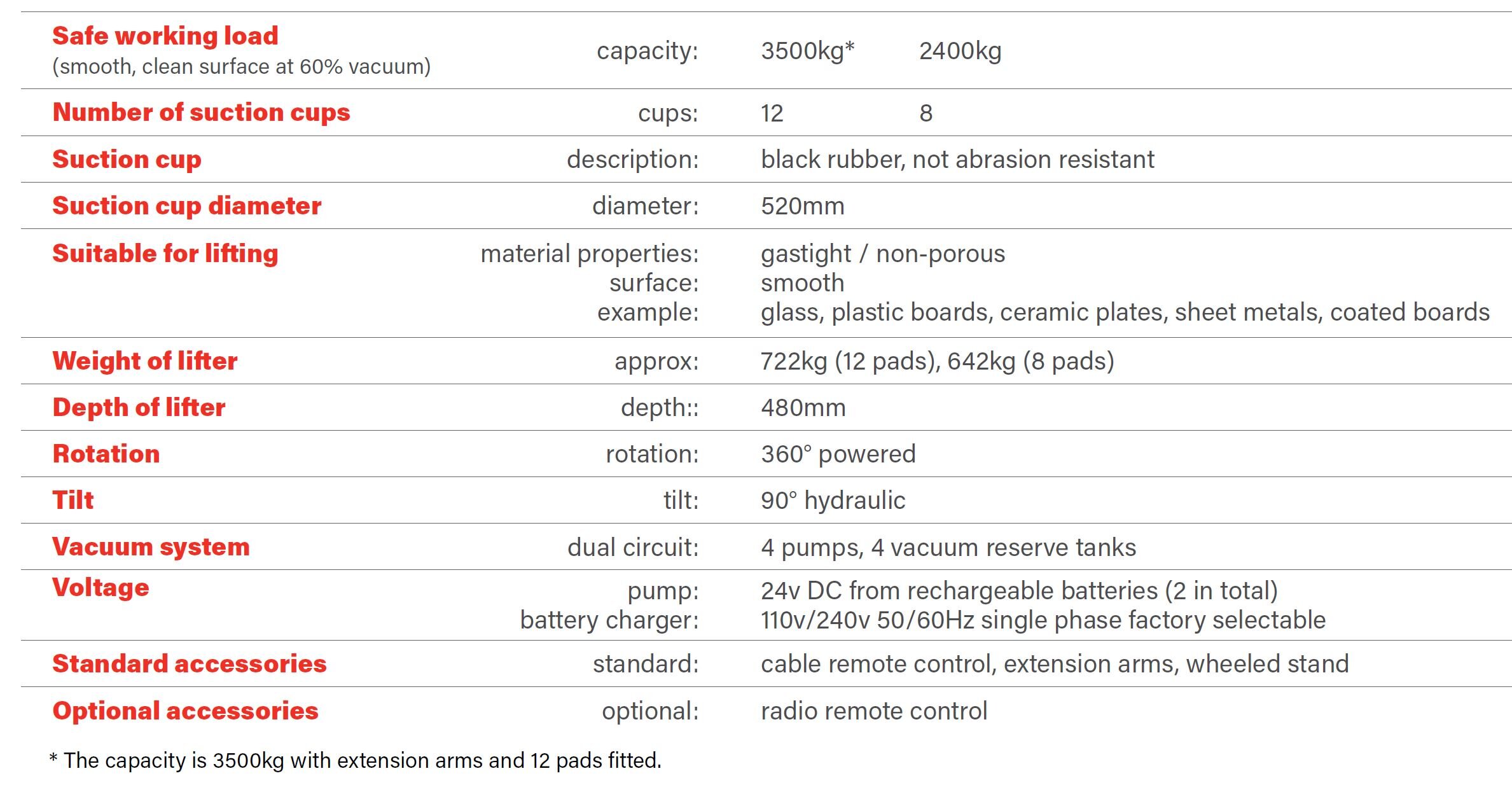

Technical Table

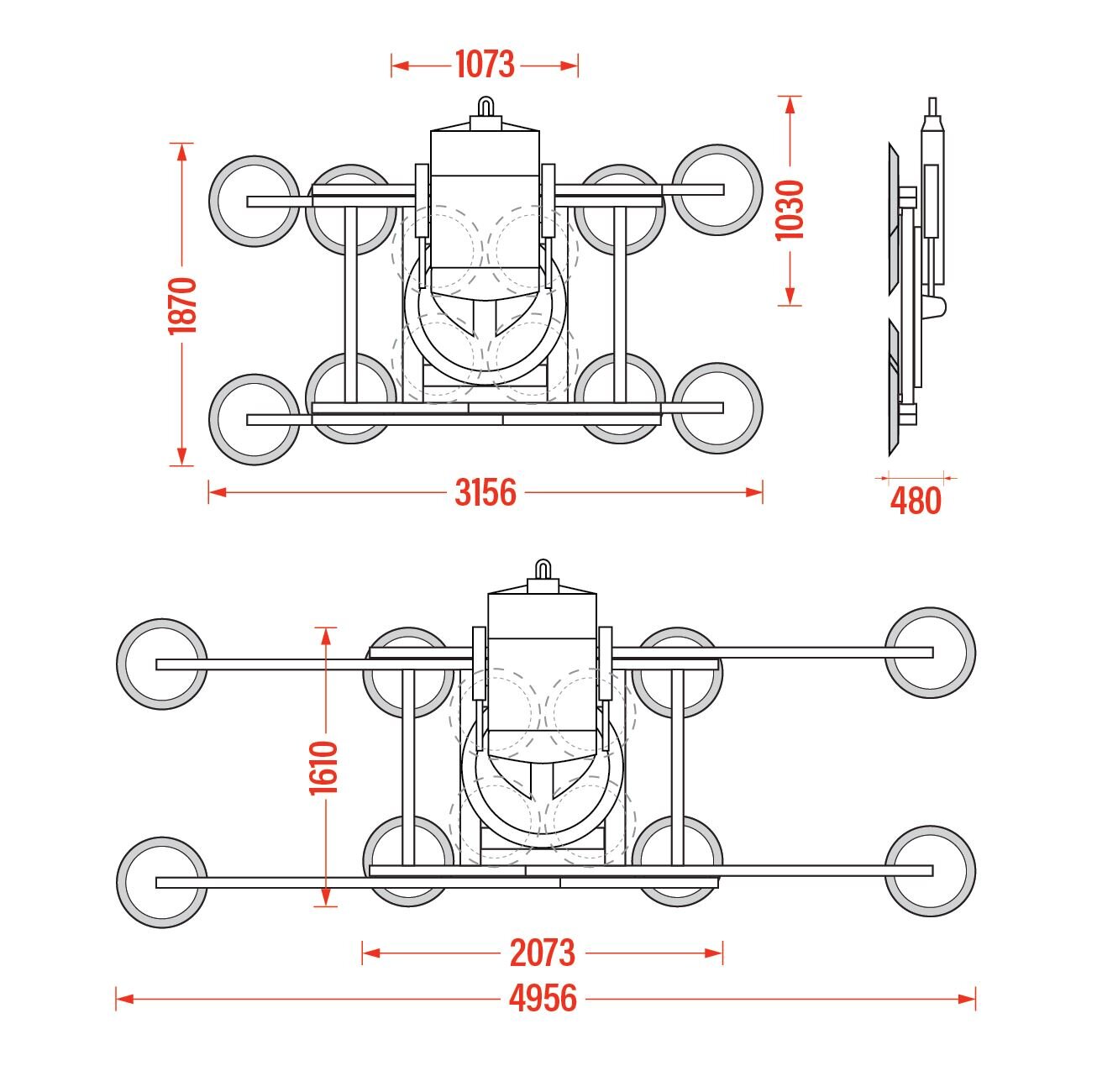

Dimensions
Specification
The innovative Hydraulica 3500 Quad-Circuit also has a more compact frame for fitting glass under tricky soffits and overhangs, as well as larger 520mm vacuum pads to achieve quicker vacuum suction. Features 360° powered rotation and 90° hydraulic tilt for easy control of heavy loads.
If you are looking to hire or purchase the Hydraulica 3500 Quad-Circuit, or require any further information, contact GGR Group today.
