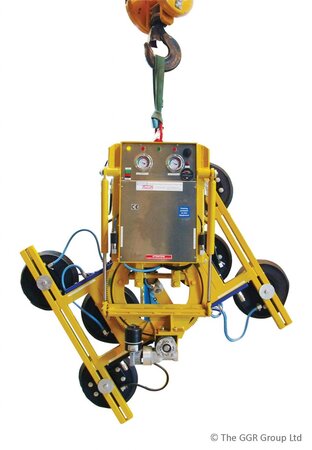

Hydraulica 600 Power Tilt & Rotate
The Hydraulica Power Tilt & Rotate is a high quality vacuum lifting device which comes with a 600kg capacity and has proven its worth in the glass installation and construction industries in particular.
- Powered 360° rotation
- Safe working load 450-600kg
- 90° hydraulic tilting from vertical to horizontal
- Weight 160kg
- 2 or 4 on-board maintenance-free vacuum pumps
- 12v electrical rotation system
- 8 or 6 Pads – 330mm diameter
- Two, independent vacuum circuits, each with vacuum reserve tank and non-return valve
- Two extension arms with variable position pads supplied as standard
- Vacuum gauge for each circuit
- 12v battery with integral charger or 110v/240v mains
- Audio-visual low vacuum alert
- Cable remote control as standard
- Individual pads can be isolated to accommodate irregular shapes
- Optional low marking pads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL56
Capacity: 600kg
Rotation: Powered 360°
Feature: Tilt & rotate
Reference: VGL56
Features

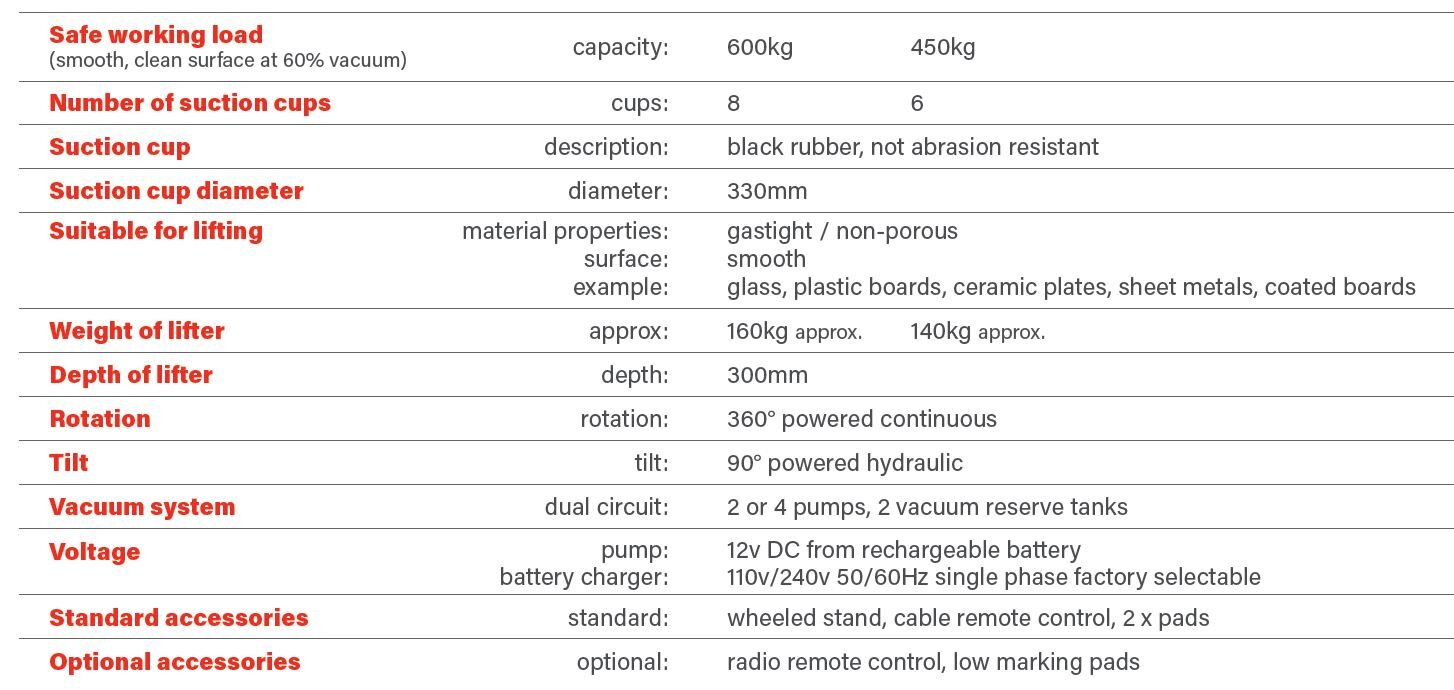

Technical Table

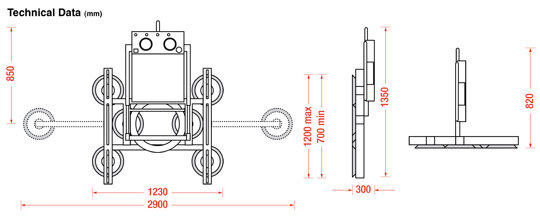

Dimensions
Specification
This popular vacuum lifter is excellent aid for lifting and manoeuvring any type of non-porous panels including glass, coated boards, plastic, sheet metal and more. The Hydraulica 600 Power Tilt & Rotate features 360 degree continuous powered rotation and 90 degree hydraulic tilt for ultimate control of heavy-duty loads, helping to remove the strain of manual lifting. Cable remote control is provided as standard.
We have other Hydraulica vacuum lifters available with capacities up to 4000kg.
- Hydraulica 1000-A / Hydraulica 1000-B
- Hydraulica 1200-A / Hydraulica 1200-B
- Hydraulica 2000-A / Hydraulica 2000-B
- Hydraulica 2500
- Hydraulica 2600 Quad Circuit Compact
- Hydraulica 4000 Quad Circuit
- Hydraulica 900-C Curved Glass Lifter
If you are looking to purchase the Hydraulica Power Tilt & Rotate, or require any further information, contact GGR Group today.
