Glass Vacuum Lifters

Kombi 7001-ABs Single Circuit

A lifter designed for the vertical transport of large sheet glass in workshops, the single circuit 7001-ABs features eight standard pads expandable up to 12.

  • Capacity: 800-1200kg
  • Purchase only
  • Single circuit vacuum system
  • Vacuum reserve tank
  • On-board maintenance-free vacuum pump
  • Powered by 415v 3-phase mains electric
  • Audio-visual low vacuum warning
  • Cable remote control as standard
  • Two extension arms and pads included as standard
  • Detachable guidance handles
  • Not suitable for use in the rain – read more in our safety guide

Capacity: 800-1200kg
Reference: VGL95

Features

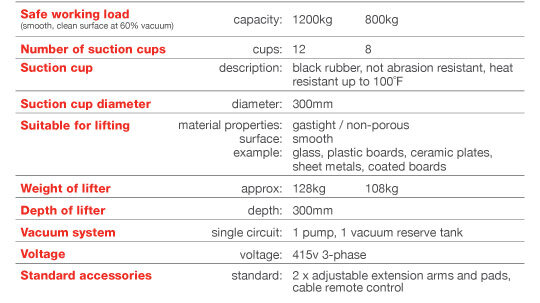

Technical Table

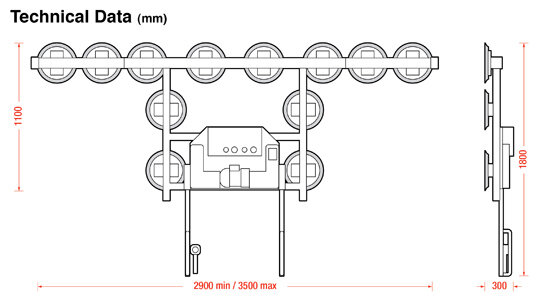

Dimensions

Specification

Designed for use with a gantry crane or winch, the cable remote control and guidance handles make this lifter easy to use for operators.

Sale only item, suitable for use indoors in a workshop or factory with a 415V supply

If you are looking to enquire about purchasing the Kombi 7001-ABs Single Circuit, or require any further information, contact GGR Group today.

Ref: VGL95

Safe Working Load:

1200kg (12 cups), 800kg (8 cups)

Suction Cup Rows:

Number of Suction Cups:

12 (1200kg), 8 (800kg)

Suction Cup Description:

black rubber, not abrasion resistant, heat resistant up to 100˚F

Suction Cup Diameter:

300mm

Rotation:

Tilt:

Vacuum System:

single circuit, 1 pump, 1 vacuum reserve tank

Voltage Pump:

Voltage Battery Charger:

Voltage Mains Operation:

415v 3-phase

Notes:

Weight of Lifter:

128kg (1200kg), 108kg (800kg)

Depth of Lifter:

300mm

Material Properties:

gastight / non-porous

Surface:

smooth

Example:

glass, plastic boards, ceramic plates, sheet metals, coated boards

Stone Pads:

Curved Pads:

Special Pads:

Standard:

2 x adjustable extension arms and pads, cable remote control

Extras:

Documents & Media

Media

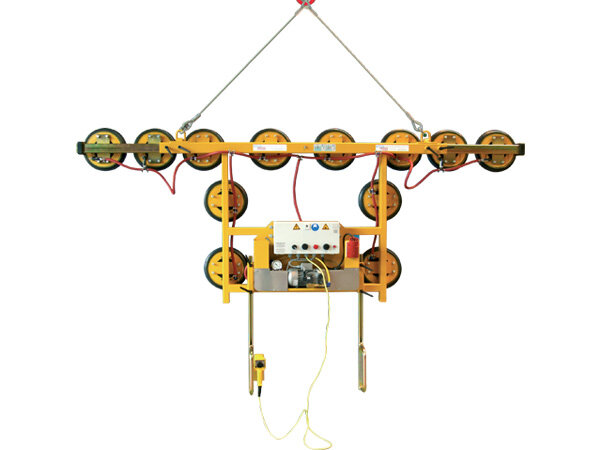

Main View
