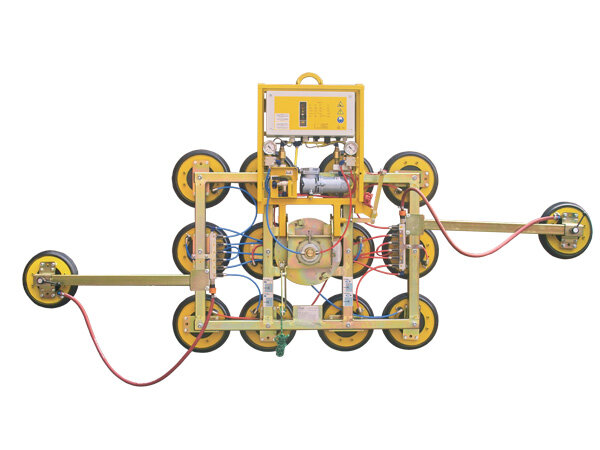

Kombi 7211-DS2
Tilt and rotate larger glass units with the excellent Kombi 7211-DS2 vacuum lifter. This first-rate lifter possesses lockable tilting every 15 degrees and manual rotation to ensure units are at the correct angle ready for installation.
- Hire Only
- Dual, independent vacuum circuits each with: vacuum gauge, vacuum reserve tank and non-return valve
- Two extension arms with changeable position pads supplied as standard
- Manual 180° lockable rotation
- Manual tilting from vertical to horizontal with lockable 15° increments
- On-board maintenance-free vacuum pump
- Powered by 12v rechargeable battery with integral 110v or 240v charger
- Audio-visual low vacuum alarm
- Visual low battery warning
- Optional low marking pads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL54
Capacity: 600kg
Rotation: Manual 180°
Feature: Lockable tilting at 15° intervals
Reference: VGL54
Features
Technical Table

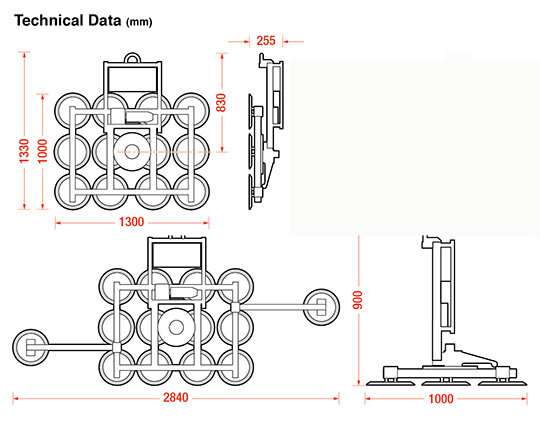

Dimensions
Specification
This reliable lifter offers a 600kg safe working load and comes with two extension arms with variable pad positions, giving a 2.8m pad spread for extra stability.
As with many of our vacuum lifters, the Kombi 7211-DS2 comes with two independent vacuum circuits, each designed to carry the load on its own in accordance with British and EU standards.
Individual pads can be isolated for lifting irregular shaped loads. An optional wireless remote control is also available (sale only).
Training is available on any of our vacuum lifters—contact us today to find out about our accredited 1 day course.
If you are looking to hire the Kombi 7211-DS2, or require any further information, contact GGR Group today.
