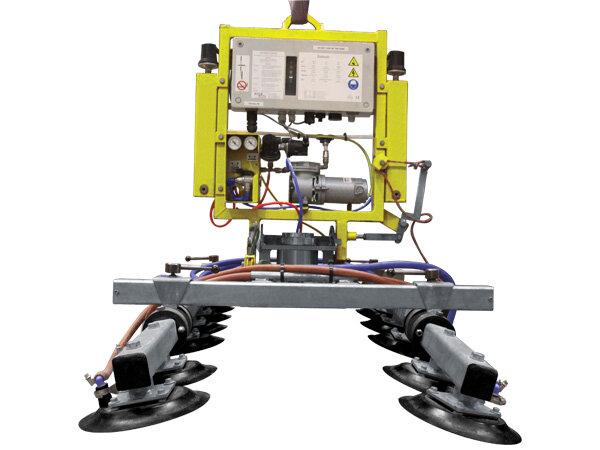

Kombi 7211-DSG – Vacuum Lifters
Concave and convex glass can be lifted with ease using the Kombi 7211-DSG curved glass vacuum lifters.
- Capacity: 200-250kg
- Dual circuit vacuum lifter
- Rotating arms swivel in and out for optimum contact with surface
- Manual 180° rotation with locking at full rotation points
- Manual tilting from vertical to horizontal with lockable 15° increments
- On-board maintenance-free vacuum pump powered by 12v battery with integral charger or 110v/240v mains
- Powered by battery and mains
- Vacuum reserve tank
- Audio-visual low vacuum indication
- Bespoke frame sizes available
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL20
Capacity: 200-250kg
Rotation: Manual Lockable 180°
Tilt: Manual 90°
Reference: VGL20
Features

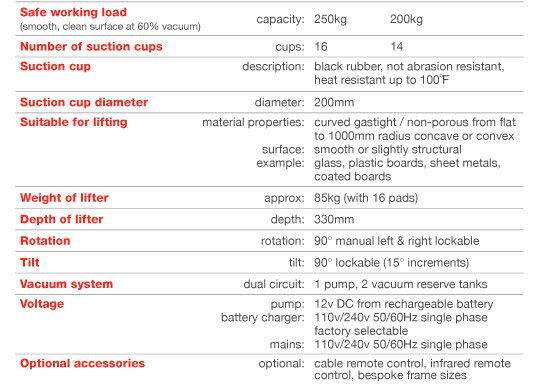

Technical Table

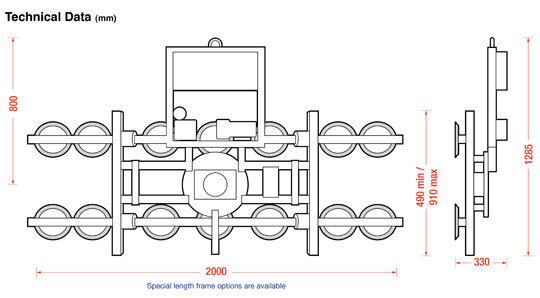

Dimensions
Specification
Featuring flexible swivel arms which swing in and out to allow fast attachment to curved surfaces, the Kombi 7211-DSG vacuum lifters are an ideal aid for lifting curved glass, metal, and composite materials with a minimum radius of 1000mm. This 14 or 16 pad lifter can handle smooth and slightly structural finishes and comes with a 200-250kg safe working load.
The Kombi 7211-DSG vacuum lifters is a more convenient way to lift curved materials and encompasses 180 degree manual rotation as well as manual tilting from vertical to horizontal for safer handling of loads. The tilt function is lockable every 15 degrees.
We also stock a secondary safety device to complement these vacuum lifters.
If you are looking to hire or purchase the Kombi 7211-DSG, or require any further information, contact GGR Group today.
