Kombi 7411-DS7Z
The quad circuit Kombi 7411-DS7Z is the perfect solution for lifting and placing large oversized glass units.
- Capacity: 750kg (dependant on configuration)
- Four circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
- Manual 90° tilt (lockable every 3°) from horizontal to vertical
- Manual 360° rotation
- One swappable 24v rechargeable battery
- Audio-visual low vacuum warning
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL46
Capacity: 750kg
Rotation: Manual 360°
Tilt: Manual 90°
Reference: VGL46
Features
Technical Table

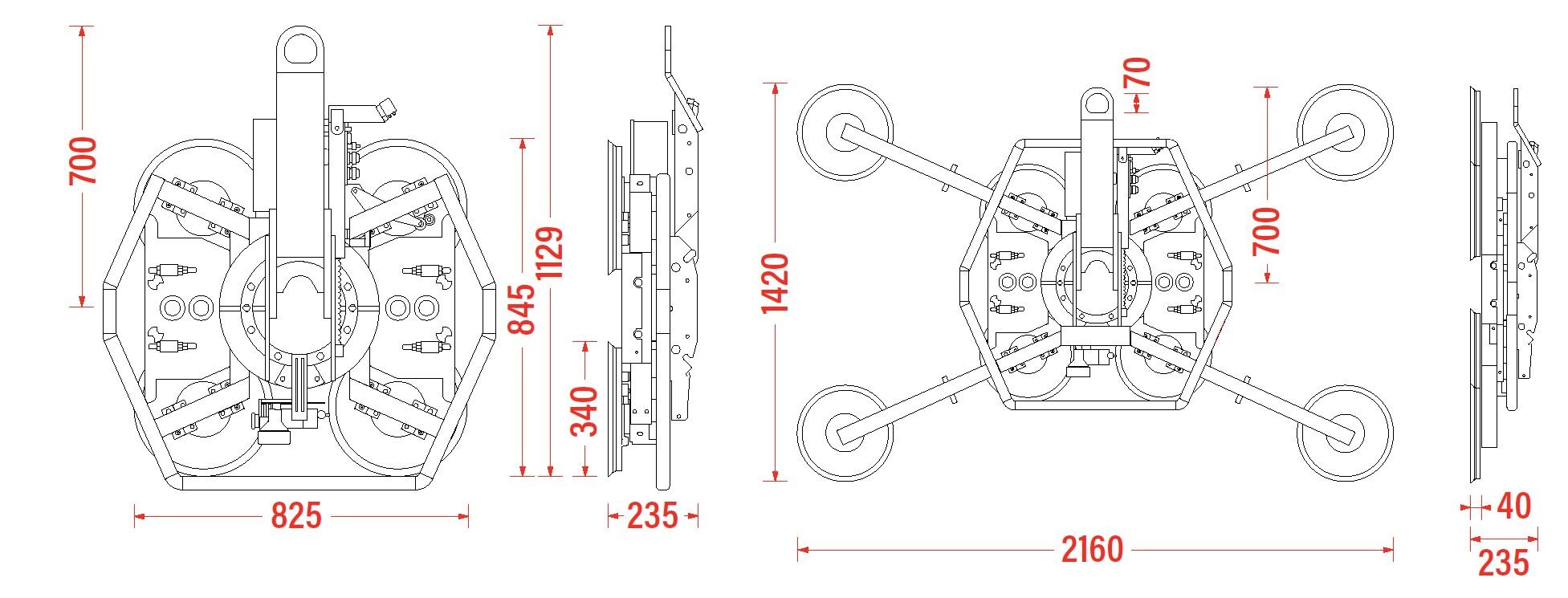

Dimensions
Specification
This versatile vacuum lifter benefits from tilt and rotate functionality to turn loads through 360° and tilt through 90°.
The Kombi 7411-DS7Z glass vacuum lifter features lockable tilting at every 3° to ensure glass units are at the correct angle ready for installation. This lifter can install loads both vertically and horizontally and includes an impressive lifting capacity of up to 750kg when used with 8 pads and 375kg with 4 pads. This model also comes with two batteries and a separate charger.
This vacuum lifter is ideal for use with UNIC mini spider cranes, tower cranes and counterbalance beams for installing glass below low level and high-level overhangs.
If you are looking to hire or purchase the Kombi 7411-DS7Z, or require any further information, contact GGR Group today.
