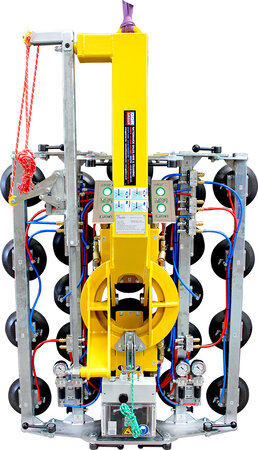

Kombi 7411-DSG7 – Vacuum Lifters

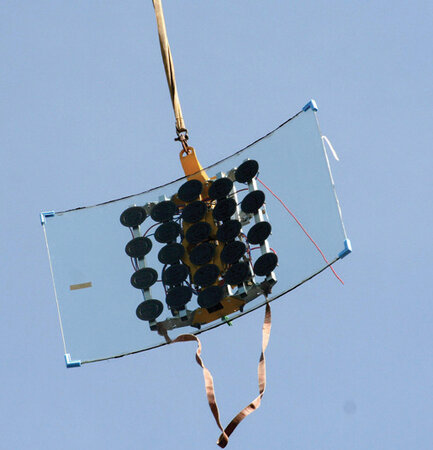

The ultimate machine for lifting concave and convex glass, the Kombi 7411 DSG7 curved vacuum boasts a lifting capacity of 750kg.

Capacity: 750kg
Quad-circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
90° manual tilt & 270° manual rotation
Audio-visual low vacuum warning

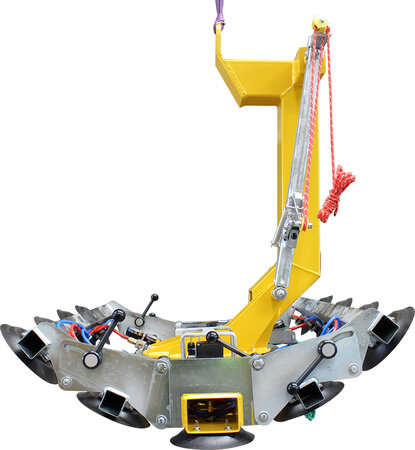

Suitable for lifting concave and convex curved units with a minimum radius of 600mm

Ref: VGL61

Capacity: 750kg
Rotation: Manual Lockable 270°
Tilt: Manual 90°
Reference: VGL61

Contact Sales

Add to Enquires

Features

Technical Table

Dimensions

Specification

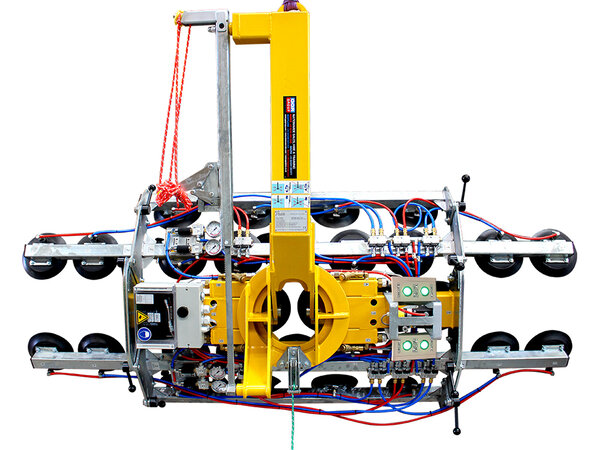

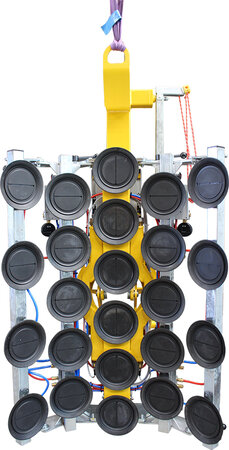

The ideal solution for lifting curved glass, the Kombi 7411 DSG7 features flexible swivel arms which swing in and out to allow fast attachments to concave and convex surfaces with a minimum radius of 600mm.

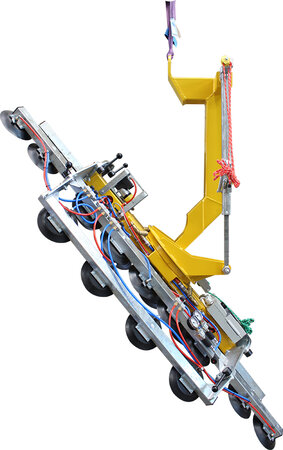

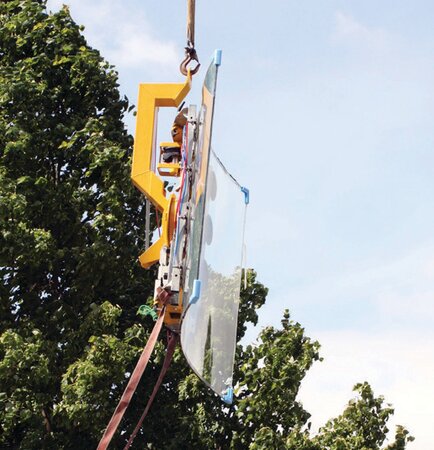

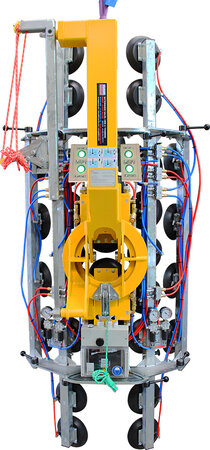

The Kombi 7411 DSG7 is a more convenient way to lift curved materials and encompasses 270° manual rotation as well as manual tilting from vertical to horizontal for safer handling of loads. This curved glass lifter also benefits from four independent vacuum circuits for quicker, safer and more efficient lifting performance on site.

If you are looking to hire or purchase the Kombi 7411-DSG7, or require any further information, contact GGR Group today.

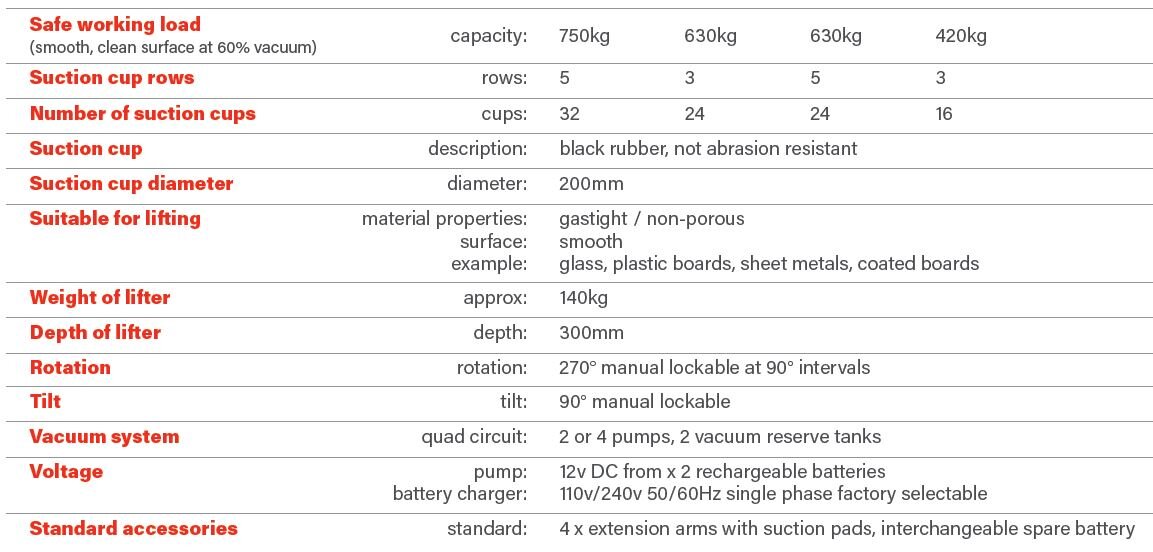

Basic Details

Safe Working Load:

750kg (5 rows, 32 pads), 630kg (3 rows, 24 pads), 630kg (5 rows, 24 pads), 420kg (3 rows, 16 pads)

Suction Cup Rows:

5 (750kg, 32 pads), 3 (630kg, 24 pads), 5 (630kg, 24 pads), 3 (420kg, 16 pads)

Number of Suction Cups:

32 (750kg, 5 rows), 24 (630kg, 3 rows), 24 (630kg, 5 rows), 16 (420kg, 3 rows)

Suction Cup Description:

black rubber, not abrasion resistant

Suction Cup Diameter:

200mm
