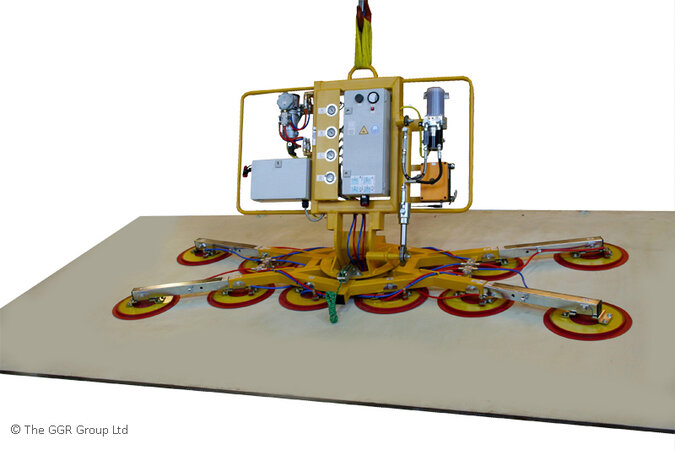

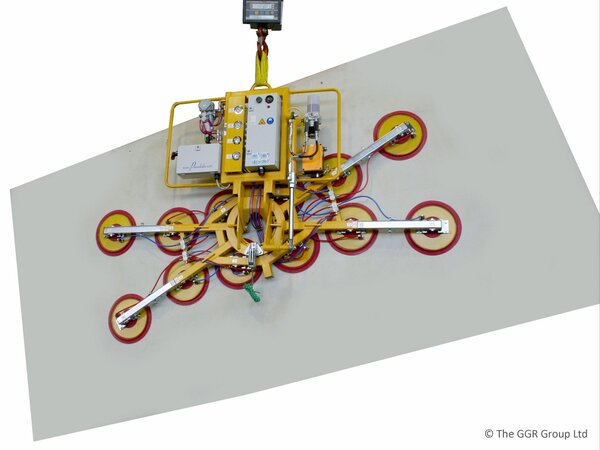

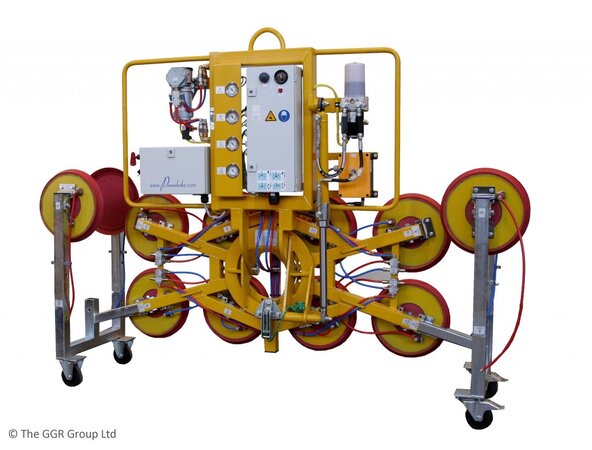

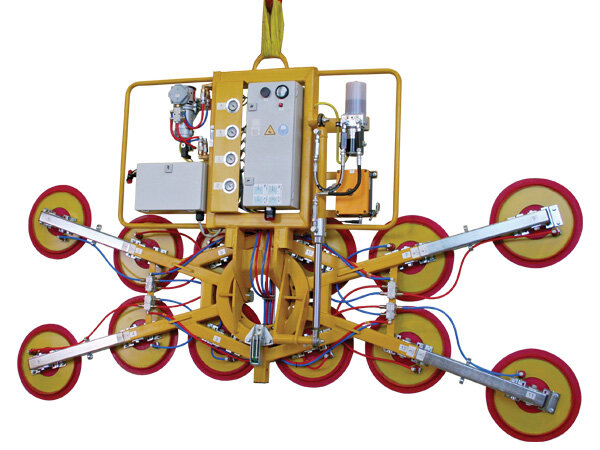

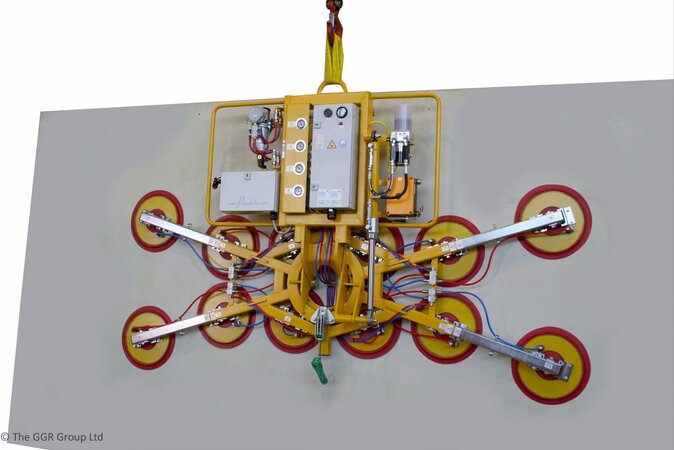

Kombi 7441-Quadra
The Kombi 7441-Quadra glass lifter is a safe pair of hands for moving heavy and unusually shaped glass loads as it uses four independent vacuum circuits and a multi-configurable frame to lift up to 1125kg.
- Capacity: 1125kg (dependant on configuration)
- Four circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
- Powered hydraulic 90° tilt from horizontal to vertical
- Manual 200° lockable rotation
- Two 12v rechargeable batteries with external 110/240v charger
- Audio-visual low vacuum warning
- Cable remote as standard, optional radio remote
- Individual pads can be isolated to accommodate irregular shapes (reduces safe working load)
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL59
Capacity: 1125kg
Rotation: Manual 200°
Battery: 12v
Reference: VGL59
Features

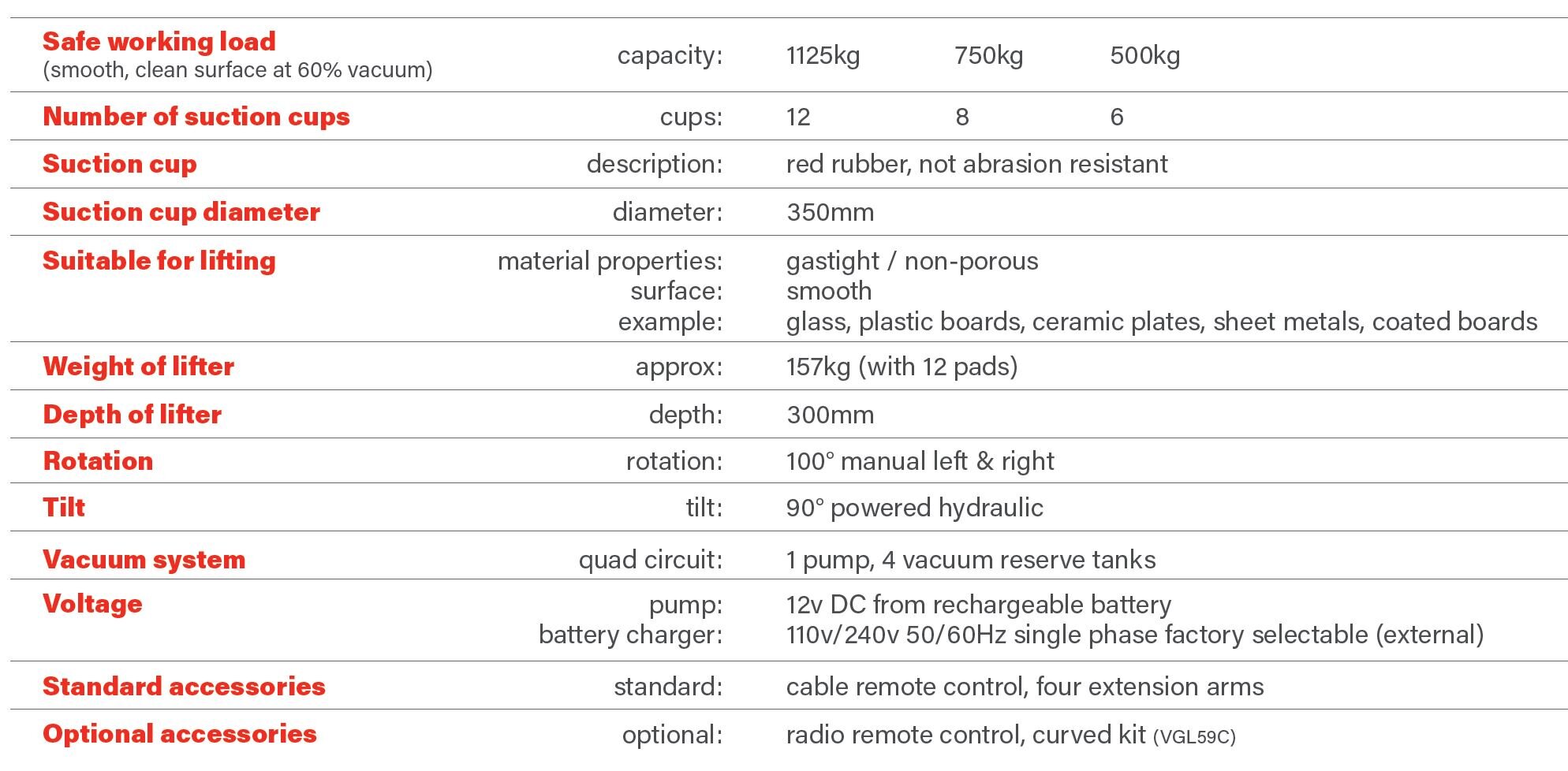

Technical Table

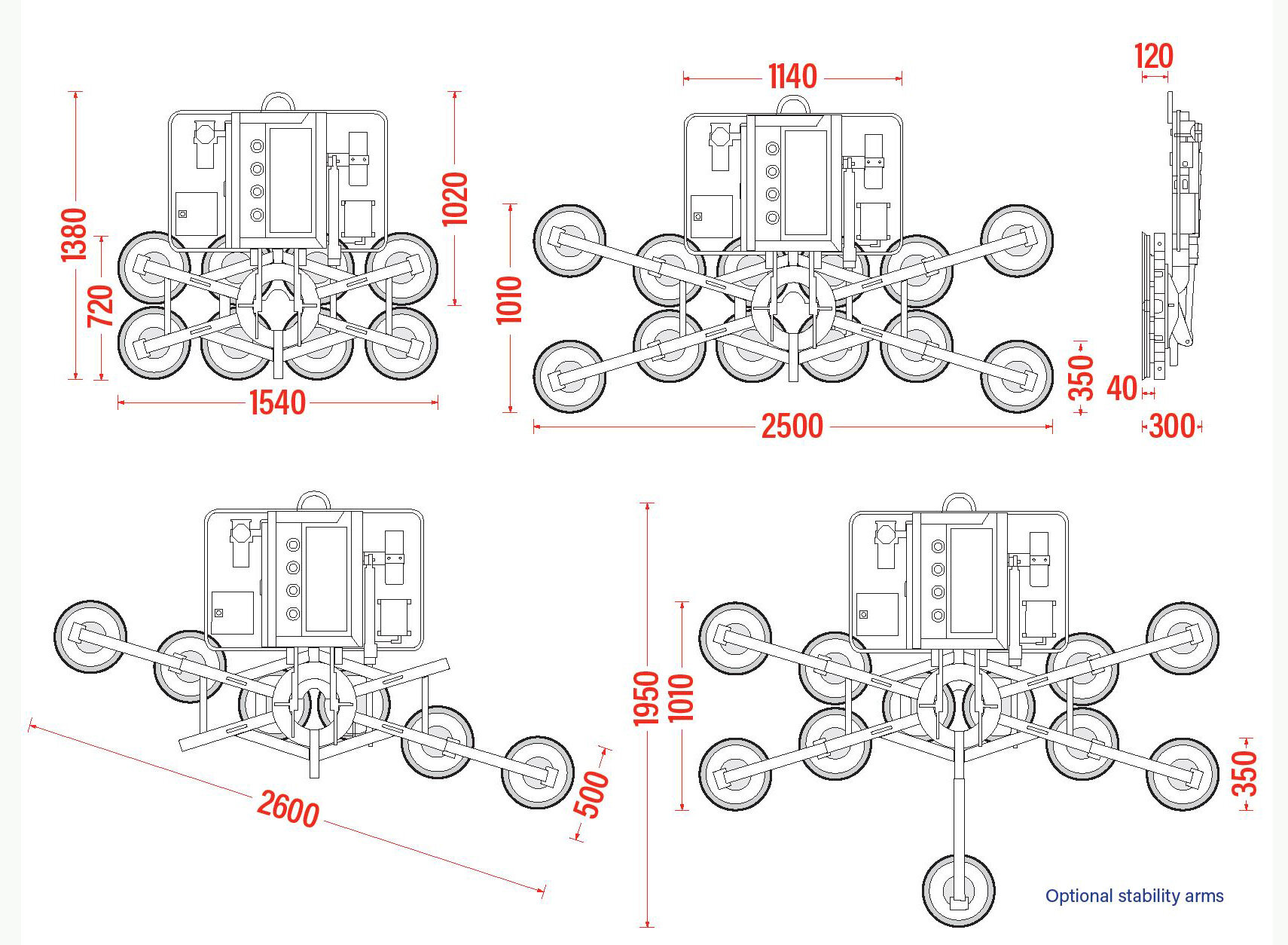

Dimensions
Specification
A maximum of 12 suction pads and four arm extensions can be added to this versatile lifter, with the ability to isolate each pad. The Kombi 7441-Quadra also offers a stepless 90° hydraulic powered tilt function and manual 200° rotation for easy handling and installation of glazed units with an optional radio remote control.

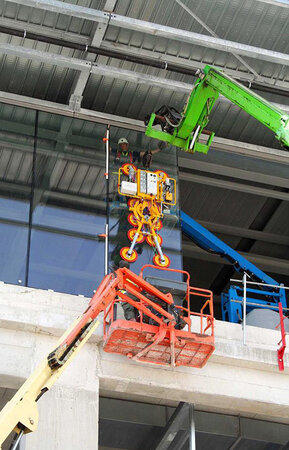

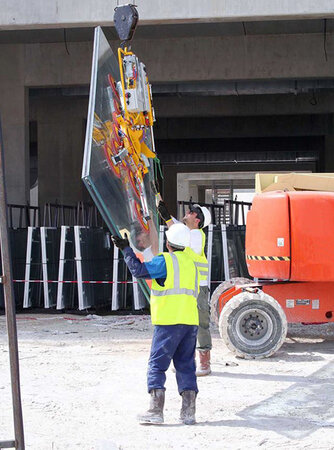

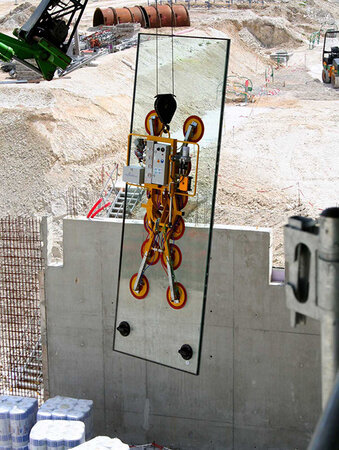

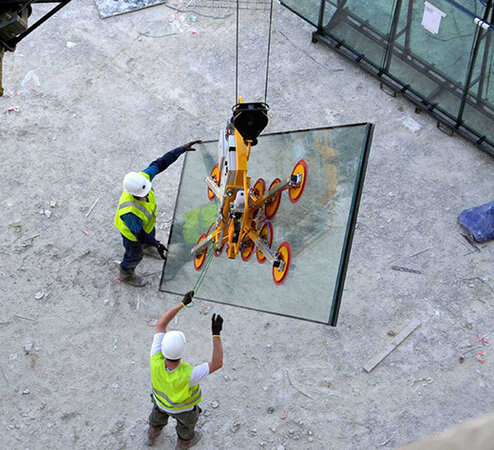

Take a look at the Kombi 7441-Quadra lifter helping to install glass panels at the new Moët & Chandon production facility in France.
If you are looking to hire or purchase the Kombi 7441 Quadra, or require any further information, contact GGR Group today.
