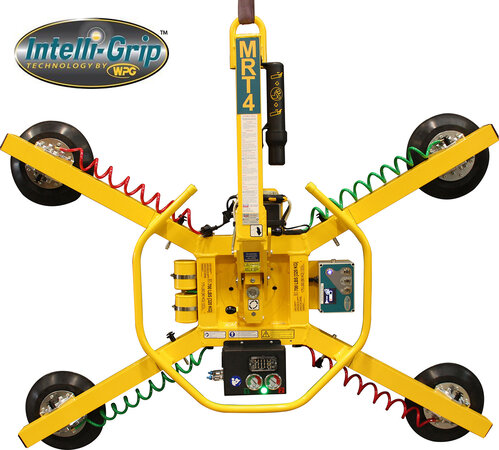

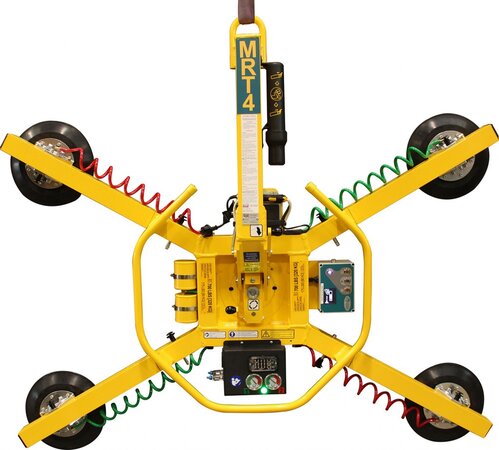

MRT4 Intelli-Grip Dual Circuit
The popular MRT4, with dual circuit vacuum system technology, is built for versatility.
The MRT4 vacuum lifter comes with innovative Intelli-Grip technology as standard. The Intelli-Grip machines are designed to increase safety by minimising operator error, helping to identify further training needs and also add an additional failsafe to ensure the safe operation of the equipment.
- 320kg safe working load
- 360° continuous rotation
- 90° tilt from any rotation position
- On-board Intelli-Grip Control Panel
- Four extension arms for different configurations
- Dual, independent vacuum circuits with two vacuum reserve tanks, vacuum gauges and two non-return valves
- Audio-visual low vacuum alert
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Compatible with low marking and heat resistant vacuum pads
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL17 IG, VGL18 IG (with variable length lifting arm)
Capacity: 320kg
Rotation: Manual 360° lockable
Battery: 12v
Reference: VGL17 IG & VGL18 IG
Features

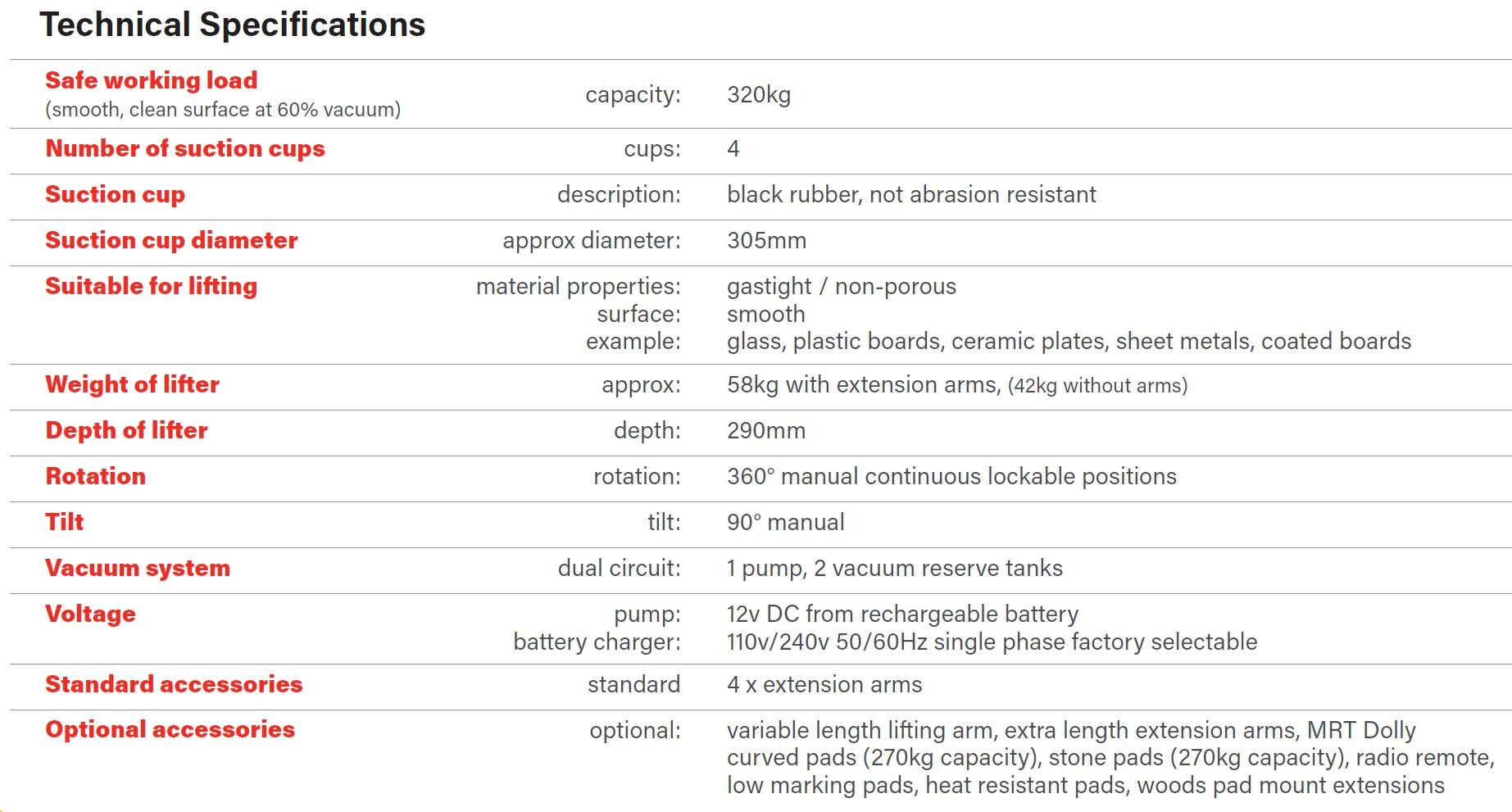

Technical Table

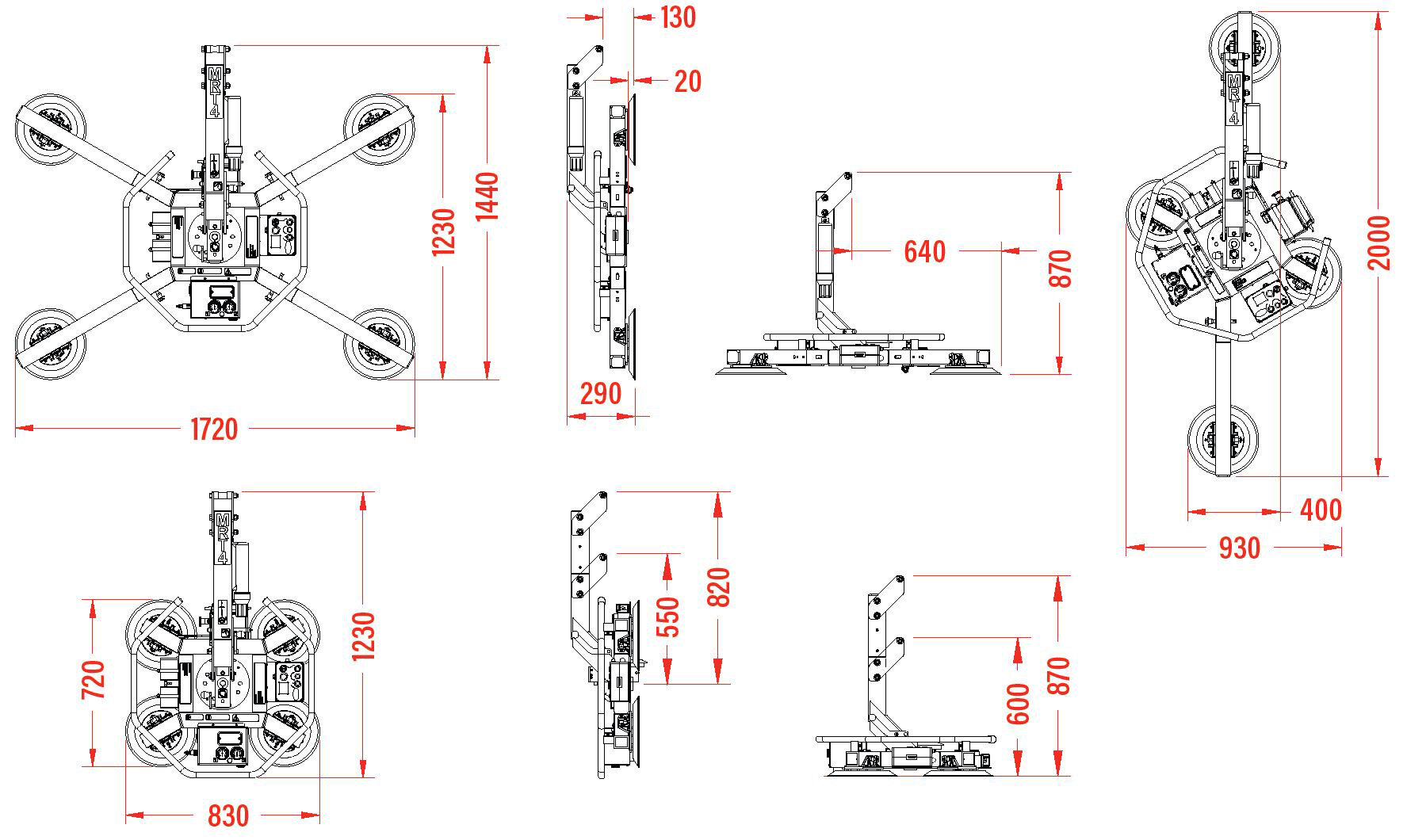

Dimensions
Specification
Intelli-Grip also monitors vacuum lifters in real-time, through performing multiple diagnostics and communicating them live on a colour LCD screen.
The MRT4 delivers 360° rotation and 90° tilt from any position. Using the extension arms and movable pads, at least four frame configurations are possible to cover most load sizes on-site or in the workshop.
GGR also stock an MRT Dolly for this machine, for easy storage, transportation and to securely hold the vacuum lifter and extension arms when not in use see none other than the MRT Dolly.
If you are looking to hire or purchase the MRT4 Intelli-Grip, or require any further information, contact GGR Group today.
