Woods Intelli-Grip P11104 Dual Circuit
This bestselling glass vacuum lifter is a convenient tool for lifting glass, metal, ceramics and other non-porous materials. The P11104 enables users to quickly manoeuvre loads into position with its 180° rotation and 90° tilt.
- 320kg capacity
- 180° lockable rotation
- On-board Intelli-Grip Control Panel
- Manual tilting from vertical to horizontal
- Dual, independent vacuum circuits with two vacuum reserve tanks, vacuum gauges and two non-return valves
- Audio-visual low vacuum alert
- 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
- Optional radio remote (Ref: WGGR170)
- Optional ABS Plastic storage and transport case (Ref AGA227)
- Compatible with low marking and heat resistant vacuum pads
- Vacuum Sucker not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL11 IG
Capacity: 320kg
Rotation: Manual 180° lockable
Battery: 12v
Reference: VGL11 IG
Features

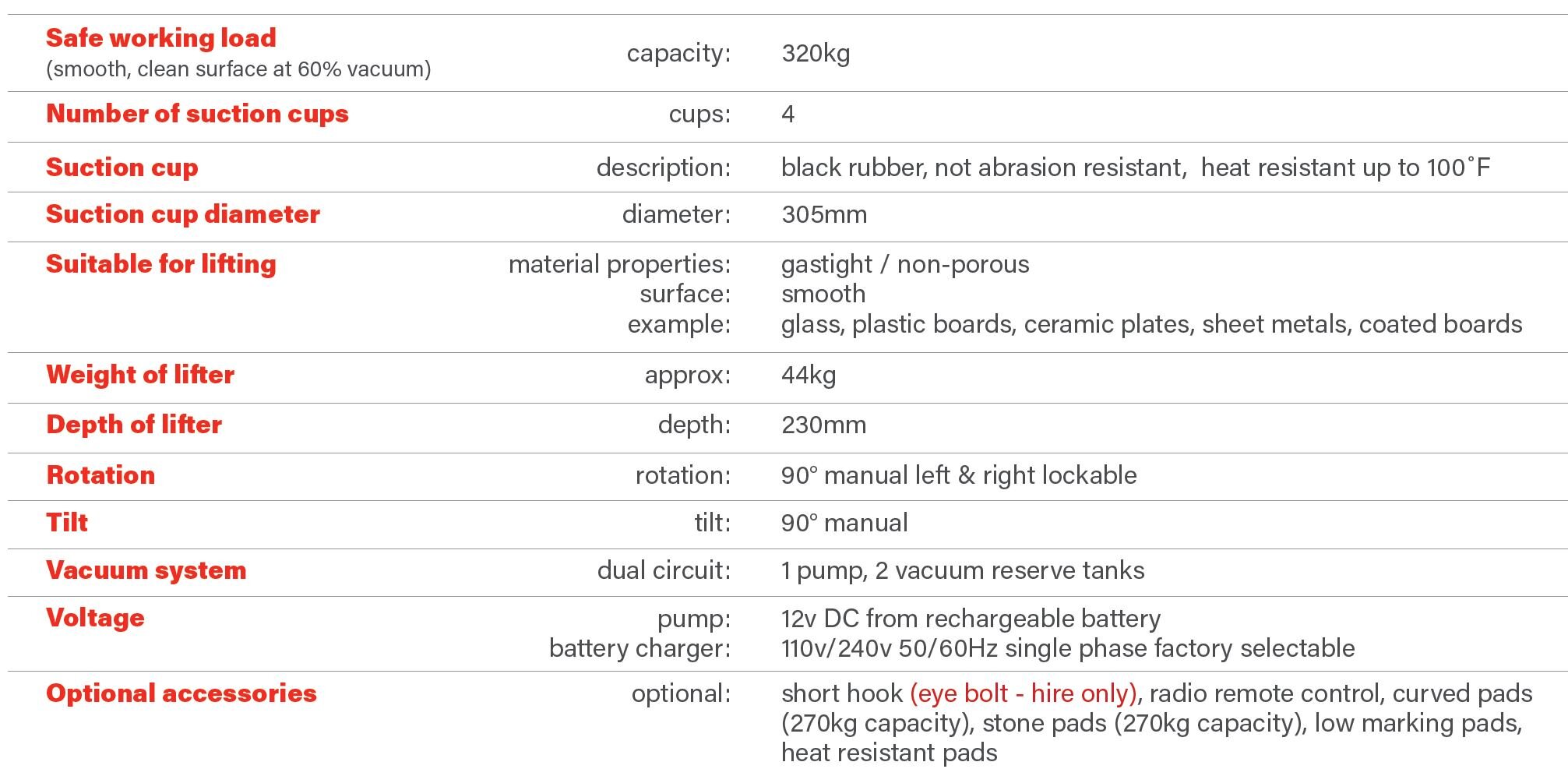

Technical Table
Dimensions
Specification
The P11104 vacuum lifter now includes innovative Intelli-Grip technology as standard. This pioneering safety feature monitors vacuum lifter performance, carrying out multiple diagnostics and communicating them live on a colour LCD screen. This allows the operator to determine issues such as leak rate, battery life and current lifter mode in use, but also serves as a diagnostic system for the use of the equipment.
Engineered and tested for its reliability, safety and durability, the P11104 lifter comes with a 320kg lifting capacity and onboard power with a rechargeable battery, so there are no tricky cords to deal with during operation.
An optional short hook (hire only) is also available when fitting glass under soffits or overhangs.
If you are looking to hire or purchase the Woods Intelli-Grip P11104, or require any further information, contact GGR Group today.
