Quad-Curve 1000
Exclusive to GGR Group, Quad-Curve 1000 is UK’s first quad-circuit glass lifter designed for handling large convex curved glass weighing up to 1000kg.
- Capacity: 1000kg
- Quad circuit vacuum system, each circuit includes a vacuum gauge, reserve tank and non-return valve
- Suitable for lifting flat glass and convex curved units of at least 5 metre radius
- 90° hydraulic powered tilt from horizontal to vertical
- Manual 200° lockable rotation
- Two 12v rechargeable batteries with external 110/240v charger
- Audio-visual low vacuum warning
- Cable remote as standard
- Not suitable for use in the rain – read more in our safety guide
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL59C
Capacity: 1000kg
Rotation: Manual 200°
Tilt: 90° hydraulic
Reference: VGL24 & VGL59C
Features
Technical Table

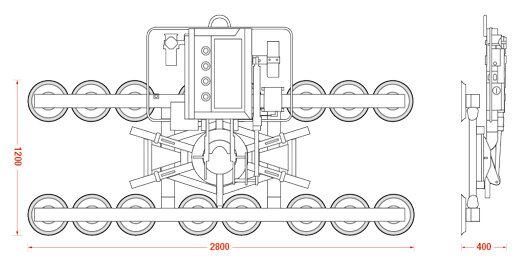

Dimensions
Specification
The quad-circuit Quad-Curve 1000 has been especially created for lifting larger curved glass units up to 1000kg.
The curved Quad-Curve 1000 vacuum lifter has 2.8 metre long lifting arms which can tilt, so each of its 16 suction pads achieve surface contact with either flat glass panels or curved convex glass with a minimum radius of 5000mm.
This curved glass lifter is a quad-circuit machine with four independent vacuum systems. If one of the machine’s four vacuum circuits fails then the remaining three can safely hold the load weight.
If you are looking to hire or purchase the Quad-Curve 1000, or require any further information, contact GGR Group today.
