Glass Vacuum Lifters
TS1000

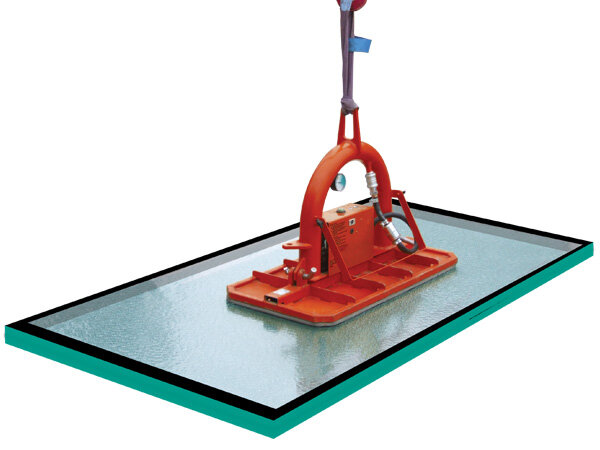

With a 1000kg capacity, the TS1000 is a single circuit machine designed to safely lift denser, larger format textured and patterned glass with ease.
- Capacity: 90-1000kg (depending on pad options)
- Dimensions: 619mm (l) x 107mm (d) x 590mm (h)
- Constant running single circuit vacuum system
- Rechargeable 12v battery
- 240v battery charger
- Low vacuum warning alarm
- Optional radio remote control
- Weight with standard pad: 44kg
- Not suitable for use in the rain
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL140
Capacity: 90-1000kg
Lifts: Textured glass
Reference: VGL140
Features

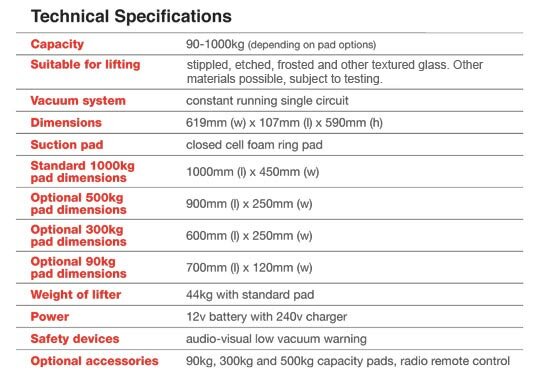

Technical Table

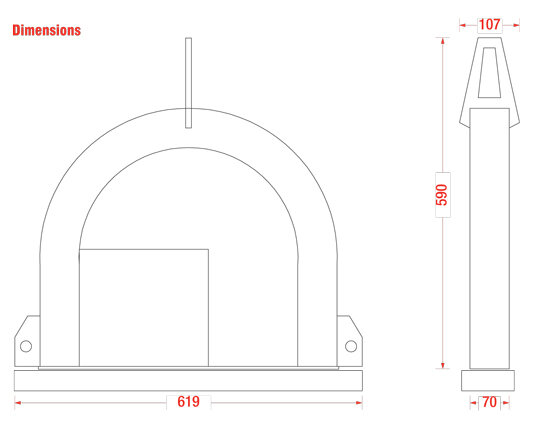

Dimensions
Specification
It features a constant running vacuum pump and closed cell foam ring which moulds to irregular surfaces. The TS1000 can lift up to 1000kg (horizontal lift) or 600kg (vertical lift)
Four pad options are available to accommodate different load shapes and sizes:-
- 1000kg standard pad: 900mm (l) x 450mm (w)
- 500kg optional pad: 900mm (l) x 250mm (w)
- 300kg optional pad: 600mm (l) x 250mm (w)
- 90kg optional pad: 700mm (l) x 120mm (w)
- Not suitable for thin or fragile glass
Textured glass and other materials with irregular surfaces are subject to testing by GGR Group before being lifted using the TS1000.
If you are looking to hire or purchase the TS1000, or require any further information, contact GGR Group today.
