Glass Vacuum Lifters
TS200

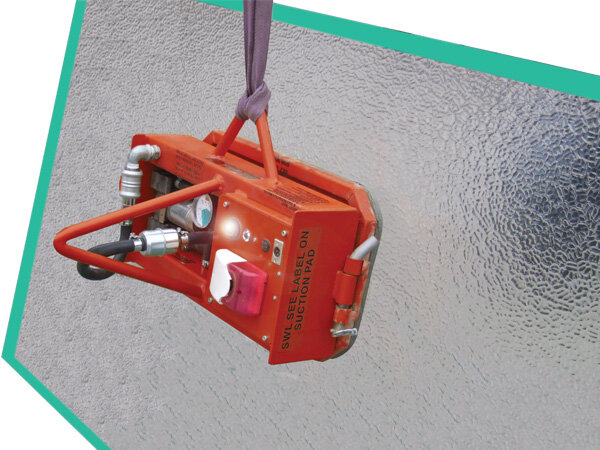

This single-circuit vacuum lifter is perfect for safer lifting of stippled, etched, frosted and other textured glass up to 200kg (vertical lift) or 300kg (horizontal lift).
- Capacity: 150-300kg (depending on pad options)
- Single circuit constant running vacuum system
- Dimensions: 492mm (l) x 260mm (d) x 250mm (h)
- 12v rechargeable battery and 240v charger
- Low vacuum warning
- Lifter weight: 32kg
- Radio remote optional
- Not suitable for use in the rain
- Not suitable for thin or fragile glass
- Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
Ref: VGL125
Capacity: 150-300kg
Lifts: Textured glass
Reference: VGL125
Features

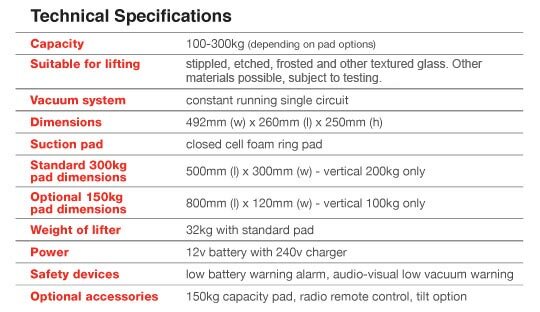

Technical Table

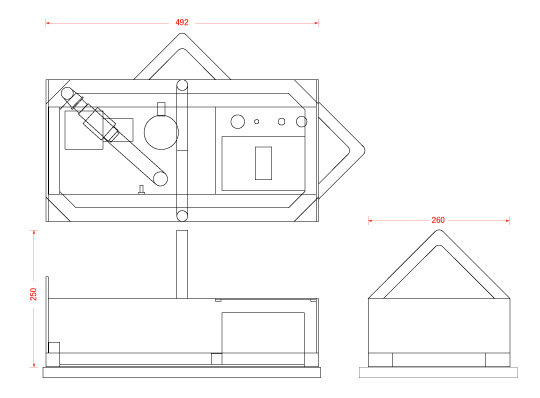

Dimensions
Specification

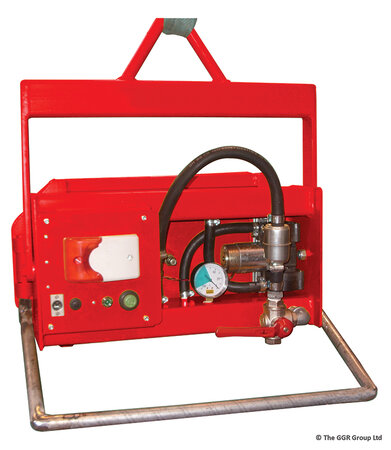

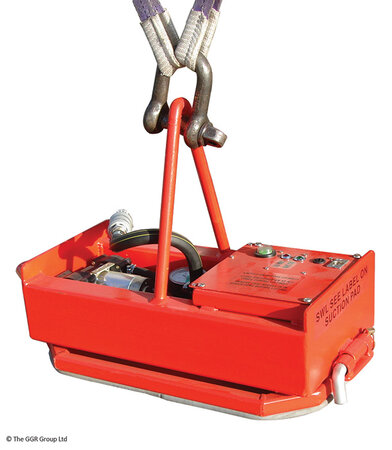

Lightweight and compact, the TS200 is powered by 12v battery with separate charger. Includes constant running vacuum pump and audio-visual low vacuum alarm.
Available with two pad sizes:-
- Standard (300kg) pad size: 500mm (l) x 300mm (w)

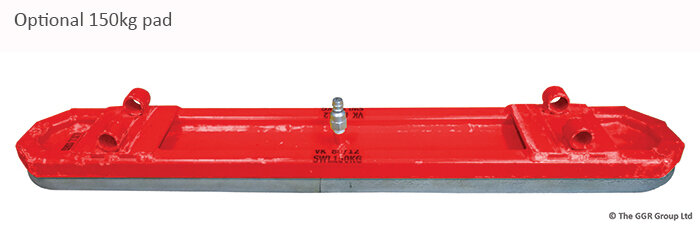

- Optional (150kg) pad size: 800mm (l) x 120mm (w)
- Not suitable for thin or fragile glass
Before using this vacuum lifter, textured or irregular surfaced materials are subject to testing by GGR Group.
If you are looking to hire or purchase the TS200, or require any further information, contact GGR Group today.
