Glass Vacuum Lifters

Woods Powr-Grip MRT2 – Vacuum Lift Device

Choose the MRT2 for your vacuum lift. The MRT2 lifter makes glass handling safe and simple using dual circuit vacuum system technology and two suction cups to transport loads of up to 135kg.

  • Two independent vacuum circuits for added safety
  • 90° manual tilting from vertical to horizontal
  • 180° lockable rotation
  • On-board maintenance-free vacuum pump
  • 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
  • Not suitable for use in the rain – read more in our safety guide
  • Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s
  • Audio-visual low vacuum alert

Ref: VGL04

Capacity: 135kg
Rotation: Manual 180°
Tilt: 90°
Reference: VGL04

Features

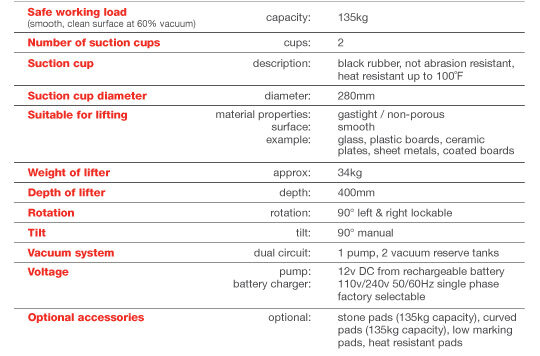

Technical Table

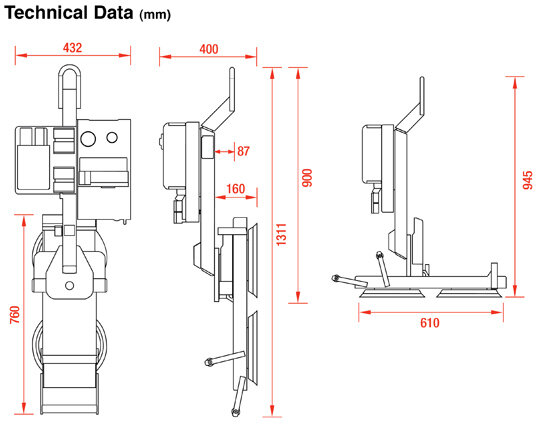

Dimensions

Specification

The MRT2 lifter makes glass handling safe and simple using dual circuit vacuum system technology and two suction cups to carry out your vacuum lift and transport loads of up to 135kg.

The ability to rotate loads by 180° and tilt 90° means moving glass from storage into position for installation is effortless.

The risk of injury, which is usually associated with manual handling, is significantly reduced through choosing the MRT2, our most compact rotating machine, for your vacuum lift.

If you are looking to hire or purchase the Woods Powr-Grip MRT2, or require any further information, contact GGR Group today.

Safe Working Load:

135kg

Suction Cup Rows:

Number of Suction Cups:

2

Suction Cup Description:

black rubber, not abrasion resistant, heat resistant up to 100˚F

Suction Cup Diameter:

280mm

Rotation:

90° left & right lockable

Tilt:

90° manual

Vacuum System:

dual circuit, 1 pump, 2 vacuum reserve tanks

Voltage Pump:

12v DC from rechargeable battery

Voltage Battery Charger:

110v/240v 50/60Hz single phase factory selectable

Voltage Mains Operation:

Notes:

Weight of Lifter:

34kg

Depth of Lifter:

400mm

Material Properties:

gastight / non-porous

Surface:

smooth

Example:

glass, plastic boards, ceramic plates, sheet metals, coated boards

Stone Pads:

135kg capacity

Curved Pads:

135kg capacity

Special Pads:

low marking pads, heat resistant pads

Standard:

Extras:
