1000kg UNIC Crane Hydraulic Fly Jib
This 1000kg fly jib is specifically designed for our largest UNIC mini spider crane, the 10 tonne capacity UNIC URW-1006.
- Capacity: 1000kg maximum
- Tilt angles: 0°, 20°, 40°, 60°
Capacity: 1000kg
For URW-1006
Features

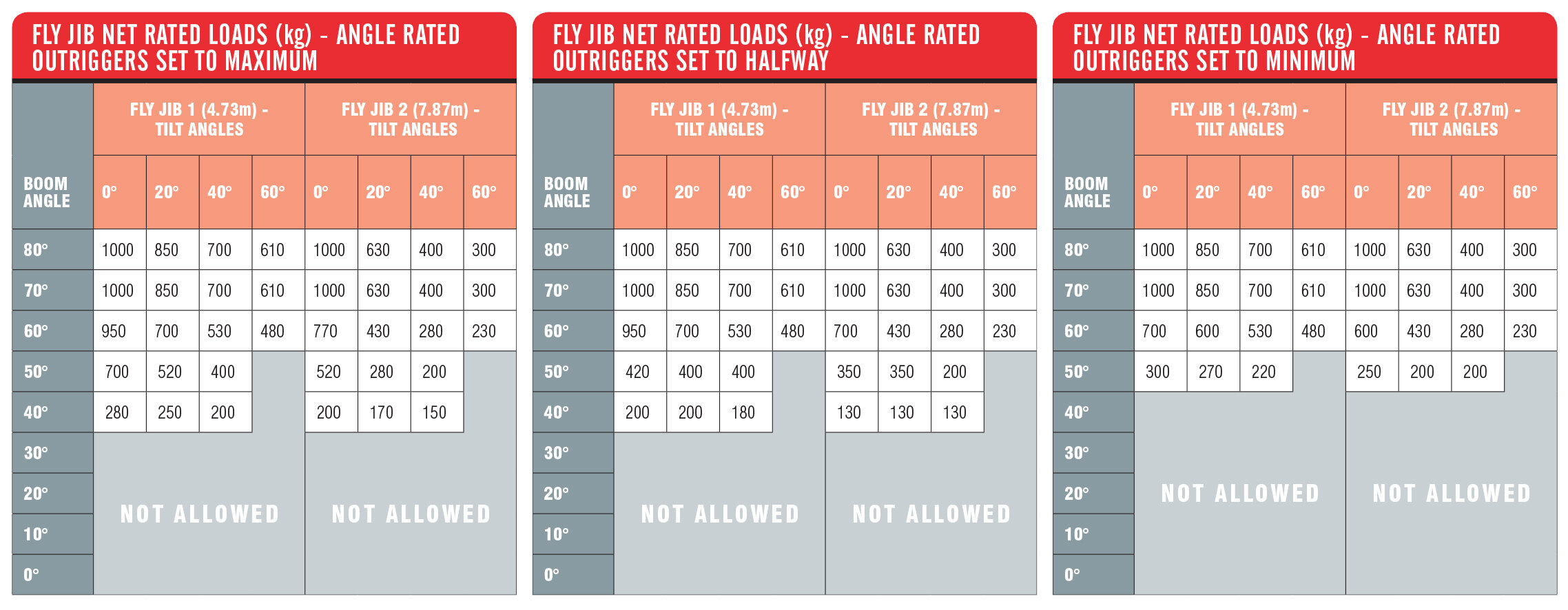

Technical Table

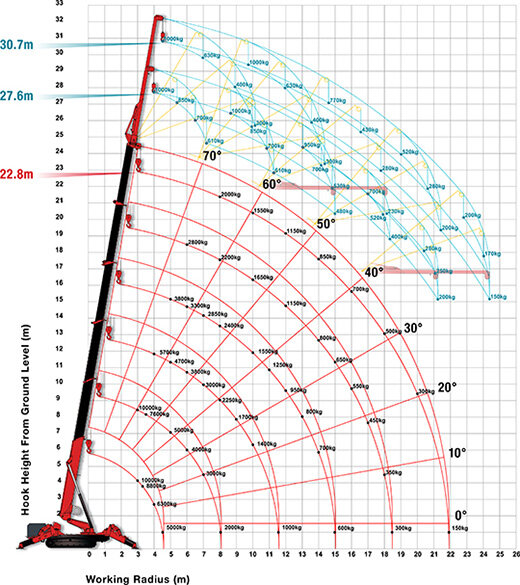

Working Range
Fly Jib Working Range
Specification
The UNIC URW-1006 crane can lift to a maximum height of 22.8m on its own, but when fitted with this single part line fly jib it can lift to 27.6m (first stage) and 30.7m (second stage).
This hydraulic fly jib has a further advantage as it can be adjusted while the crane boom is in the air, rather than it being manually set when the boom is down. A rated load chart and working radius diagram for the UNIC URW-1006 and hydraulic fly jib are below.
To find out more about hiring or purchasing a UNIC URW-1006 mini crane and using crane attachments please contact your nearest GGR office.
