Mini Spider Cranes
500kg UNIC Crane Searcher Hook
Compatible with our mid-capacity URW-376, URW-506 and URW-547 UNIC mini cranes, the 500kg searcher hook is an attachment designed for installation work close to ceilings or overhangs
- Capacity: 500kg maximum
- Length: 800mm
- Weight: 20kg
- Tilt angles: 0°, 20°, 40°, 60°
- Suitable for: URW-376, URW-506, URW-547
Capacity: 500kg
For URW-376, 506 & 547
Features
Technical Table - URW-376
Technical Table - URW-506
Specification
With a maximum lifting capacity of 500kg, this searcher hook can be set at four tilt angles to help accurately position loads underneath an overhang. A higher capacity 700kg Combined Fly-Jib & Searcher Hook is also compatible with our URW-376 and URW-506 cranes.

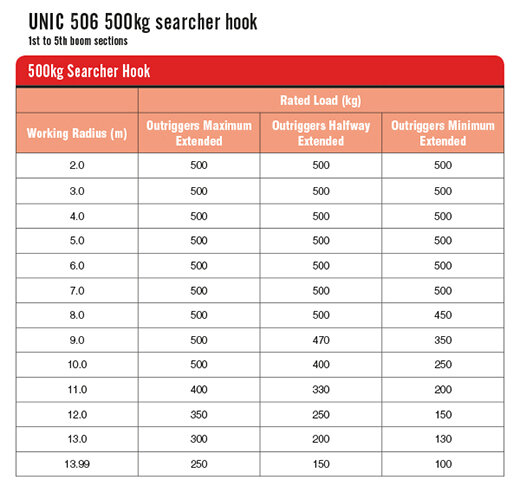

Rated load charts for the 500kg searcher hook used with our URW-376 and URW-506 mini cranes are below. For more information or assistance with selecting the correct equipment for your lifting job contact your nearest GGR depot.
