Mini Spider Cranes

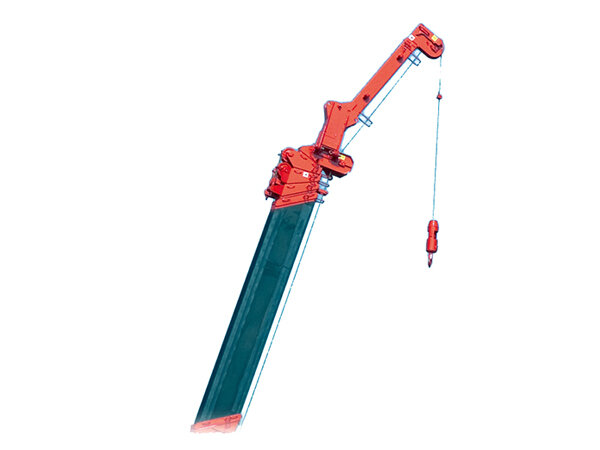

800kg UNIC Crane Fly Jib

The 800kg capacity fly jib for the UNIC URW-706 mini spider crane increases its maximum lifting height from 19.5m to a generous 22.7m for reaching over rooftops and balustrades.

  • Capacity: 800kg maximum
  • Length: 2110mm retracted, 3110mm extended
  • Weight: 205kg
  • Tilt angles: 0°, 20°, 40°, 60°

Capacity: 800kg
For URW-706

Features

Technical Table

Working Range

Specification

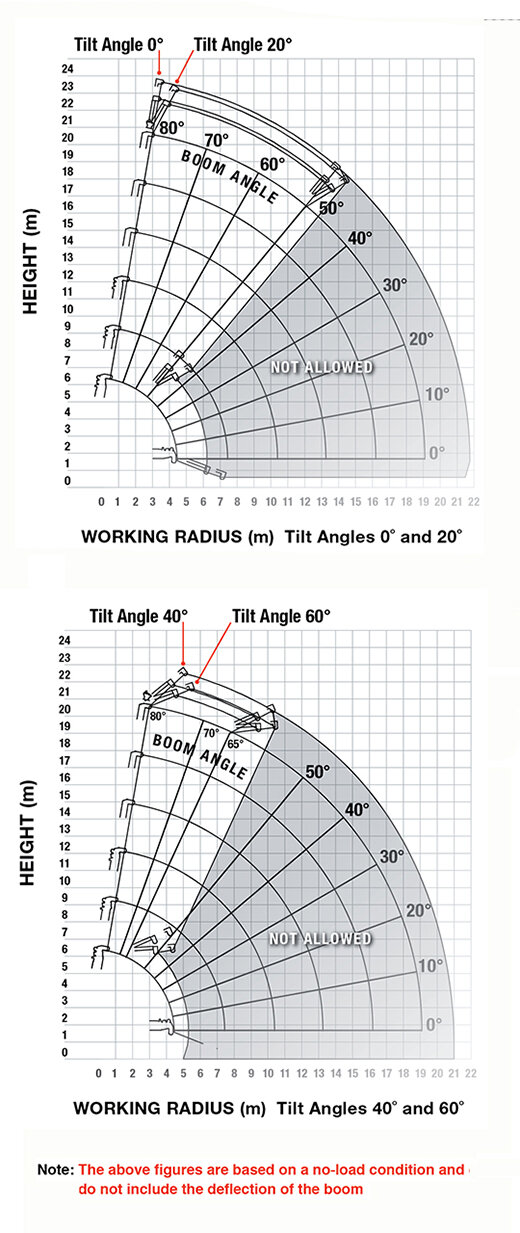

This 3.1m long swing away fly jib with a single part line can be easily fitted to the 6 tonne mini crane model to offer extra lifting length. Please see the rated load charts and working range diagrams below for further detail.

An 800kg capacity searcher hook for the UNIC URW-706 mini crane is also available from GGR. For more information about our range of fly jibs and searcher hooks please contact us today.
