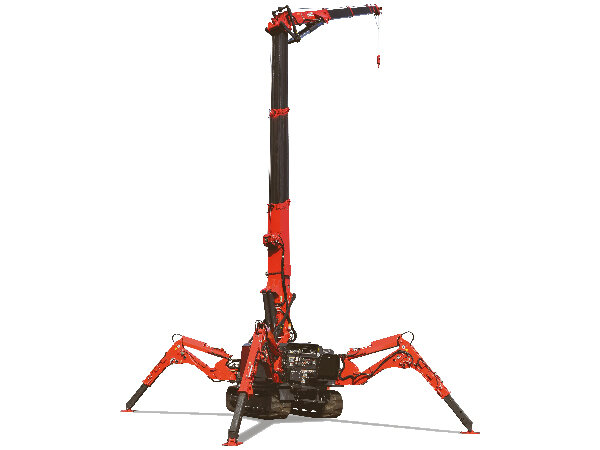

UNIC Cube Crane – Mini Spider Crane

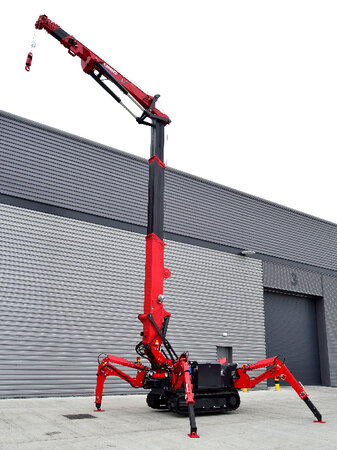

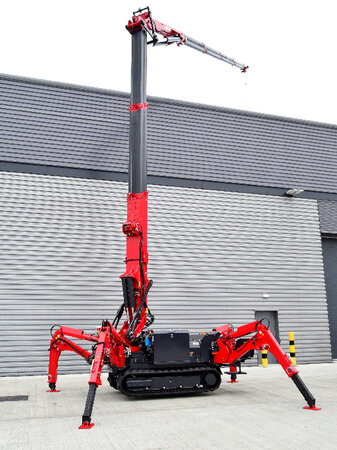

The Cube Crane is the most advanced mini crane in the world to feature a three section derricking boom, enabling it to be set at an 85°, 90° and 95° angles, making it extremely versatile for some of the most restricted access and confined lifting projects.
- Safe working load: 0.98t x 6.44m
- Total width: 1.5m
- Max working radius: 13.99m
- Max lifting height 21.17m
- Diesel powered
- Multi-position configurable outriggers
- Unique 3 section derricking boom
- Full colour high resolution SLI
- Intelligent voice warning system
- Radio remote control with bi-axis joysticks and feedback display
Ref: UR7035MR
Capacity: 0.98t x 6.44m
Max Lifting Height: 21.17m
Total Width: 1.5m
Weight: 8650kg
Features

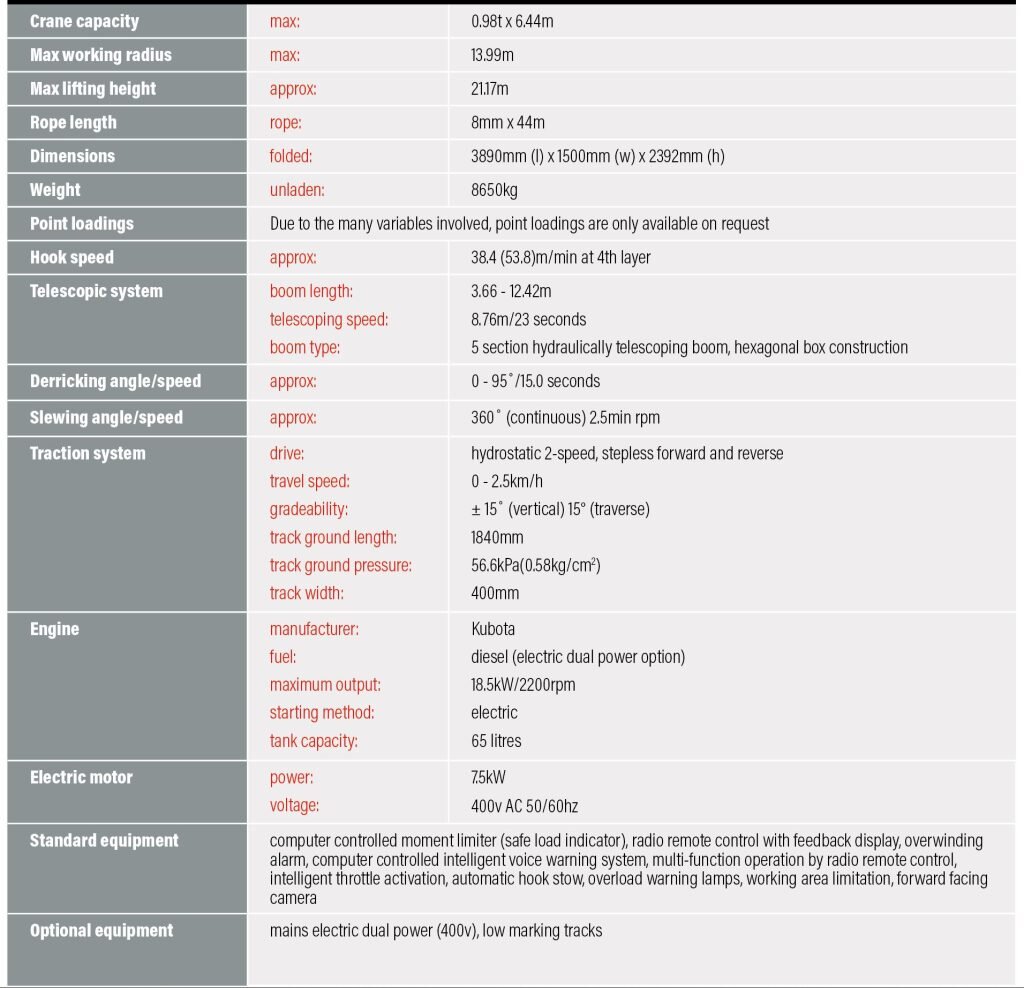

Technical Table
Dimensions

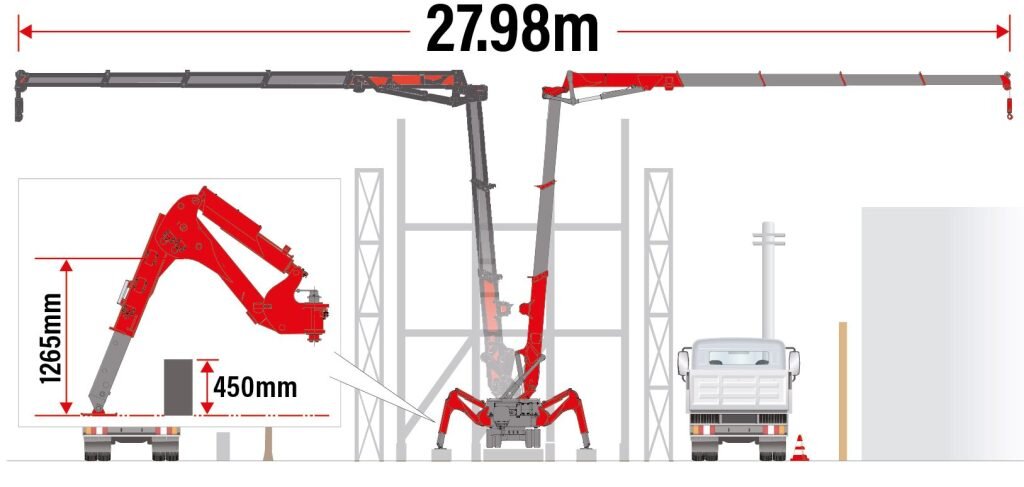

Max Working Reach
Working Ranges

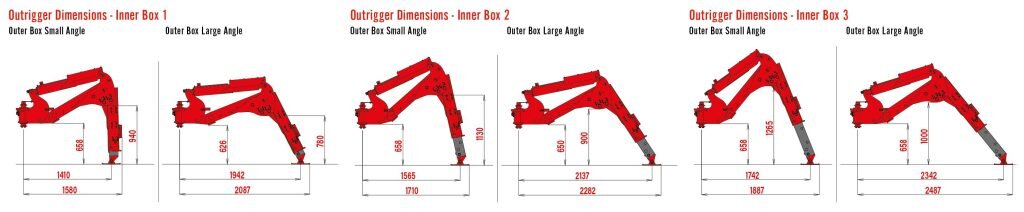

Outrigger Dimensions
Outrigger Positions Dimensions

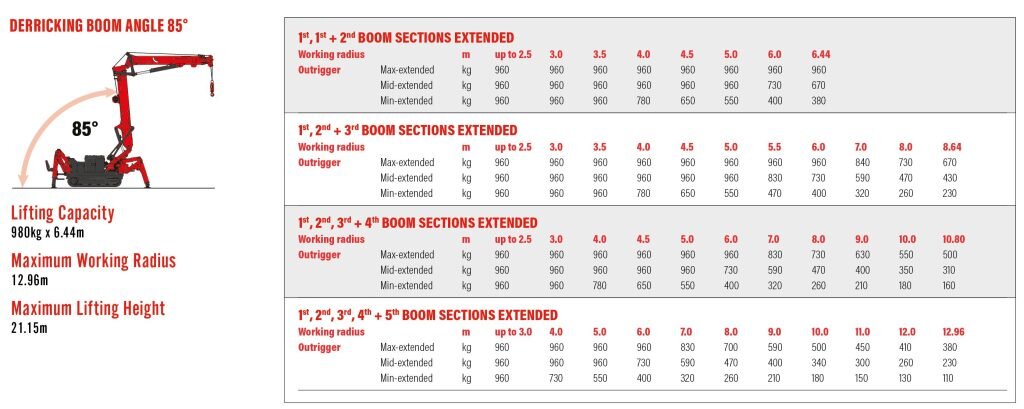

Net Rated Loads 85 Degrees
Net Rated Loads 90 Degrees
Net Rated Loads 95 Degrees
Specification
The Cube Crane benefits from innovative, multi-position outrigger configurations, enabling this miniature crane to work and operate safely around obstacles on site. This compact crane features a safety load indicator system with an over winding alarm and intelligent voice warning system for optimum safety during lifting operations. The upgrade to the radio remote incorporating Bi-axis joysticks and feedback display providing the operator all information they require.
Featuring nearly a tonne of lifting capacity, this mini machine also benefits from a lifting height of 21.1 metres and a horizontal reach giving a maximum working radius of 13.99m. At just 1.5m wide, this compact crane can gain access through a standard double doorway and can easily move around corners thanks to its ability to reposition the boom whilst travelling to its install location.
If you are looking to hire or purchase a UNIC Compact Cube Crane, or require any further information, contact GGR Group today.
