UNIC ECO-095-CBE Eco Mini Spider Crane

This tracked variant of the zero emissions UNIC spider crane retains all the environmentally friendly benefits of the standard wheeled eco models but is able to travel over rough terrain and operate on uneven surfaces.

- - Total width: 0.69m
  - Max. working radius: 8.41m
  - Multi-position configurable outriggers
  - Low Marking Tyres
  - Operator control of outrigger extension
  - Intelligent voice warning system
  - Preliminary stability warning system with motion cut
  - Radio remote control as standard
  - Maximum wind speed for safe use is 36km/h, 22mph or 10m/s
  Ref code: MCU095B CBE

Capacity: 0.995t x 3.5m
Max Lifting Height: 8.9m
Total Width: 0.75m
Weight: 2350kg

Contact Sales

Add to Enquires

Features

Technical Table

Dimensions

Boom Stages

Fall Stages

Outrigger Positions

Specification

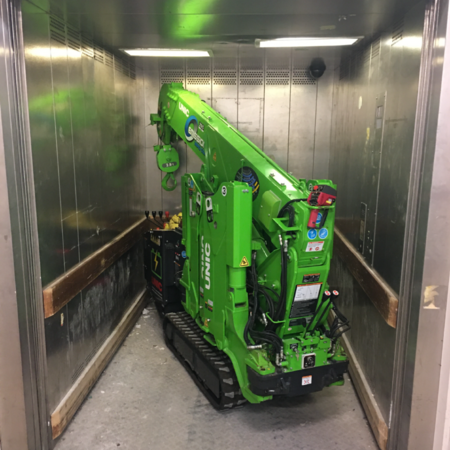

This mini spider crane is still compact enough to fit through a standard double doorway, yet boasts an impressive lifting power of up to 0.995t tonnes without compromising on operational efficiency.

These eco-friendly cranes come with a rechargeable 48 Volt battery and have been designed for both external and internal lifting operations in sensitive environments.

Looking to hire or buy a clean, green spider crane? Contact GGR Group, today to find out more.

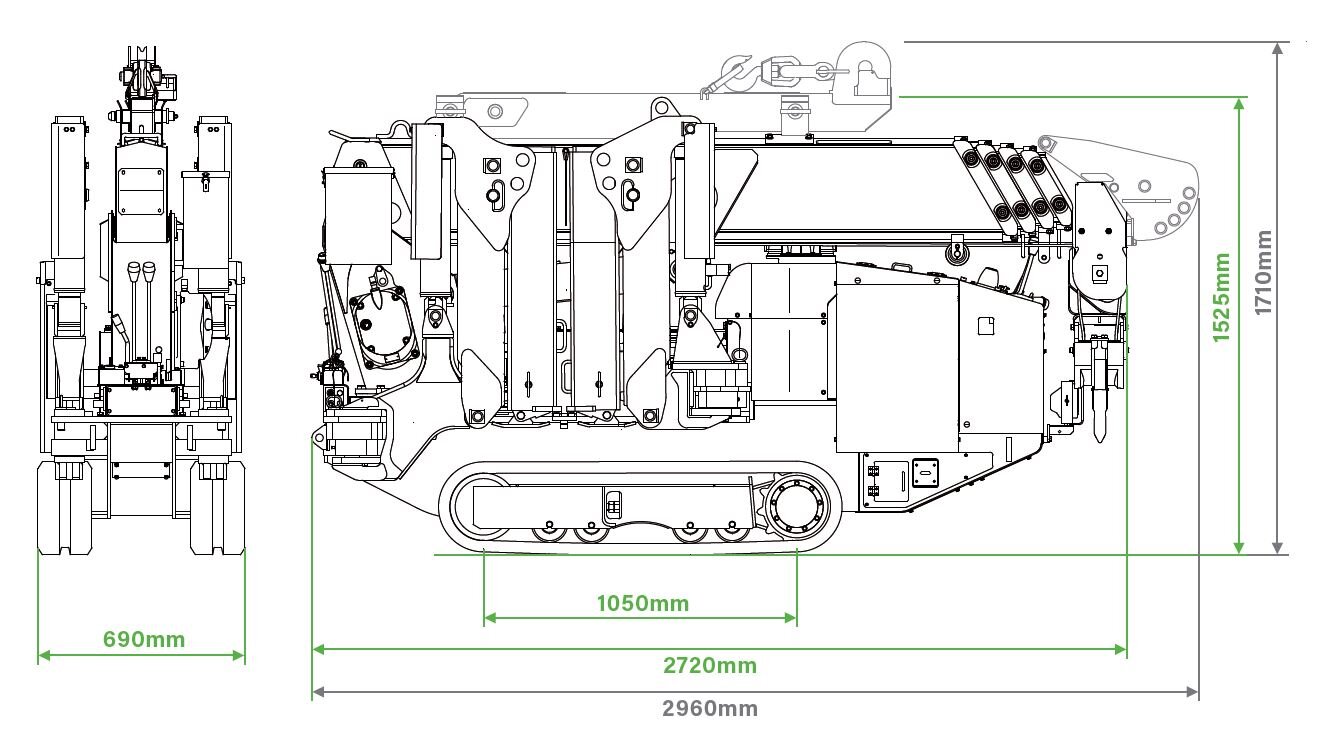

Dimensions

Capacity:

0.995t x 3.5m

Maximum Working Radius:

8.41m

Maximum Lifting Height:

8.9m

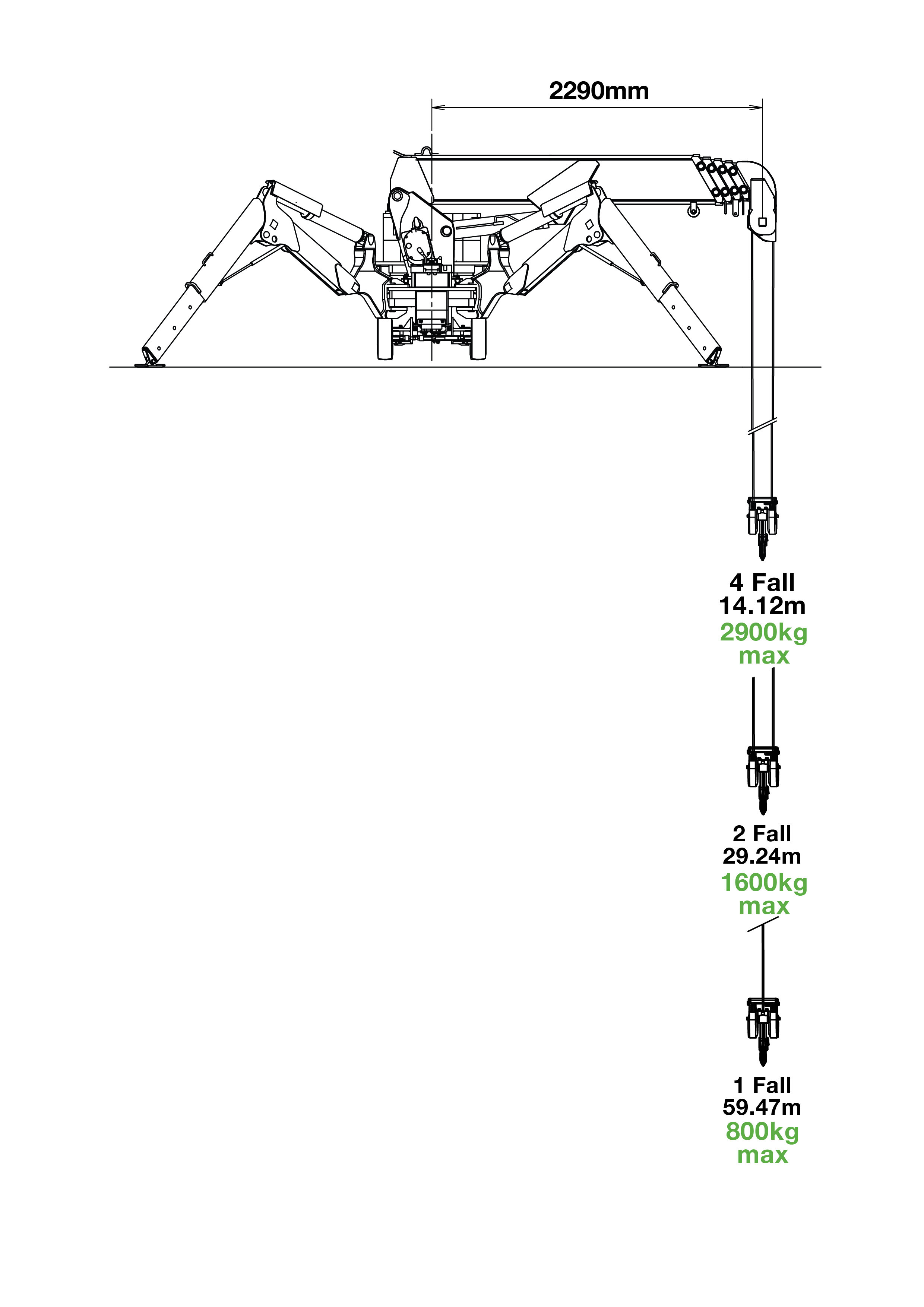

Rope Length:

14.12m (4 fall), 29.24m (2 fall), 59.47m (1 fall)

Length (Folded):

2720mm

Width (Folded):

690mm

Height (Folded):

1525mm

Weight (Unladen):

2350kg (2415kg with fly jib)

Traction System

Drive:

hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2,3 km/h

Gradeability:

20˚ (vertical), 10˚ (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

48kPa (0.49 kg/cm²)

Track Width:

180 mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

Manufacturer:

Maximum Output:

Starting Method:

Tank Capacity:

Electric Motor Power:

4.0kW (AC motor)

Electric Motor Voltage:

48v DC rechargeable battery

Battery Charger:

110v (16A) or 200/240v single phase (15A)

Telescopic System

Hook Speed:

9.1m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/31 seconds

Boom Type:

5 section, hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/17 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.5min rpm

Equipment

Standard Equipment:

radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, load indication, turn-over protection system with stability warning lamps and alarm

Optional Equipment:

1 fall hook block, 2 fall hook block, 300kg capacity small searcher hook, 700kg capacity searcher hook, 700kg capacity fly jib with single part line, variable outrigger option (295-CBE)
