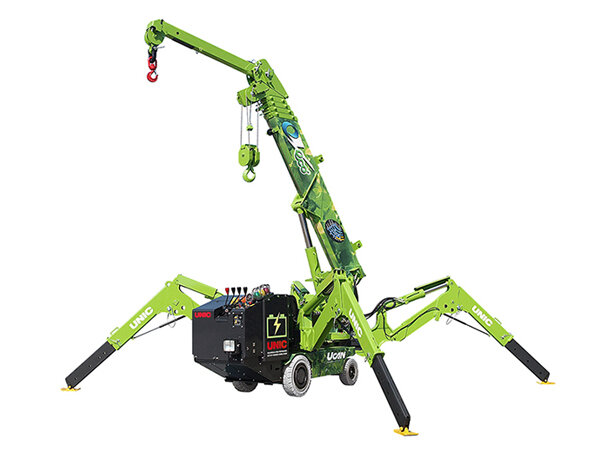

UNIC ECO-095-WBE Eco Mini Spider Crane

Introducing the latest in mini crane engineering, the UNIC battery powered Eco-UNIC model provides fume-free lifting for sensitive environments. Ideal for food processing plants, listed buildings, airports, clean environments and even cruise ships, this unique spider crane is powered by a rechargeable 48v battery with no diesel emissions impacting on the surrounding atmosphere.

- Total width: 0.75m
- Max. working radius: 8.41m
- Multi-position configurable outriggers
- Low Marking Tyres
- Operator control of outrigger extension
- Intelligent voice warning system
- Preliminary stability warning system with motion cut

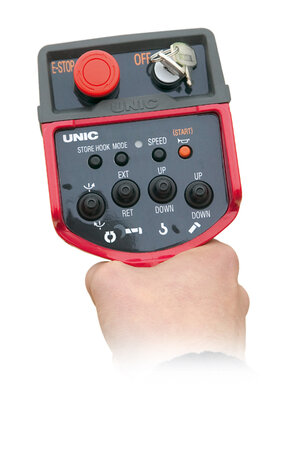

- Radio remote control as standard
- Maximum wind speed for safe use is 36km/h, 22mph or 10m/s
Ref code: MCU095B

Capacity: 0.995t x 3.5m
Max Lifting Height: 8.9m
Total Width: 0.75m
Weight: 2425kg

Contact Sales

Add to Enquires

Features

Technical Table

Dimensions

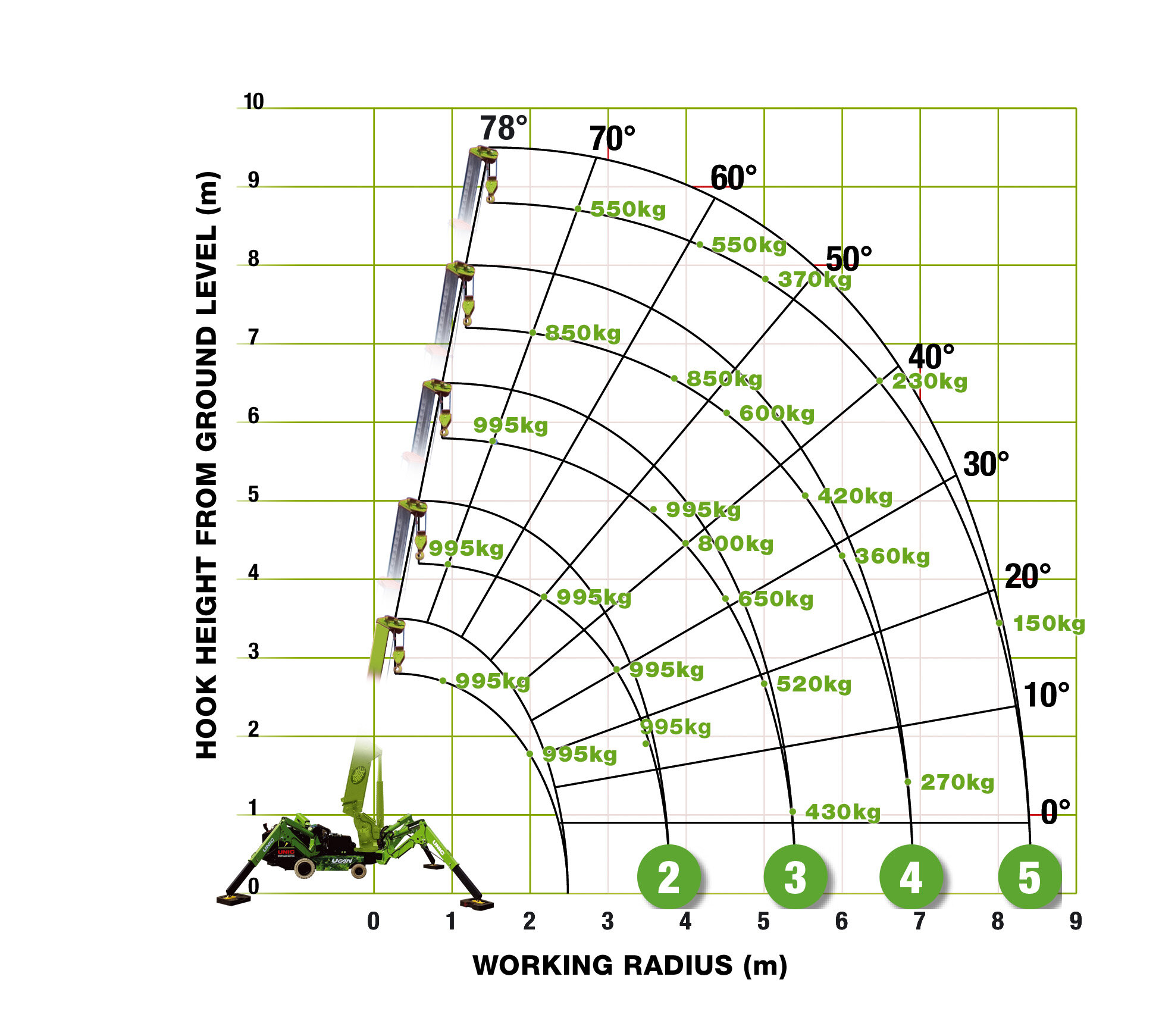

Boom Stages

Fall Stages

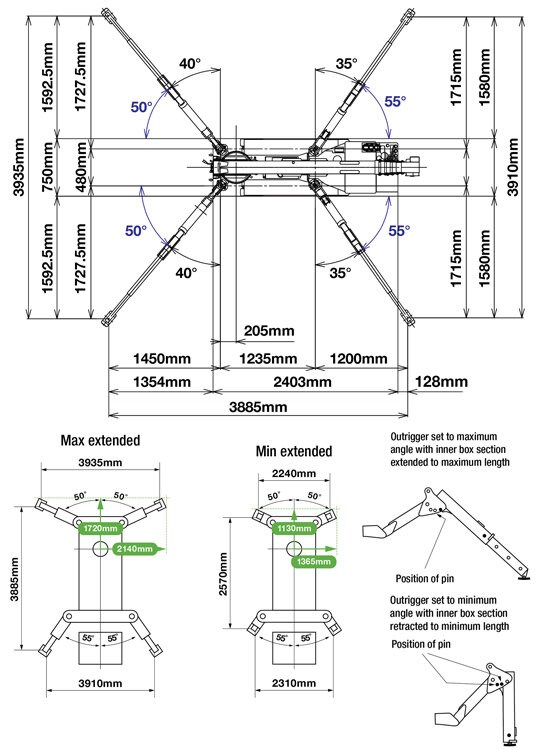

Outrigger Specs

Specification

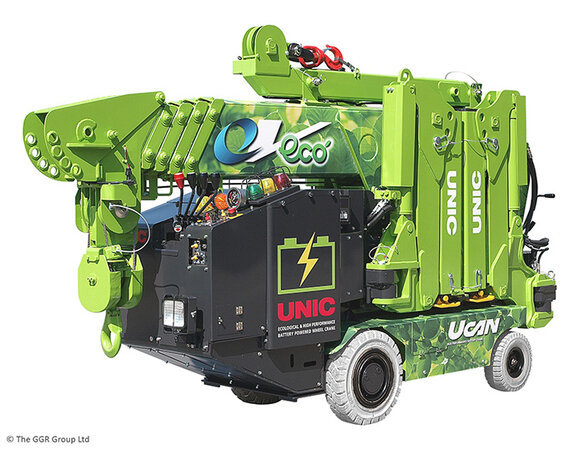

Measuring just 750mm wide, the new Eco spider crane is designed for interior access and retains all the lifting power of our standard models without compromising on operational efficiency. Alongside cutting edge technology, this innovative machine is the first spider cranes to feature low marking wheels for ultimate manoeuvrability when working on light-coloured or polished floor surfaces, making it the ideal choice for shopping centres, galleries, hospitals and more. The UNIC ECO-095-WBE model has a lifting capacity of up to 0.995t tonnes to a height of up to 8.9 metres.

Looking to hire or buy a clean, green spider crane? Contact GGR Group, today to find out more.

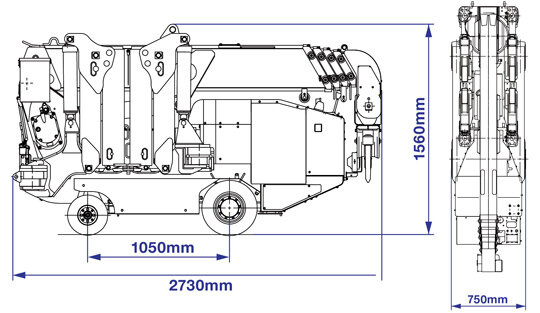

Dimensions

Capacity:

0.995t x 3.5m

Maximum Working Radius:

8.41m

Maximum Lifting Height:

8.9m

Rope Length:

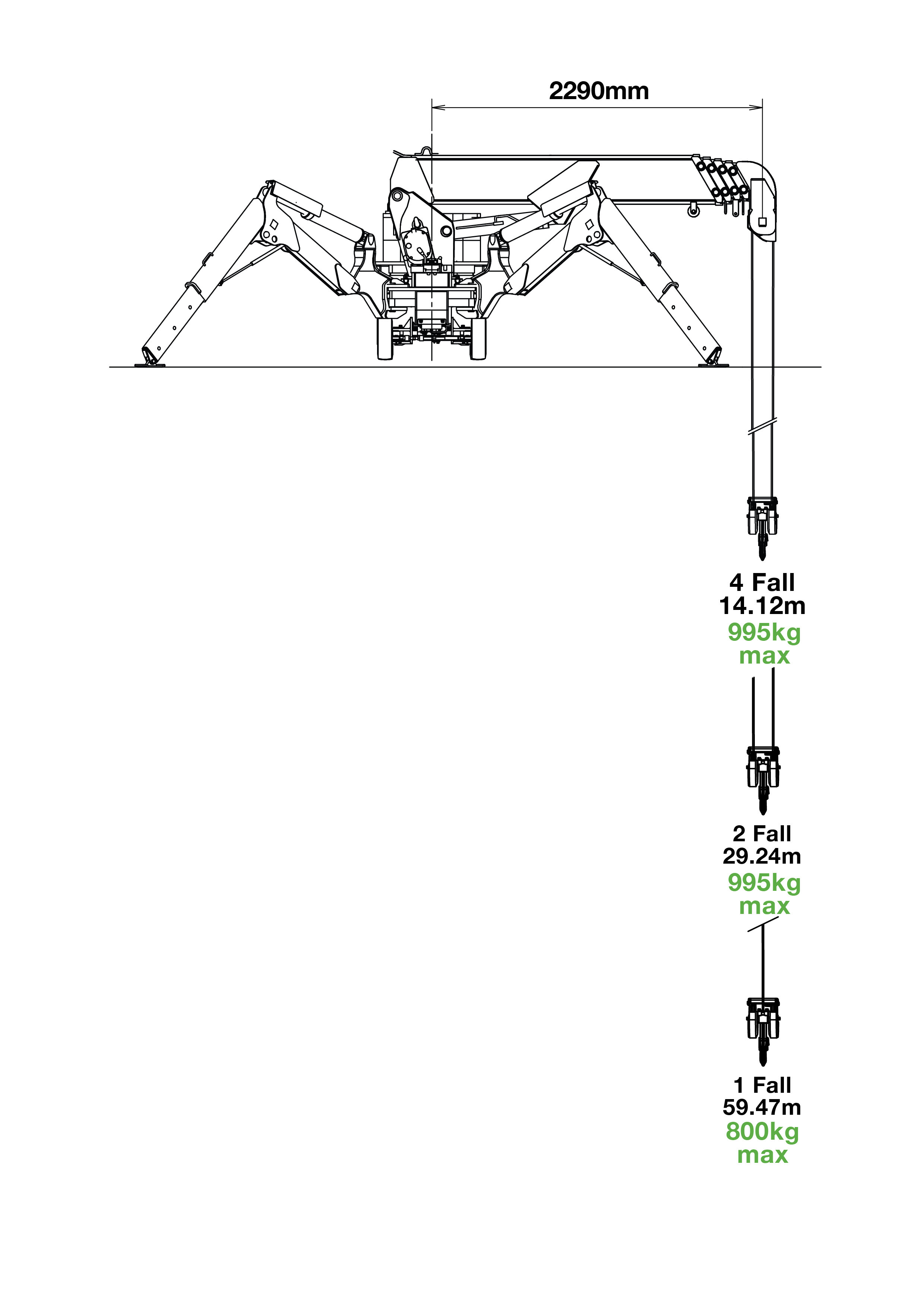

14.12m (4 fall), 29.24m (2 fall), 59.47m (1 fall)

Length (Folded):

2730mm

Width (Folded):

750mm

Height (Folded):

1560mm

Weight (Unladen):

2425kg (2490kg with fly jib)

Traction System

Drive:

hydraulic motor wheeled drive

Travel Speed:

0 - 2.6km/h

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

Track Ground Pressure:

Track Width:

Steering Angle:

50° left and 50° right

Min Turning Radius:

outer 1990mm x inner 510mm

Front Tyre Size:

4.00-8 (wheel RIM 3.00 D-8)

Rear Tyre Size:

3.50-5 (wheel RIM 3.00 SP-5)

Power Plant

Fuel:

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

Starting Method:

Tank Capacity:

Electric Motor Power:

3.1kW (AC motor)

Electric Motor Voltage:

48v DC rechargeable battery

Battery Charger:

110v (16A) or 200/240v single phase (15A)

Telescopic System

Hook Speed:

9.1m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/31 seconds

Boom Type:

5 section, hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/17 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.5min rpm

Equipment

Standard Equipment:

radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, load indication, turn-over protection system with stability warning lamps and alarm

Optional Equipment:

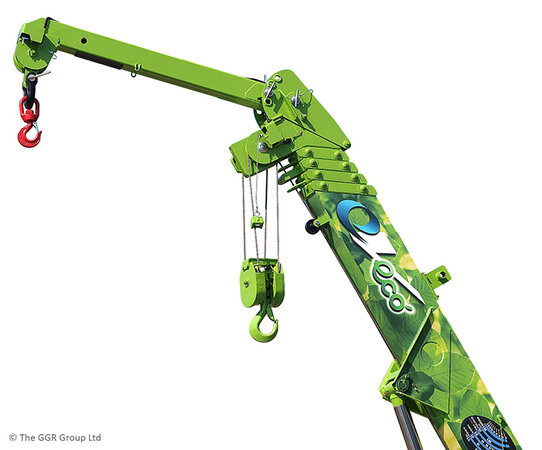

1 fall hook block, 2 fall hook block, 300kg capacity small searcher hook, 700kg capacity searcher hook, 700kg capacity fly jib with single part line, variable outrigger option (295-WBE)
