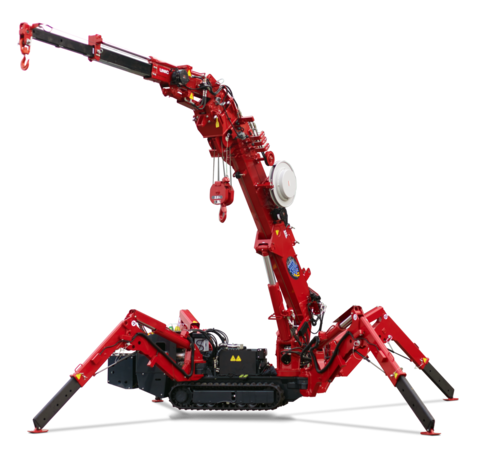

UNIC URW-295 With Hydraulic Jib

The URW 295 with hydraulic jib builds upon the proven features of the URW-295 and introduces four innovative attachments, enhancing its versatility for diverse lifting applications.

Total width 0.6m
Comes complete with hydraulic jib
Four lifting attachments (searcher hook, single line hook, rhino hook and stub)
Max working radius 8.41m, 11.7m with searcher and single-line hooks
Petrol powered with LPG and electric options
Diesel powered with electric option
Zero length increase with electric option (except diesel)
Operator control of outrigger extension
Radio remote control as standard
Working area limitation
Slew limitation (optional)
Intelligent throttle activation for economy and ecology

Capacity: 2.9t x 1.4m
Max Lifting Height: 12.5m
Total Width: 0.6m
Weight: 1890-2130kg

Contact Sales

Add to Enquires

Features

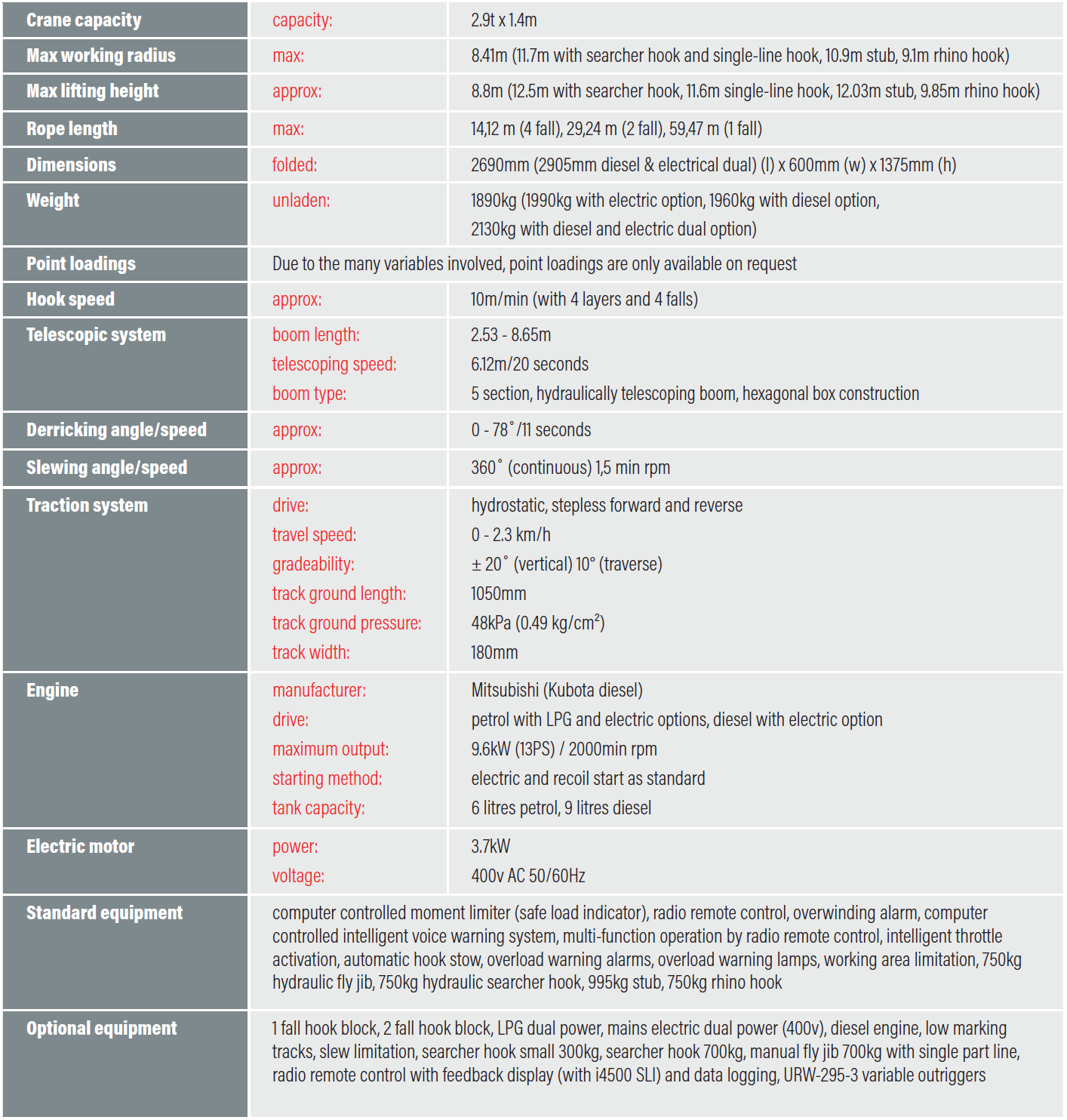

Technical Table

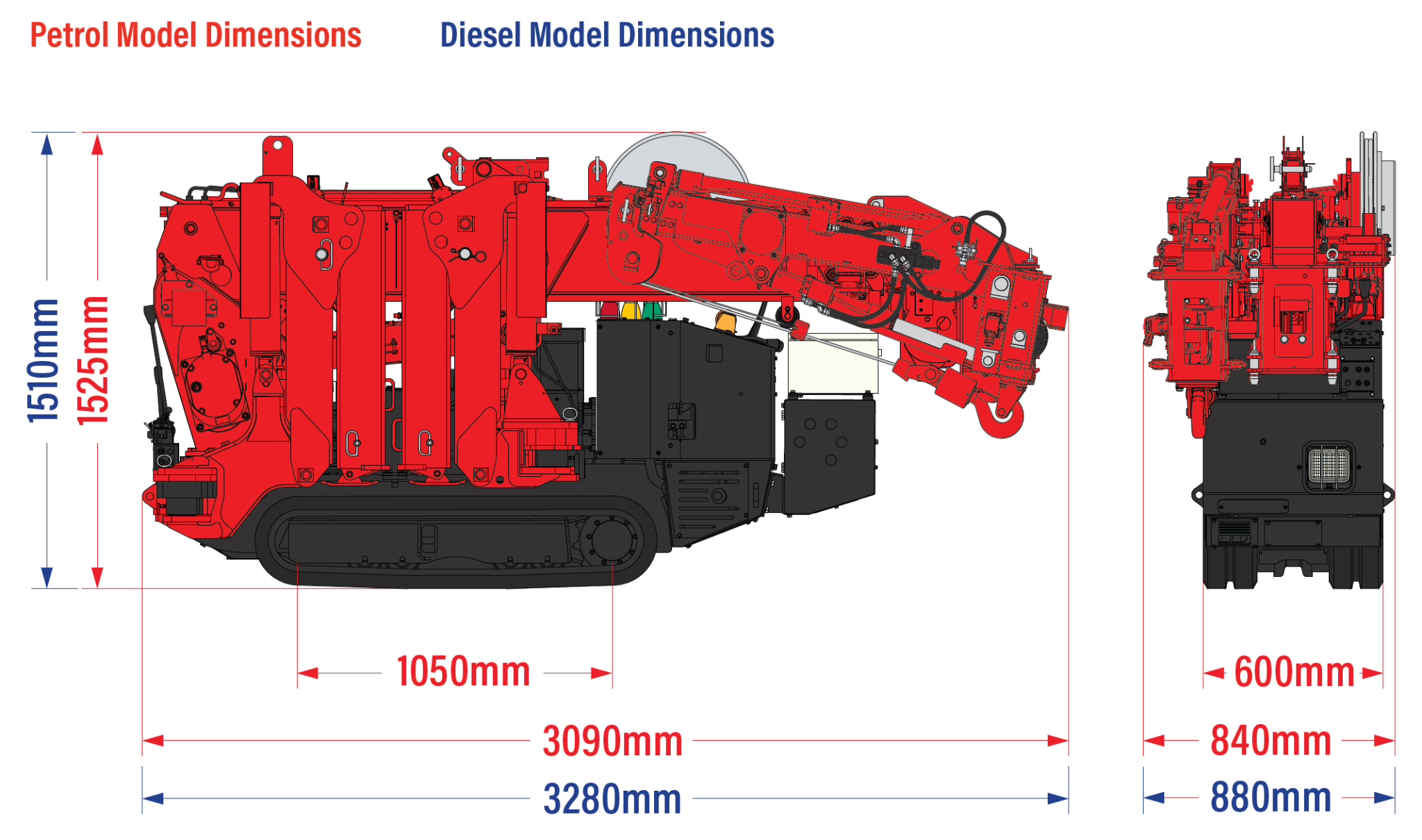

Dimensions

Main Boom Stages

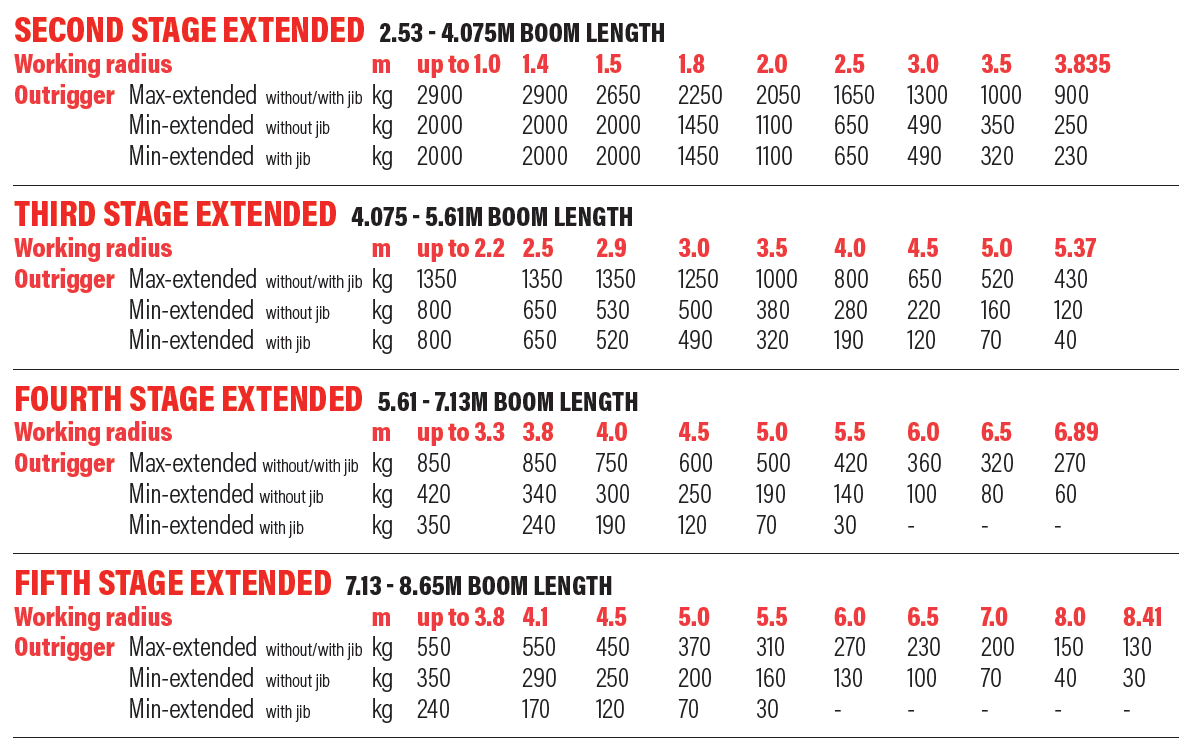

Main Boom Rated Loads

Fall Stages

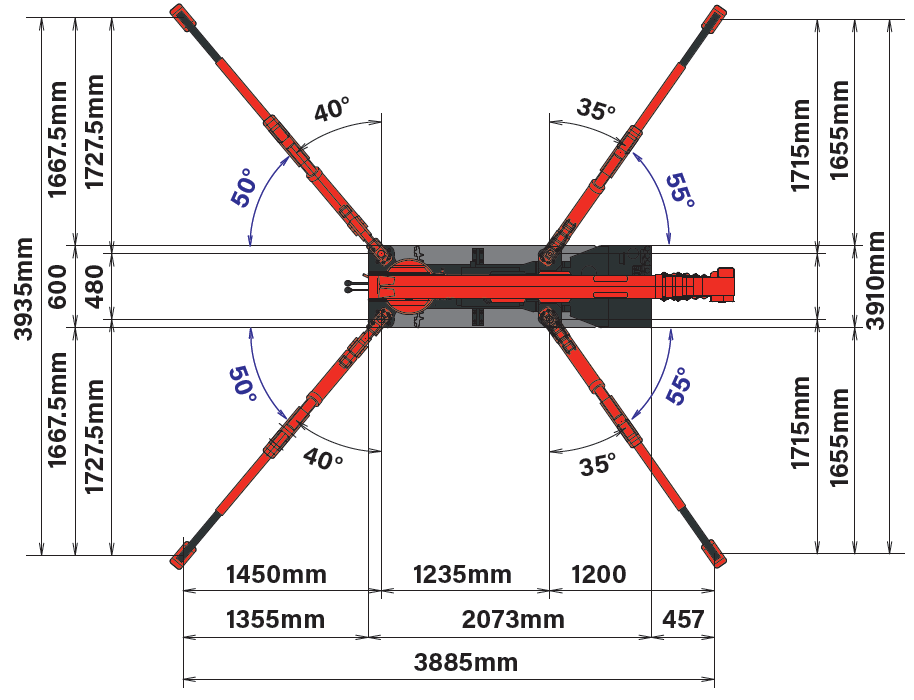

Outrigger Dimensions

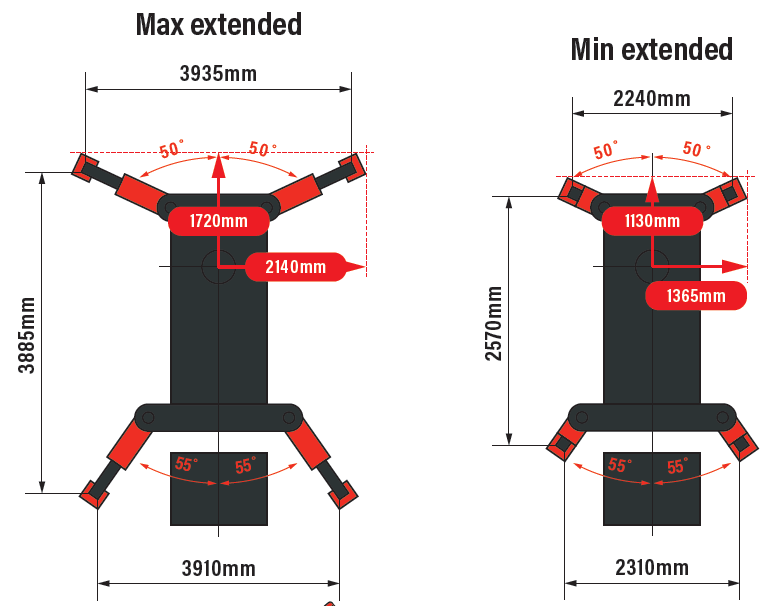

Outrigger Min-Max

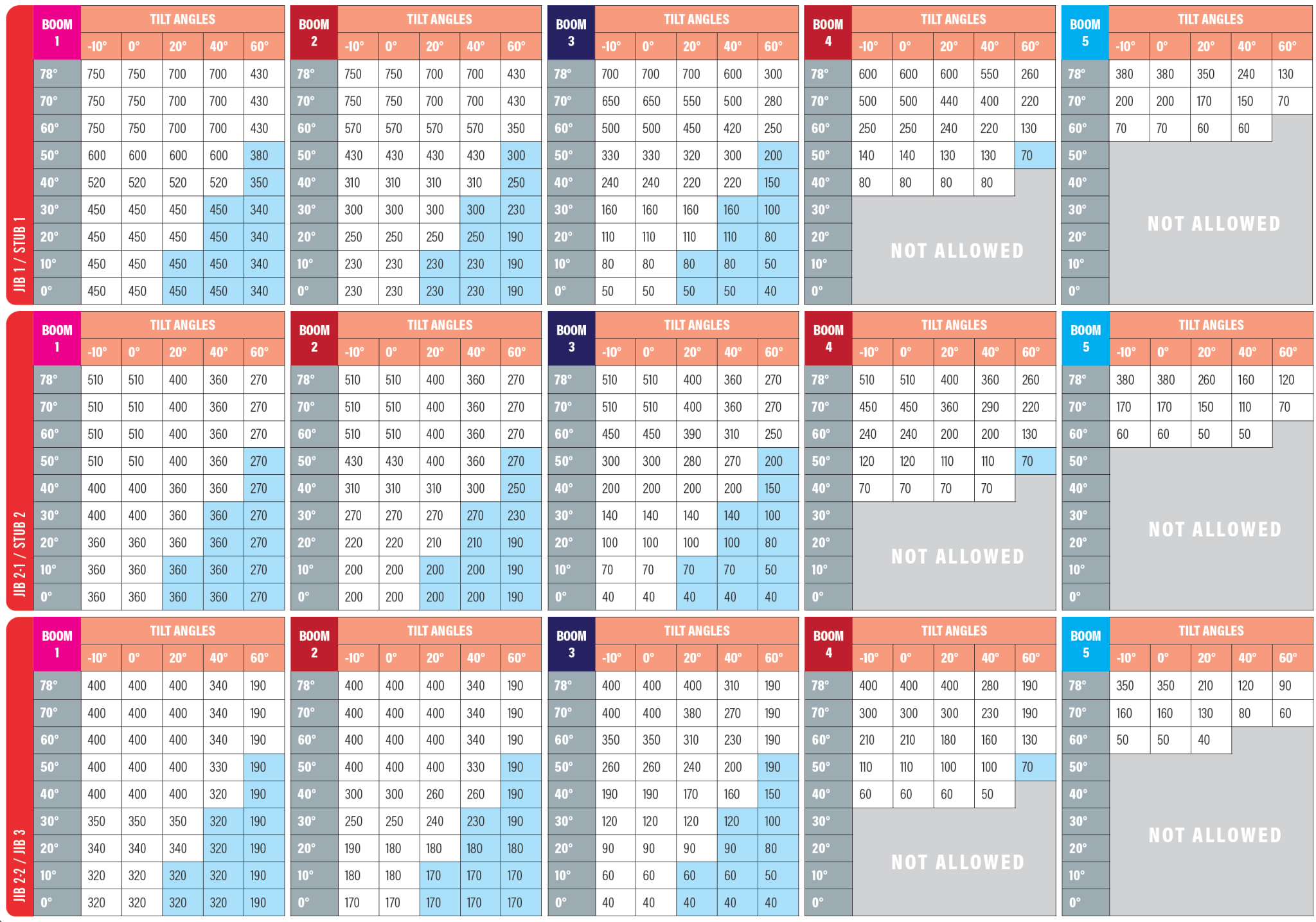

Hydraulic Jib Rated Loads Table

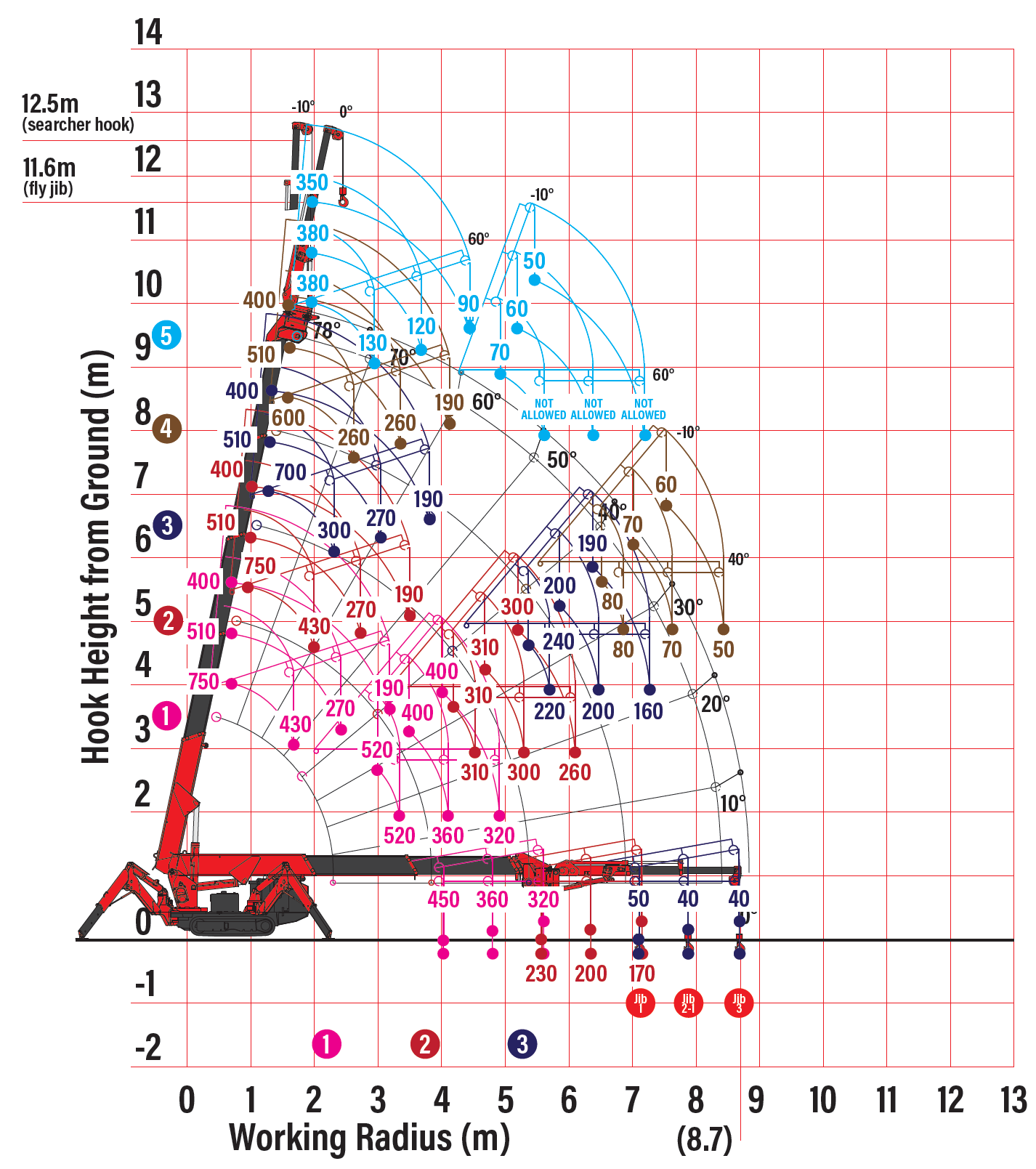

Single Line Hook Rated Loads

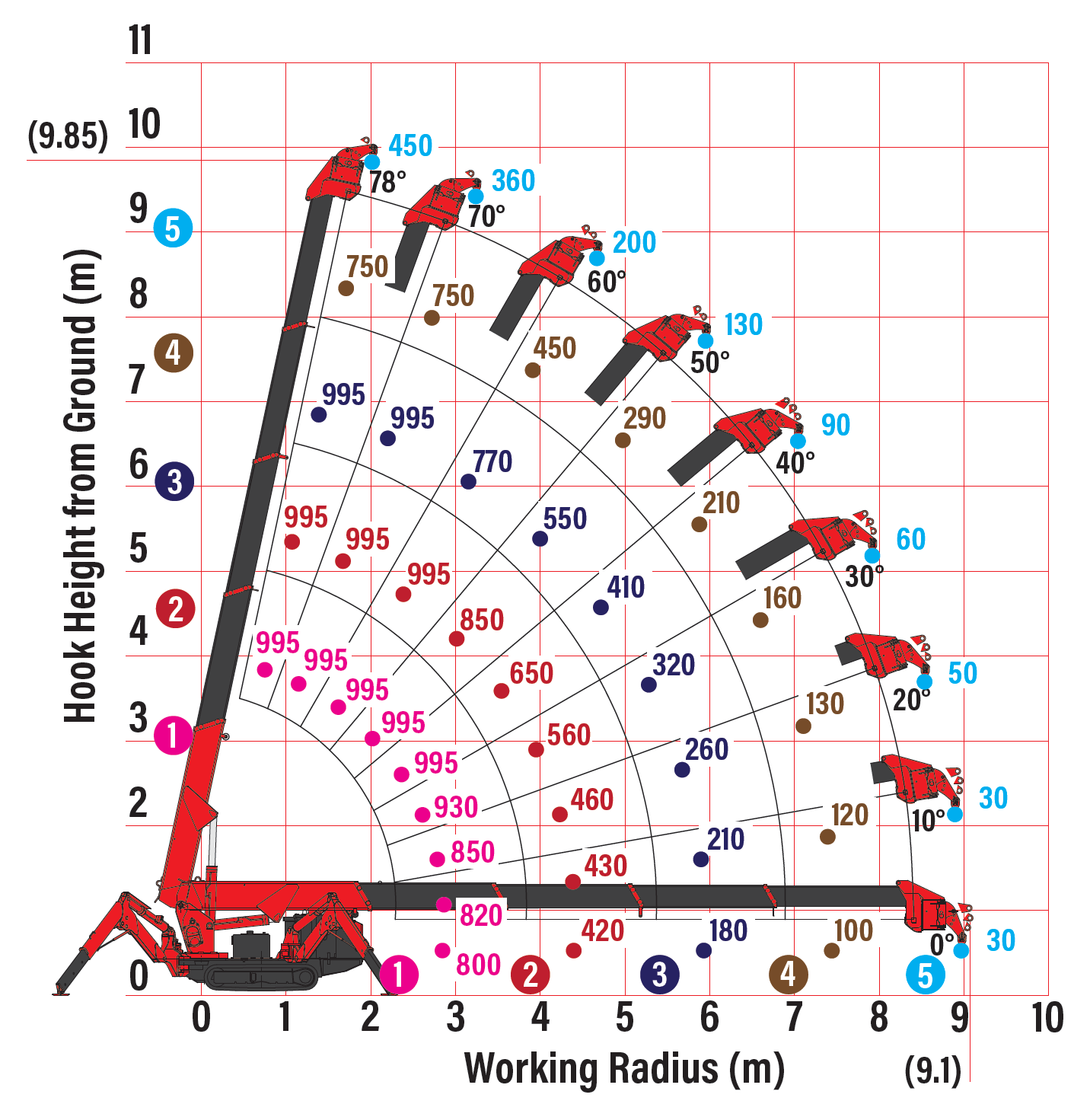

Rhino Hook Rated Loads

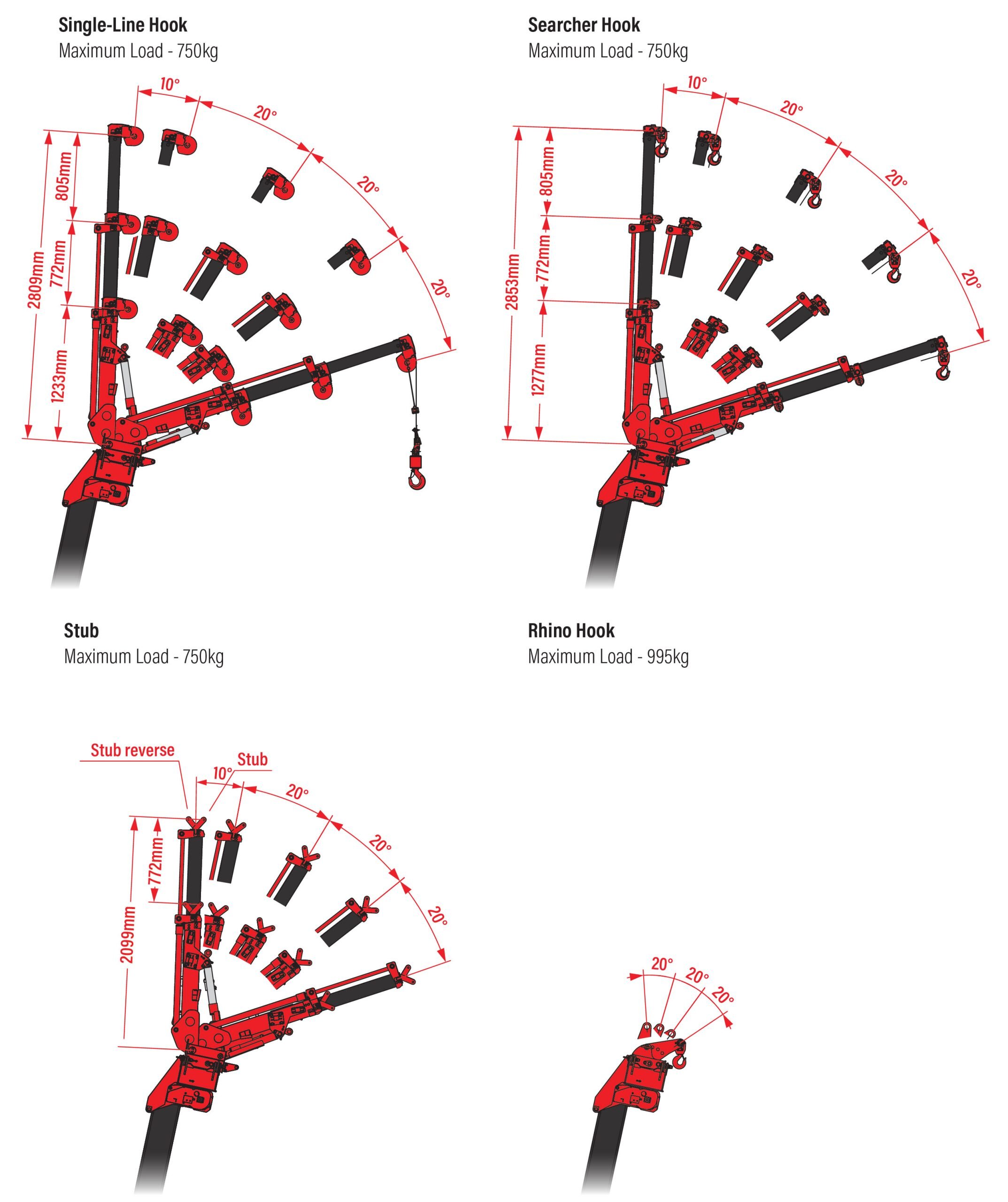

Attachment Dimensions

Specification

The new telescoping luffing jib offers a maximum capacity of 750kg, jib extension range of 1.2m to 2.8m (800mm manual extension & 800mm of hydraulic extension). This attachment also features a luffing range of -10° to 60° offsets while also increasing the max lifting height of the crane to 12.5m and an impressive working radius of 9.1m.

This new jib is perfect when you need that extra height or reach but still need to retain the benefits of the small chassis and outrigger options of the standard URW-295 model.

If you are looking to hire or purchase a UNIC URW-295 With Hydraulic Jib, or require any further information, contact GGR Group today.

Dimensions

Capacity:

2.9t x 1.4m

Maximum Working Radius:

8.41m (11.7m with searcher hook and single-line hook, 10.9m stub, 9.1m rhino hook)

Maximum Lifting Height:

8.8m (12.5m with searcher hook, 11.6m single-line hook, 12.03m stub, 9.85m rhino hook)

Rope Length:

14,12 m (4 fall), 29,24 m (2 fall), 59,47 m (1 fall)

Length (Folded):

2690mm (2905mm diesel & electrical dual)

Width (Folded):

600mm

Height (Folded):

1375mm

Weight (Unladen):

1890kg (1990kg with electric option, 1960kg with diesel option, 2130kg with diesel and electric dual option)

Traction System

Drive:

hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2.3 km/h

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

48kPa (0.49 kg/cm²)

Track Width:

180mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

petrol with LPG and electric options, diesel with electric option

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

9.6kW (13PS) / 2000min rpm

Starting Method:

electric and recoil start as standard

Tank Capacity:

6 litres petrol, 9 litres diesel

Electric Motor Power:

3.7kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

10m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/20 seconds

Boom Type:

5 section, hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/11 seconds

Slewing Angle/Speed:

360˚ (continuous) 1,5 min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation, 750kg hydraulic fly jib, 750kg hydraulic searcher hook, 995kg stub, 750kg rhino hook

Optional Equipment:

1 fall hook block, 2 fall hook block, LPG dual power, mains electric dual power (400v), diesel engine, low marking tracks, slew limitation, searcher hook small 300kg, searcher hook 700kg, manual fly jib 700kg with single part line, radio remote control with feedback display (with i4500 SLI) and data logging, URW-295-3 variable outriggers
