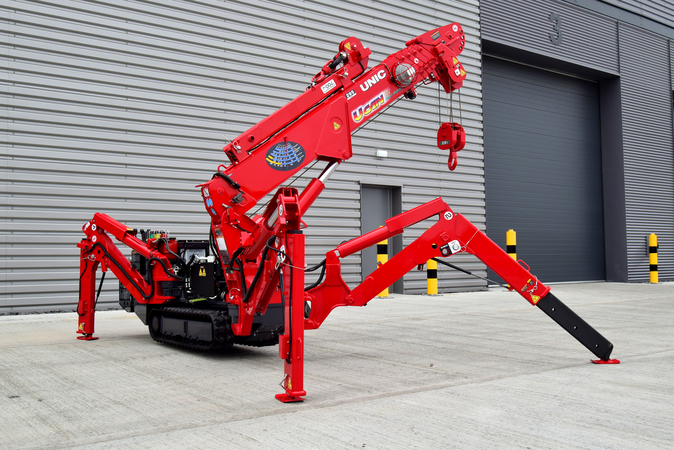

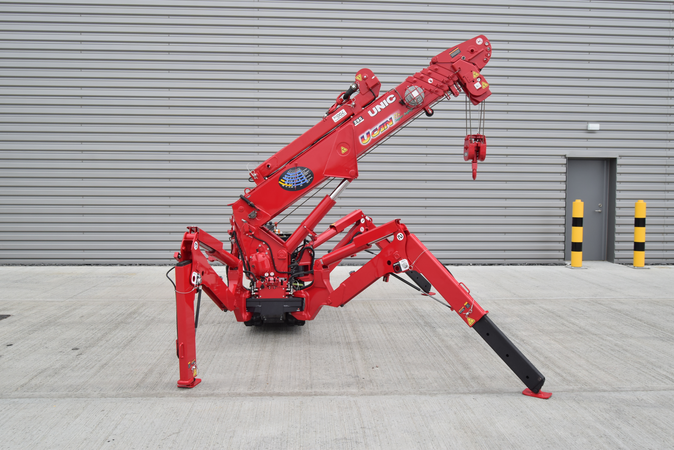

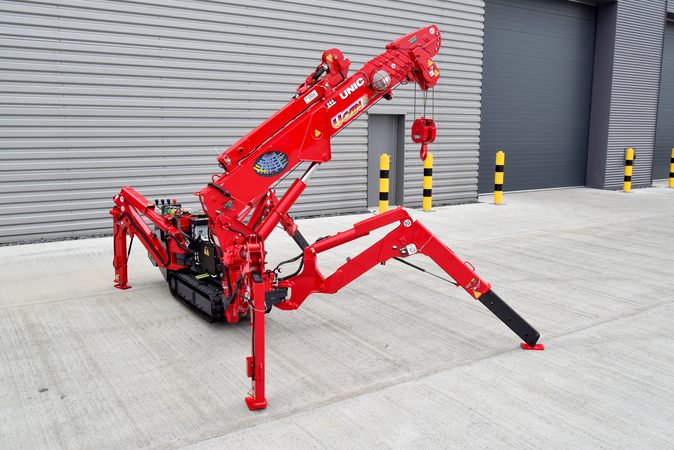

UNIC URW-295-3 - Variable Outrigger Spider Crane

The UNIC URW-295-3 retains all the benefits of the standard URW-295 model, but sees the addition of variable, adjustable outriggers, enabling this mini crane to operate around fixed obstacles on site to suit the lifting requirements of each project.

Capacity 2.9t x 1.4m
Total width 0.6m
Max working radius 8.41m
Max boom length 8.65m
Max lifting height 8.8m (9.8m with fly jib, 10.47 with fixed hook)
Petrol powered, optional LPG dual, electric dual and diesel
Battery crane option also available for sensitive environments
Zero length increase with electric option (except diesel)
Radio remote control as standard (cable remote optional)
Working area limitation
Optional slew limitation
Intelligent throttle activation for economy and ecology
Optional low marking tracks
Optional 300kg capacity searcher hook
Optional 700kg capacity searcher hook and fly jib
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU295-3

Capacity: 2.9t x 1.4m
Max Lifting Height: 8.8m
Total Width: 0.6m
Weight: 1850-2090kg

Contact Sales

Add to Enquires

Features

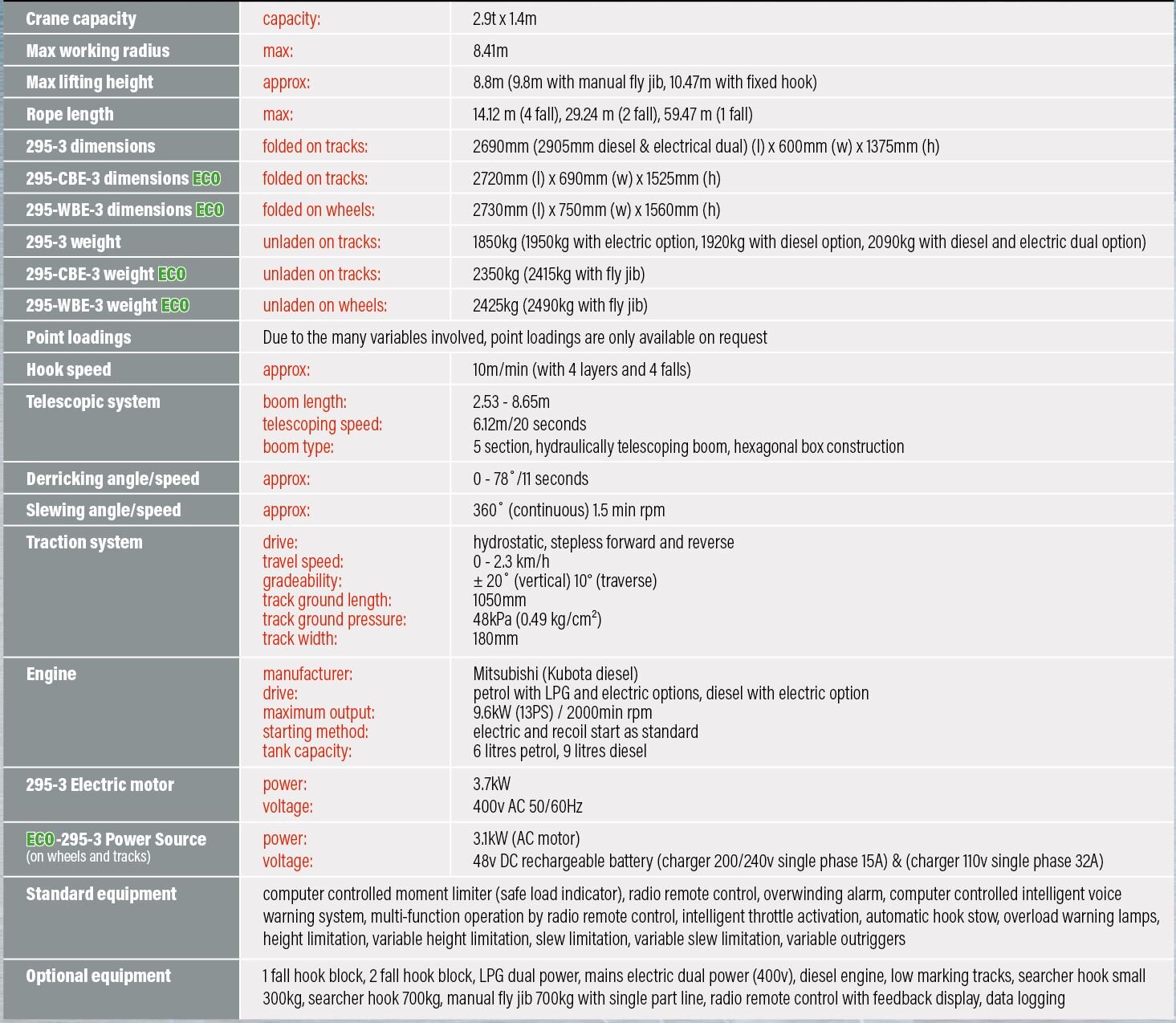

Technical Table

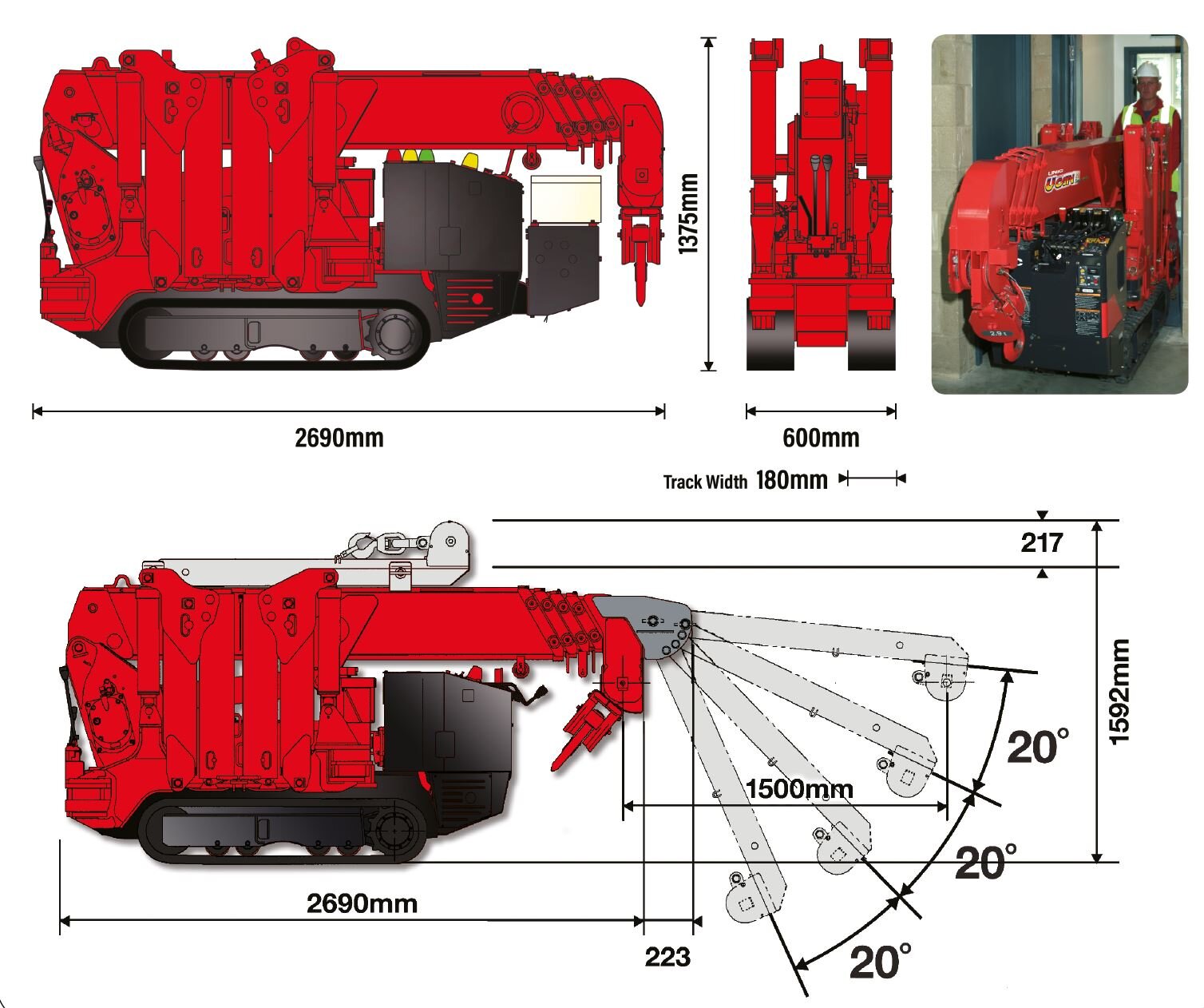

Dimensions

Main Boom Stages

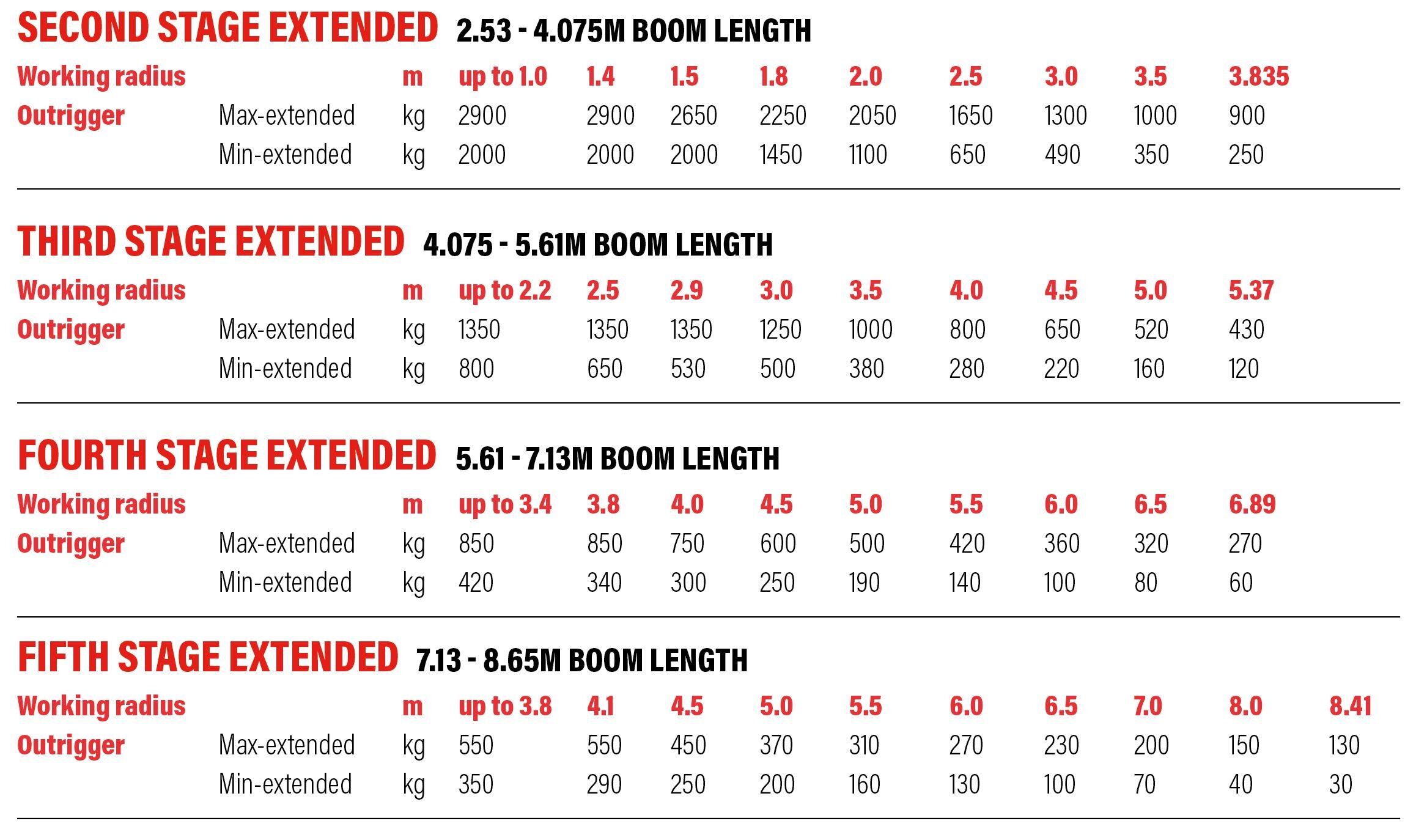

Rated Loads

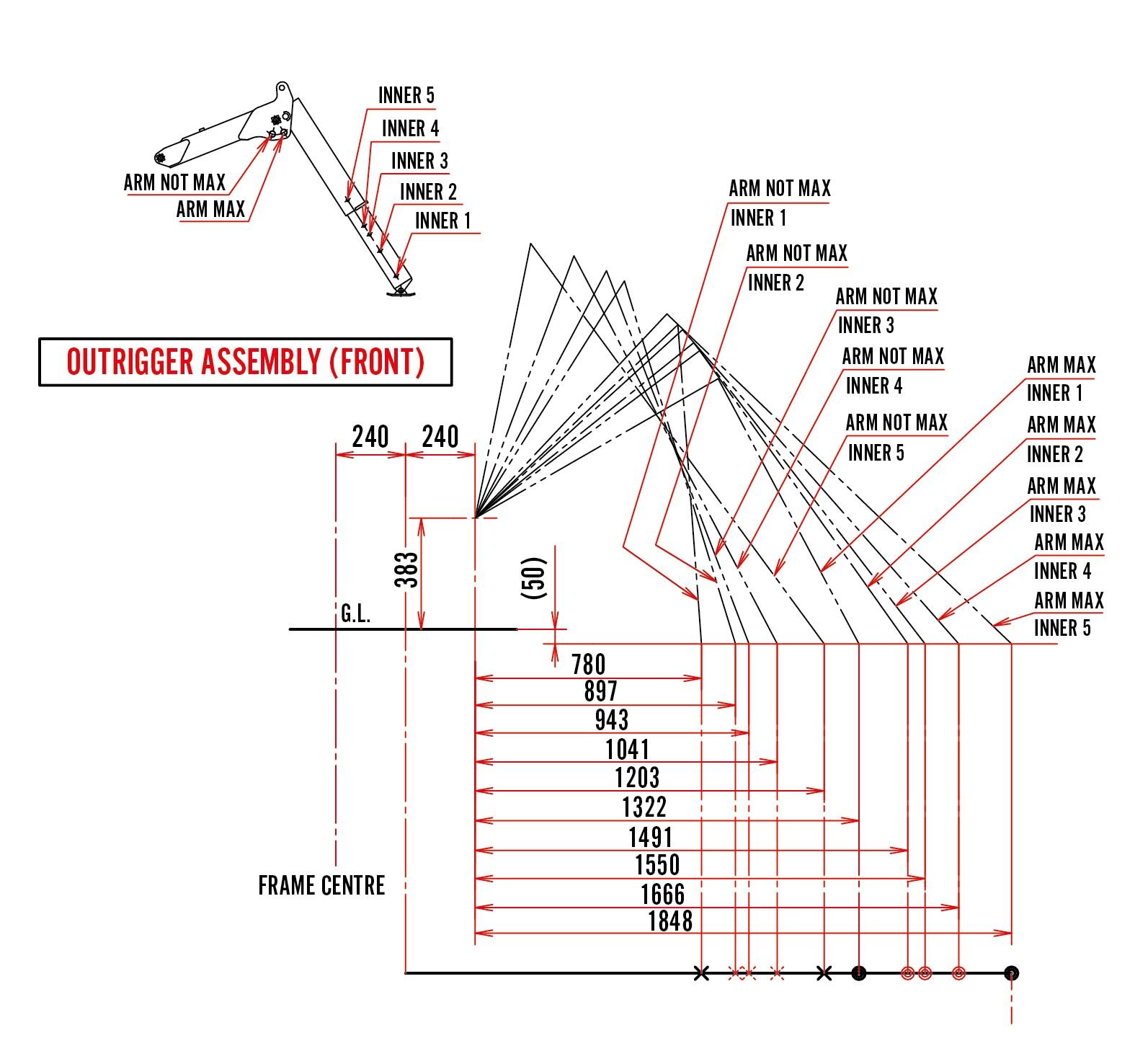

Outrigger Assembly (Front)

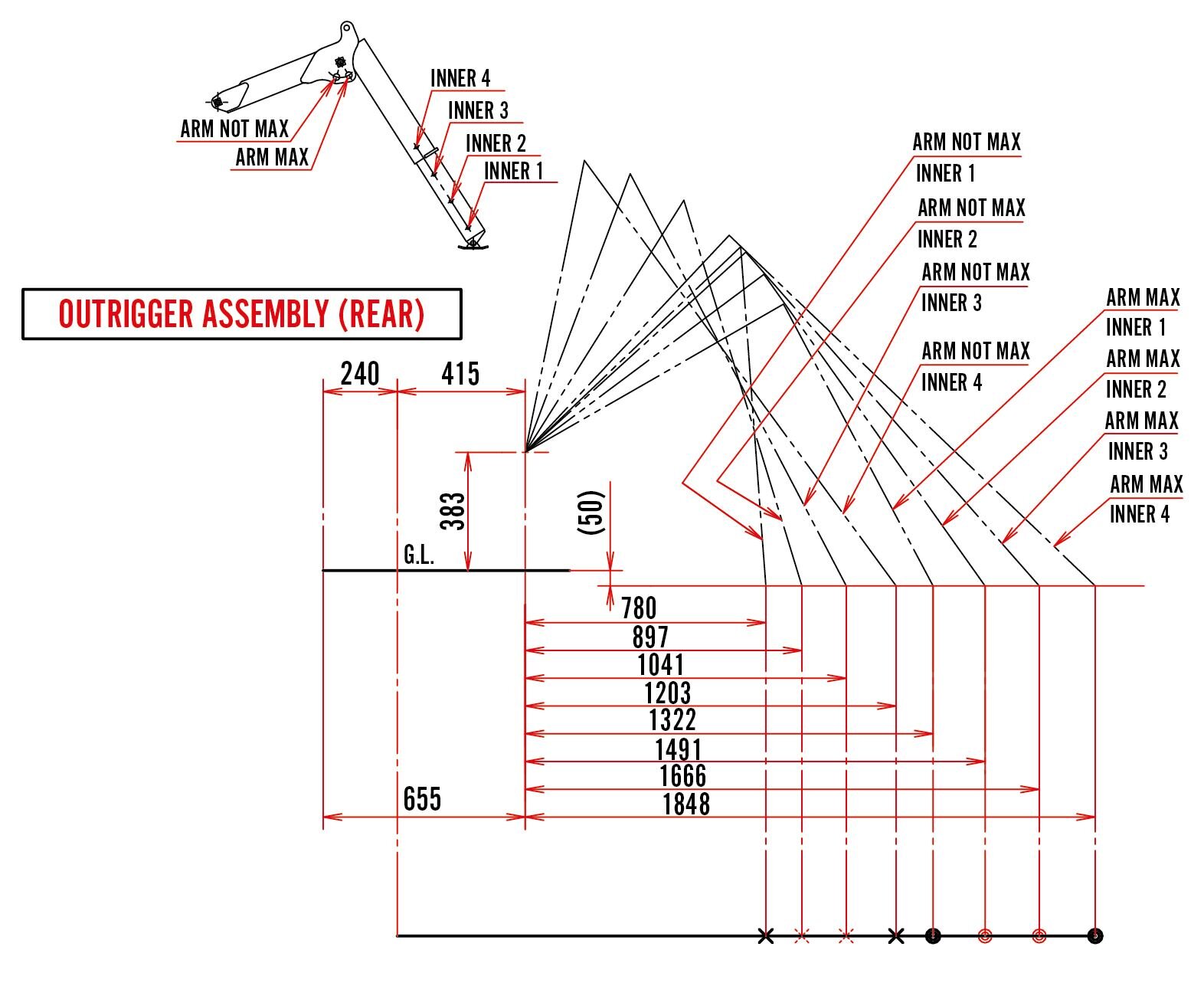

Outrigger Assembly (Rear)

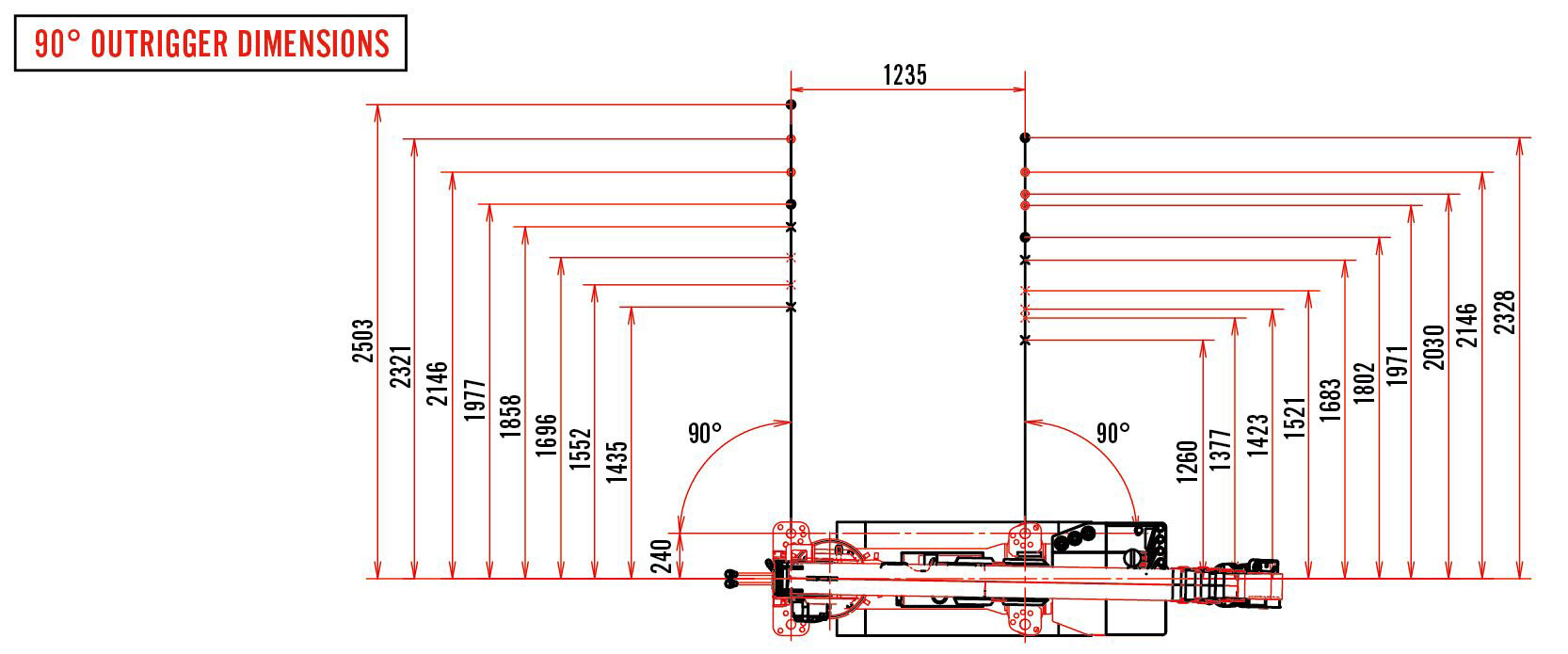

90° Outrigger Dimensions

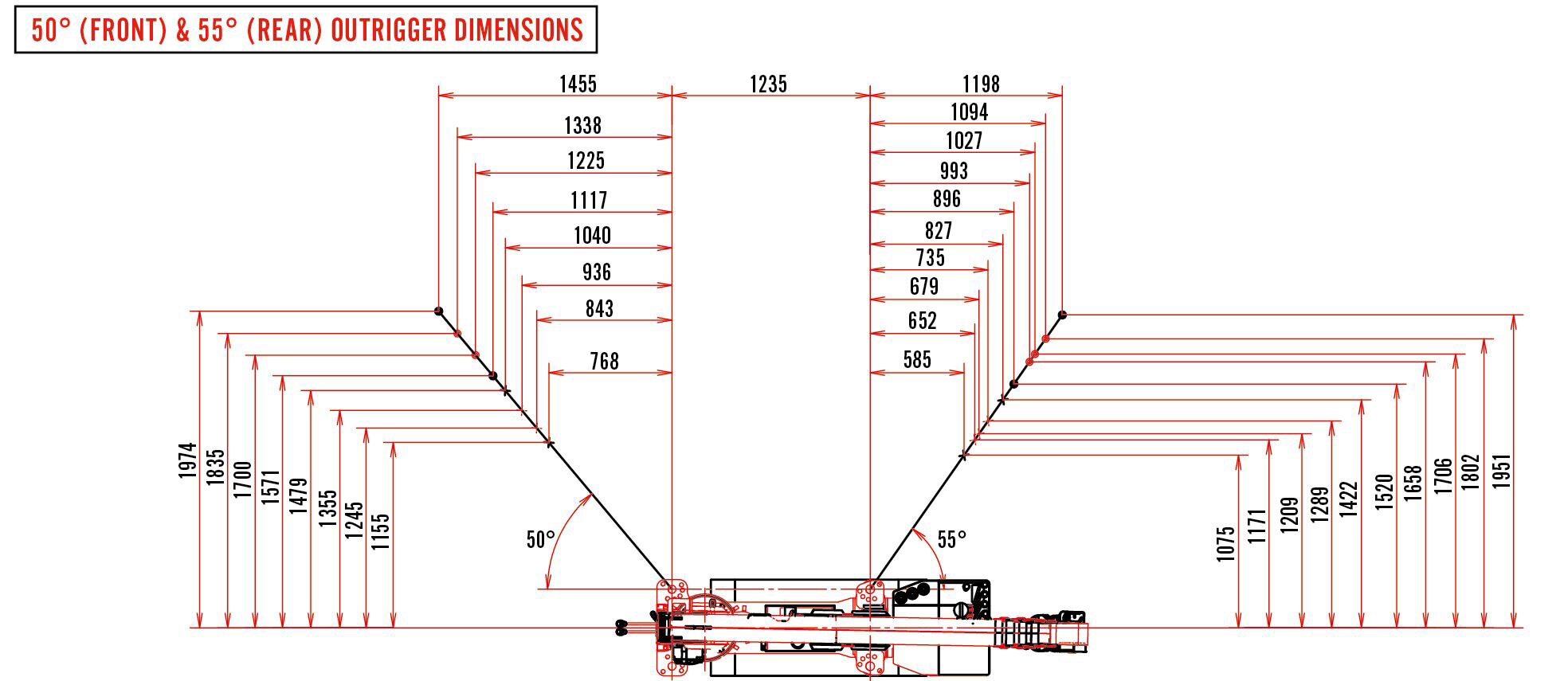

50° Front & 55° Rear Outrigger Dimensions

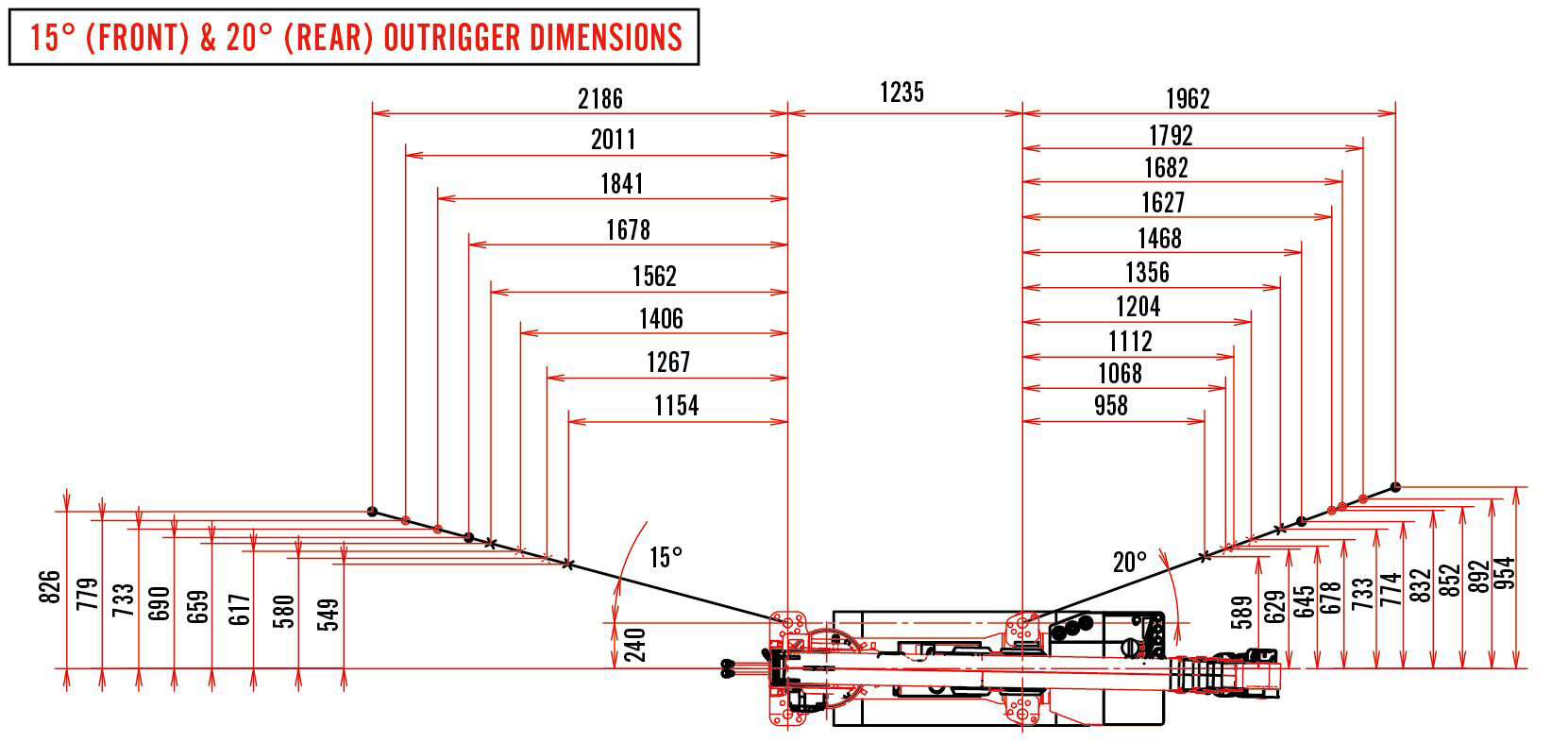

15° Front & 20° Rear Outrigger Dimensions

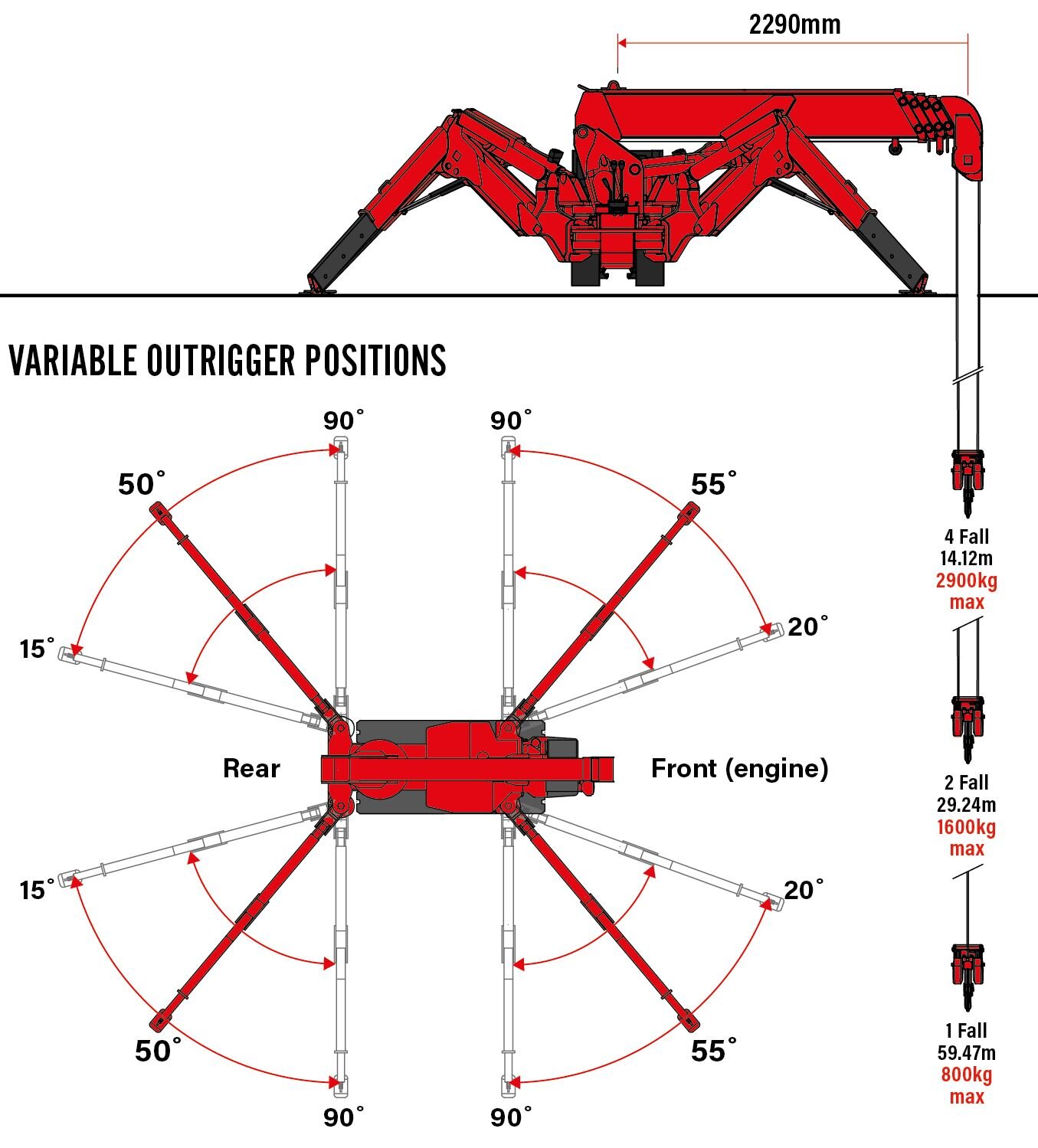

Fall Stages

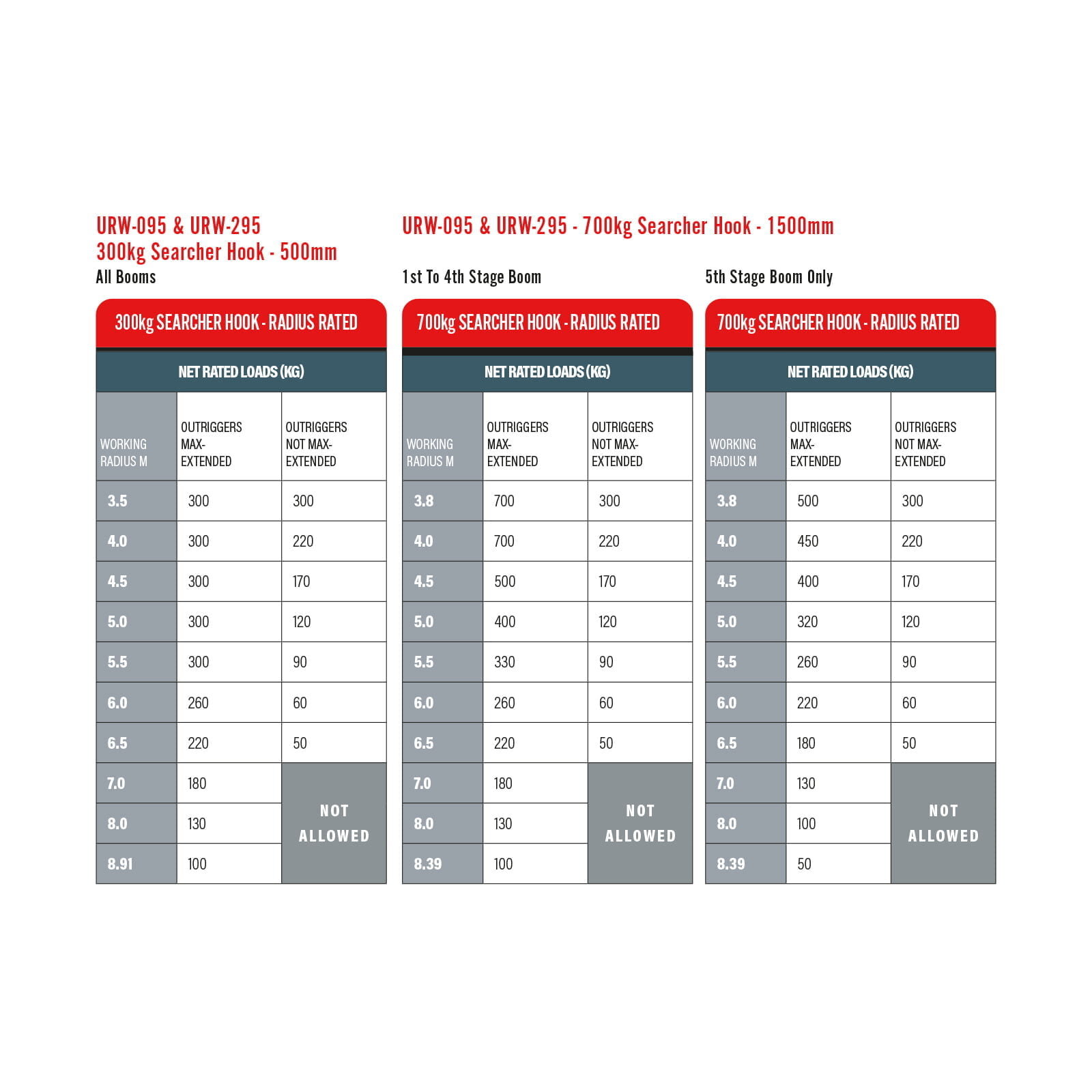

Searcher Hook

Fly Jib Working Ranges

Specification

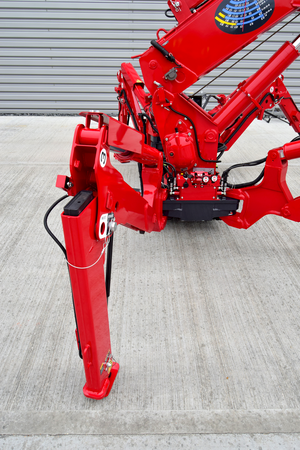

The addition of variable outriggers means this mini crane can operate in spaces where other mini cranes cannot. The adjustable outriggers reduce the working footprint of this already compact mini machine, making it ideal for working in extremely tight and small spaces.

With a width of just 0.6m, the URW-295 -3 can access through a standard door frame yet comes with a heavy lifting capacity of 2.9 tonnes. The 8.65m boom provides a maximum lifting height of 8.8m, whilst an optional fly jib gives a further 1500mm reach where required.

If you are looking to hire or purchase a UNIC URW-295-3, or require any further information, contact GGR Group today.

Dimensions

Capacity:

2.9t x 1.4m

Maximum Working Radius:

8.41m

Maximum Lifting Height:

8.8m (9.8m with manual fly jib, 10.47m with fixed hook)

Rope Length:

14.12 m (4 fall), 29.24 m (2 fall), 59.47 m (1 fall)

Length (Folded):

2690mm (2905mm diesel & electrical dual)

Width (Folded):

600mm

Height (Folded):

1375mm

Weight (Unladen):

1850kg (1950kg with electric option, 1920kg with diesel option, 2090kg with diesel and electric dual option)

Traction System

Drive:

hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2.3 km/h

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

48kPa (0.49 kg/cm²)

Track Width:

180mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

petrol with LPG and electric options, diesel with electric option

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

9.6kW (13PS) / 2000min rpm

Starting Method:

electric and recoil start as standard

Tank Capacity:

6 litres petrol, 9 litres diesel

Electric Motor Power:

3.7kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

10m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/20 seconds

Boom Type:

5 section, hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/11 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.5 min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning lamps, height limitation, variable height limitation, slew limitation, variable slew limitation, variable outriggers

Optional Equipment:

1 fall hook block, 2 fall hook block, LPG dual power, mains electric dual power (400v), diesel engine, low marking tracks, searcher hook small 300kg, searcher hook 700kg, manual fly jib 700kg with single part line, radio remote control with feedback display, data logging
