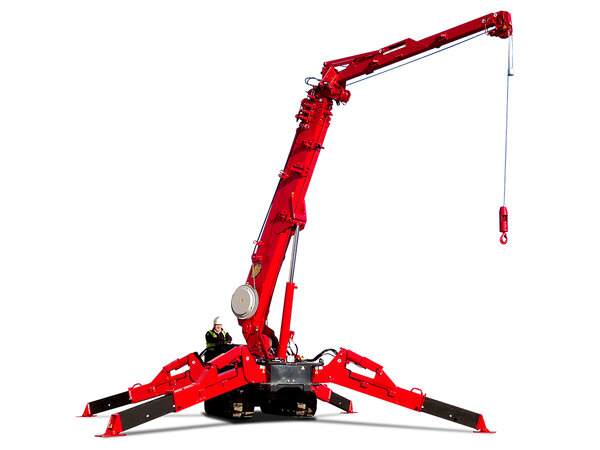

UNIC URW-706-2 – Mini Spider Crane

With the ability to lift up to 6 tonnes, the URW 706-2 is able to lift to a maximum hook height of 25.9 metres, an extra 3 metres more than the standard model. This additional hydraulic searcher hook makes it a truly versatile machine and provides that extra reach for tricky lifting projects.

Capacity 6.0t x 3.0m
Total width 1.67m
Max working radius 18.6m
Max lifting height: 19.5m with main boom, 25.2m – hydraulic fly jib, 25.9m – fixed hook
Max boom length 19.2m
Diesel-powered and optional mains electric
Zero-length increase with electric option
Radio remote control as standard
Working area limitation
Slew limitation (optional)
Intelligent throttle activation for economic fuel consumption
Optional low-marking tracks
Optional radio remote control with feedback display
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU706-2

Capacity: 6t x 3m
Max Lifting Height: 19.5m
Total Width: 1.67m
Weight: 8220-8670kg

Contact Sales

Add to Enquires

Features

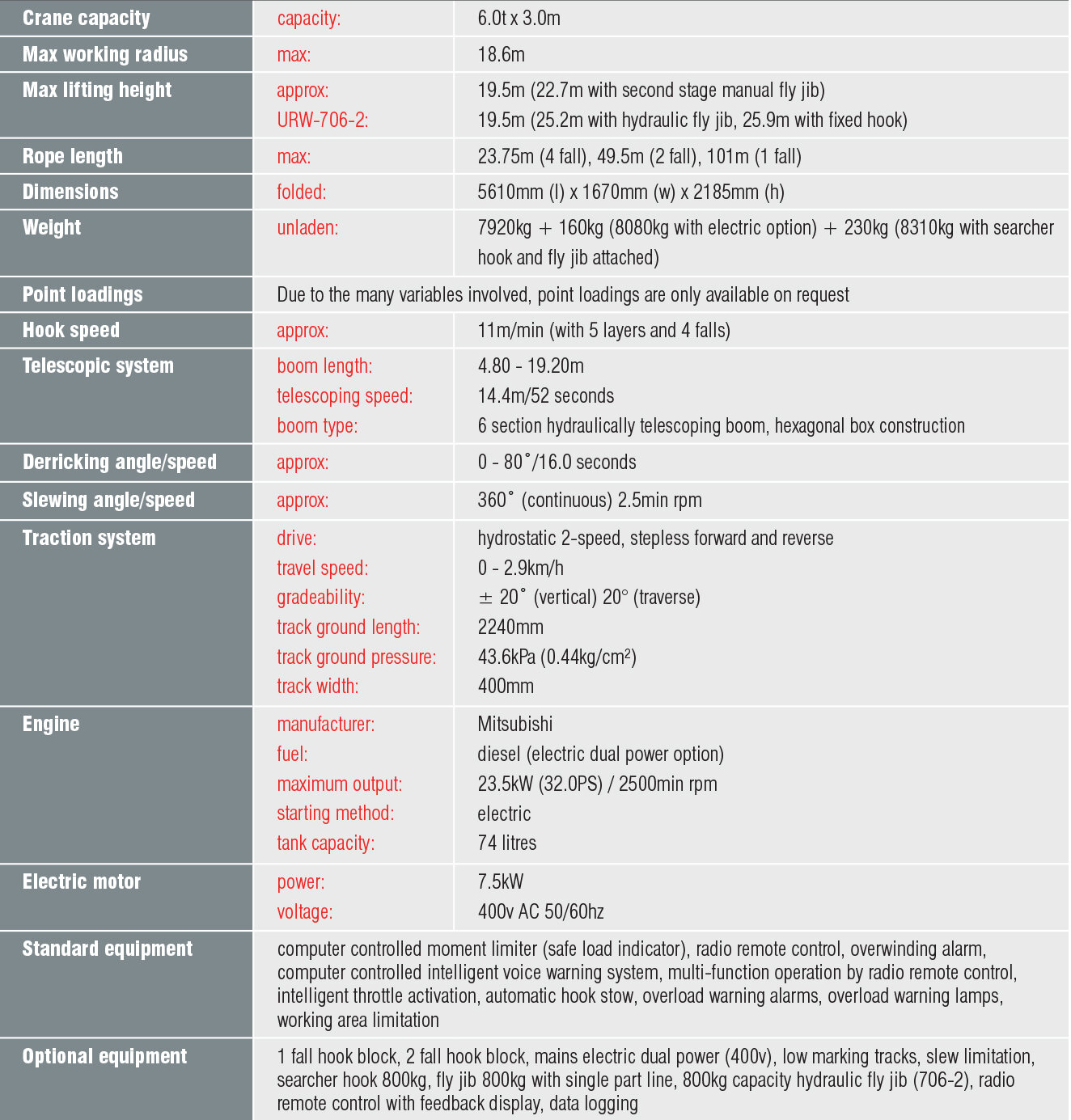

Technical Table

Dimensions

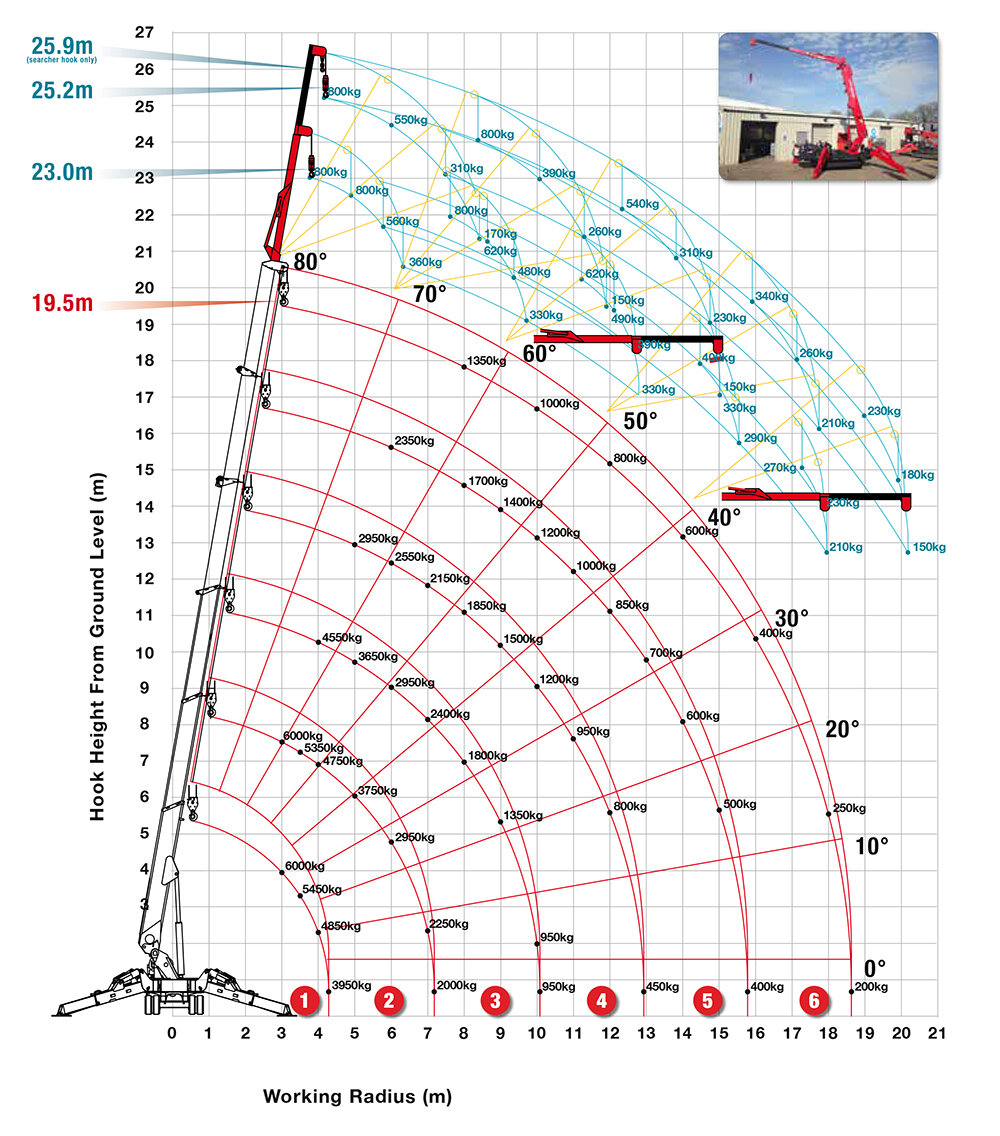

Fly Jib Working Ranges

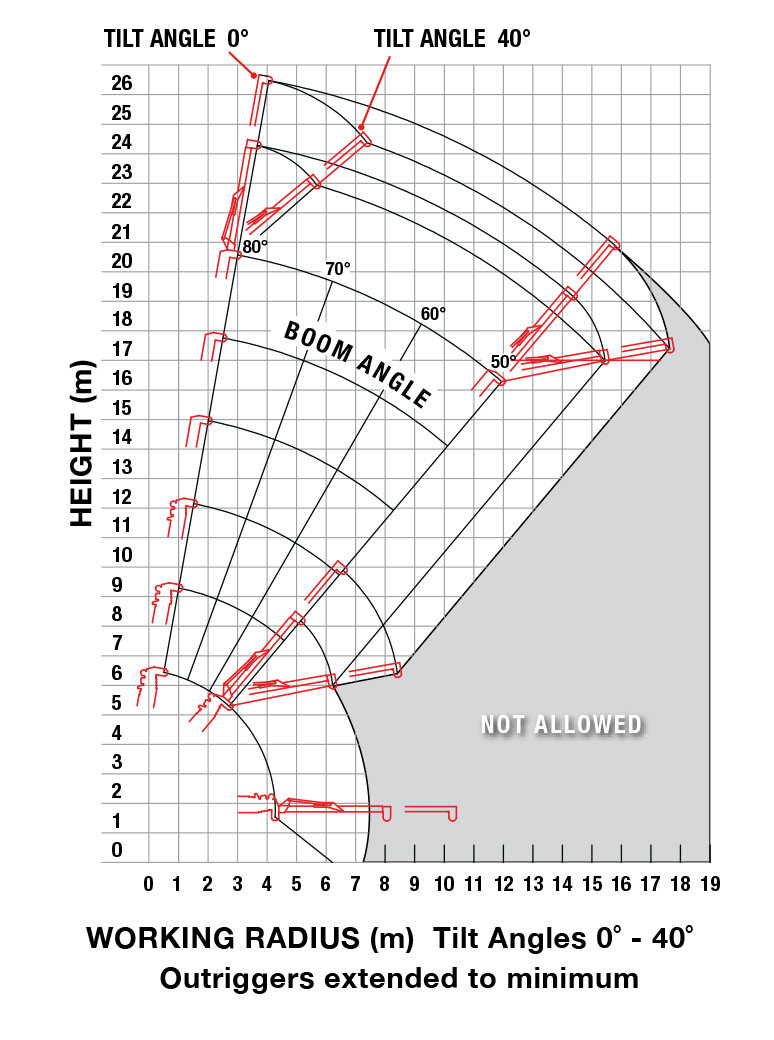

Working Ranges Outriggers Extended Min

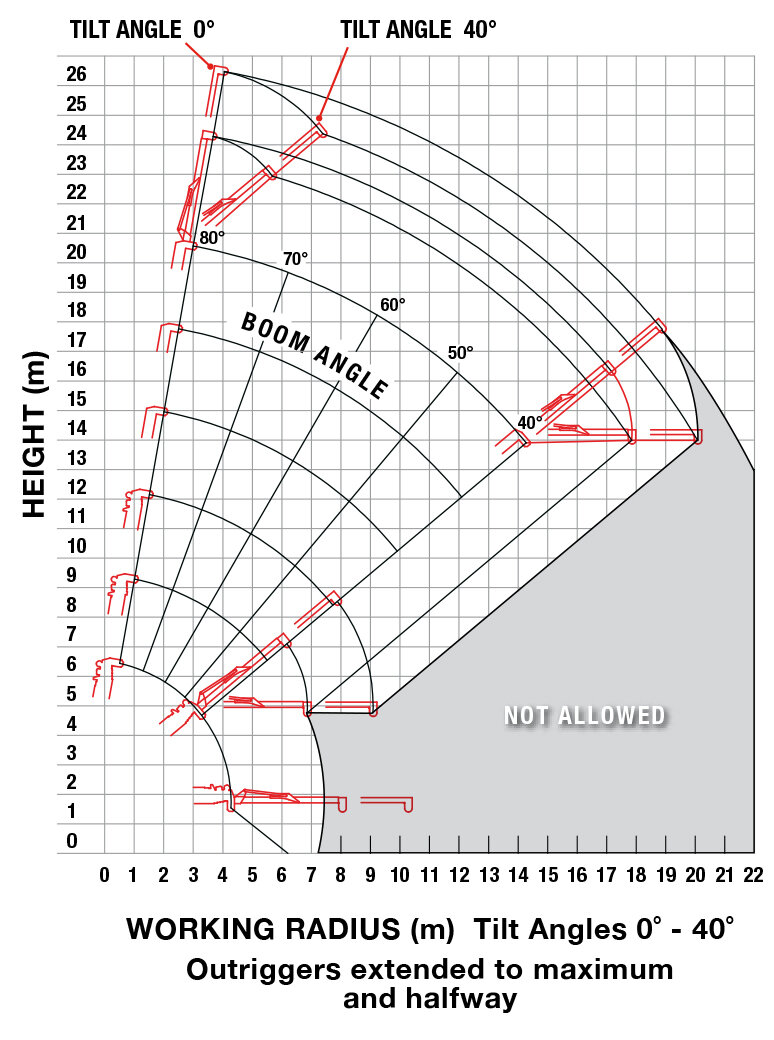

Working Ranges Outriggers Extended Mid-Max

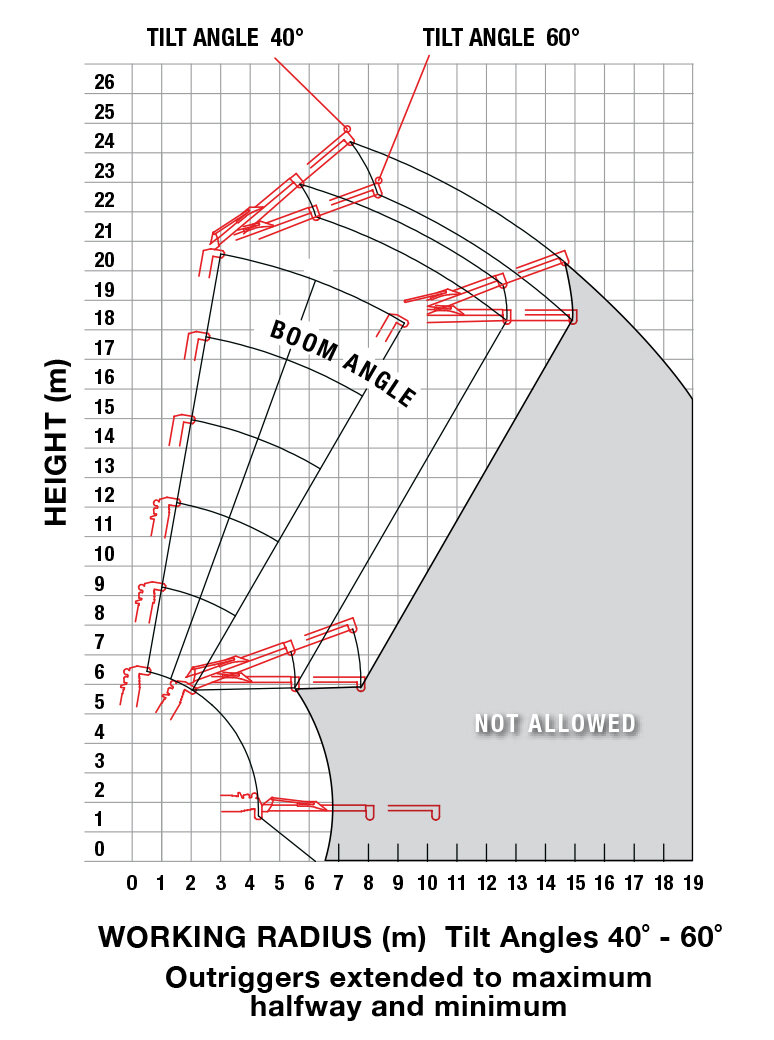

Working Ranges Outriggers Extended Min-Mid-Max

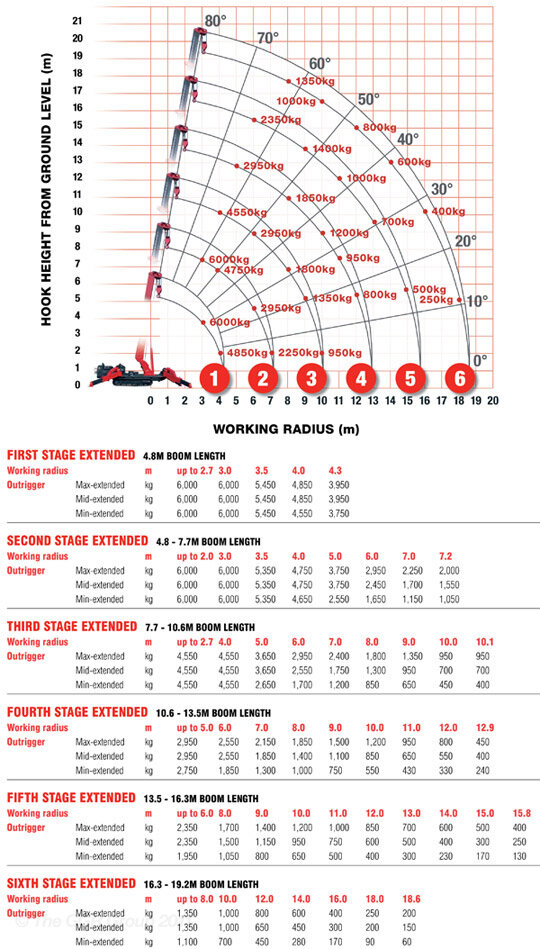

Boom Stages

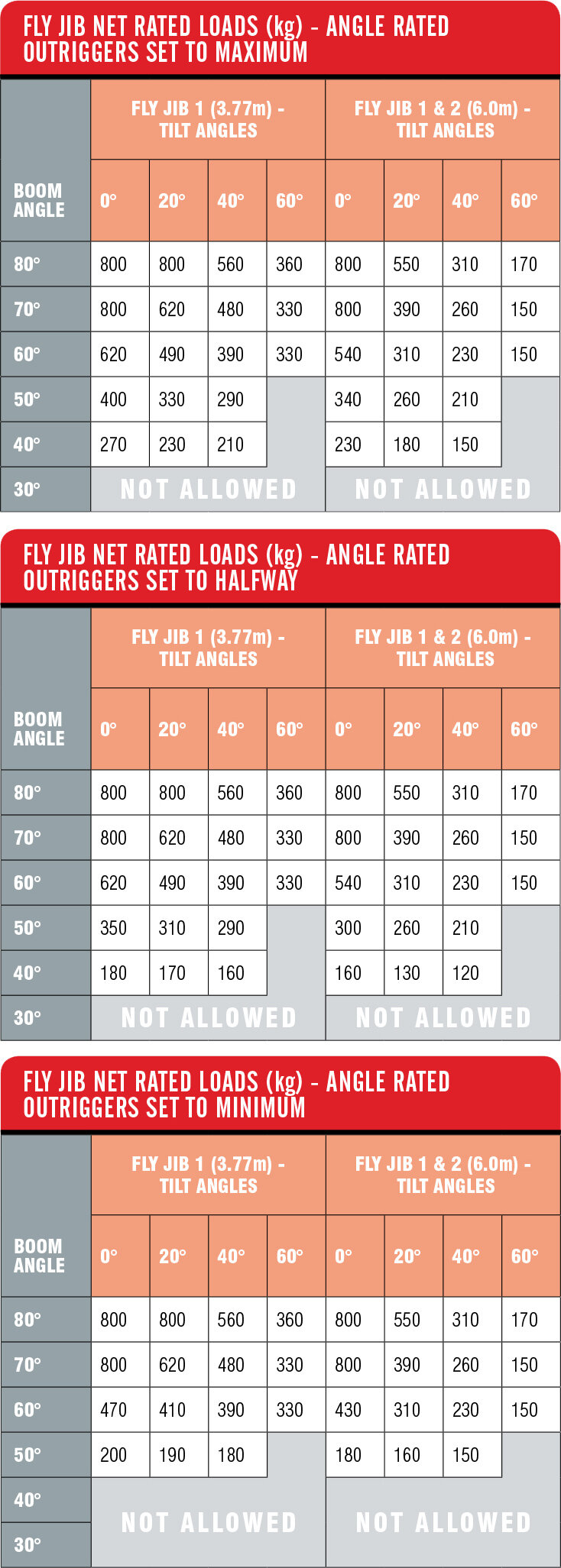

Angle Ratings

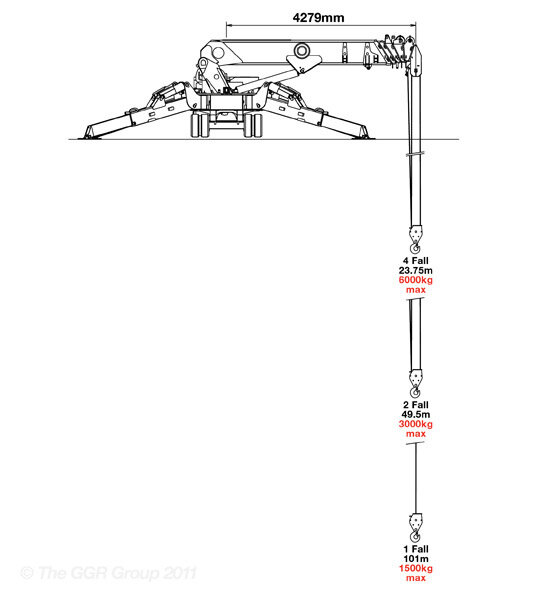

Fall Stages

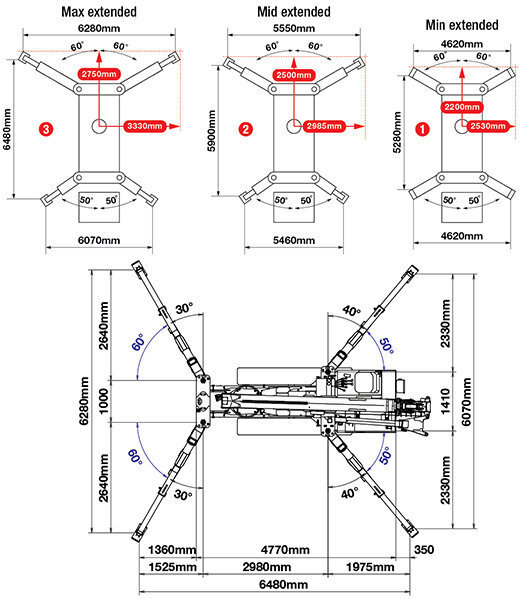

Outrigger Specs

Specification

The UNIC URW-706-2 can be controlled from the operators driving seat or by a fully functional radio remote control for precise placement of loads. Digital feedback and data logging are also available as extras where required.

If you are looking to hire or purchase a UNIC URW-706-2, or require any further information, contact GGR Group today.

Dimensions

Capacity:

6.0t x 3.0m

Maximum Working Radius:

18.6m

Maximum Lifting Height:

19.5m (25.2m with hydraulic fly jib, 25.9m with fixed hook)

Rope Length:

23.75m (4 fall), 49.5m (2 fall), 101m (1 fall)

Length (Folded):

5610mm

Width (Folded):

1670mm

Height (Folded):

2185mm

Weight (Unladen):

7920kg + 160kg (8080kg with electric option) + 230kg (8310kg with searcher hook and fly jib attached)

Traction System

Drive:

hydrostatic 2-speed, stepless forward and reverse

Travel Speed:

0 - 2.9km/h

Gradeability:

± 20˚ (vertical) 20° (traverse)

Track Ground Length:

2240mm

Track Ground Pressure:

43.6kPa (0.44kg/cm²)

Track Width:

400mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

diesel (electric dual power option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

23.5kW (32.0PS) / 2500min rpm

Starting Method:

electric

Tank Capacity:

74 litres

Electric Motor Power:

7.5kW

Electric Motor Voltage:

400v AC 50/60hz

Battery Charger:

Telescopic System

Hook Speed:

11m/min (with 5 layers and 4 falls)

Boom Length:

4.80 - 19.20m

Telescoping Speed:

14.4m/52 seconds

Boom Type:

6 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/16.0 seconds

Slewing Angle/Speed:

360˚ (continuous) 2.5min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation, searcher hook 800kg, fly jib 800kg with single part line, 800kg capacity hydraulic fly jib (706-2), radio remote control with feedback display, data logging
