UNIC URW-094 – Mini Spider Crane

Super slim, lightweight and strong is what sets the UNIC URW-094 spider crane apart from larger, more traditional cranes. Measuring just 595mm wide and weighing only 1000kg, this micro machine is the world’s smallest mini crane.

Maximum safe working load 0.995t x 1.5m
Maximum lifting height 5.6m
Total width 595mm
Max working radius 5.17m
Max boom length 5.49m
Range of fuel options- Petrol powered or LPG dual fuel
Versatile outrigger configurations
Includes radio remote control
Optional low marking tracks
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU094

Capacity: 0.995t x 1.5m
Max Lifting Height: 5.6m
Total Width: 0.595m
Weight: 1000kg

Contact Sales

Add to Enquires

Features

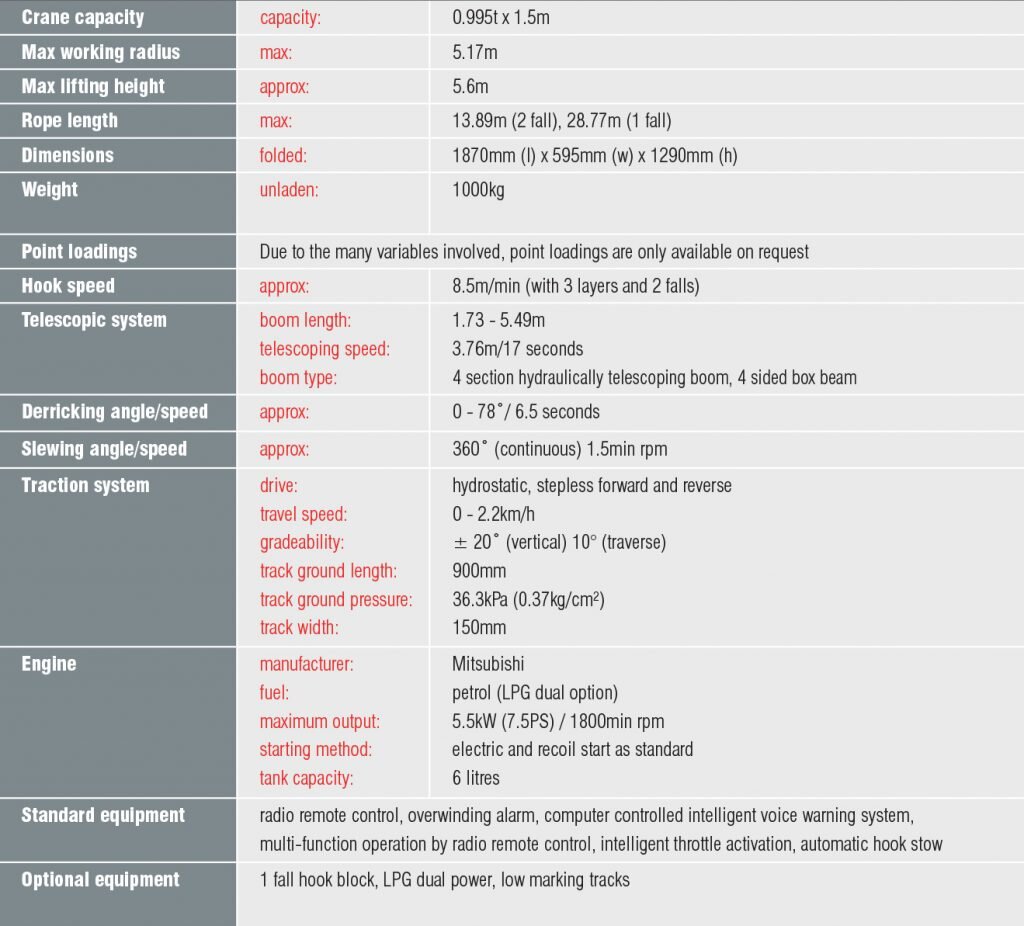

Technical Table

Dimensions

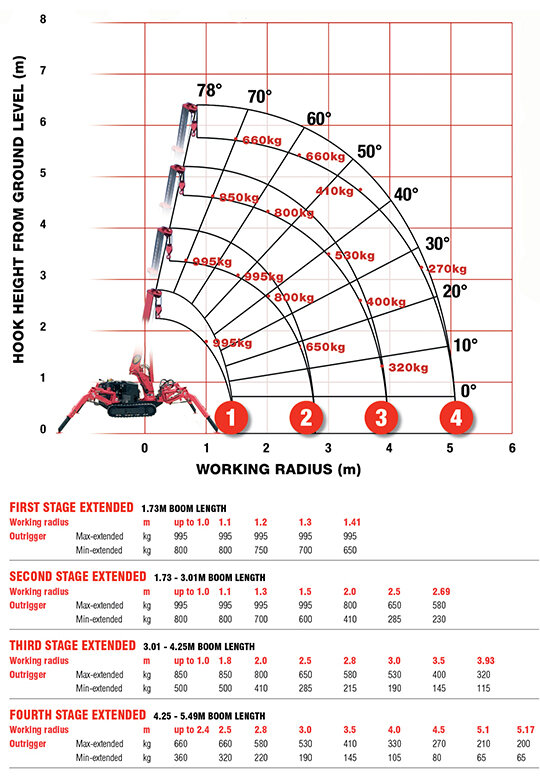

Boom Stages

Fall Stages

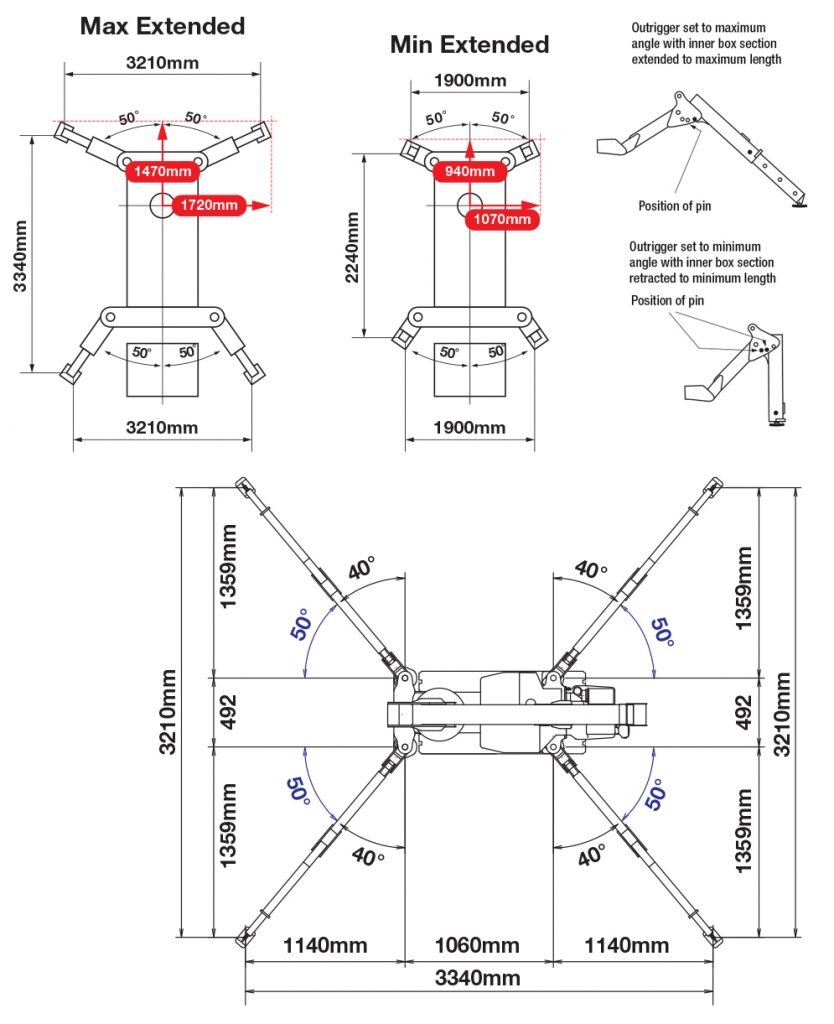

Outrigger Specs

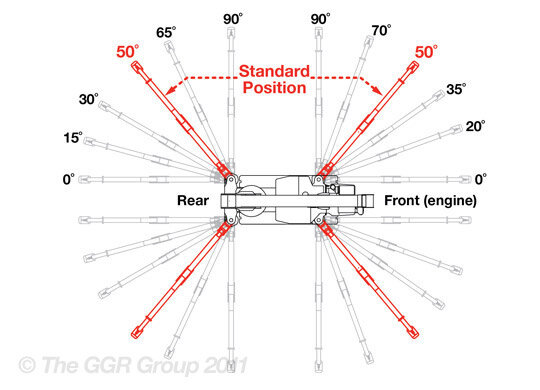

Outrigger Positions

Specification

The Unic 094 delivers unparalleled lifting capacity for its size, capable of handling loads up to 995kgs. The 5.49m long boom offers a maximum hook height of 5.6m. We can provide CPCS A66 training courses for our mini cranes at our Centre of Excellence accredited training centres; feel free to call us today to find out more.

Lift-Smart Advanced Safety System:

Intelligent voice warning system
Overwinding alarm
Intelligent throttle activation for economy and ecology
Automatic hook stow

If you are looking to hire or purchase a UNIC URW-094 – Mini Spider Crane, or require any further information, contact GGR Group today.

Dimensions

Capacity:

0.995t x 1.5m

Maximum Working Radius:

5.17m

Maximum Lifting Height:

5.6m

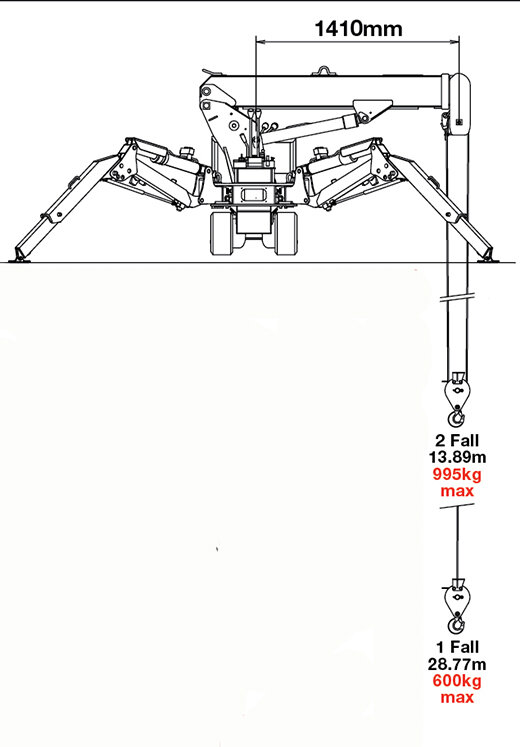

Rope Length:

13.89m (2 fall), 28.77m (1 fall)

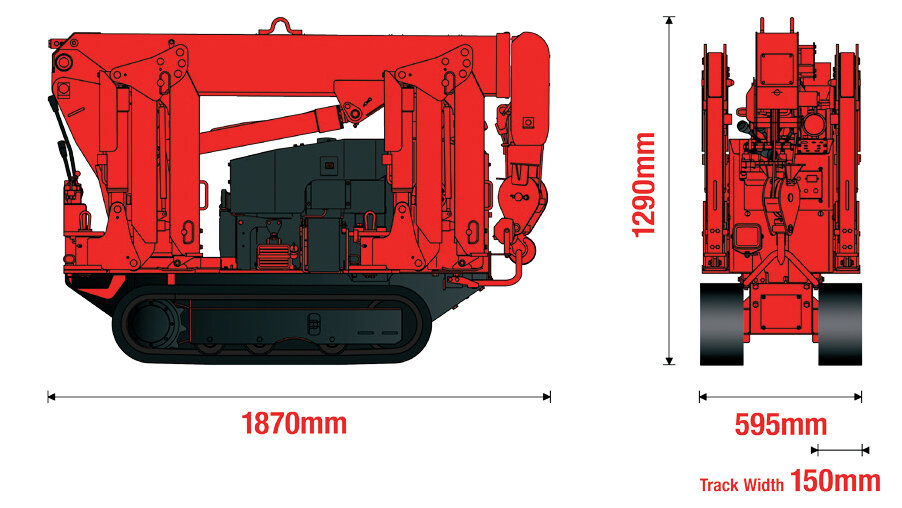

Length (Folded):

1870mm

Width (Folded):

595mm

Height (Folded):

1290mm

Weight (Unladen):

1000kg

Traction System

Drive:

Hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2.2km/h

Gradeability:

20° (vertical), 10° (traverse)

Track Ground Length:

900mm

Track Ground Pressure:

36.3kPa (0.37kg/cm2)

Track Width:

150mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

Petrol (LPG dual option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

5.5kW (7.5PS) / 1800 min rpm

Starting Method:

Electric and recoil start as standard

Tank Capacity:

6 litres

Electric Motor Power:

Electric Motor Voltage:

Battery Charger:

Telescopic System

Hook Speed:

Boom Length:

1.73 - 5.49m

Telescoping Speed:

3.76m / 17 seconds

Boom Type:

4 sections hydraulically telescoping boom, 4 sided box beam

Derricking Angle/Speed:

0 - 78° / 6.5 seconds

Slewing Angle/Speed:

360° (continuous) 1.5 min rpm

Equipment

Standard Equipment:

Radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow

Optional Equipment:

1 fall hook block, LPG dual power, low marking tracks
