UNIC URW-095 - Mini Spider Crane

The ultimate machine for lifting in confined spaces, the URW-095 can truly access all areas thanks to its slender 600mm width and lightweight frame. Boasting nearly one tonne of lifting power and an unrivalled lifting height of up to 8.8m, the UNIC URW-095 is one of the most popular mini cranes in the industry.

Max safe working load 0.995t x 3.5m
Max lifting height 8.8m (9.8m with fly jib, 10.47m with searcher hook)
Total width 600mm
Max working radius 8.41m
Max boom length 8.65m
Weight of crane 1850-2090kg depending on fuel option
Range of fuel options:
- Standard CER petrol with option of LPG.
- Petrol with electric CMER with option of LPG
- Diesel standard is CDER
- Diesel with Electric is CDMER
- Battery option with wheels WBE
Zero length increase with electric option (except diesel)
Lift-Smart Advanced Safety System including intelligent voice warning system

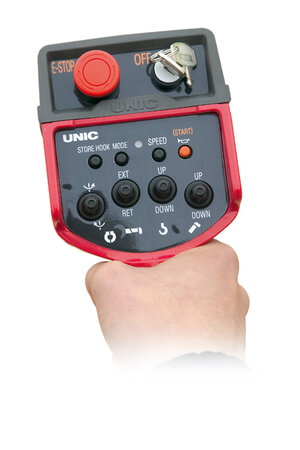

Radio remote control
Intelligent throttle activation
Optional low marking tracks
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU095

Capacity: 0.995t x 3.5m
Max Lifting Height: 8.8m
Total Width: 0.6m
Weight: 1850-2090kg

Contact Sales

Add to Enquires

Features

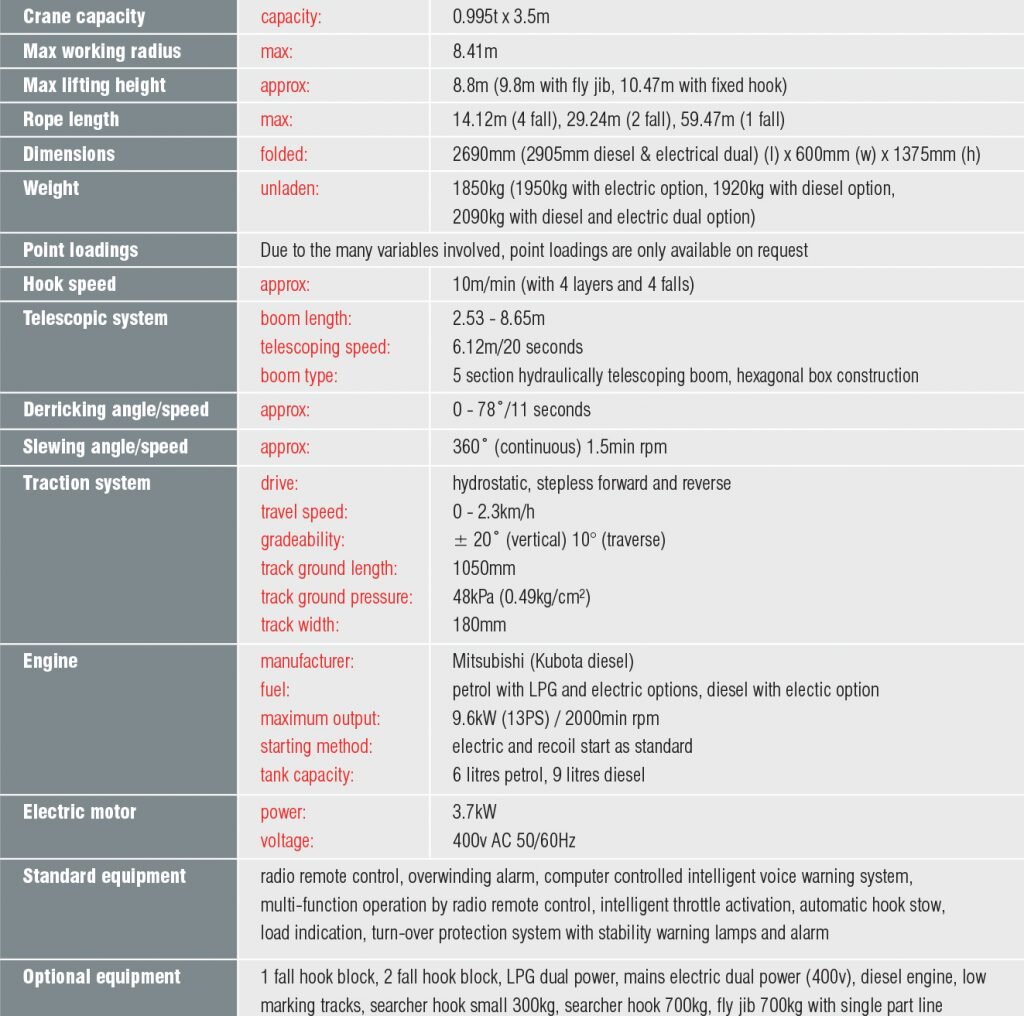

Technical Table

Dimensions

Boom Stages

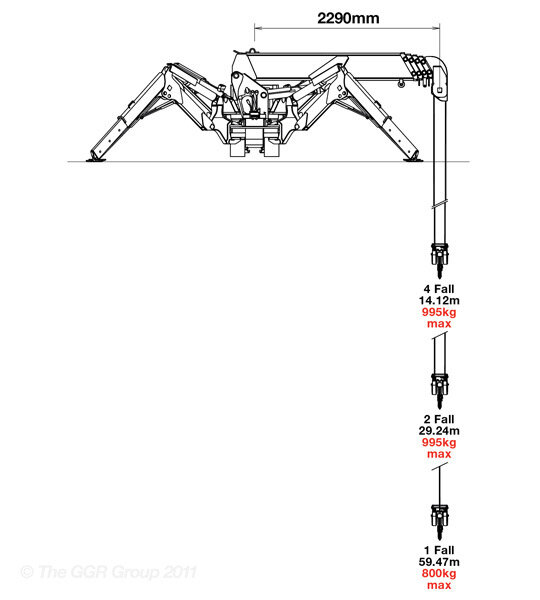

Fall Stages

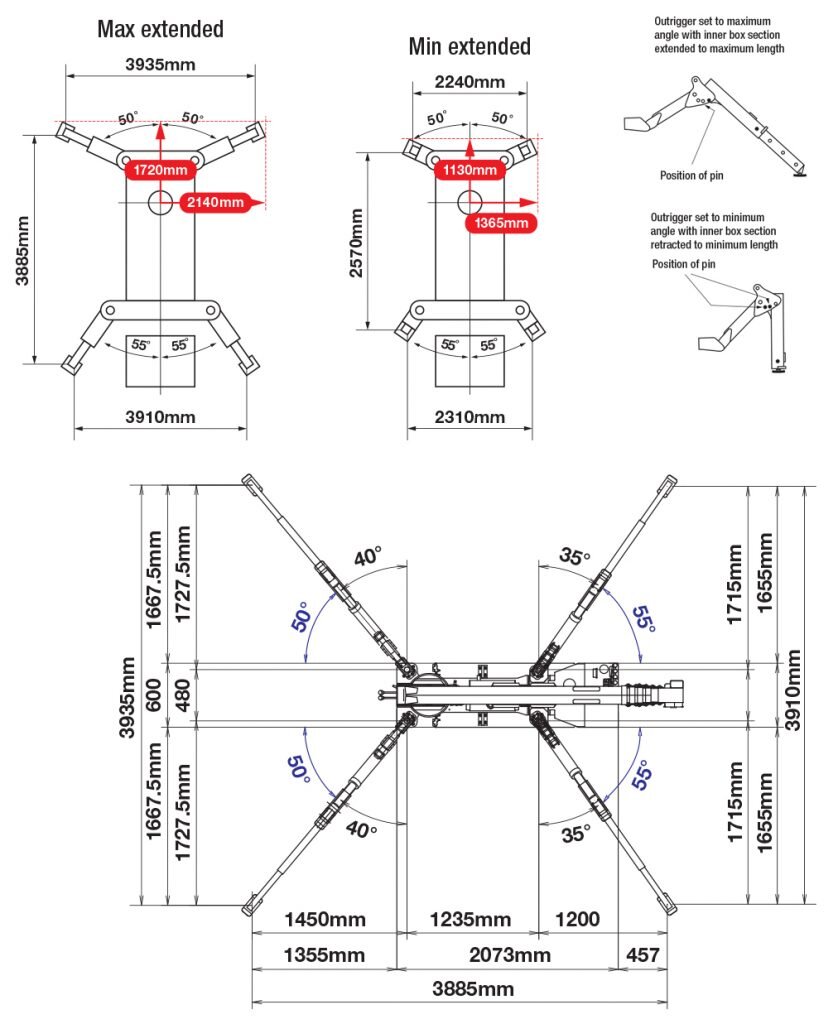

Outrigger Specs

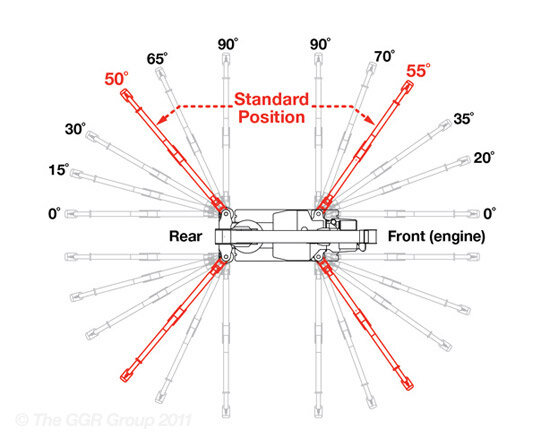

Outrigger Positions

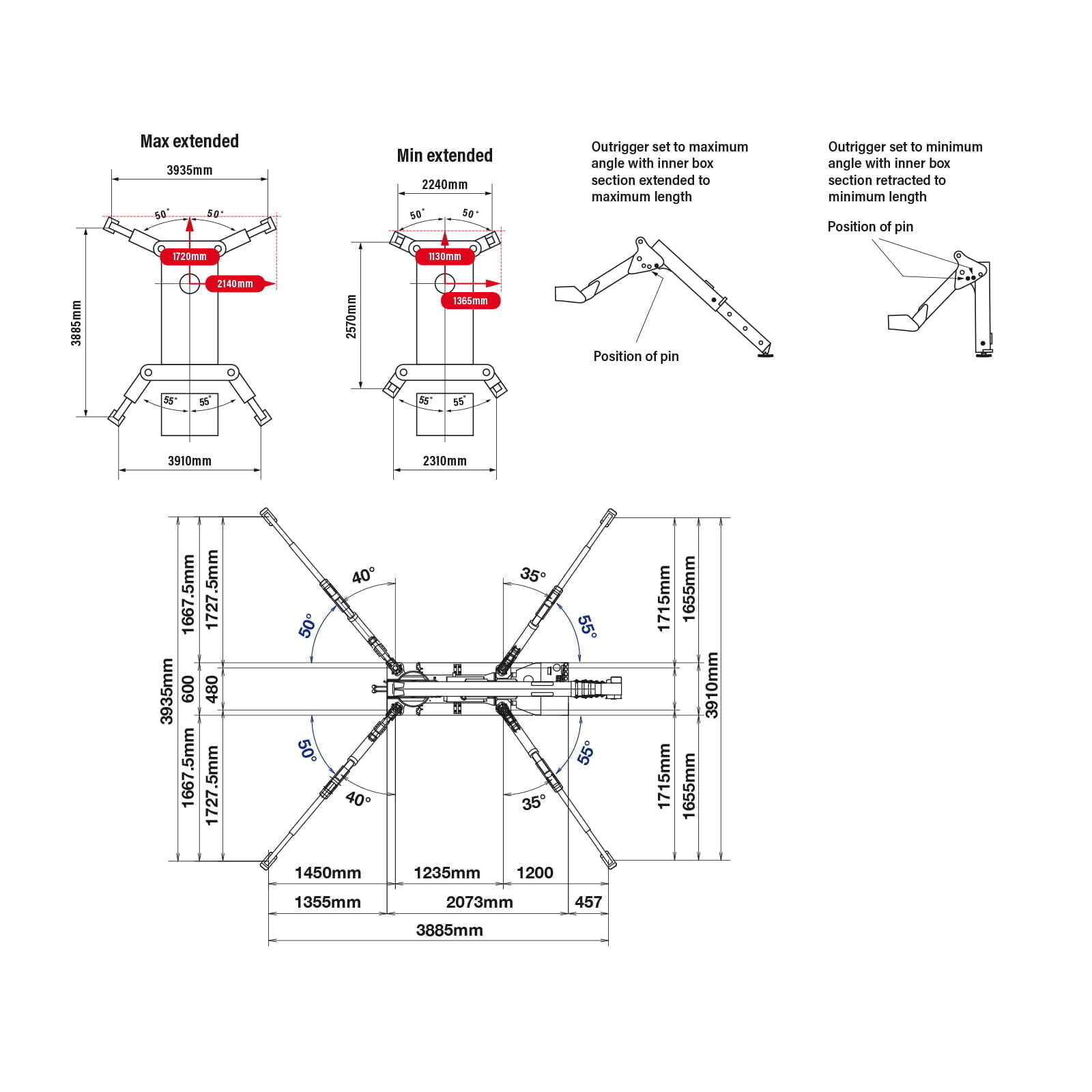

Outrigger Dimensions

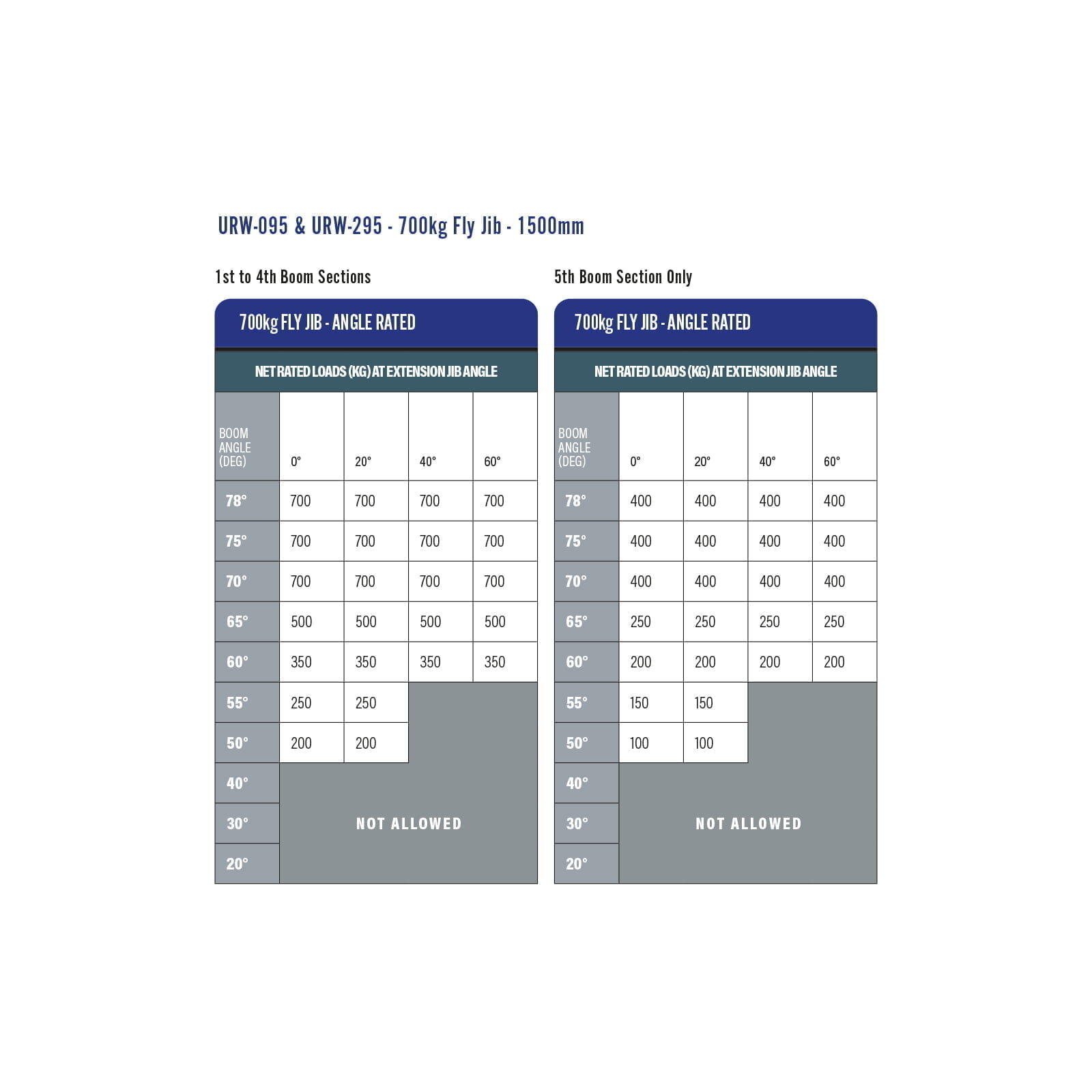

Fly Jib

Searcher Hook

Specification

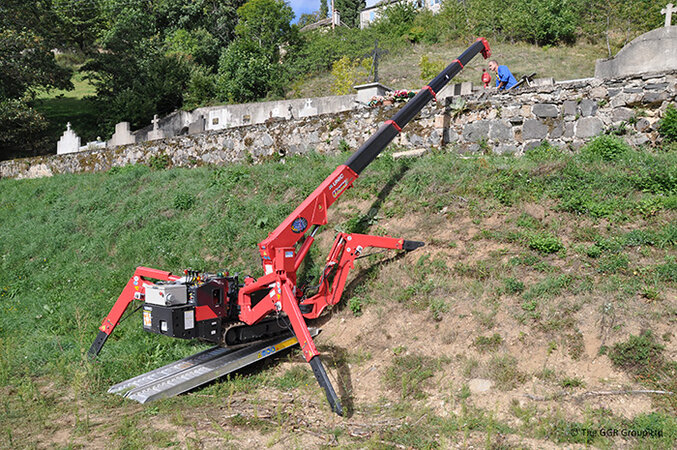

With its versatile outrigger configurations, the 095 mini crane can work on uneven surfaces and slopes, whilst its tracked mobility enables the crane to travel over rough terrain and even climb stairs. The Lift-Smart Advanced Safety System of the 095 mini crane includes turnover protection with stability warning lamps and alarm, all of which help prevent the risk of the crane tipping. Optional 300kg searcher hook and 700kg searcher hook and flyjib are available with the URW-095, which are ideal for lifting under soffits and overhangs.

If you are looking to hire or purchase a UNIC URW-095 - Mini Spider Crane, or require any further information, contact GGR Group today.

Dimensions

Capacity:

0.995t x 3.5m

Maximum Working Radius:

8.41m

Maximum Lifting Height:

8.8m (9.8m with fly jib, 10.47m with fixed hook)

Rope Length:

14.12m (4 fall), 29.24m (2 fall), 59.47m (1 fall)

Length (Folded):

2690mm (2905mm diesel & electrical dual)

Width (Folded):

600mm

Height (Folded):

1375mm

Weight (Unladen):

1850kg (1950kg with electric option, 1920kg with diesel option, 2090kg with diesel and electric dual option)

Traction System

Drive:

hydrostatic, stepless forward and reverse

Travel Speed:

0 - 2.3km/h

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

48kPa (0.49kg/cm²)

Track Width:

180mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

petrol with LPG and electric options, diesel with electic option

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

9.6kW (13PS) / 2000min rpm

Starting Method:

electric and recoil start as standard

Tank Capacity:

6 litres petrol, 9 litres diesel

Electric Motor Power:

3.7kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

10m/min (with 4 layers and 4 falls)

Boom Length:

2.53 - 8.65m

Telescoping Speed:

6.12m/20 seconds

Boom Type:

5 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 78˚/11 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.5min rpm

Equipment

Standard Equipment:

radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, load indication, turn-over protection system with stability warning lamps and alarm

Optional Equipment:

1 fall hook block, 2 fall hook block, LPG dual power, mains electric dual power (400v), diesel engine, low marking tracks, searcher hook small 300kg, searcher hook 700kg, fly jib 700kg with single part line
