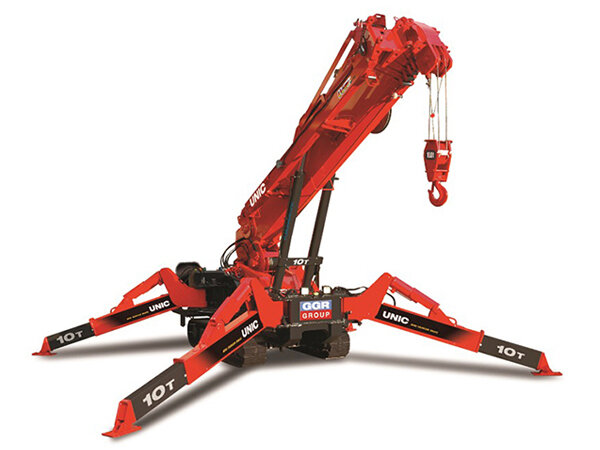

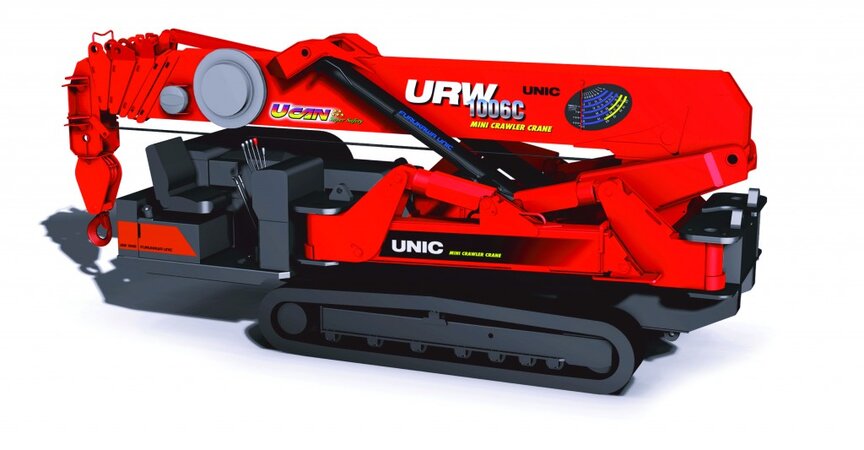

UNIC URW-1006 – Mini Spider Crane

The mightiest of the world’s mini cranes, the UNIC URW-1006, boasts an unrivalled 10 tonnes of lifting power.

The UNIC URW-1006 offers a generous 30.7 metre lifting height and 24.3 metre working radius, yet at only 2 metres wide still retains class-beating minimal dimensions for working in restricted spaces.

Safe working load: 10t x 3.0m
Total width: 2m
Max working radius: 21.9m (24.3m with fly jib)
Max lifting height 22.8m (30.7m with second stage fly jib)
Diesel powered and optional mains electric
Working area limitation
Radio remote control as standard
Intelligent throttle activation for economy and ecology
Optional stowable fly (extension) jib
Searcher hook (optional)
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU1006

Capacity: 10t x 3m
Max Lifting Height: 22.8m
Total Width: 2m
Weight: 14000kg

Contact Sales

Add to Enquires

Features

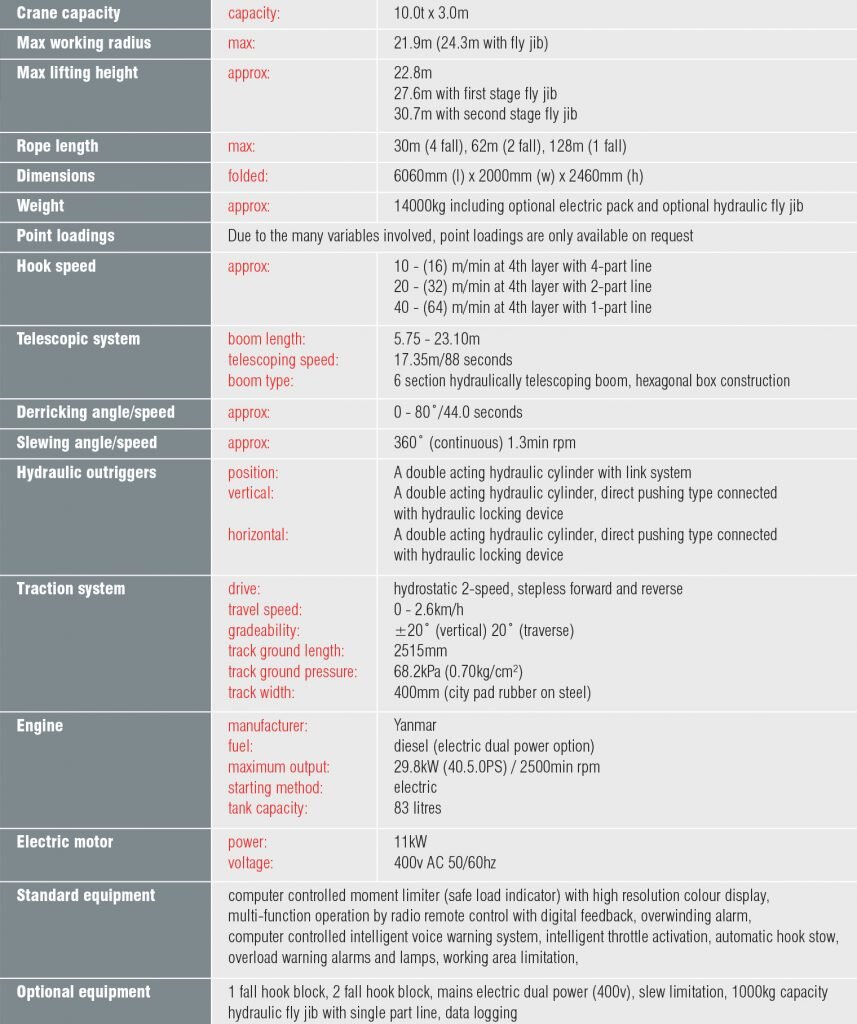

Technical Table

Dimensions

Working Range

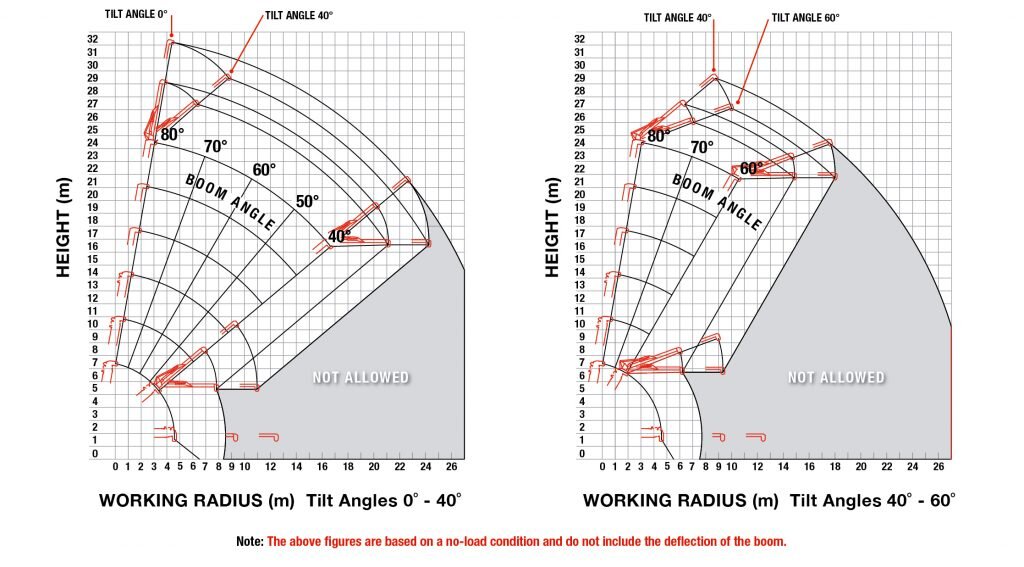

Fly Jib Working Ranges

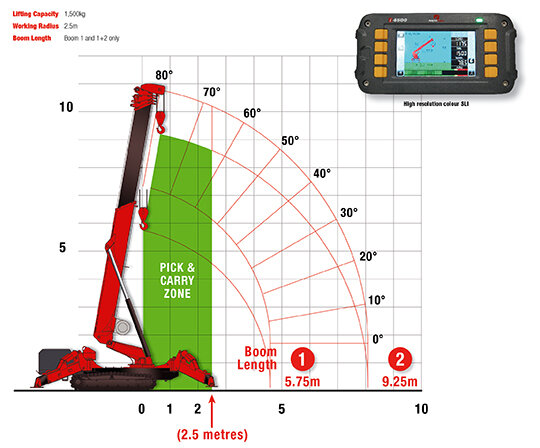

Pick & Carry Working Range

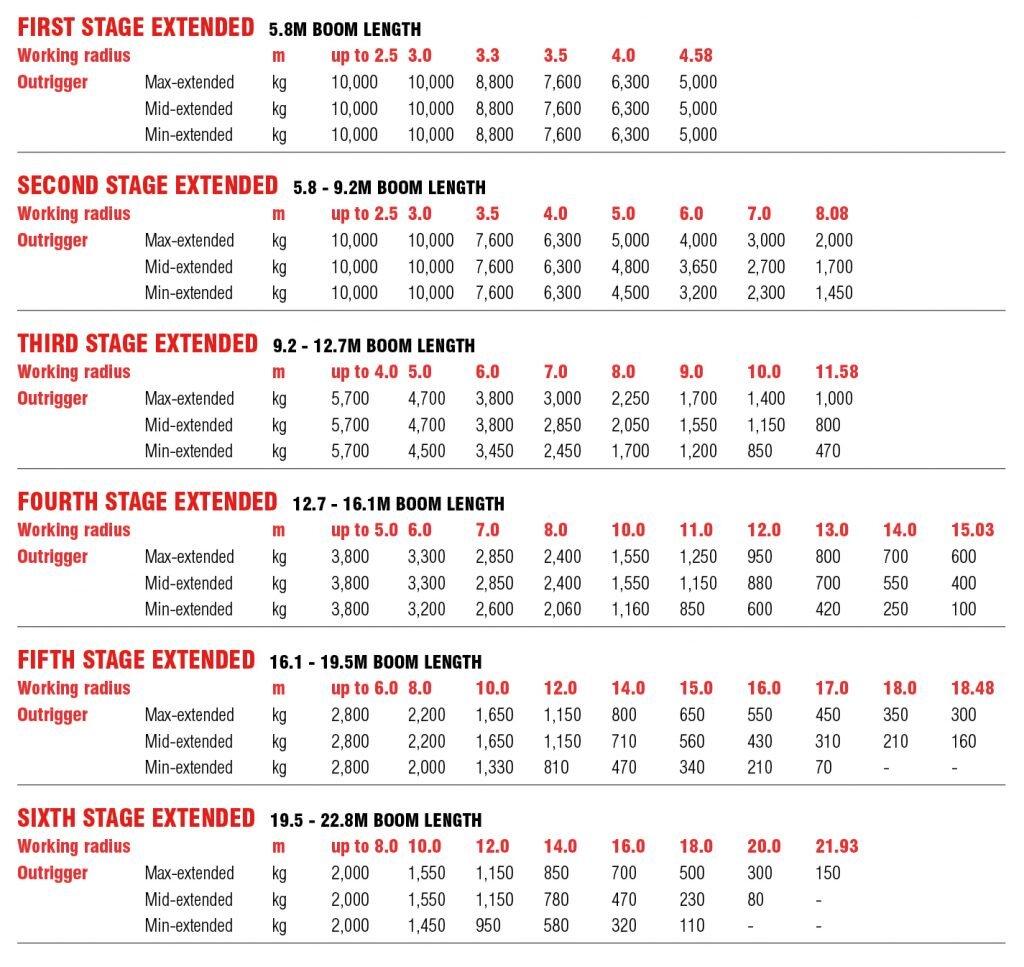

Boom Stages

Angle Ratings

Fall Stages

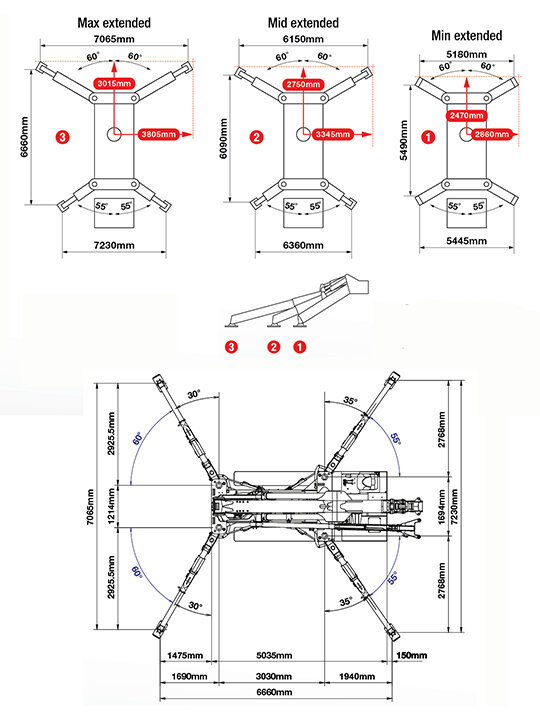

Outrigger Specs

Specification

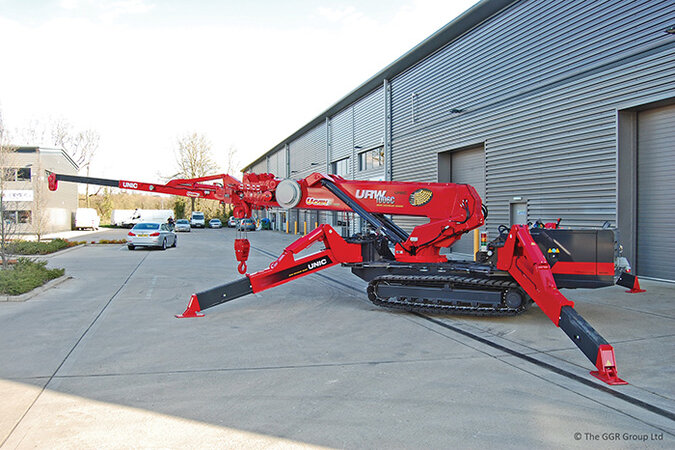

This versatile mini crane also has a unique pick and carry function which enables it to travel with loads up to 1.5 tonnes. Its configurable outriggers provide maximum stability when lifting on uneven surfaces thanks to their full safety interlocking system.

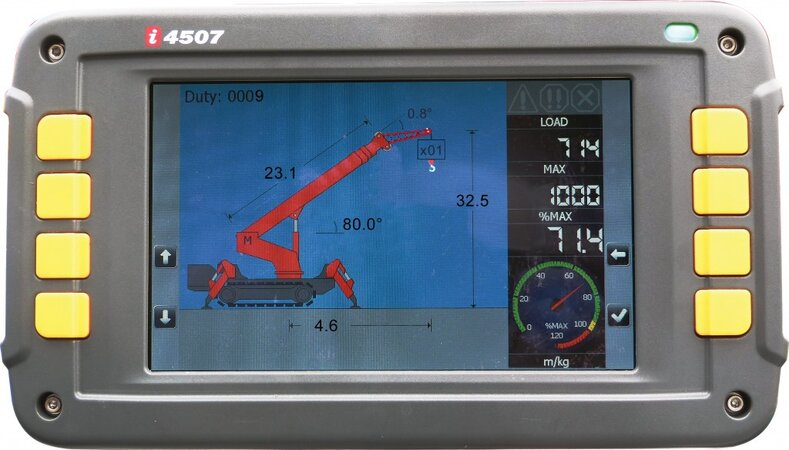

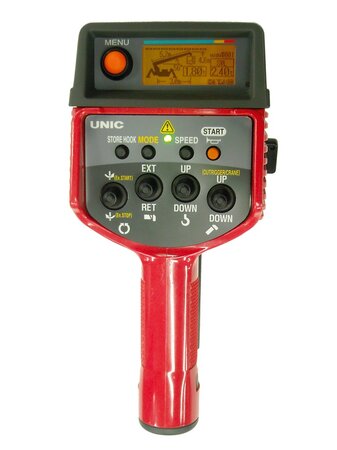

The UNIC URW-1006 is also fitted with a state-of-the-art safe load indicator with high resolution colour LCD display, as well as radio remote control which gives operator feedback for safer lifting.

If you are looking to hire or purchase a UNIC URW-1006, or require any further information, contact GGR Group today.

Dimensions

Capacity:

10.0t x 3.0m

Maximum Working Radius:

21.9m (24.3m with fly jib)

Maximum Lifting Height:

22.8m, 27.6m with first stage fly jib, 30.7m with second stage fly jib

Rope Length:

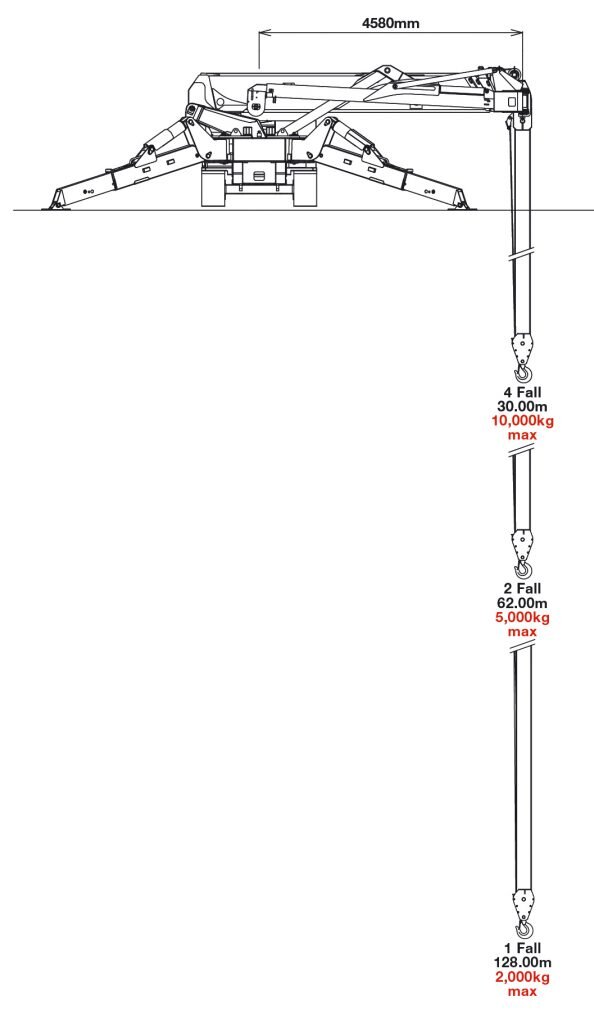

30m (4 fall), 62m (2 fall), 128m (1 fall)

Length (Folded):

6060mm

Width (Folded):

2000mm

Height (Folded):

2460mm

Weight (Unladen):

14000kg including optional electric pack and optional hydraulic fly jib

Traction System

Drive:

hydrostatic 2-speed, stepless forward and reverse

Travel Speed:

0 - 2.6km/h

Gradeability:

±20˚ (vertical) 20˚ (traverse)

Track Ground Length:

2515mm

Track Ground Pressure:

68.2kPa (0.70kg/cm²)

Track Width:

400mm (city pad rubber on steel)

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

diesel (electric dual power option)

Manufacturer:

/Manufacturers/Yanmar

Maximum Output:

29.8kW (40.5.0PS) / 2500min rpm

Starting Method:

electric

Tank Capacity:

83 litres

Electric Motor Power:

11kW

Electric Motor Voltage:

400v AC 50/60hz

Battery Charger:

Telescopic System

Hook Speed:

es involved, point loadings are only available on request Hook speed approx: 10 - (16) m/min at 4th layer with 4-part line, 20 - (32) m/min at 4th layer with 2-part line, 40 - (64) m/min at

Boom Length:

5.75 - 23.10m

Telescoping Speed:

17.35m/88 seconds

Boom Type:

6 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/44.0 seconds

Slewing Angle/Speed:

360˚ (continuous) 1.3min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator) with high resolution colour display, multi-function operation by radio remote control with digital feedback, overwinding alarm, computer controlled intelligent voice warning system, intelligent throttle activation, automatic hook stow, overload warning alarms and lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, mains electric dual power (400v), slew limitation, 1000kg capacity hydraulic fly jib with single part line, data logging
