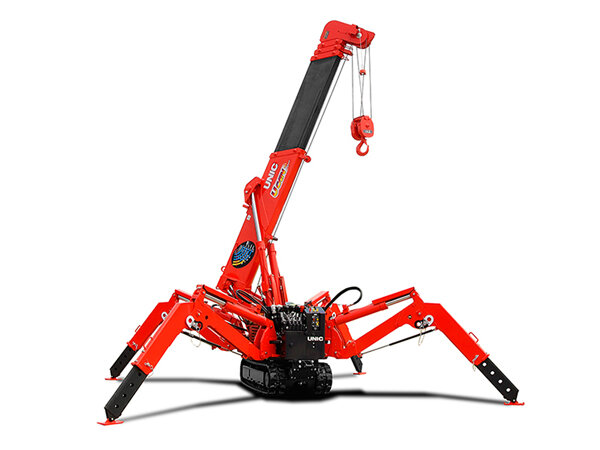

UNIC URW-245 - Mini Spider Crane

The new UNIC 245 mini crane retains all the benefits of the smaller UNIC models with its compact 600m width and small footprint, yet boasts 2.4 tonnes of lifting power.

Crane Capacity 2.4t x 1.5m
Weight 1500kg
Max lifting height 6.3m
Max working radius 5.85m
Max boom length 6.19m
Travel speed: 0 – 3.8km/h (high)
Full safe load indicator
Radio remote control (cable remote optional)
Smart throttle activation
Computer controlled voice warning system
Optional searcher hook
Optional low marking tracks
Petrol powered, optional LPG dual fuel
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU245

Capacity: 2.4t x 1.5m
Max Lifting Height: 6.3m
Total Width: 0.6m
Weight: 1500kg

Contact Sales

Add to Enquires

Features

Technical Table

Dimensions

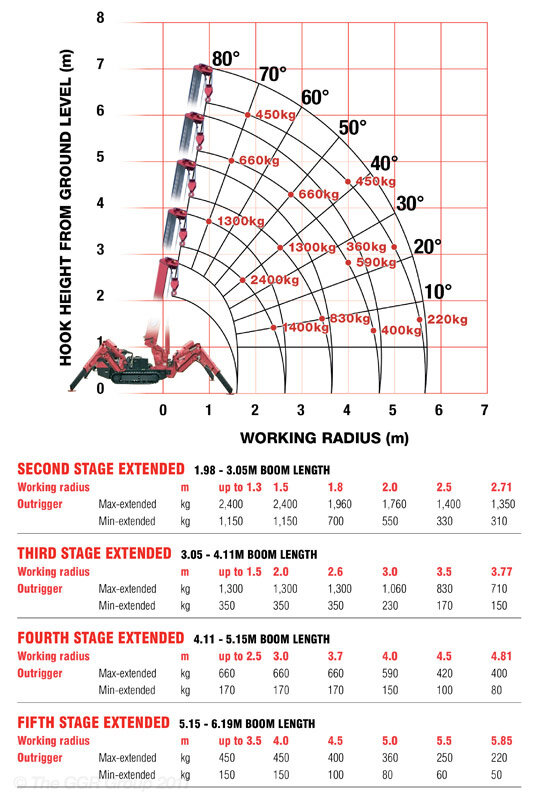

Boom Stages

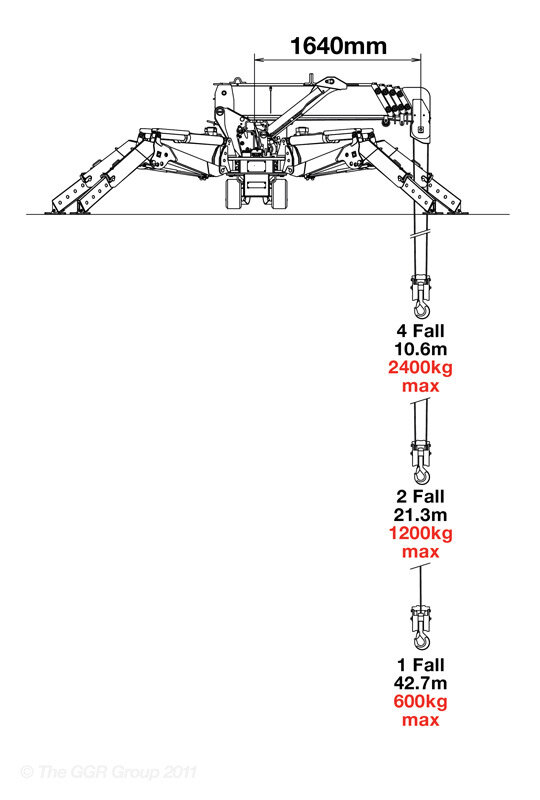

Fall Stages

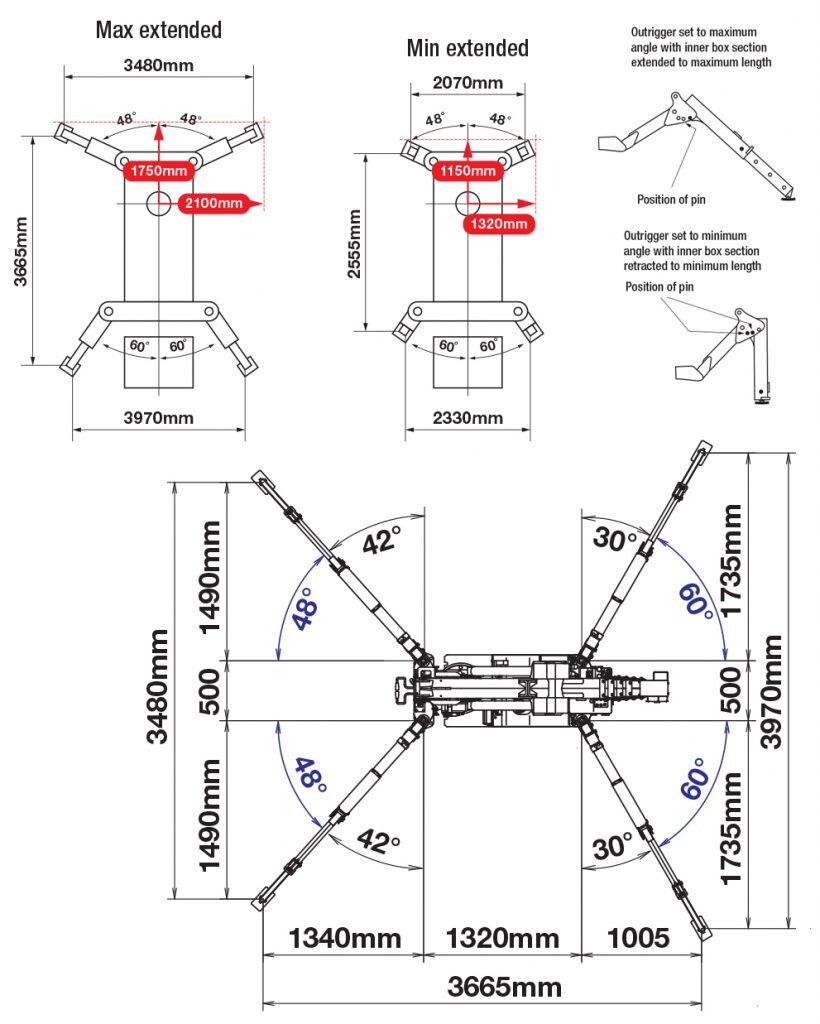

Outrigger Positions

Searcher Hook

Specification

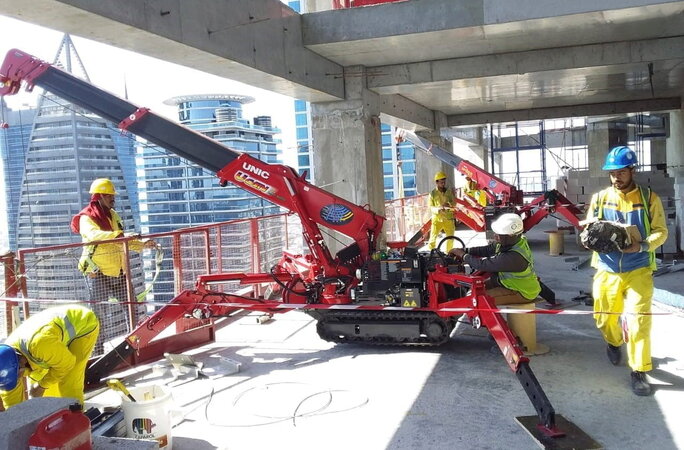

This small crane has the ability to work in areas normally inaccessible to standard cranes, such as indoors and in between floors, and can fit easily through a standard doorway or goods lift without the need for disassembly.

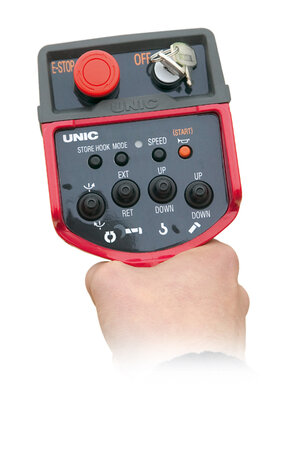

Operators are given additional flexibility with a radio remote control which allows for better visibility, safe proximity and precise placement of loads.

An excellent after care service is provided with any UNIC crane purchase, and our technical team offer maintenance, repairs, servicing and testing. We also stock genuine spare parts for all our mini cranes.

If you are looking to hire or purchase a UNIC URW-245, or require any further information, contact GGR Group today.

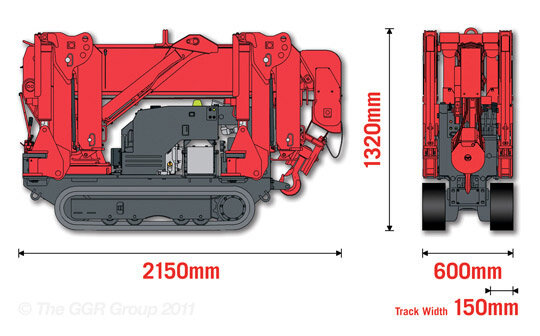

Dimensions

Capacity:

2.4t x 1.5m

Maximum Working Radius:

5.85m

Maximum Lifting Height:

6.3m

Rope Length:

10.6m (4 fall), 21.3m (2 fall), 42.7m (1 fall)

Length (Folded):

2150mm

Width (Folded):

600mm (630mm with 180mm tracks)

Height (Folded):

1320mm

Weight (Unladen):

1500kg

Traction System

Drive:

hydrostatic, step-less forward and reverse

Travel Speed:

0 - 2.1km/h (low), 0 - 3.8km/h (high)

Gradeability:

± 20˚ (vertical) 10° (traverse)

Track Ground Length:

1050mm

Track Ground Pressure:

47kPa (0.48kg/cm²) (with 150mm tracks), 39kPa (0.40kg/cm²) (with 180mm tracks)

Track Width:

150mm, 180mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

petrol (LPG dual option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

6.6kW (9PS) / 1800min rpm

Starting Method:

electric and recoil start as standard

Tank Capacity:

6 litres

Electric Motor Power:

Electric Motor Voltage:

Battery Charger:

Telescopic System

Hook Speed:

13m/min (with 3 layers and 4 falls)

Boom Length:

1.98 - 6.19m

Telescoping Speed:

4.21m/14 seconds

Boom Type:

5 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/10 seconds

Slewing Angle/Speed:

360˚ (continuous) 2.0min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps

Optional Equipment:

1 fall hook block, 2 fall hook block, LPG dual power, low marking tracks, 180mm tracks, searcher hook
