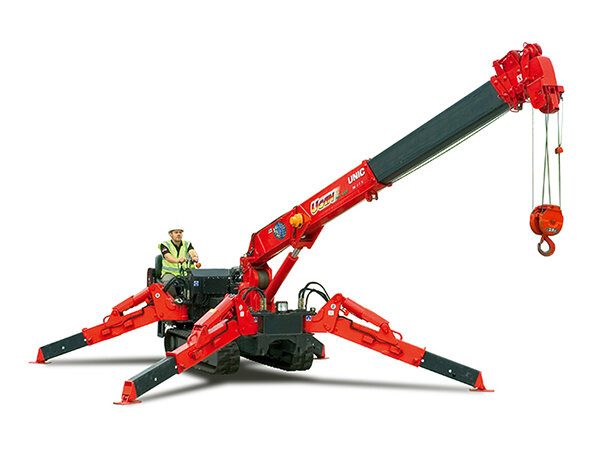

UNIC URW-376 - Mini Spider Crane

With its excellent working radius, generous lifting height of 14.9m and radio remote control the URW-376 leads the way as a mid-capacity mini crane. The six-section hydraulic boom of the UNIC URW-376 crane provides a working radius up to 14.45m, whilst the 360 degree continuous slew (clockwise and anticlockwise) provides the flexibility to lift in both directions.

Max safe working load 2.9t x 2.5m
Max lifting height 14.9m (16.63m with fly jib, 17.33m with searcher hook)
Total width 1300mm
Max working radius 14.45m
Max boom length 14.61m
Weight of crane 3850-4000kg depending on fuel option
Diesel powered or optional mains electric
Zero length increase with electric option
Lift-Smart Advanced Safety System including intelligent voice warning system
Radio remote control as standard
Intelligent throttle activation
Optional low marking tracks
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU376

Capacity: 2.9t x 2.5m
Max Lifting Height: 14.9m
Total Width: 1.3m
Weight: 3850-4000kg

Contact Sales

Add to Enquires

Features

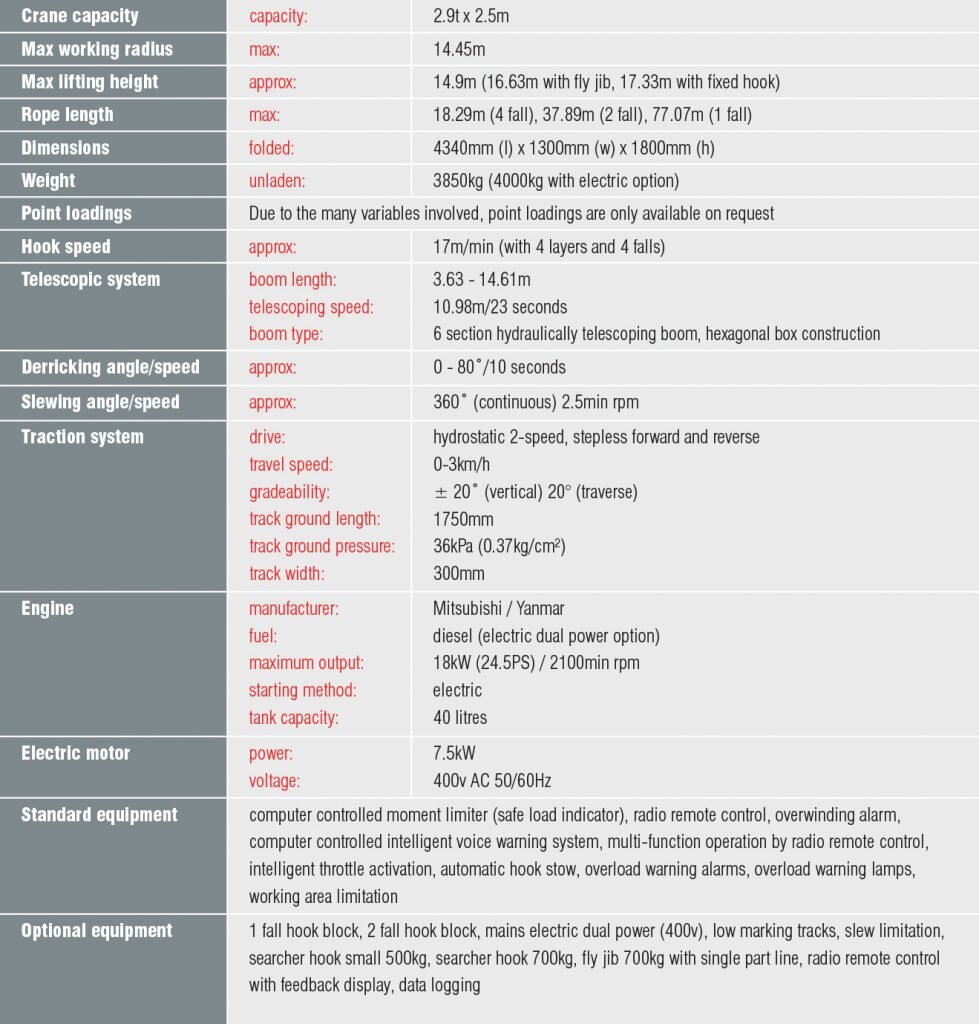

Technical Table

Dimensions

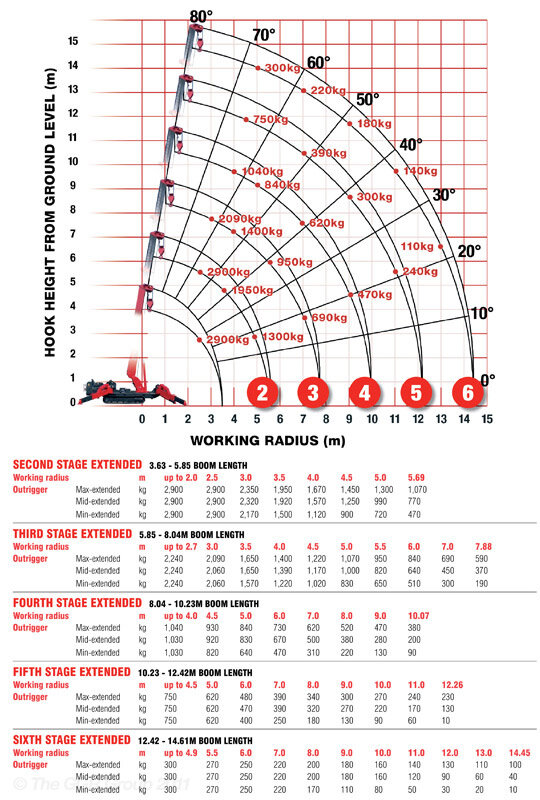

Boom Stages

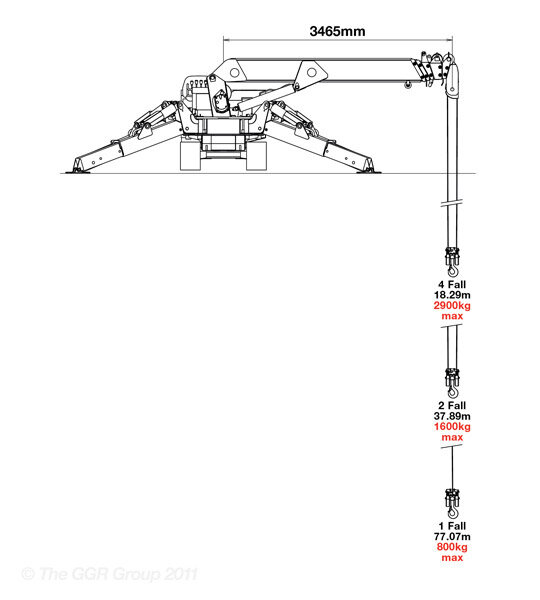

Fall Stages

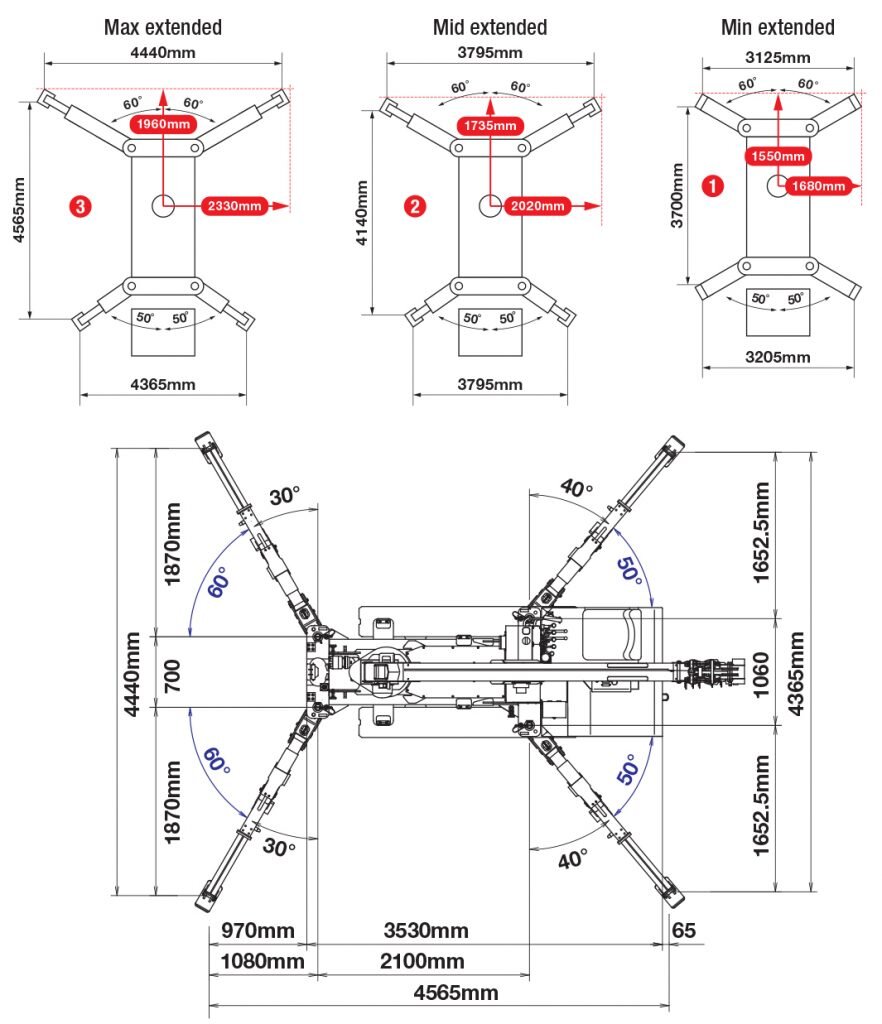

Outrigger Specs

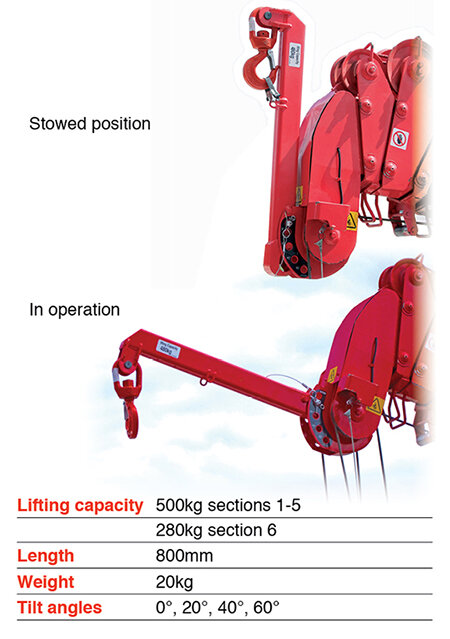

Searcher Hook

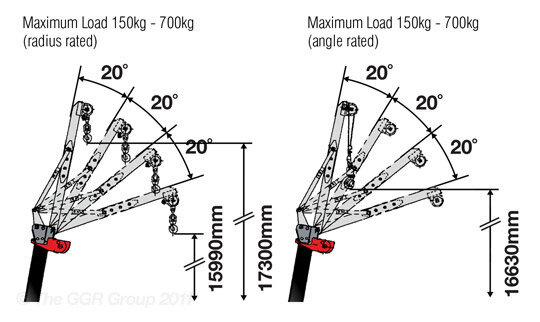

Searcher Hook & Fly Jib Max Load

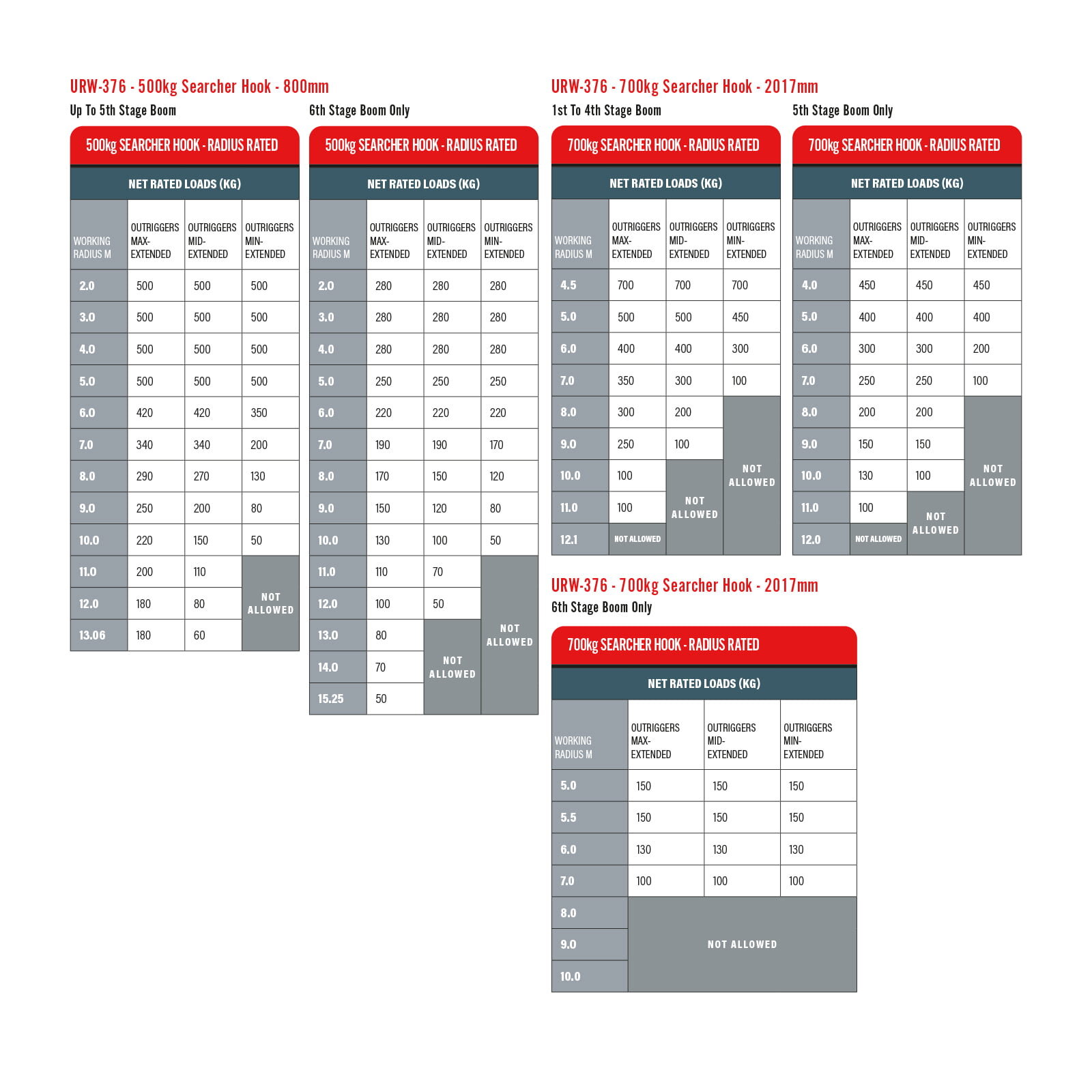

Searcher Hook Rated Loads

Fly Jib

Specification

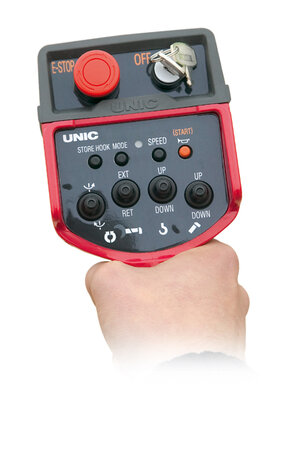

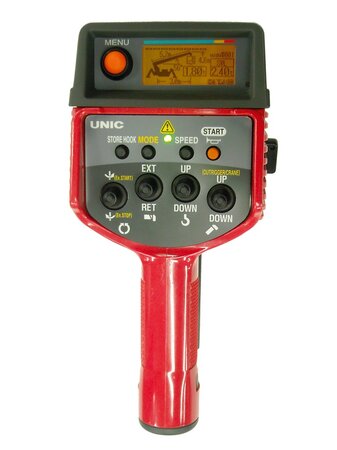

The UNIC URW-376 can be controlled either from the on-board operators seat or via radio remote control which allows the operator to work in closer proximity to the load whilst remaining safely outside of the load’s working radius.

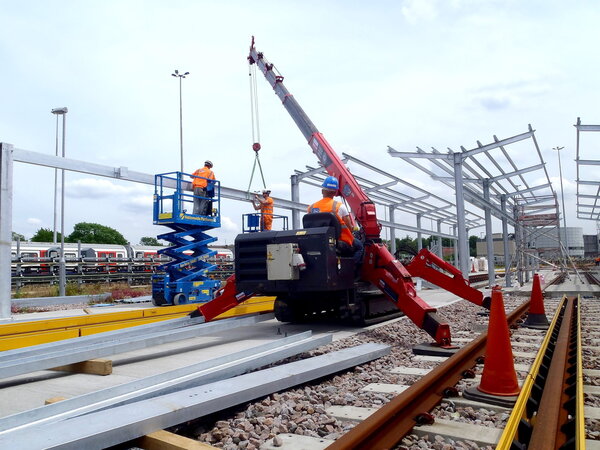

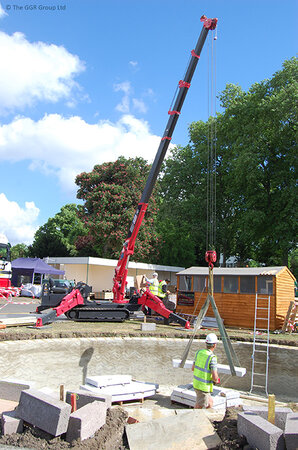

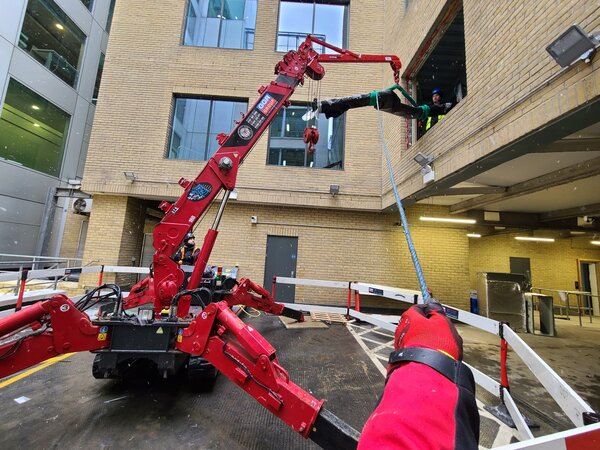

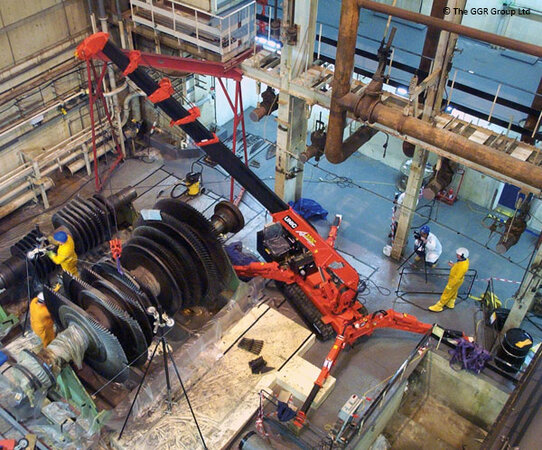

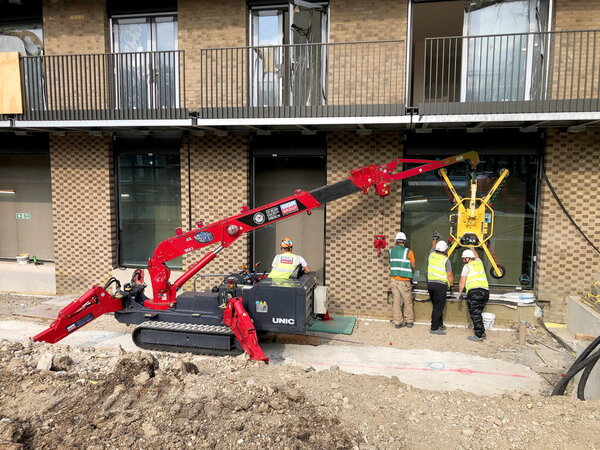

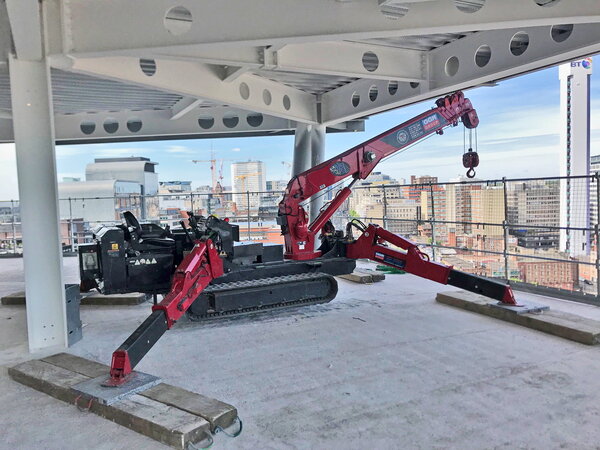

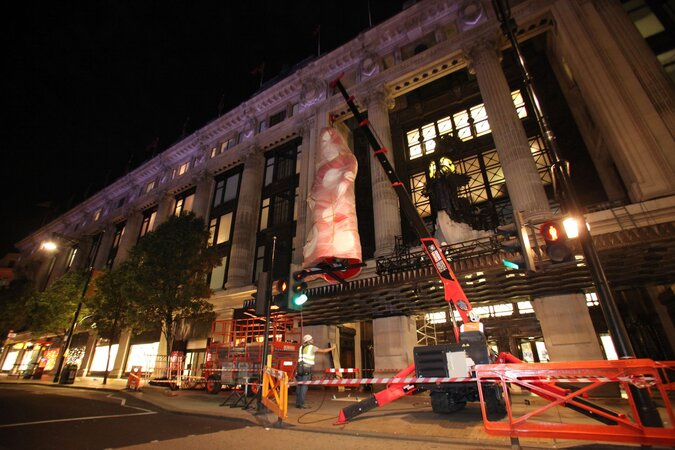

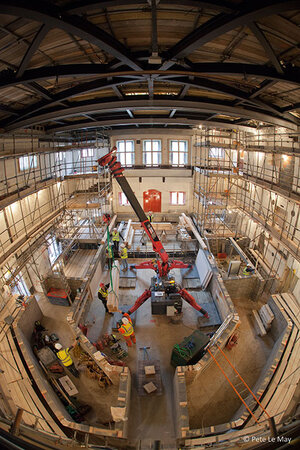

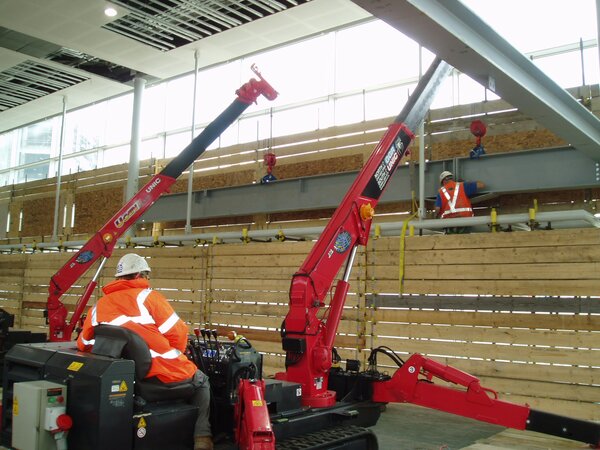

This UNIC URW-376 mini crane is suitable for a broad variety of applications, from machinery removal and maintenance, to steel erection, marine lifting, restoration projects and more.

As with all UNIC crane models, the URW-376 is quick to set up for experienced operators. Mini crane training is available from our fully accredited Centre of Excellence training facilities.

If you are looking to hire or purchase a UNIC URW-376, or require any further information, contact GGR Group today.

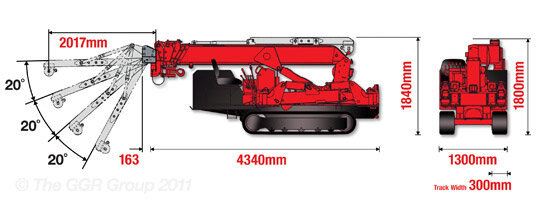

Dimensions

Capacity:

2.9t x 2.5m

Maximum Working Radius:

14.45m

Maximum Lifting Height:

14.9m (16.63m with fly jib, 17.33m with fixed hook)

Rope Length:

18.29m (4 fall), 37.89m (2 fall), 77.07m (1 fall)

Length (Folded):

4340mm

Width (Folded):

1300mm

Height (Folded):

1800mm

Weight (Unladen):

3850kg (4000kg with electric option)

Traction System

Drive:

hydrostatic 2-speed, stepless forward and reverse

Travel Speed:

0-3km/h

Gradeability:

± 20˚ (vertical) 20° (traverse)

Track Ground Length:

1750mm

Track Ground Pressure:

36kPa (0.37kg/cm²)

Track Width:

300mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

diesel (electric dual power option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

18kW (24.5PS) / 2100min rpm

Starting Method:

electric

Tank Capacity:

40 litres

Electric Motor Power:

7.5kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

17m/min (with 4 layers and 4 falls)

Boom Length:

3.63 - 14.61m

Telescoping Speed:

10.98m/23 seconds

Boom Type:

6 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/10 seconds

Slewing Angle/Speed:

360˚ (continuous) 2.5min rpm

Equipment

Standard Equipment:

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation, searcher hook small 500kg, searcher hook 700kg, fly jib 700kg with single part line, radio remote control with feedback display, data logging
