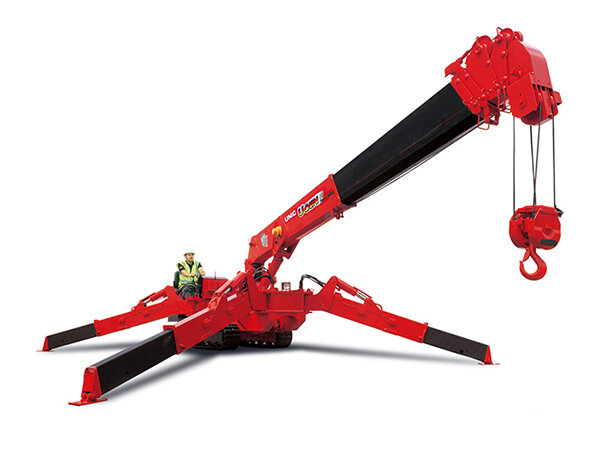

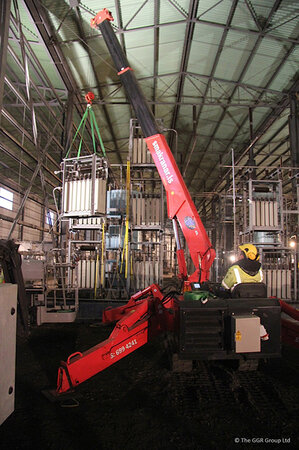

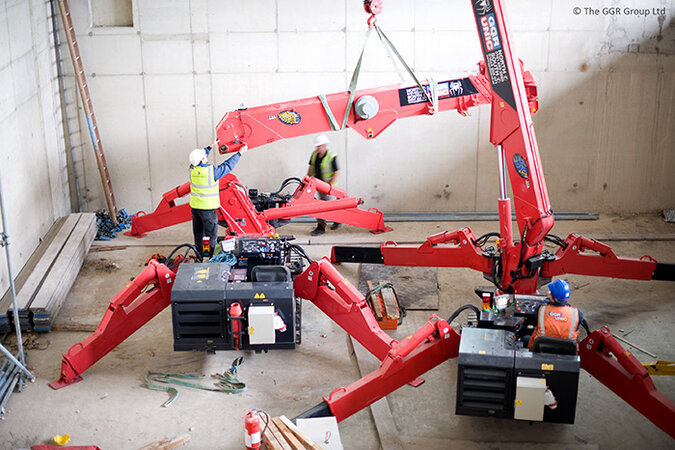

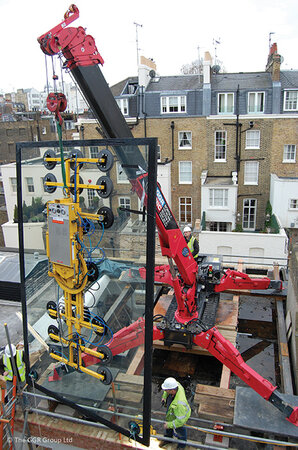

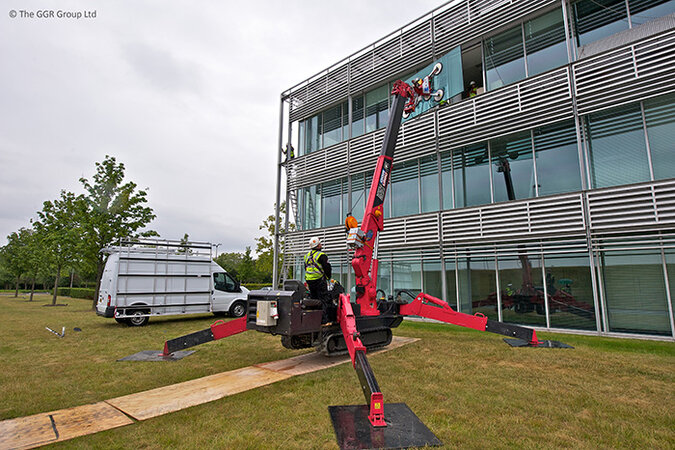

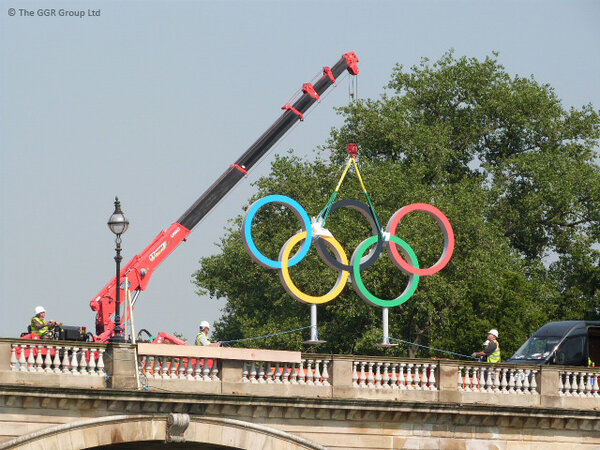

UNIC URW-506 – Mini Spider Crane

Capable of lifting 3 tonnes to a height of 3.4 m, or up to 4 tonnes with an optional 5 fall hook block, the URW-506 gives more capacity and better choice for your lifting needs. The UNIC URW-506 delivers a generous 16m maximum lifting height, whilst an optional 700kg capacity fly jib gives a further reach of 1790mm. A 500kg searcher hook is also available for working under soffits and overhangs. This mini crane can still fit through a double doorway but can also be disassembled and rebuilt in confined or remote locations using the crane’s own winch.

Capacity 3.0t x 3.4m
Total width 1.4m
Max working radius 15.52m
Max lifting height 16m (17.79m with fly jib, 18.46m with searcher hook)
Max boom length 15.71m
Diesel powered and optional mains electric
Zero length increase with electric option
Operator control of outrigger extension

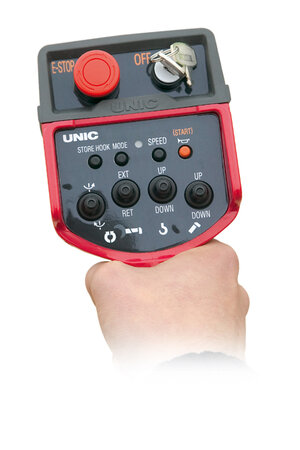

Radio remote control as standard
Working area limitation
Slew limitation (optional)
Intelligent throttle activation for economy and ecology
Optional low marking tracks

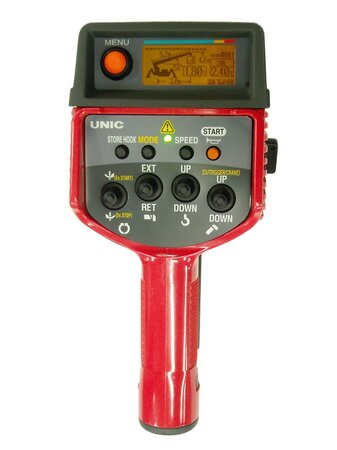

Optional radio remote control with feedback display
Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Capacity: 3t x 3.4m
Max Lifting Height: 16m
Total Width: 1.4m
Weight: 4840-4990kg

Contact Sales

Add to Enquires

Features

Technical Table

Dimensions

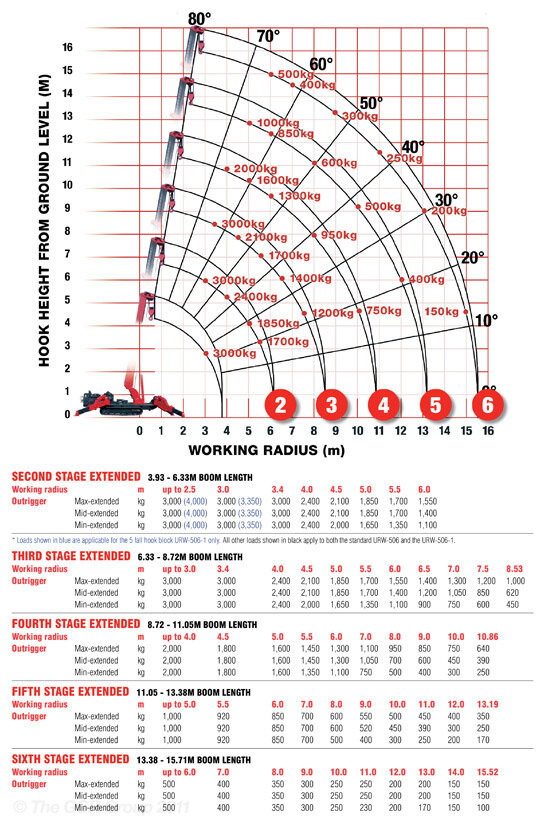

Boom Stages

Fall Stages

Outrigger Specs

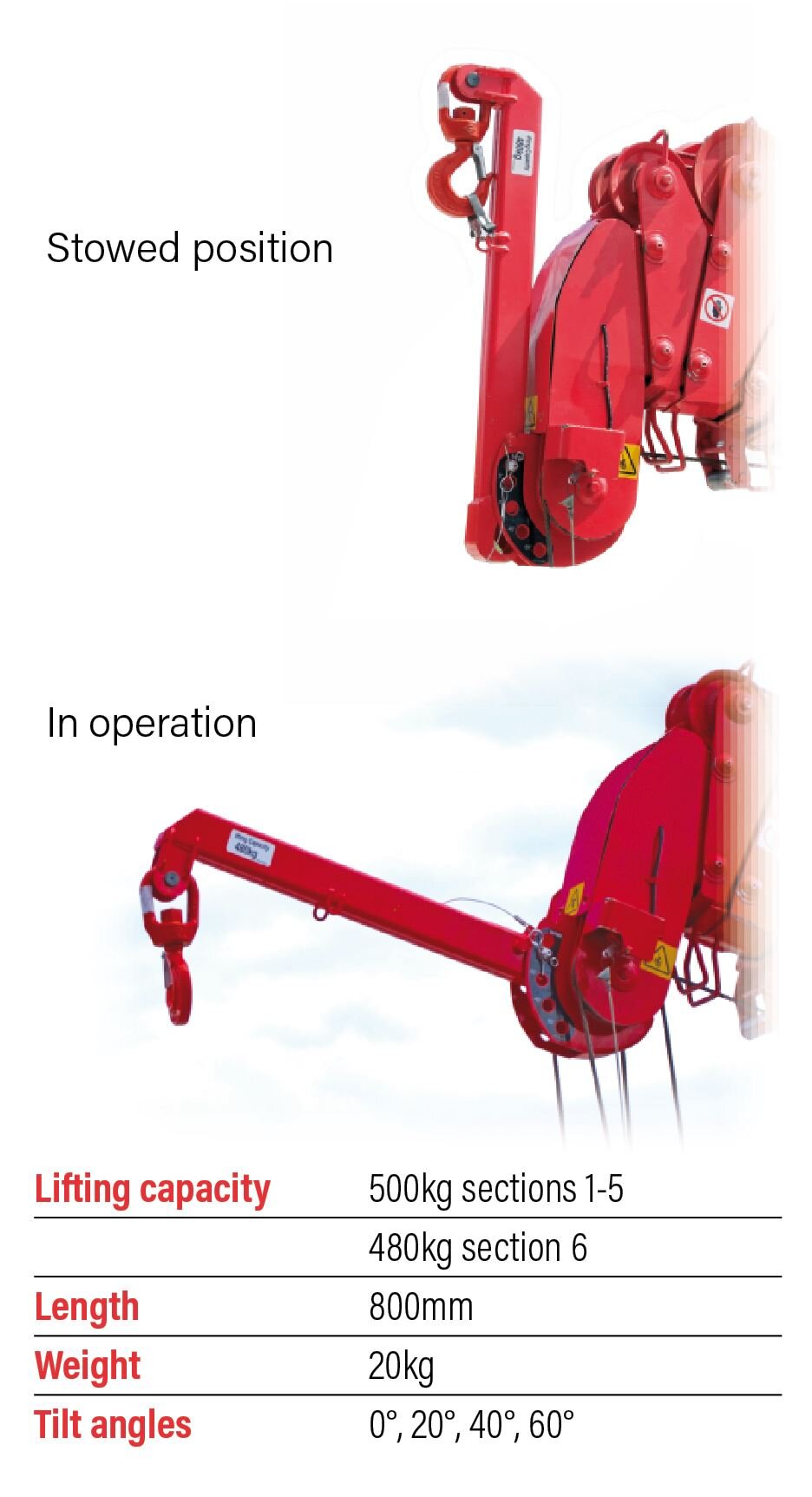

Searcher Hook

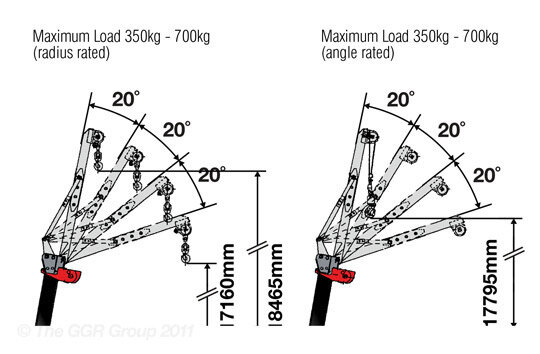

Searcher Hook & Fly Jib Max load

Specification

The URW-506 includes radio remote control and a safe load indicator that enables the operator to set a working area limitation for better control in sensitive environments. The Lift-Smart Advanced Safety System also includes overwinding alarm, computer controlled intelligent voice warning system, intelligent throttle activation and audio-visual warning device.

We also hire and sell a range of below-the-hook vacuum lifters that complement the UNIC mini crane range. Training is available on all of our mini crane models.

If you are looking to hire or purchase a UNIC URW-506, or require any further information, contact GGR Group today.

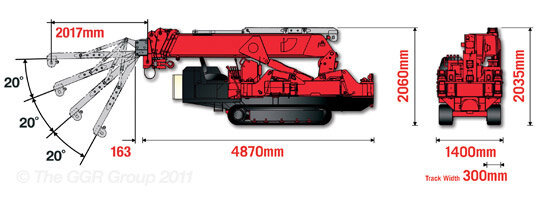

Dimensions
