UNIC URW-547 – Mini Spider Crane

Name: UNIC URW-547
SKU: MCU547
Price: On Request
Availability: InStock

The URW-547 offers extended reach, providing a maximum lifting height of 18.2m and a maximum lifting capacity of 4 tonnes as standard on the main boom.

The outrigger footprint remains the same as the URW-506, maintaining its compact dimensions. An option of additional length is given with a quickly installed searcher hook, with angles varying for 0° to 60° and a maximum capacity of 500kgs.

If you are looking to hire or purchase a UNIC URW-547, or require any further information, contact GGR Group today.

Capacity: 4t x 2.5m
Max Lifting Height: 18.2m
Total Width: 1.4m
Weight: 5010-5160kg

Contact Sales

Add to Enquires

Features

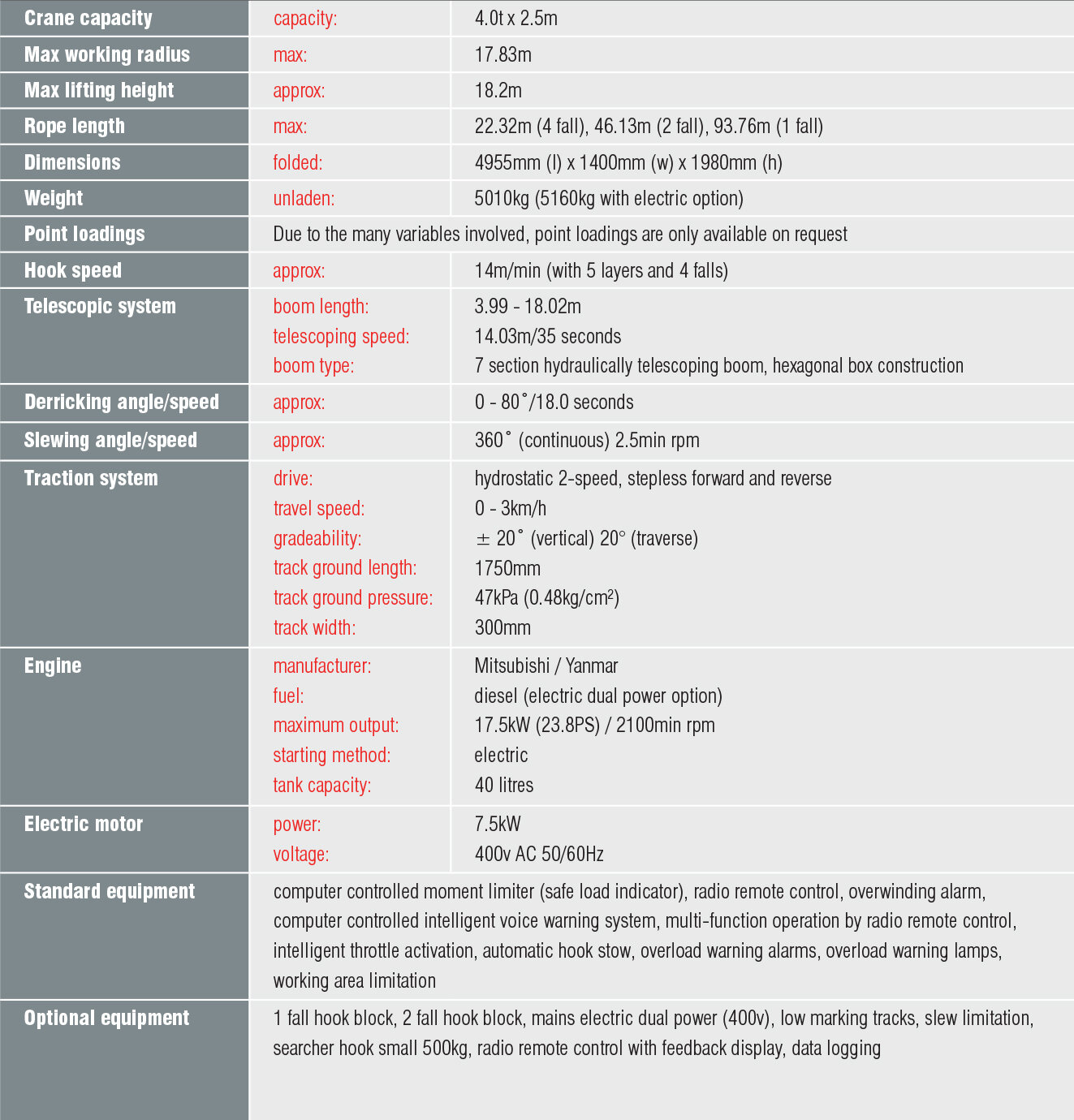

Technical Table

Dimensions

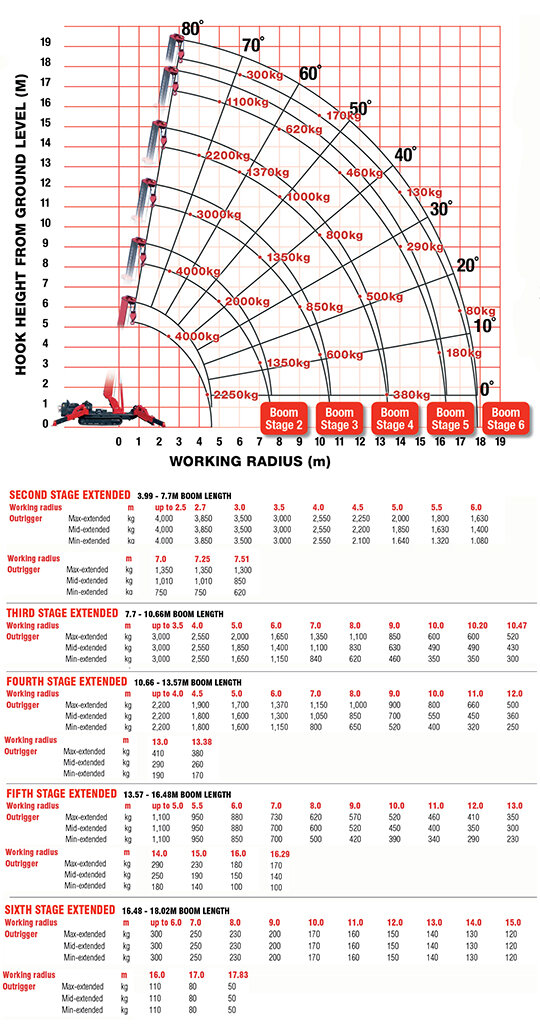

Boom Stages

Fall Stages

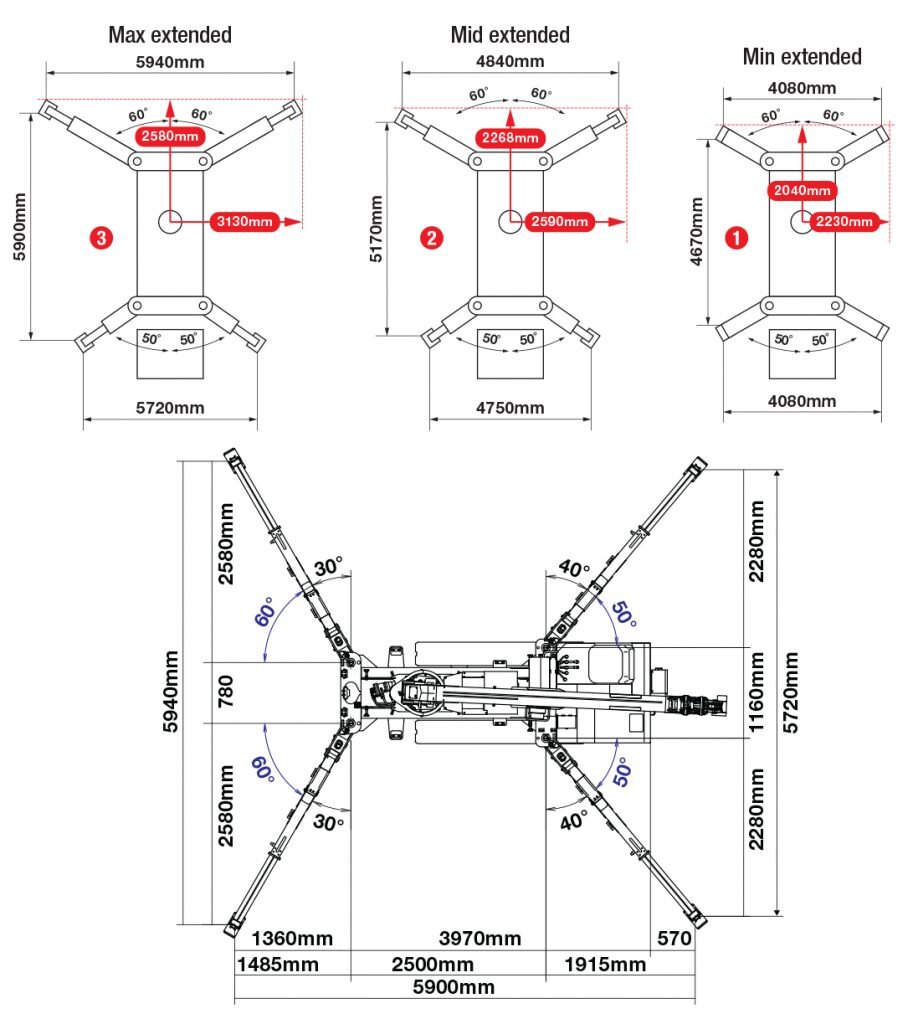

Outrigger Specs

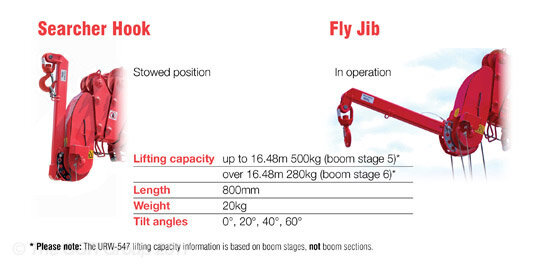

Searcher Hook & Fly Jib Max Load

Specification

If you are looking to hire or purchase a UNIC URW-547, or require any further information, contact GGR Group today.

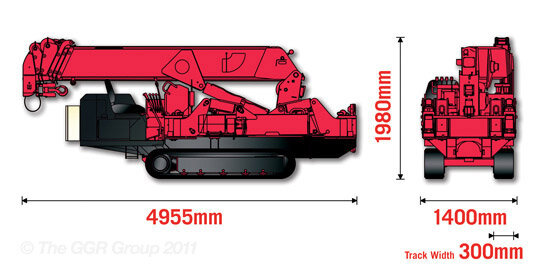

Dimensions

Capacity:

4.0t x 2.5m

Maximum Working Radius:

17.83m

Maximum Lifting Height:

18.2m

Rope Length:

22.32m (4 fall), 46.13m (2 fall), 93.76m (1 fall)

Length (Folded):

4955mm

Width (Folded):

1400mm

Height (Folded):

1980mm

Weight (Unladen):

5010kg (5160kg with electric option)

Traction System

Drive:

hydrostatic 2-speed, stepless forward and reverse

Travel Speed:

0 - 3km/h

Gradeability:

± 20˚ (vertical) 20° (traverse)

Track Ground Length:

1750mm

Track Ground Pressure:

47kPa (0.48kg/cm²)

Track Width:

300mm

Steering Angle:

Min Turning Radius:

Front Tyre Size:

Rear Tyre Size:

Power Plant

Fuel:

diesel (electric dual power option)

Manufacturer:

/Manufacturers/Mitsubishi

Maximum Output:

17.5kW (23.8PS) / 2100min rpm

Starting Method:

electric

Tank Capacity:

40 litres

Electric Motor Power:

7.5kW

Electric Motor Voltage:

400v AC 50/60Hz

Battery Charger:

Telescopic System

Hook Speed:

14m/min (with 5 layers and 4 falls)

Boom Length:

3.99 - 18.02m

Telescoping Speed:

14.03m/35 seconds

Boom Type:

7 section hydraulically telescoping boom, hexagonal box construction

Derricking Angle/Speed:

0 - 80˚/18.0 seconds

Slewing Angle/Speed:

360˚ (continuous) 2.5min rpm

Equipment

Standard Equipment:

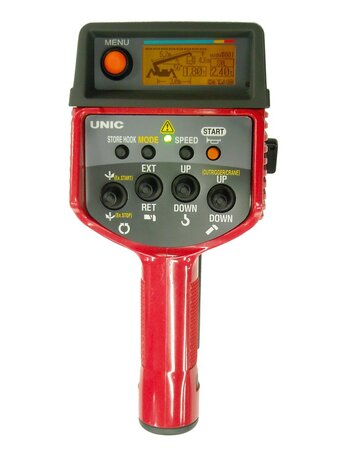

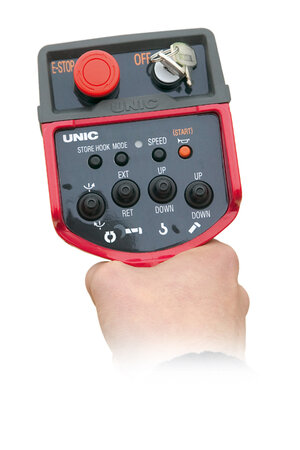

computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation

Optional Equipment:

1 fall hook block, 2 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation, searcher hook small 500kg, radio remote control with feedback display, data logging
